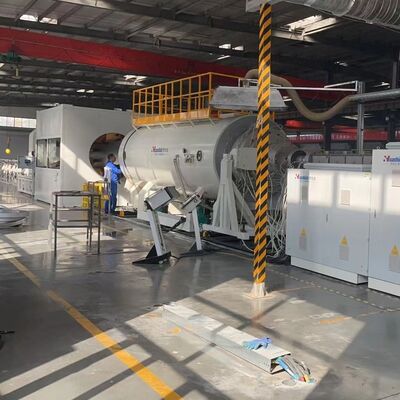

Computerized Single-Screw HDPE Jacket Pipe Extrusion Line with Dust-Free Planetary Cutting for Pre-Insulated Pipe Production Line

Huashida's high-efficiency extrusion line is engineered to produce black HDPE outer casing pipes for PU foam pre-insulated pipes. It delivers high-speed production, energy efficiency, a compact footprint, and easy operation, supported by an automatic control system for reliable, long-term performance.

• 1 set — Vacuum loader
• 1 set — Hopper dryer
• 1 set — High-efficiency single screw extruder
• 1 set — Vacuum calibration table
• 1 set — Water spraying tank
• 1 set — Hauling machine
• 1 set — Cutting machine
• 1 set — Discharging frame

• High-efficiency extruder delivers larger output with stable performance.
• Uniform, smooth pipe wall reduces raw material waste, and pipe thickness is adjustable.
• No edge trimming required — formed in a single pass.
• High degree of automation; one operator can run the line, saving labor costs.

The single screw is equipped with a barrier and mixing head, and the new-model barrel features slotting (channels). Together they ensure good plasticization, large output, and stable performance.

The vacuum calibration tank is mainly composed of a frame, stainless steel tank, vacuum system, spray cooling system, and position adjustment device. The vacuum pump exhausts air from the sealed tank to pressurize the fresh pipe against the calibrating copper sleeve and calibrate the outer diameter. Spray nozzles spray cooling water from all directions onto the pipe surface to cool the pipe promptly.

The haul-off machine is mainly composed of a driving device, track, clamping structure, adjusting system, side plate, and foundation bed. The haul-off tracks are driven by an AC motor with frequency conversion control to adapt to different extrusion speeds. An automatic length measuring device enables cutting at the set length.

The cutter adopts a blade punching principle to achieve no-dust cutting. It is mainly composed of a cutting device, clamping device, structure synchronous movement device, and frame.

The table surface is made of stainless steel. It uses pneumatic overturn for automatic discharging.

Qingdao Huashida Machinery Co., Ltd. has been engaged in the development and production of pipeline anti-corrosion equipment and raw materials since 2003. It is a leading manufacturer of heat-shrinkable sleeves and equipment in China, and the Huashida brand is favored by domestic and foreign customers. Several equipment design elements are covered by our patents. We have passed ISO 9001, ISO 14001 (environmental), and ISO 45001 (occupational health) certifications.

To date, more than 500 sets of production lines have been exported to Russia, Kazakhstan, Belarus, Egypt, Iran, Indonesia, and other countries. Through continuous summary and updating during production, the Huashida brand heat-shrinkable sleeve equipment has reached its fourth generation. The whole production line features reasonable design, intelligent operation, high speed and efficiency, and savings in energy, electricity, material, and labor costs. Continuous improvement in component design ensures uniform thickness, improved shrinkage, tensile strength, and elongation at break. Product quality meets the needs of different pipeline anti-corrosion requirements. We have a professional after-sales service team providing on-site and online video teaching and training, helping customers solve production problems as quickly as possible.
