PLC Controlled Pre-Insulated Pipe Production Line with Vacuum Calibration and Planetary Cutting HDPE Jacket Pipe Extrusion Line

The HDPE Jacket Pipe Extrusion Line is specially designed to manufacture high-quality polyethylene outer jackets for polyurethane (PU) pre-insulated pipes used in underground heating and thermal insulation systems.

The HDPE outer jacket provides excellent waterproofing, impact resistance, and mechanical protection, helping maintain the integrity and service life of the insulation layer.

Huashida offers advanced extrusion technology with a vacuum calibration system to ensure accurate dimensions, uniform wall thickness, and stable production. The line features an intelligent PLC control system, reliable operation, high production efficiency, and energy-saving performance, helping manufacturers improve productivity and reduce operating costs.

• Adopts next-generation solid-liquid separation screw technology (industry-leading in China).
• Multi-zone structure: feeding, separation, plasticizing, homogenizing, and mixing sections.
• Long L/D ratio for excellent plasticization.
• Extended feeding system ensures fast and stable material compression.
• Thermal isolation design prevents heat transfer to the feeding section.
• High-speed gearbox and powerful motor for enhanced extrusion efficiency.
• Production efficiency improved by approximately 30%, and heating energy consumption reduced by 20%.

• Made from high-strength alloy steel, resistant to deformation under high temperature and pressure.
• Multi-layer spiral flow channels with polished and chrome-plated surfaces for smooth flow.
• Counter-rotation design helps release extrusion stress and reduce pipe bursting risk.
• Optimized expansion and contraction angles ensure good melt flow and axial strength.
• Extended straight section increases radial and axial rigidity.
• Supports LDPE, HDPE, and mixed PE materials, lowering production cost.

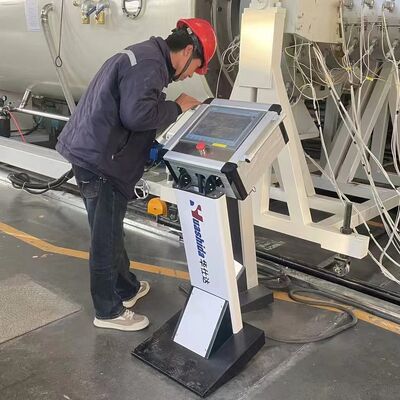

• Equipped with a PLC centralized control system.
• Custom-designed software integrates system and HMI interaction.
• One-button control for speed, wall thickness, and production capacity.
• Supports remote monitoring and fault diagnosis.
• Easy operation, safe and labor-saving.

• Features Hough block clamping structure to prevent pipe deformation during cutting.
• Ensures vertical and smooth cut surfaces without secondary processing.
• Equipped with dust collection system for a clean working environment.

• High strength and toughness, smooth surface finish.
• Uniform wall thickness with excellent pressure resistance.
• Outstanding resistance to stress cracking and low-temperature impact.

• Advanced extrusion technology combined with independent R&D and innovation.
• Highly automated system with reliable operation and optimized energy efficiency.
• Suitable for processing a wide range of polyethylene materials.
• User-friendly design for safe operation, convenient maintenance, and long-term reliability.

• District heating pipeline systems.
• Oil and chemical insulation pipelines.
• Municipal water supply and drainage projects.
• Liquid and gas transmission systems.
• Outer jacket pipe: high-density polyethylene (HDPE) for underground installation, or galvanized steel sheet for above-ground installation.
