PU PUR Spray Foaming Production Line for Pre-Insulated Pipeline Manufacturing

Huashida's pre-insulated pipe production line is designed to manufacture directly buried thermal insulation pipes. The finished pipe consists of a steel working pipe, a rigid polyurethane (PU) foam insulation layer, and a polyethylene (PE) outer protective jacket.

The line integrates continuous PU spraying and PE jacket winding processes, ensuring efficient production and consistent product quality. Its advanced automation helps optimize raw material utilization, improve foaming quality and closed-cell performance, and reduce water absorption. The integrated three-layer pipe structure provides reliable thermal insulation and long-term protection for underground pipeline systems.

With its energy-efficient production process and durable finished products, the line offers significant economic and environmental benefits.

Main Equipment Configuration:

• Steel Pipe Shot Blasting Machine - Prepares the steel pipe surface to ensure proper cleanliness and coating adhesion.

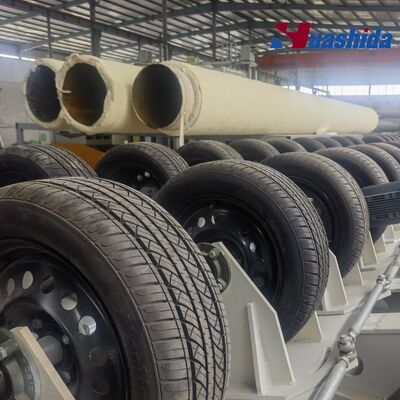

• PU Spray Foaming Production Line - Forms the rigid polyurethane insulation layer around the steel working pipe.

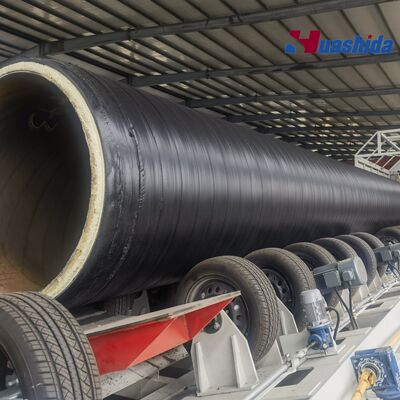

• PE Outer Jacket Winding Production Line - Applies the polyethylene protective jacket to provide moisture resistance and external protection.

Applications:

Suitable for manufacturing pre-insulated pipes used in district heating and cooling networks, petroleum transportation, chemical industries, and other industrial pipeline systems.

Production steps:

1.External shot blasting for steel pipe rust removal
2.Steel pipe transferred to spraying conveyor line via pipe transport cart
3.Pipe preheating
4.Polyurethane foam spraying
5.Pipe transported to storage platform by lifting cart
6.PE jacket winding

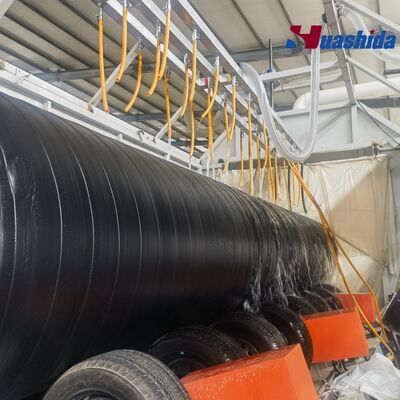

7.Water cooling
8.Connection cutting
9.Finished pipe inspection
10.Pipe end repairing
11.Spray coding and packaging


Production line parameter:

1.Steel pipe range: 206mm-1820mm

2.Processing capacity:≤250m²/h

3. Cleaning class: Sa2.5

4.Used material: ISO (isocyanate), POLY (premixed polyether polyols), PE

5.Main equipment: Shot blasting and rust removal production line, Polyurethane spray production line, PE winding production line.

Equipment Show:

1. Awarded the first (set) technical equipment in Shandong Province
2. Evaluation Report on Standardization of Scientific and Technological Achievements in Qingdao City
3.Having multiple national patents
4.Intelligence, automation, and reducing manual labor
5.Efficient and energy-saving, with low production costs
6.Stable and reliable, with a high yield of finished products and minimal waste
