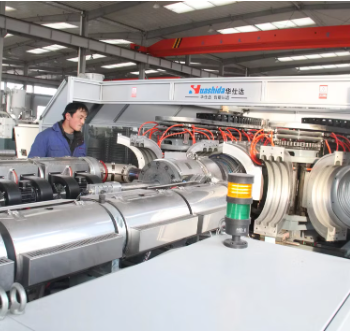

Large Diameter HDPE Spiral Corrugated Pipe Machine for Sewage Culverts with PLC

This large diameter HDPE spiral corrugated pipe machine is a complete corrugated pipe extrusion machine for producing Weholite-type hollow-wall corrugated pipes from Ø400 mm up to Ø3000 mm. Using multi-material HDPE, PP and PVC processing, the corrugated pipe making machine forms an I-Beam structured wall with a high strength-to-weight ratio and ring stiffness of SN4, SN8 or SN16.

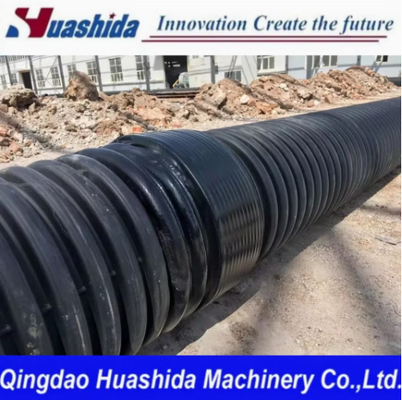

The finished large diameter corrugated pipes replace concrete and cast iron in sewage collection, stormwater drainage and road culvert projects. They offer up to 50 years of service life, strong chemical resistance and a choice of rubber ring socket or electro-fusion joints. A PLC keeps this automatic corrugated pipe line stable from profile extrusion to final cutting.

• Ø400–3000 mm Large Diameter Coverage: Four spiral corrugated pipe machine models, SKRG-1200 to SKRG-3000, cover small sewage collectors up to the largest culverts.
• I-Beam Structured Wall: Hollow-wall corrugated drainage pipes carry heavy ground loads while staying light for trench handling, lowering installation cost.
• HDPE, PP and PVC in One Line: One corrugated pipe machinery line switches between materials, so manufacturers can answer different tenders without extra equipment.
• Chemical Resistance and Long Life: Corrugated plastic pipe production on this line delivers pipes that resist acids, alkalis and salts, for up to 50 years of buried service.
• PLC Synchronized Control: Precise coordination of extrusion and winding gives uniform wall thickness and consistent quality on every corrugated pipe.
• Flexible Jointing: Rubber ring socket and electro-fusion joints suit new trenches and the retrofitting of existing networks.

This HDPE corrugated pipe extruder uses a two-part synchronized process:

The two processes keep ring stiffness, wall geometry and bonding strength consistent across the finished corrugated pipes.

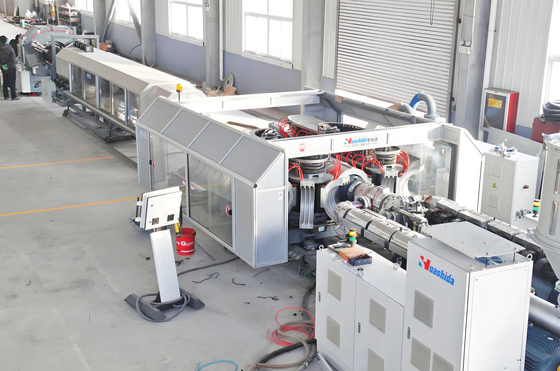

This full-set HDPE PP PVC double wall corrugated pipe production line is a complete plastic pipe extrusion line built from two core synchronized processing units and an integrated PLC control system. It is widely supplied to pipe manufacturers and municipal infrastructure projects across the Middle East, Russia, Central Asia and Africa.

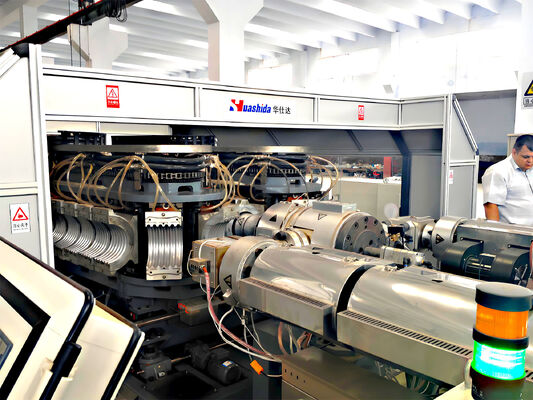

Includes a high-torque single screw extruder (SJ-65 / 80 / 90, model-configured), square-tube I-Beam die head, stainless-steel vacuum calibration table, spray cooling tank and heavy-duty haul-off machine. This HDPE pipe extruder line section outputs dimension-stable I-Beam structured profiles for making HDPE, PP and PVC Weholite-style corrugated drainage pipes.

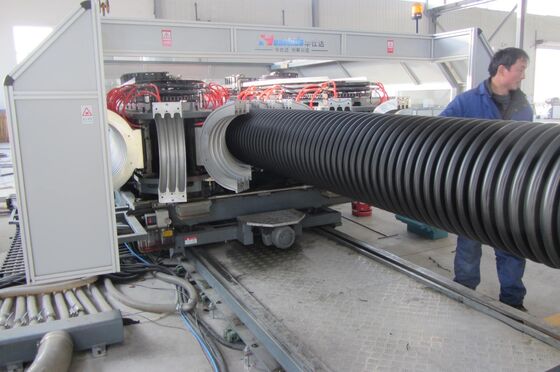

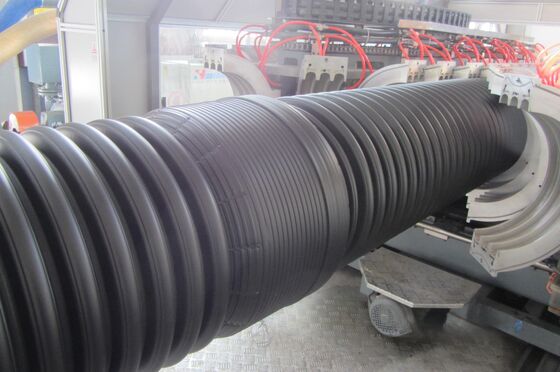

Composed of a secondary melt-adhesive extruder, a Weholite-spec spiral winding machine (winding speed 0.3–12 m/h) and an automatic precision cutting system. This double wall corrugated pipe machine unit shapes complete hollow double-wall pipes under precisely adjusted winding tension for municipal sewage and stormwater drainage pipe production.

Full-set centralized control synchronizes profile extrusion and spiral winding. It keeps ring stiffness stable, wall thickness even and finished-pipe quality reliable during long-term continuous mass production on this corrugated pipe production line, including large-diameter structured-wall drainage pipes.

1. Municipal Sewage Drainage: Sewage collection networks and main sewer trunk lines using large diameter corrugated pipe.
2. Stormwater Management: Stormwater culverts, flood-control channels and rainwater retention systems.
3. Road Culverts and Highway Drainage: Highway crossings and underground utility conduits needing high ground load capacity.
4. Industrial Wastewater: Chemical-resistant discharge pipelines for plants and industrial parks.
5. Pipeline Retrofitting: Replacement of aged concrete, clay and cast-iron drainage networks.
