Turnkey HDPE Pipe Extrusion Machine for Water Gas Supply with PLC Control

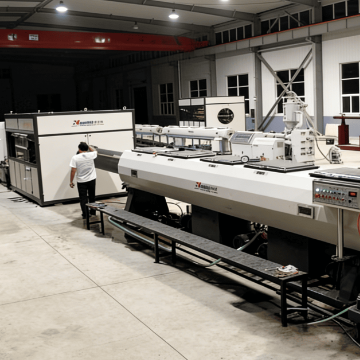

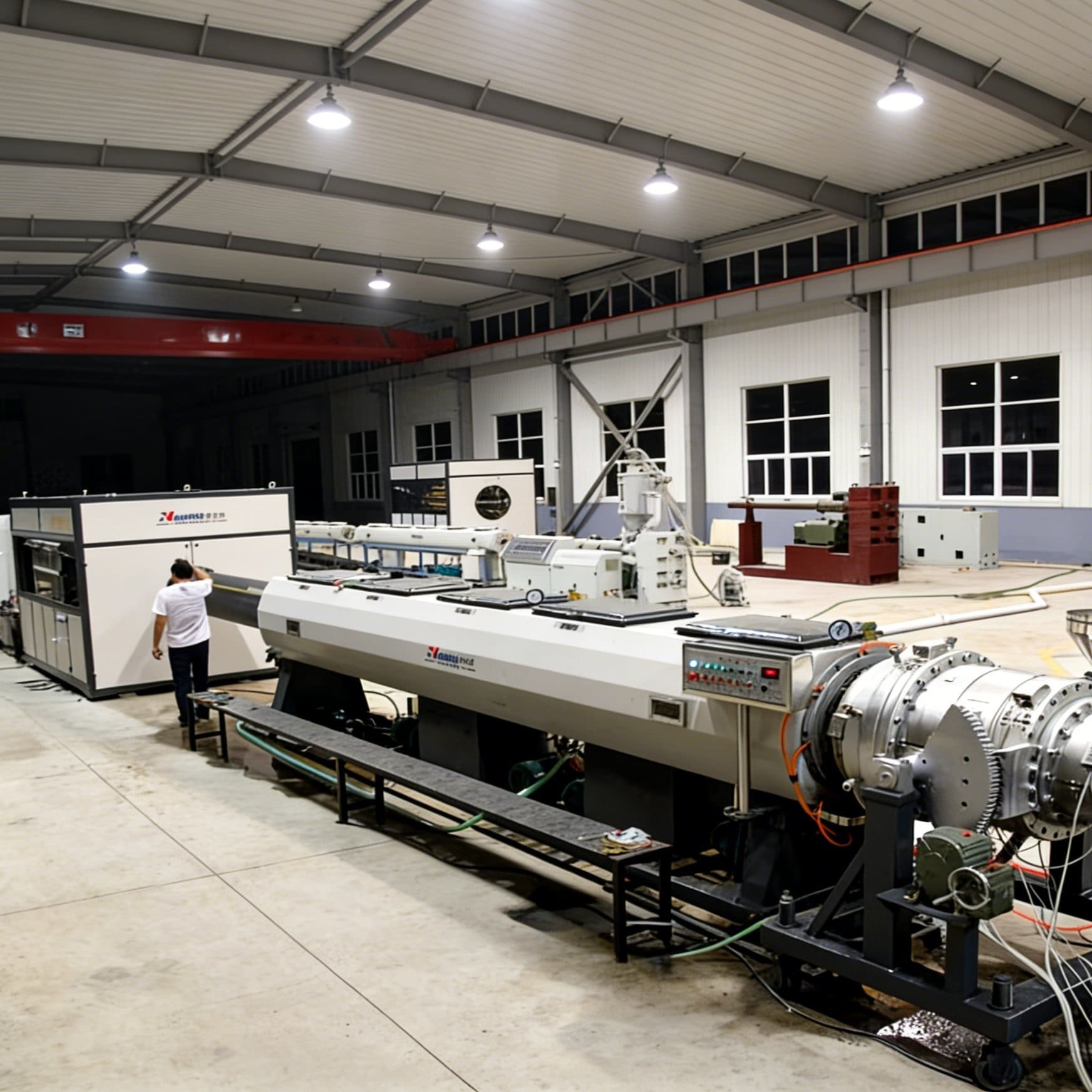

The Turnkey HDPE Pipe Extrusion Machine for Water Gas Supply with PLC by Qingdao Huashida Machinery is a complete, ready-to-run HDPE pipe extrusion machine for factories producing PE80 and PE100 water supply and gas supply pressure pipes from Ø16mm to Ø1600mm, with output up to 2000–2500 kg/h on the flagship SPEG-2200. We supply the full turnkey pipe extrusion line, from layout design and manufacturing to installation, commissioning and operator training, so new pipe plants and expanding producers can start production quickly and with confidence.

By integrating a 38CrMoAlA nitrided alloy single screw extruder, an advanced helical basket die head, a stainless steel vacuum calibration tank and a PLC full-touch control system, this HDPE pipe making machine ensures ±0.1mm diameter accuracy, uniform wall thickness and strong PE100 hoop strength for underground water supply pipe and gas pipe production. Chipless planetary cutting and automatic stacking keep the PE pipe production line clean, continuous and easy to operate.

Our PE Pipe Production Machinery comes in various configurations to meet diverse output requirements.

This HDPE pipe extrusion machine serves pipe manufacturers and infrastructure suppliers worldwide:

• Water Supply Pipe Production: PE100 pressure pipes for municipal water distribution and transmission networks
• Gas Pipe Production: PE80 and PE100 pipes for urban natural gas distribution that need consistent wall thickness and hoop strength
• Agricultural Irrigation: Small-diameter SPEG-110 and SPEG-250 configurations for high-volume irrigation pipe in Central Asia, the Middle East and Africa
• Energy and Industrial Pipelines: Landfill leachate, chemical transport and geothermal heating pipes made from durable polyethylene

1. Automatic Feeding & Drying: Vacuum loader and hopper dryer remove moisture from PE resin, avoiding bubble defects in every HDPE pipe you make.
2. High-Torque Extrusion: The nitrided single screw extruder plasticizes PE80 and PE100 evenly with stable melt pressure.

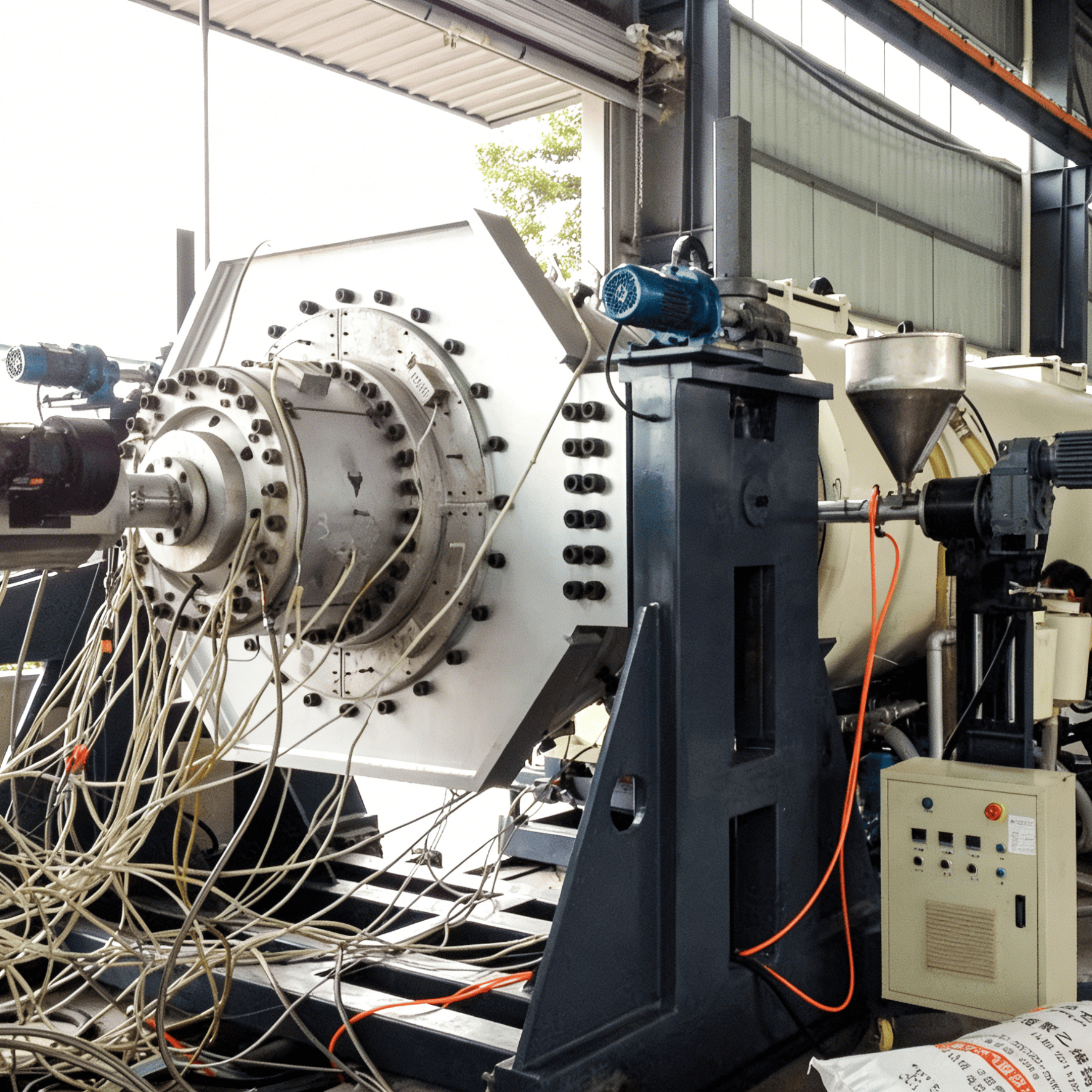

3. Helical Basket Die Head Forming: Uniform melt mixing improves roundness and hoop strength for water and gas pressure pipe.
4. Precision Vacuum Calibration: Stainless steel vacuum tank with water film lubrication holds ±0.1mm diameter accuracy.
5. Multi-Stage Spray Cooling: Gradient water cooling prevents deformation and builds pipe toughness.
6. Chipless Planetary Cutting: Heavy-duty synchronous haul-off with dust-free, burr-free cutting.
7. Co-Extrusion Marking & Automatic Stacking: 25/25 color strip co-extrusion marks water and gas pipe lines, and the automatic stacker supports continuous production.

• 1 set Vacuum automatic loader — continuous quantitative PE resin feeding
• 1 set Hopper dryer — raw material dehumidification
• 1 set High-torque SJ150*33 38CrMoAlA nitrided single screw extruder
• 1 set 25/25 color marking co-extruder — automatic pipeline identification

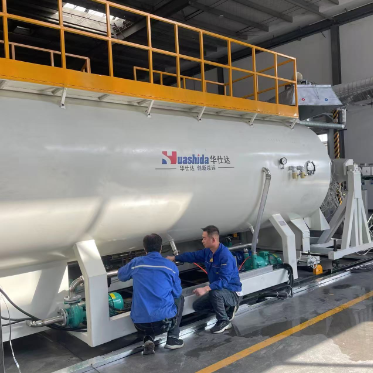

• 1 set Stainless steel vacuum calibration table with water film lubrication
• 2/4 sets Gradient water spray cooling tanks

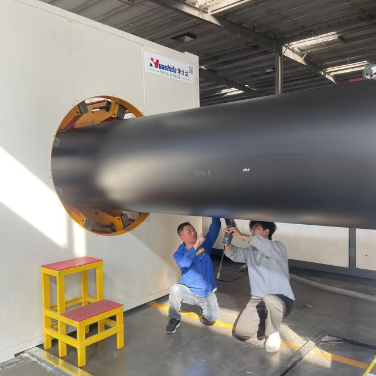

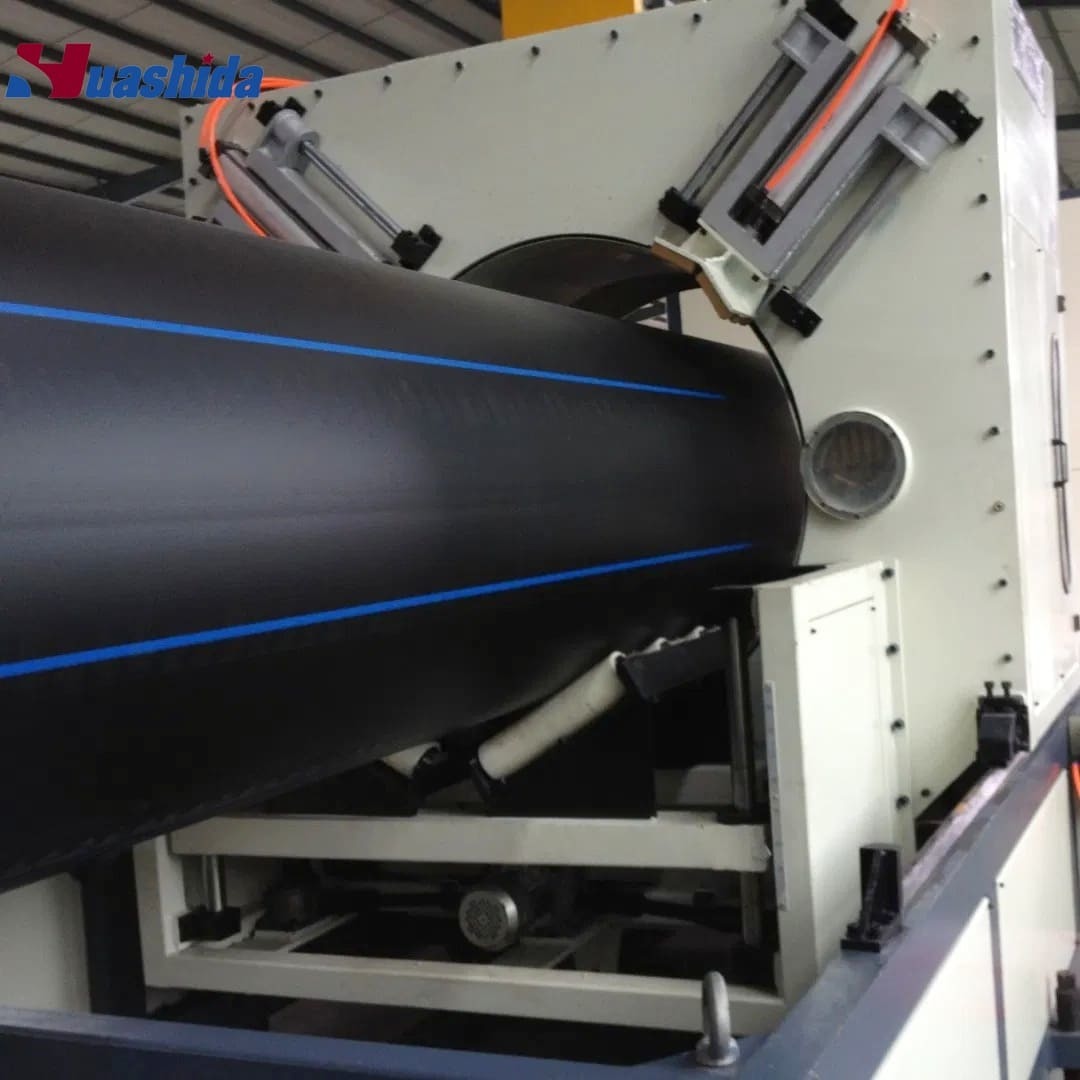

• 1 set Heavy-duty synchronous haul-off traction machine

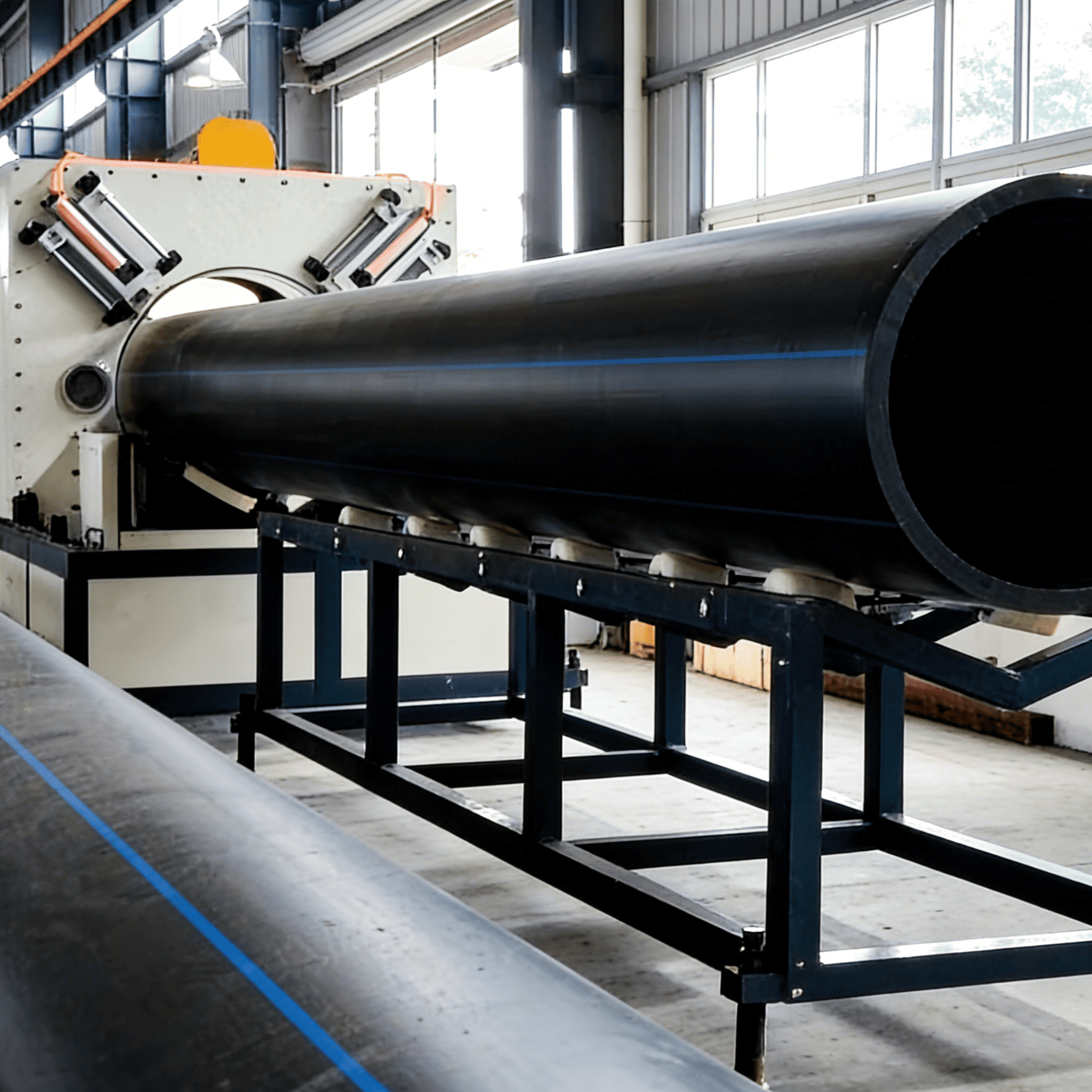

• 1 set Chipless planetary cutting machine — dust-free environmental cutting
• 1 set Automatic pipe stacker and tipping table

• Turnkey Delivery: One supplier for design, manufacturing, installation, commissioning and training of your HDPE pipe production line
• 16–1600mm Pipe Range: One equipment family covers small irrigation pipe through large water and gas mains
• High Output: 350 kg/h up to 2500 kg/h depending on the model
• Helical Basket Die Head: Consistent wall thickness and PE100 hoop strength for pressure applications
• PLC Control: Real-time monitoring, automatic speed matching and fault self-diagnosis
• Chipless Planetary Cutting: Dust-free, burr-free pipe ends that meet factory environmental standards

• Complete Turnkey Service: Layout design, installation, commissioning and operator training for your plastic pipe extrusion line
• 389+ Global Projects: Deployed in Russia, Turkey, UAE, Iran, Kazakhstan and 60+ countries
• 23 Years of Engineering: R&D center with 11 senior engineers focused on HDPE pipe extrusion machines
• Certified Quality: BV audited supplier with CE and ISO9001 certification

Founded in 2003, Qingdao Huashida Machinery Co., Ltd. is a Bureau Veritas (BV) audited manufacturer specializing in HDPE pipe extrusion lines, steel pipe anti-corrosion coating lines, pre-insulated pipe production lines and plastic pipe extrusion technology. Our 23-year legacy is built on supplying reliable equipment for water and gas supply pipe production worldwide.

• HDPE PE100 Pipe Extrusion Lines (16–1600mm, 350–2500 kg/h, Water and Gas Supply)
• 3LPE/FBE Steel Pipe Anti-Corrosion Coating Lines (36–4200mm)
• Turnkey Pre-Insulated Heat Pipe Production Systems
• Large Diameter HDPE Jacket Pipe Extrusion Lines (110–2200mm)
• Geomembrane and Plastic Sheet Extrusion Equipment
