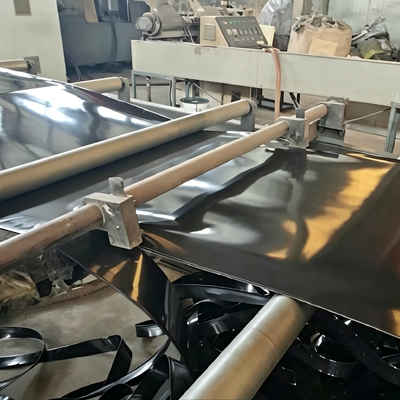

Automatic Heat Shrink Sleeve Machine for Drainage Corrugated Pipe Joints with PLC

Cross-Linked PE Heat Shrink Sleeve Production Line for Pipeline Field Joint Protection

Developed by Qingdao Huashida Machinery with over 21 years of pipeline anti-corrosion equipment manufacturing experience, this automatic heat shrink tape machine is a complete sleeve production line for municipal drainage, corrugated pipe and pipeline joint sealing. It combines PE film extrusion, radiation cross-linking and precision hot melt adhesive lamination to mass-produce cross-linked PE heat shrink tape and sleeves. The line is controlled by a PLC system, ensuring stable and continuous output. It is widely used by customers in the Middle East, Russia, Central Asia and Africa.

This plastic extrusion line supports standard two-layer products and upgraded three-layer fiberglass reinforced products. It is available in 650mm, 750–800mm and 1100–1200mm configurations and can be customized to the tape width and output you require. Applications cover oil and gas transmission pipelines, district heating pre-insulated pipelines and municipal drainage pipelines.

The line produces radiation cross-linked PE protective materials for pipe joints, in line with international anti-corrosion standards.

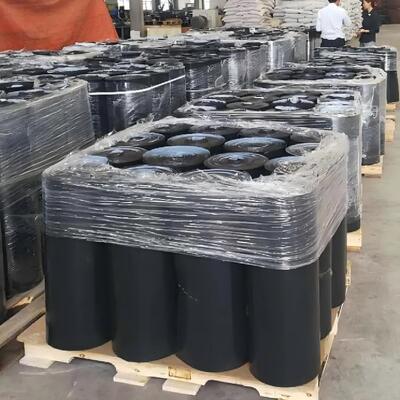

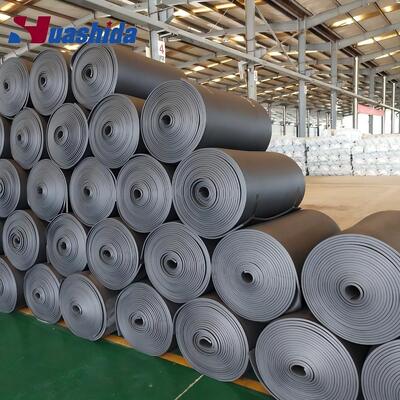

Cross-linked PE heat shrink tapes, conventional sleeves and clip-on sleeves. With >150N/cm peel strength (ASTM D1000), they deliver stable sealing for drainage pipe sealing tape and corrugated pipe joint sleeve applications.

Three-layer reinforced tapes and sleeves with 15–20MPa tensile strength, strong impact resistance and long-term aging resistance, engineered for harsh underground conditions.

Tape and sleeves from this sleeve production line suit a wide range of pipe joint sealing jobs:

• Municipal and Industrial Drainage Protection: large-diameter spiral corrugated pipes, steel-reinforced plastic pipes and PVC-U sewage pipes.
• Oil and Gas Pipeline Girth Weld Protection: 2PE/3LPE coated steel pipe girth welds and field joint coating.
• District Heating Pipeline Sealing: joint sealing for PU foam pre-insulated pipelines.
• Pipeline Maintenance and Rehabilitation: gap sealing, damage repair and joint renovation of buried pipelines.

Heat Shrinkable Sleeve for Oil & Gas Pipe

Heat Shrinkable Sleeve for Thermo Insulated Pipe

For Metal Reinforced HDPE Corrugated Pipe (Drainpipe)

This line uses a modular configuration of extrusion system, adhesive coating system, optional fiberglass upgrade device and PLC control.

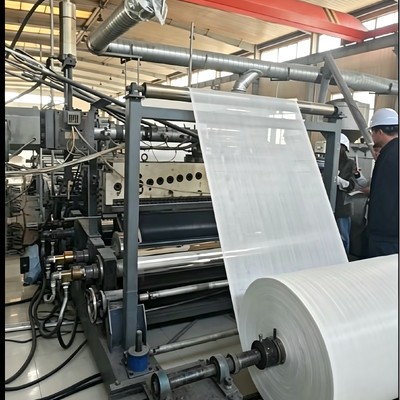

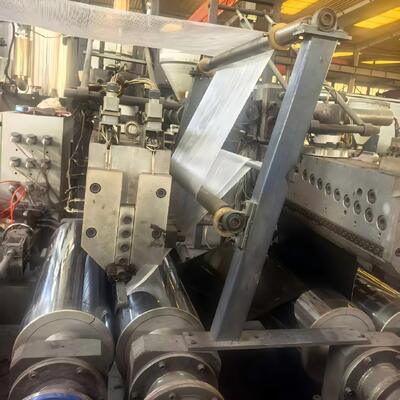

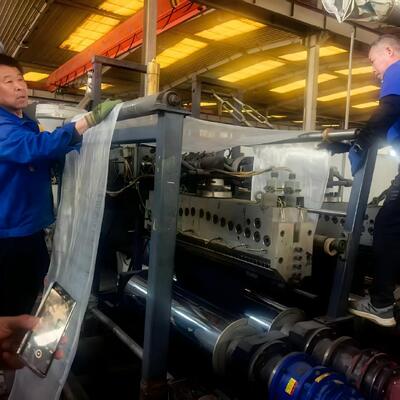

• RS-800 PE Backing Extrusion Line: stable 150–200kg/h output of high-purity LDPE/HDPE backing film. This PE film extrusion machine ensures uniform film for tape production.
• TJ-700 Adhesive Coating Line: automatic online hot melt adhesive coating (DuPont, Sumitomo and Hanwha compatible), secondary stretching and shaping, for a uniform adhesive layer and >150N/cm peel strength.
• Fiberglass Reinforced Upgrade Configuration: fiber unwinding, constant-temperature heating and leveling equipment for three-layer reinforced tape.
• Auxiliary and Intelligent Control System: irradiation cross-linking device, circulating cooling system, precision haul-off unit, PLC electric control and ABB main motor.

• Working Place: indoor non-hazardous production workshop
• Power Supply: 380V 50Hz (−10%, +5%)
• Working Humidity: ≤85%, no condensation
• Circulating Cooling Water: ~0.5m³/min (≤20ºC, 0.3MPa)
• Compressed Air: ~0.4m³/min, working pressure >0.5MPa

The cross-linked sleeve machine uses a three-step molding process for pipe joint sealing materials:

1. 1 Substrate Extrusion: high-purity PE raw material is plasticized and extruded into flat, uniform backing film.
2. 2 Electron Beam Radiation Cross-Linking: professional irradiation gives the film a shape memory effect, high tensile strength and aging resistance.
3. 3 Online Adhesive Lamination and Shaping: the film is precisely stretched and compounded with imported hot melt adhesive. Finished tape meets ASTM D1000 and DIN 30672.

Three-Layer Fiberglass Reinforced Process: automatic fiberglass unwinding, constant-temperature heating and leveling are added to form three-layer reinforced tape in one continuous pass, with ≥100N/cm shear strength (DIN 30672).

• Built for Drainage and Pipeline Joints: one pipeline anti-corrosion tape machine serves drainage, heating and oil and gas projects.
• Two Products on One Line: standard two-layer and fiberglass reinforced three-layer tape from the same plastic extrusion machinery.
• International Standard Performance: >150N/cm peel strength, ≥100N/cm shear strength and ≤0.05% water absorption.
• Intelligent and Energy-Saving: PLC and ABB motor deliver automatic, continuous operation at 150–200kg/h.
• Premium Adhesive Compatibility: works with world-class brand hot melt adhesives for long-term bonding.
• Proven Technology: independent R&D, a national expert workstation, 9 senior engineers and 389+ global project cases.

All finished radiation cross-linked PE heat shrink sleeves comply with ASTM, DIN and GB/T standards:

• Tensile Strength: 15–20MPa (ASTM D638)
• Elongation at Break: ≥350%
• Peel Strength: >150N/cm (ASTM D1000)
• Shear Strength: ≥100N/cm (DIN 30672)
• Adhesive Softening Point: 70–80°C (ASTM E28)
• Water Absorption Rate: ≤0.05% (ASTM D570)

Qingdao Huashida Machinery is a professional manufacturer of pipeline anti-corrosion equipment and plastic extrusion machinery with over 21 years of R&D and production experience. Our heat shrink sleeve machine family covers three widths:

• Model 800 (650mm): confirmed Hot Item, anti-corrosion pipeline joints
• Model 1000 (750–800mm): confirmed Hot Item, pipeline field joint coating
• Model 1350 (1100–1200mm): girth weld protection and large-diameter field joint coating

All three models are exported to dozens of countries. We customize each line to the customer's output, tape width and pipe application.
