Name: HDPE Jacket Pipe Extrusion Production Line with Vacuum Calibration System
Brand: Qingdao Huashida Machinery Co., Ltd.
SKU: PE Pipe
Price: 1507500.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Raw Material: PE

Cutting Method: Chipless Planetary Cutter

Application: Producing Pre-Insulated Pipe Jacket

Calibration Method: Vacuum And Water Spraying Cooling

Highlight:

HDPE jacket pipe extrusion line

vacuum calibration production line

pre-insulated pipe manufacturing line

Basic Infomation

Place of Origin: QINGDAO,CHIAN

Brand Name: HUASHIDA

Certification: CE, ISO9001:2008

Model Number: PE Pipe

Payment & Shipping Terms

Packaging Details: Standard Package

Delivery Time: 60DAYS

Payment Terms: L/C,T/T

Supply Ability: 30 Sets/Year

Gallery

HDPE Jacket Pipe Extrusion Production Line with Vacuum Calibration System

Product Description

HDPE Jacket Pipe Extrusion Production Line with Vacuum Calibration System

Qingdao Huashida Machinery Co., Ltd. presents a state-of-the-art HDPE Jacket Pipe Pre-Insulated Pipe Extrusion Line designed to manufacture high-quality insulation pipes with diameters ranging from 110mm to 2200mm.

HDPE jacket pipes are produced by vacuum calibration method, with smooth inner and outer walls, a long service life, good anti-corrosion and heat preservation performance, and mechanical properties.

It is applicable for extrusion of HDPE casing pipe(jacket pipe), which is used as a protective cover of rigid pre-insulated pipe in district heating, hot water piping systems.

HDPE Jacket Process Flow:
Vacuum feeding PE granule-->hot air dry material-->extrusion plasticizing-->

mold shaping-->Vacuum sizing-->water cooling-->Pulling out-->cutting pipe-->carrier laying-off pipe

Style	PE-110/500	PE-655/1380	PE-960/1860	PE-1155/2200
Main Extruder	SJ-75/33	SJ-120/33	SJ-150/33	SJ-150/33
Pipe diameter	Φ110-600mm	Φ655-1380mm	Φ960-1860mm	Φ1155-2200mm
Capacity	250-350kg/h	700-900kg/h	1000-1200kg/h	1350kg/h
Installed power	160kw	480kw	580kw	650kw
Length	26m	36m	45m	45m

Production line composition:
-1set   Vacuum loader
-1set   Hopper dryer
-1set   High-efficiency single screw extruder
-1set   Vacuum calibration table
-1set   Water spraying tank
-1set   Hauling machine
-1set   Cutting machine
-1set   Discharging Frame
-1set PLC

Technical Highlights:

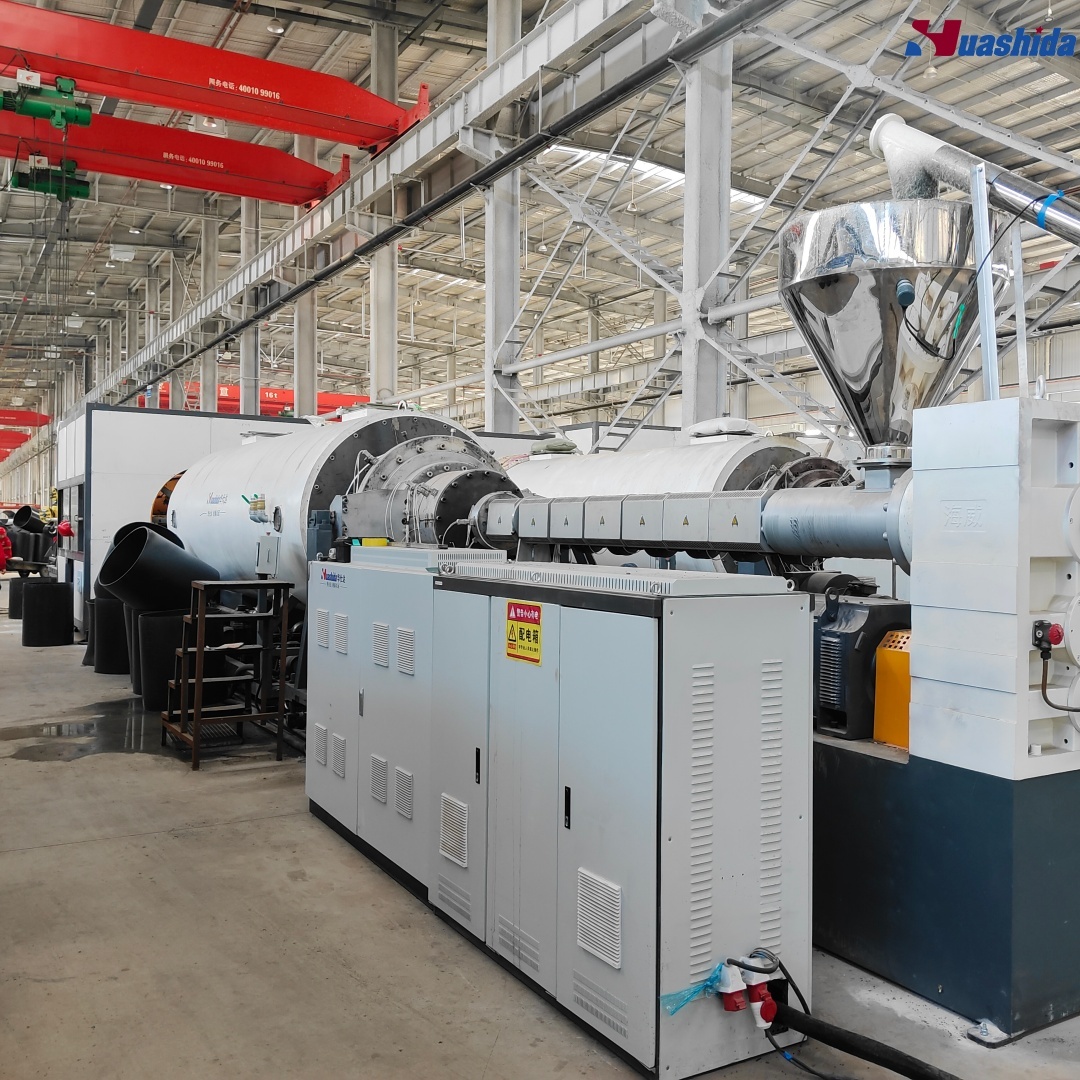

Single-screw extruder
Proprietary single-screw extruder optimized for polyethylene (PE) materials
Precision temperature control system ensures consistent material fusion

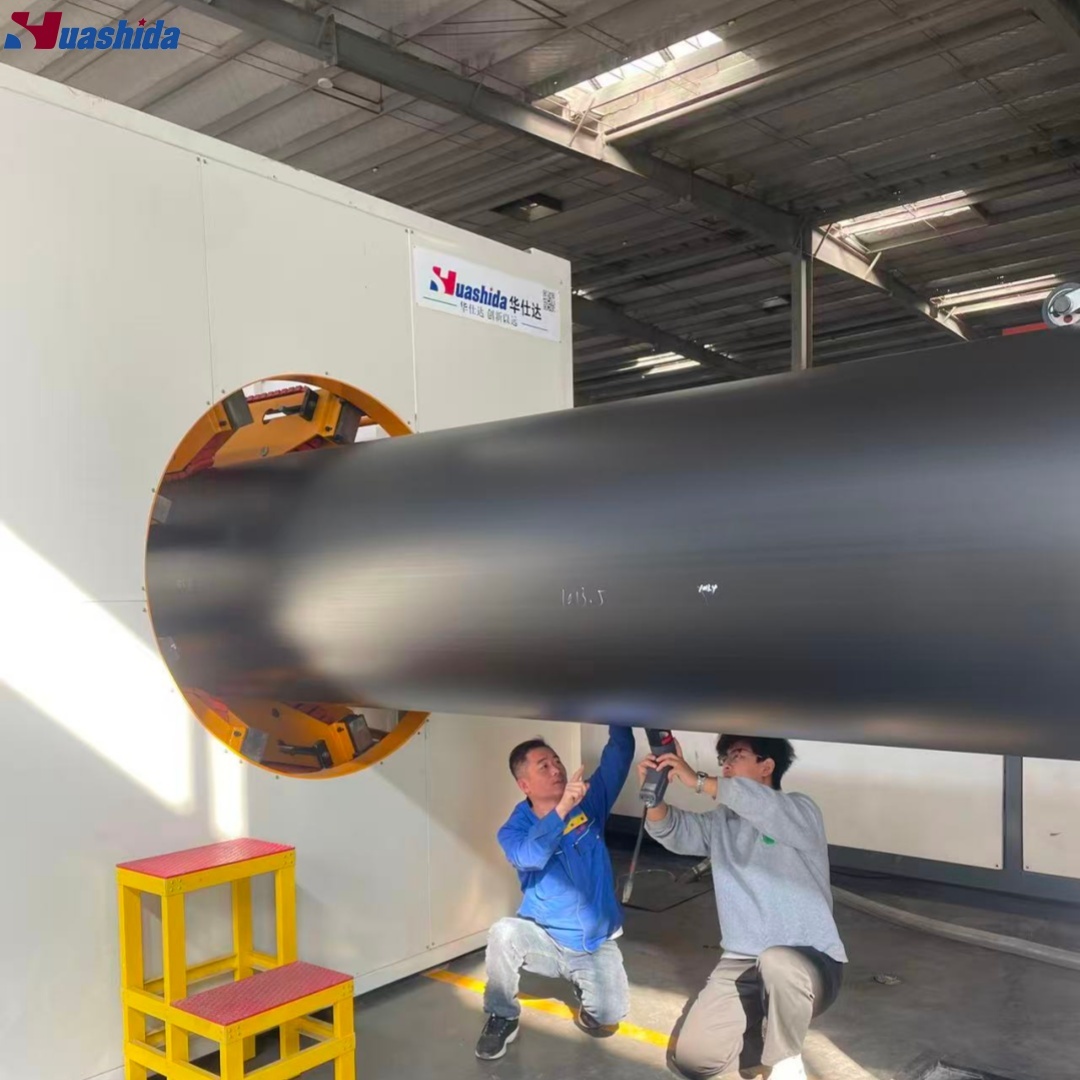

HDPE Jacket Pipe Extrusion Production Line with Vacuum Calibration System

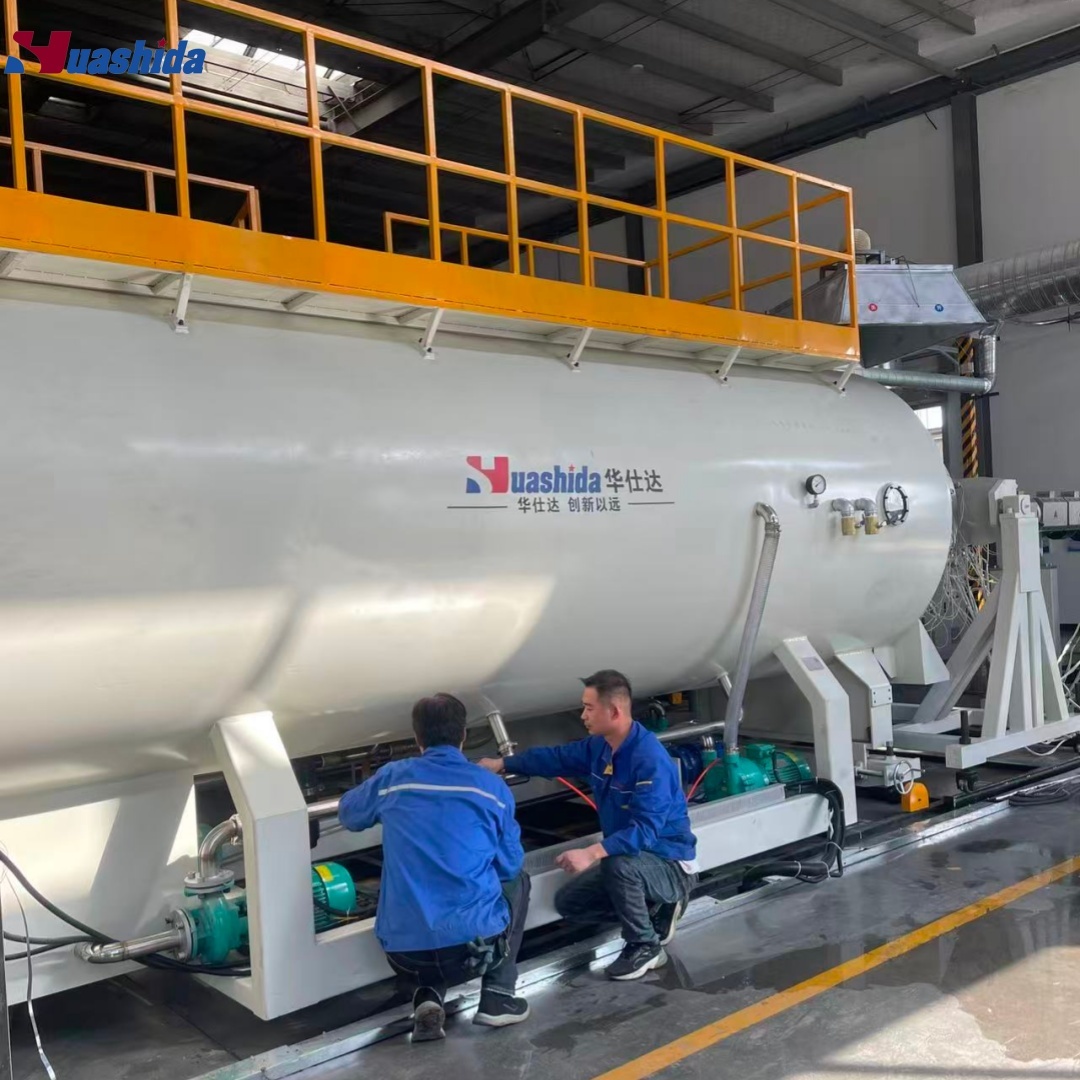

Vacuum Calibration
Patented vacuum calibration system replaces traditional internal pressure methods
HDPE Jacket Pipe Extrusion Production Line with Vacuum Calibration System

Smart Automation
Fully integrated PLC control system
Real-time process monitoring
HDPE Jacket Pipe Extrusion Production Line with Vacuum Calibration System

Production Capabilities
Diameter range: 110mm - 2200mm (customizable)
Output capacity: 250-1600 kg/h (material-dependent)
HDPE Jacket Pipe Extrusion Production Line with Vacuum Calibration System

Features of the HDPE sleeve production line:

1.small dimension
2.high degree of automation, can be operated by one person, saving labor costs
3.long service life.
4.high-efficiency extruder gives larger output, stable performance
5.pipe wall is average and smooth
6.no waste of raw material
7.One-time molding

The advantages of our company:

1.Provide a comprehensive and fully integrated production solution, including design, installation, commissioning, and training.
2.Share you 389 sets of production experience from all the world
3.Having 9 professional senior engineers
4.Having a high-end plastic machinery equipment expert workstation in China

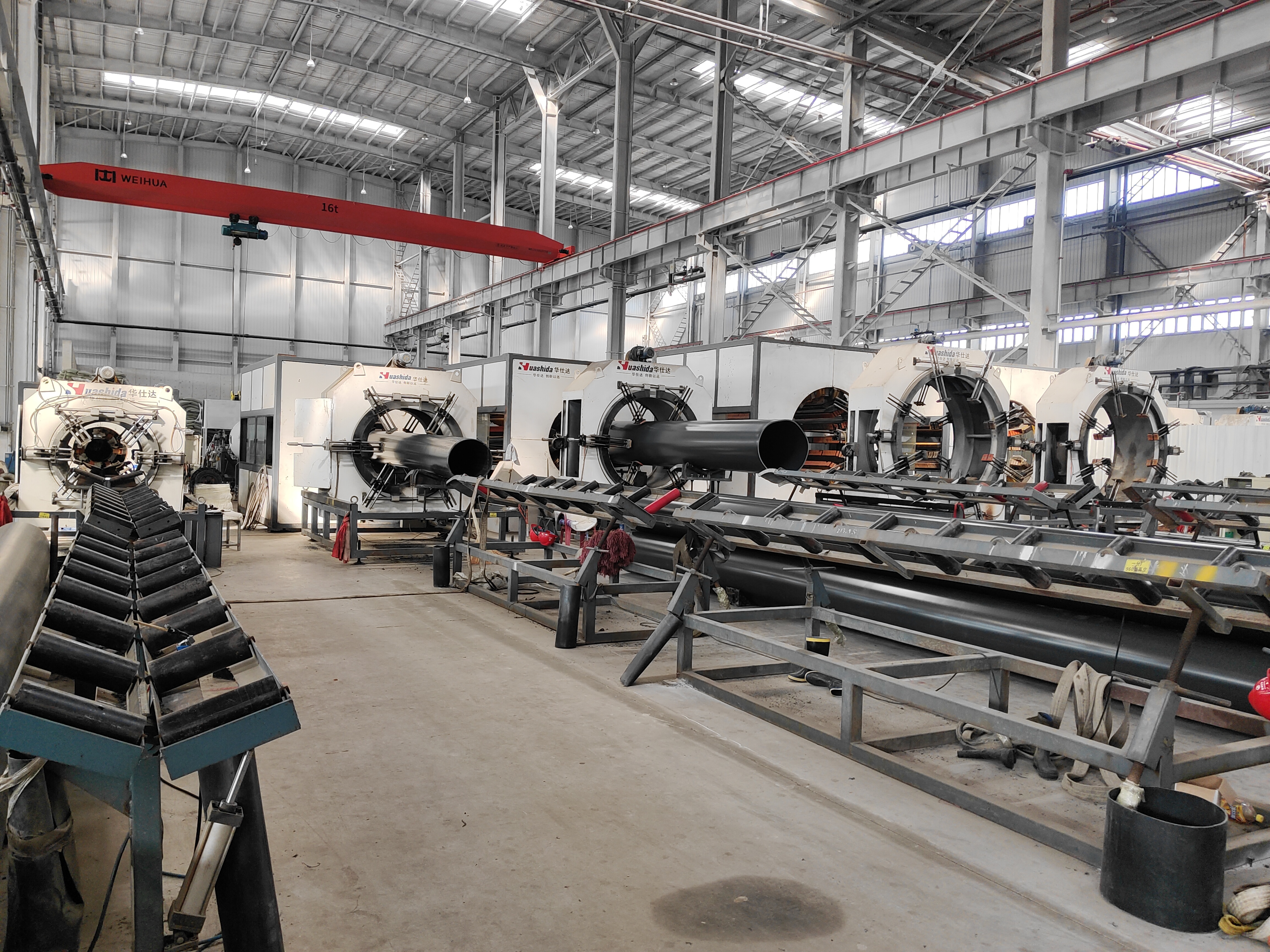

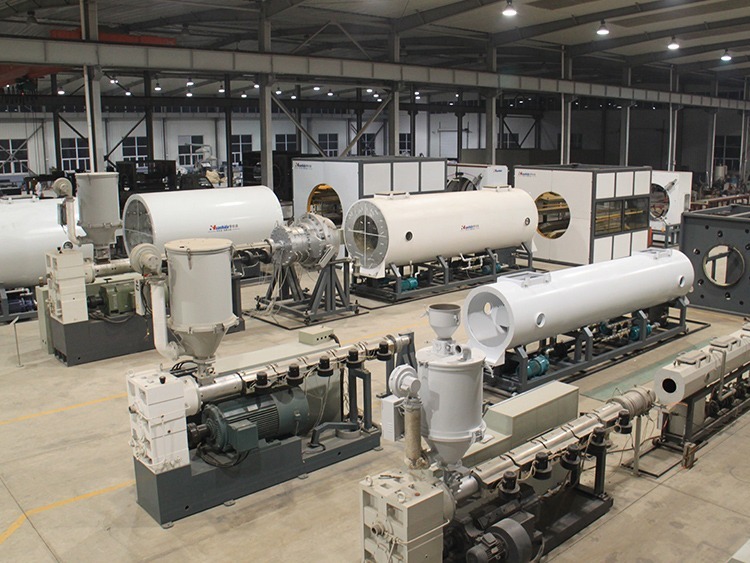

Factory overview
HDPE Jacket Pipe Extrusion Production Line with Vacuum Calibration System
Our team

HDPE Jacket Pipe Extrusion Production Line with Vacuum Calibration System
