Name: HDPE Pre-Insulation Jacket Pipe Extrusion Line for Oil Gas Piping
Brand: Qingdao Huashida Machinery Co., Ltd.
SKU: Plastic PE Pipe
Price: 1507500.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Raw Material: HDPE

Cutting Method: Chipless Cutting

Calibration Method: Vacuum Calibration And Water Spraying Cooling

Application: For Producing Pre-Insulated Pipe Jacket Pipe

Highlight:

HDPE pre-insulation jacket pipe extrusion line

oil gas piping pre-insulated production line

HDPE jacket pipe extrusion line

Basic Infomation

Place of Origin: QINGDAO,CHIAN

Brand Name: HUASHIDA

Certification: CE, ISO9001:2008

Model Number: Plastic PE Pipe

Payment & Shipping Terms

Packaging Details: Standard Package

Delivery Time: 60DAYS

Payment Terms: L/C,T/T

Supply Ability: 100 Unit/Year

Gallery

HDPE Pre-Insulation Jacket Pipe Extrusion Line for Oil Gas Piping

Product Description

HDPE Pre-Insulation Jacket Pipe Extrusion Line for Oil Gas Piping

Pipe diameter range: 110-2200mm

HDPE Jacket Pipe Extrusion Line for Pre-Insulated Pipes is high-efficient with high speed and energy saving for producing HDPE thin wall pipe, which is used as a protective cover of PU foam thermal Pre-insulated Pipe according to international standard. It primarily consists of a core steel pipe, a polyurethane (PU) foam insulation layer, and a protective plastic outer casing, among other components.

Key Features:
Utilizes a vacuum calibrating technique.
Ensures smooth internal and external walls.
Offers a long service life with excellent anti-corrosion properties.
High-efficiency extruder gives larger output, stable performance.
For example
SJ-75/33---250-350kg/h
SJ-120/33---700-900kg/h
SJ-150/33---800-1200kg/h

The HDPE jacket serves as the outer protective casing of pre-insulated pipes and is widely used in district heating, oil and natural gas transportation, and other industrial applications.

The extrusion line comprise equipment and devices as below,
1set Vacuum loader
1set Hopper dryer
1set High-efficiency single screw extruder
1set 25/25 single screw extruder for mark line
1set Vacuum calibration table
1set Water spraying tank
1set Hauling machine
1set Cutting machine
1set Stacker

High-efficiency single screw extruder
The screw is with barrier & mixing head; the barrel is a new model with slotting (channel). Both guarantee the good jellification, large output and stable performance of the extruder.

HDPE Pre-Insulation Jacket Pipe Extrusion Line for Oil Gas Piping

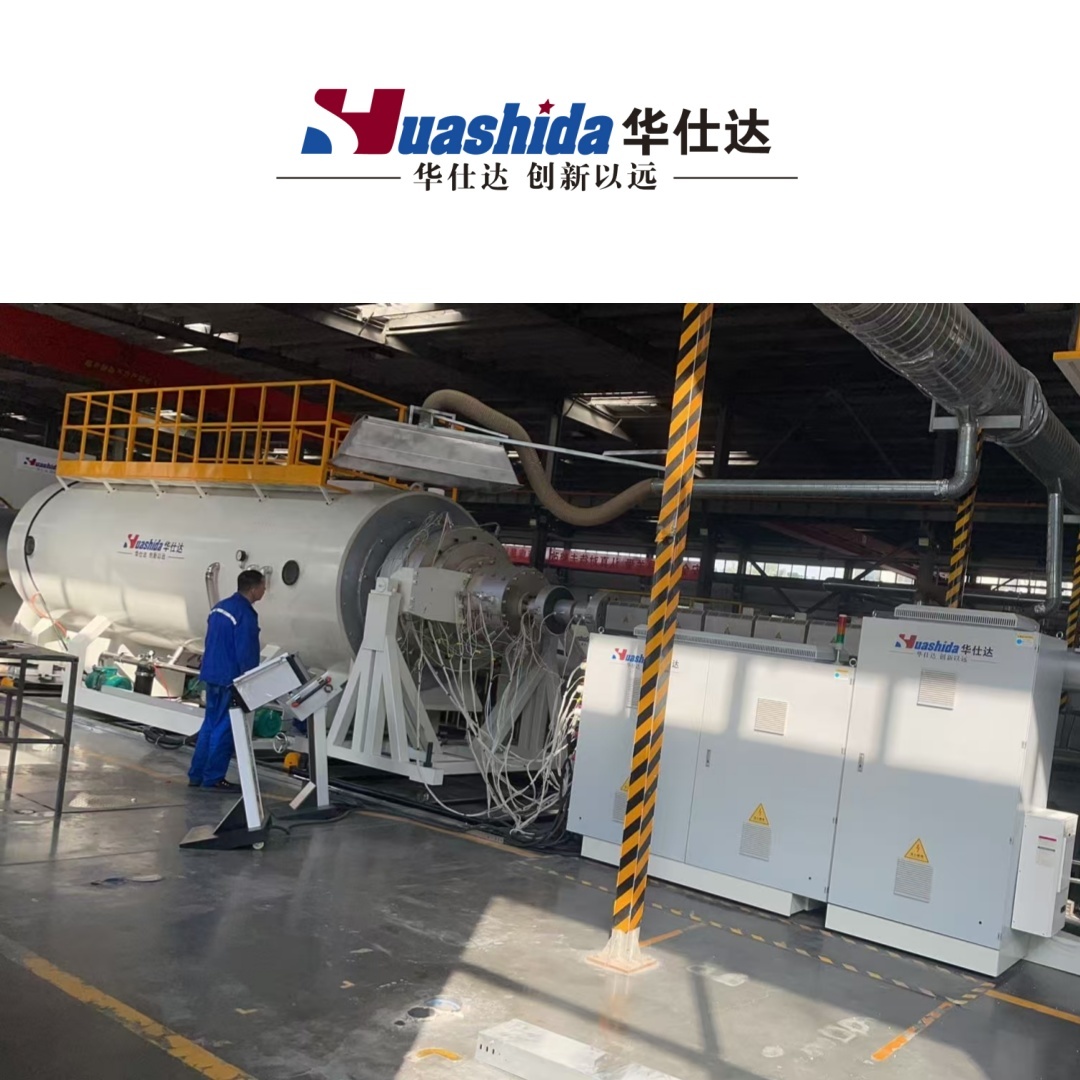

Die-Head
Die-head is mainly composed of mandril, neck mold, spiral body, cover, die-head body, bolts, and heating rings.

HDPE Pre-Insulation Jacket Pipe Extrusion Line for Oil Gas Piping

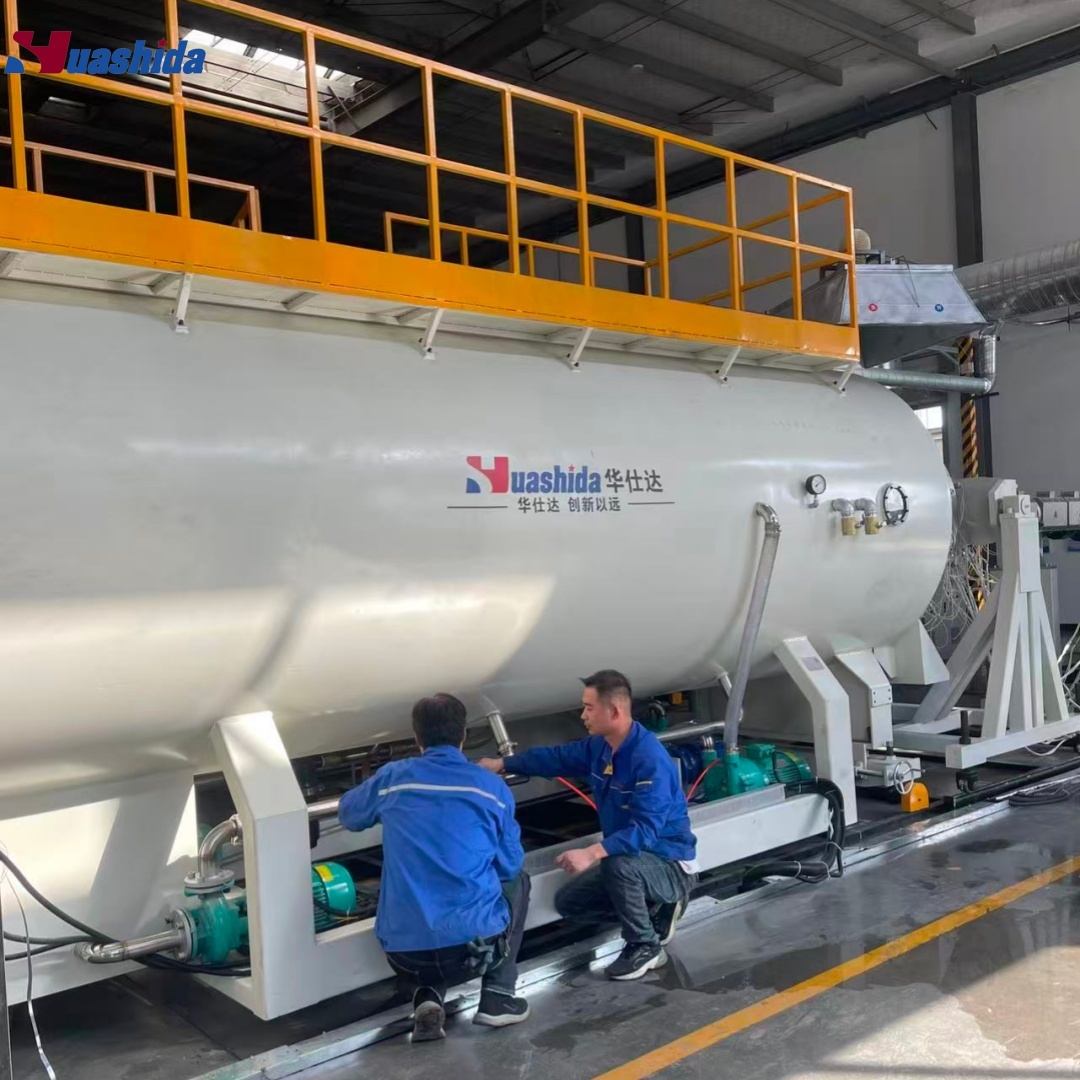

Vacuum Calibration Tank
The vacuum calibration tank is mainly composed of a frame, stainless steel tank, vacuum system, spray cooling system, position adjustment device. Spray nozzles spray cooling water from all directions on pipe surface to cool down the pipe promptly.
HDPE Pre-Insulation Jacket Pipe Extrusion Line for Oil Gas Piping

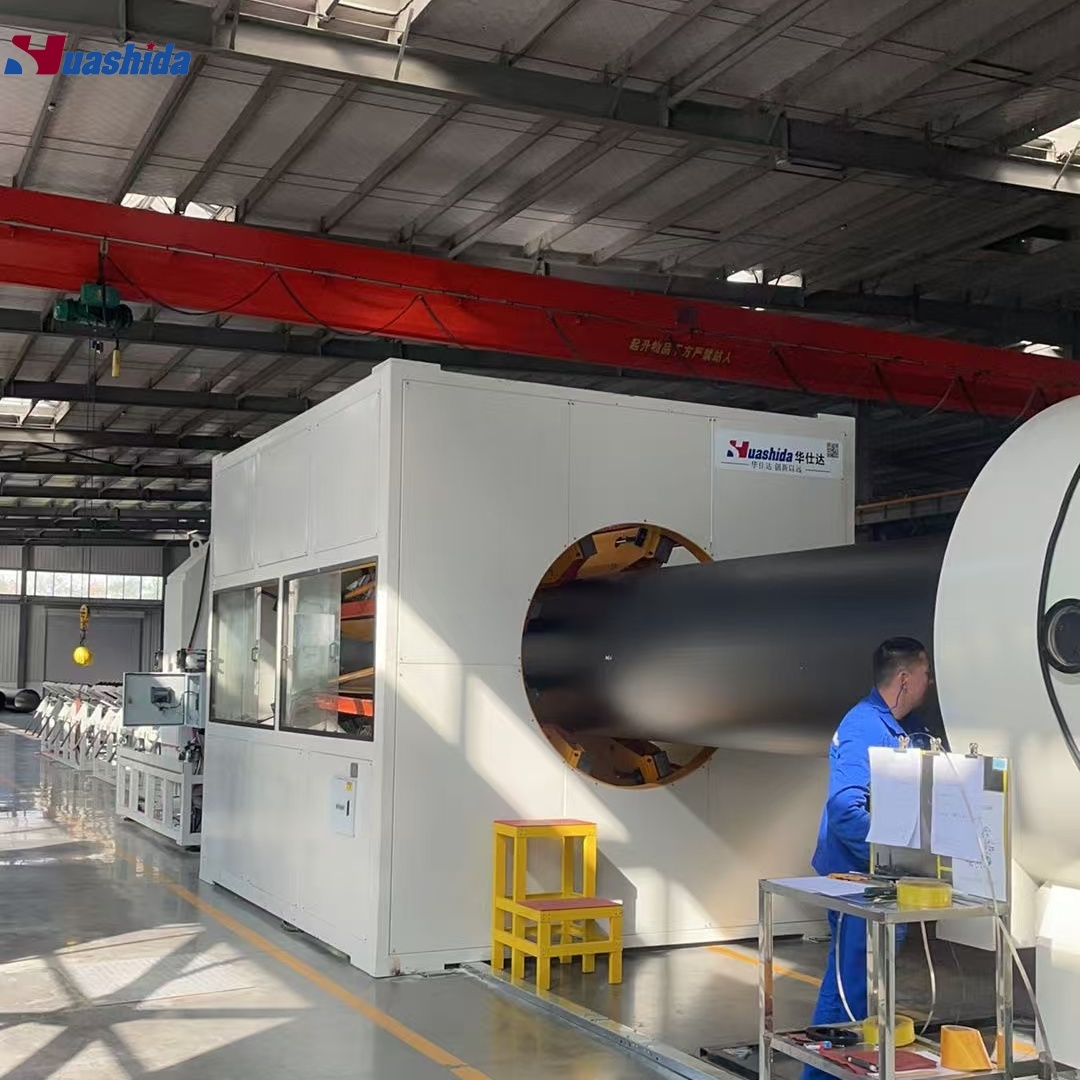

Haul-off Machine
The haul-off machine is mainly composed of a driving device, track, clamping structure, adjusting system, side plate and foundation bed. Haul-off caterpillars are driven by AC motor with frequency conversion control to adapt to different extrusion speeds.
HDPE Pre-Insulation Jacket Pipe Extrusion Line for Oil Gas Piping

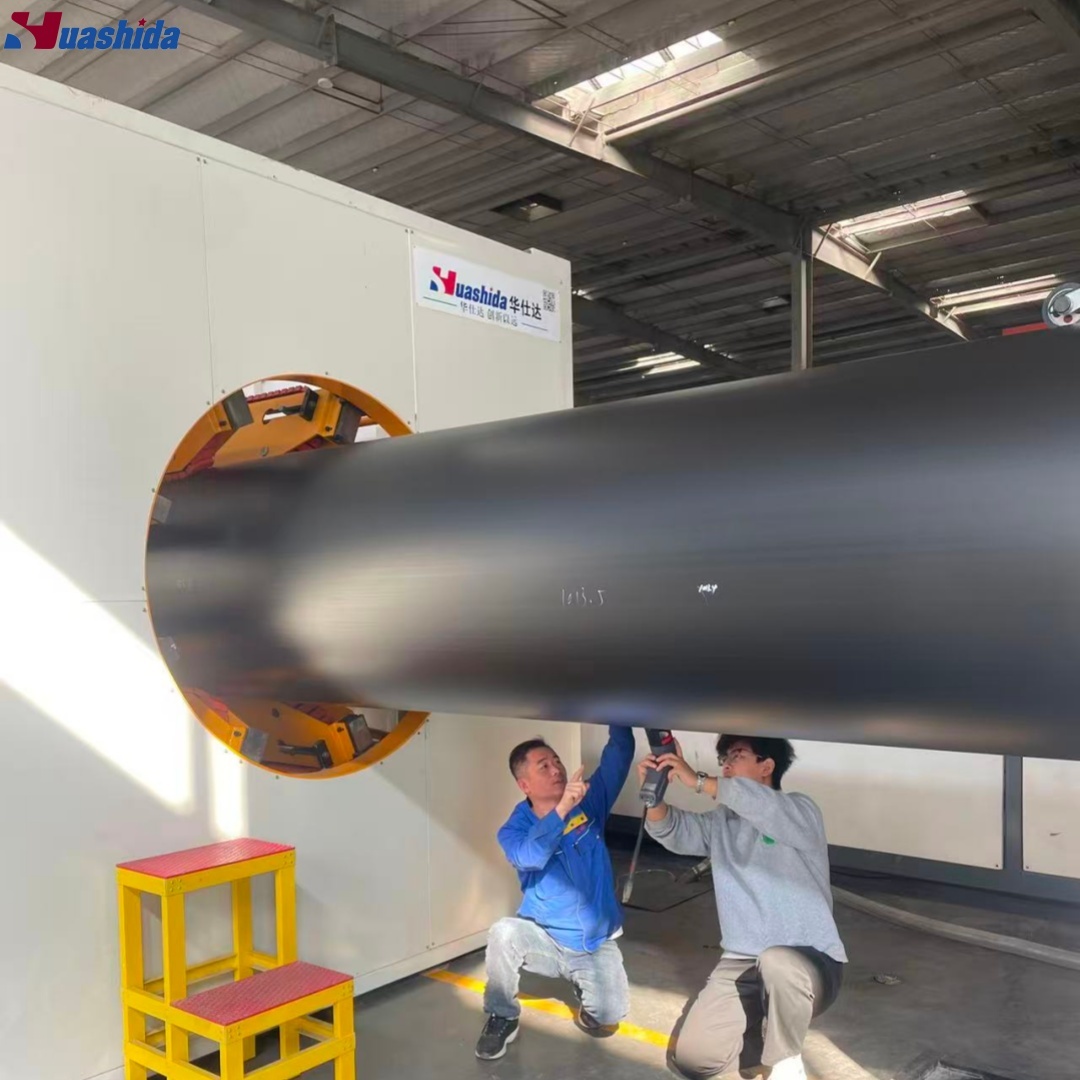

Chipless Planetary cutter
It adopts the blade punching principle to realize no-dust cutting. High qualified alloy steel blade; planetary cutting to get smooth edge without plastic scrap; High precision cutting; PLC control

HDPE Pre-Insulation Jacket Pipe Extrusion Line for Oil Gas Piping

Control system
ABB frequency converter or EUROTHERM speed controller
Japan RKC temperature controller
SIEMENS AC contactors
A controlling system can be designed according to customers' requirements.
