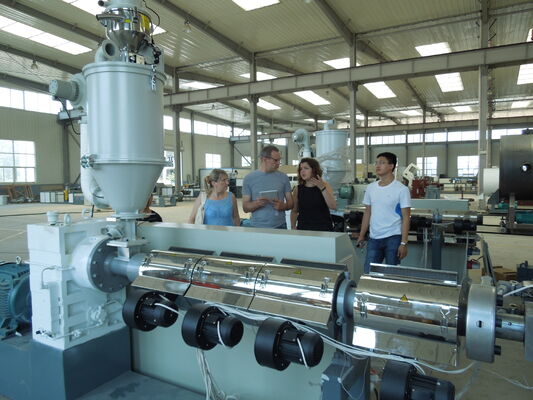

Heat Shrinkable Tape Sleeve Production Line for 3lpe Pipeline Corrosion Protection

Heat Shrinkable Tape Sleeve Production Line for 3lpe Pipeline Corrosion Protection

This production line is designed to manufacture heat-shrinkable tapes for corrosion protection of steel pipelines. The finished tapes typically consist of a polymer backing and a heat-activated adhesive layer, providing reliable bonding and protection when correctly applied.

Applications include buried oil and gas pipelines, welded joints, and pipeline connection areas. Production specifications can be customized according to the required tape width, thickness, and roll length.

Product process flow :

1.PE Film Extrusion: The PE backing film is produced according to customer specifications.
2.Radiation Crosslinking: The film undergoes radiation crosslinking to improve heat resistance, mechanical properties, and heat-shrink performance.
3.Stretching and Adhesive Coating: The irradiated film is heated and stretched to the required ratio, then coated with hot-melt adhesive.
4.Winding: The finished heat-shrinkable tape is cooled and wound into rolls according to customer requirements.


Designed for pipeline joint protection, pipe rehabilitation, and wrapping applications, with typical uses including:

Oil & gas transmission pipelines
PU insulated pipes
3PE/2PE coated steel pipes
HDPE corrugated pipe
pipe bending

Composition
    1. PE back film extrusion Line
--- Single screw extruder
--- Die head
--- Three Calender
--- Roll temperature controlling system
--- Cooling rack
--- Hauling off
--- Rewinding machine
   2. Adhesive Mixing and Coating Line
--- Unpowered uncoil device
--- Reactor
--- Adhesive coating system
--- Cooling water tank
--- Haul off
--- Coiler platform.
  3. For three layer fiber reinforced heat shrink sleeve, we need to add below equipments
--- Fiber uncoiling device
--- Fiber heating device
--- Fiber flattening device

Advantages of Qingdao Huashida Heat Shrink Sleeve Production Line:

1. Mature and stable cross-linked technology
2. Wide range of product specifications and strong applicability
3. High degree of automation and stable operation
4. High-quality finished products with excellent corrosion resistance
5. Low energy consumption and convenient maintenance
6. Comprehensive after-sales service


Qingdao Huashida Machinery Co., LTD., founded in 2003, is a global developer, manufacturer and solution provider of plastic extrusion equipment. 70% of its customers come from overseas countries such as Europe, America, the Middle East and Southeast Asia.
Welcome to our factory to discuss cooperation!
