Name: HDPE Large Diameter Drainage Pipe Making Machine Corrugated Pipe Production Line with 200-3000mm Pipe Range Hollow Wall Structured Single-Screw Extruder
Brand: Qingdao Huashida Machinery Co., Ltd.
Price: 180000 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Feeding Mode: One Feed

Screw: Single-Screw

Screw Channel Structure: Deep Screw

Automation: Automatic

Extruder: Single Screw Extruder

Inverter: ABB, Danfos, Eurotherm

Wall Style: Hollow Wall Structured

Specification: CE, ISO9001: 2008, SGS

Assembly Structure: Integral Type Extruder

Engagement System: Full Intermeshing

Exhaust: Exhaust

Computerized: Computerized

Motor: AC Or DC

Converter: Eurotherm

Pipe Range: 200-3000mm

Transport Package: Wooden Cases And Pallets

Highlight:

200-3000mm HDPE Pipe Making Machine

Hollow Wall Structured Corrugated Pipe Production Line

Single-Screw Extruder Corrugated Pipe Production Line

Basic Infomation

Place of Origin: china

Brand Name: huashida

Certification: CE, ISO9001:2008, QS, GMP

Payment & Shipping Terms

Packaging Details: Standard packaging

Delivery Time: 90 days

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Supply Ability: 100set a year

Gallery

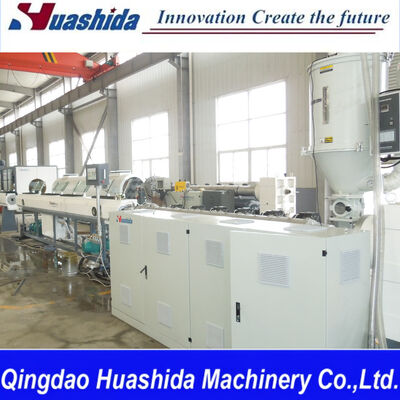

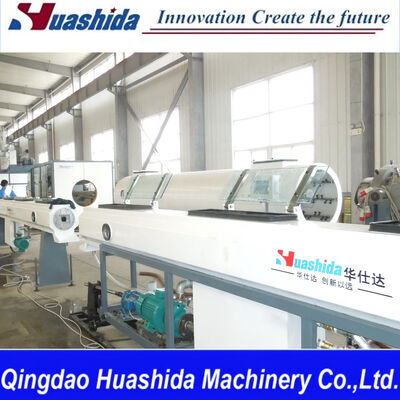

HDPE Large Diameter Drainage Pipe Making Machine Corrugated Pipe Production Line with 200-3000mm Pipe Range Hollow Wall Structured Single-Screw Extruder

Product Description

Qingdao Huashida Machinery Co., Ltd. has absorbed advanced German technology and independently developed the HDPE Spiral Structured Wall Pipe Production Line with complete intellectual property rights. The entire line features a high degree of automation, controlled by a PLC system, ensuring stable performance and user-friendly operation.

This production line is capable of producing large-diameter plastic pipes from 200mm to 3000mm, widely used in municipal engineering, stormwater management, sewerage systems, and mining industries.

The finished pipes are connected using electric fusion sleeves or heat shrink sleeves, which are convenient, cost-effective, and reliable.

Technical Process

Raw material → Mixing → Vacuum feeding → Drying → Single screw extrusion → Calibration → Spray cooling → Haul-off → Glue extrusion → Spiral winding & forming → Water cooling → Cutting → Pipe bracket → Inspection & packing

Key Features

High ring stiffness with excellent external pressure resistance
Strong impact resistance with a lightweight structure
Outstanding resistance to creep deformation
Excellent corrosion resistance against acid, alkali, salt, and more
Service life of up to 50 years
Easy and economical installation

Applications

Stormwater management and attenuation systems
Sewer and drainage pipelines
Road culverts and bridge underpasses
Pipe rehabilitation and trenchless replacement
Landfill leachate drainage systems
Mine and tunnel drainage
HDPE manholes and drop structures
Floats and plastic structures
Agricultural irrigation systems

Product Parameters

Model	Pipe Diameter (mm)	Extruder	Speed of Forming	Max. Output	Installed Power	Dimension
SKRG-1200	Ø400–Ø1200	SJ-65(50)X30	1–12 m/h	320 kg/h	230 KW	26×18×5
SKRG-1600	Ø800–Ø1600	SJ-80(50)X30	1–6 m/h	500 kg/h	310 KW	27×18×5
SKRG-2200	Ø1000–Ø2200	SJ-90(65)X30	0.5–5 m/h	650 kg/h	380 KW	28×19×5
SKRG-3000	Ø1600–Ø3000	SJ-90(65)X30	0.3–3 m/h	800 kg/h	390 KW	48×26×6
