Large Diameter HDPE Pipe Extrusion Machine for Water Mains with Helical Die

The 710–1600mm HDPE Pipe Extrusion Line for Water & Gas Mains with Helical Die by Qingdao Huashida Machinery is a heavy-duty, high-output solution engineered for the production of large diameter PE80 and PE100 water main and gas main pressure pipes from Ø710mm to Ø1600mm, with peak output reaching 2000–2500 kg/h on the flagship SPEG-2200 model. Built for pipe factories, municipal engineering suppliers, and international EPC contractors, this large diameter HDPE pipe extrusion line produces thick-wall pipes that maintain their size, roundness, and pressure rating across long production runs.

By integrating an SJ150×33 38CrMoAlA nitrided alloy single screw extruder, an advanced helical basket die head, a stainless steel vacuum calibration tank, and a chipless planetary cutting system, this line ensures ±0.1mm diameter accuracy, uniform wall thickness, and strong PE100 pipe hoop strength for underground water main and gas main pipelines. The PLC full-touch control system keeps every stage synchronized, and Bureau Veritas (BV) audited supplier status gives procurement teams independently verified factory credentials.

Our PE Pipe Production Machinery comes in various configurations to meet diverse output requirements.

This 710–1600mm HDPE Pipe Extrusion Line serves large-scale pipeline sectors globally:

• Water Main Transmission: Large diameter PE100 water supply and trunk main pipe for city-scale distribution networks in the Middle East, Central Asia, Africa, and Europe.
• Gas Main Distribution: Thick-wall PE100 gas main pipe for urban natural gas networks that require consistent wall thickness and hoop strength.
• Energy and Mining: Landfill leachate collection, industrial chemical transport, and high-pressure energy conduits using durable PE100 polyethylene pressure pipe.
• Geothermal and Irrigation: Large diameter geothermal heating and agricultural irrigation mains that demand long service life.

1. Automatic Feeding & Drying: Vacuum automatic loader and hopper dryer remove moisture from PE80/PE100 resin, avoiding bubble defects in large diameter HDPE pipe extrusion.
2. High-Torque Uniform Extrusion: SJ150×33 38CrMoAlA nitrided single screw extruder with a high-torque drive ensures uniform plasticization and stable melt pressure for PE100 water main and gas main pipes.

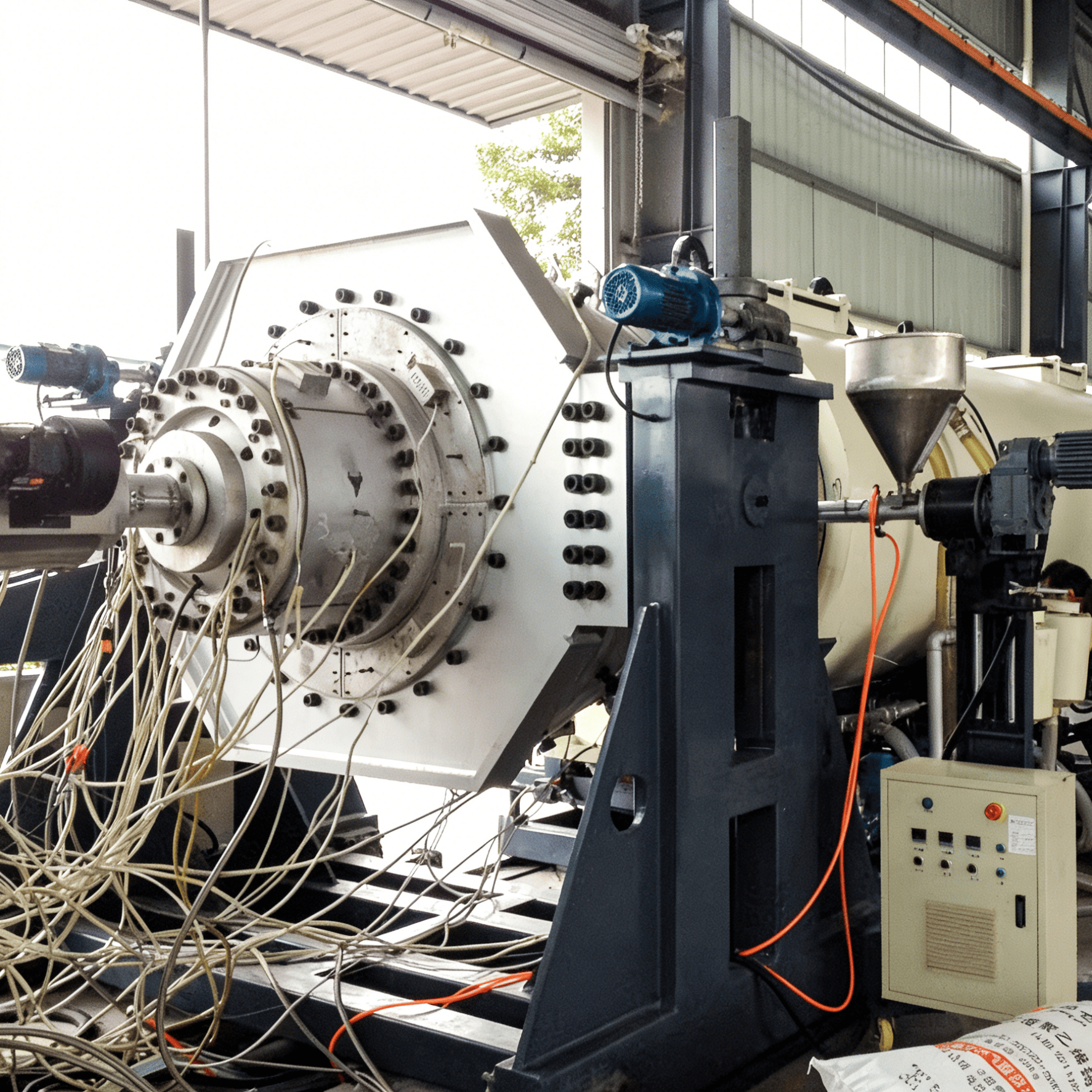

3. Helical Basket Die Head Forming: The low-temperature helical basket die head delivers uniform melt mixing, improving roundness, wall thickness consistency, and hoop strength of thick-wall pipes.

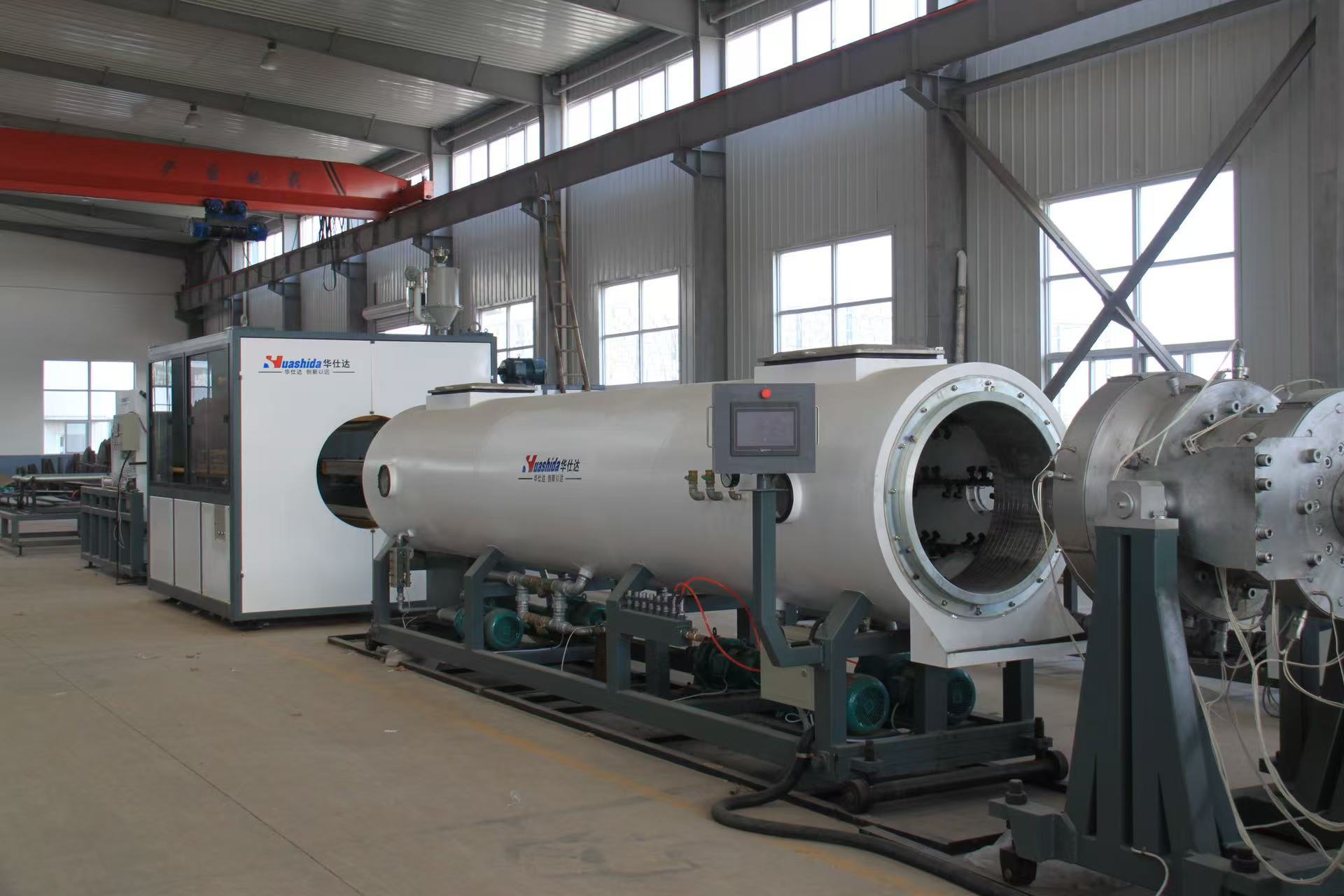

4. Precision Vacuum Calibration: Stainless steel vacuum calibration tank with water film lubrication and sizing rings ensures ±0.1mm diameter accuracy on heavy large diameter pipes.
5. Multi-Stage Spray Cooling: Gradient water spray cooling prevents deformation and builds the structural toughness of finished HDPE water & gas main pipes.

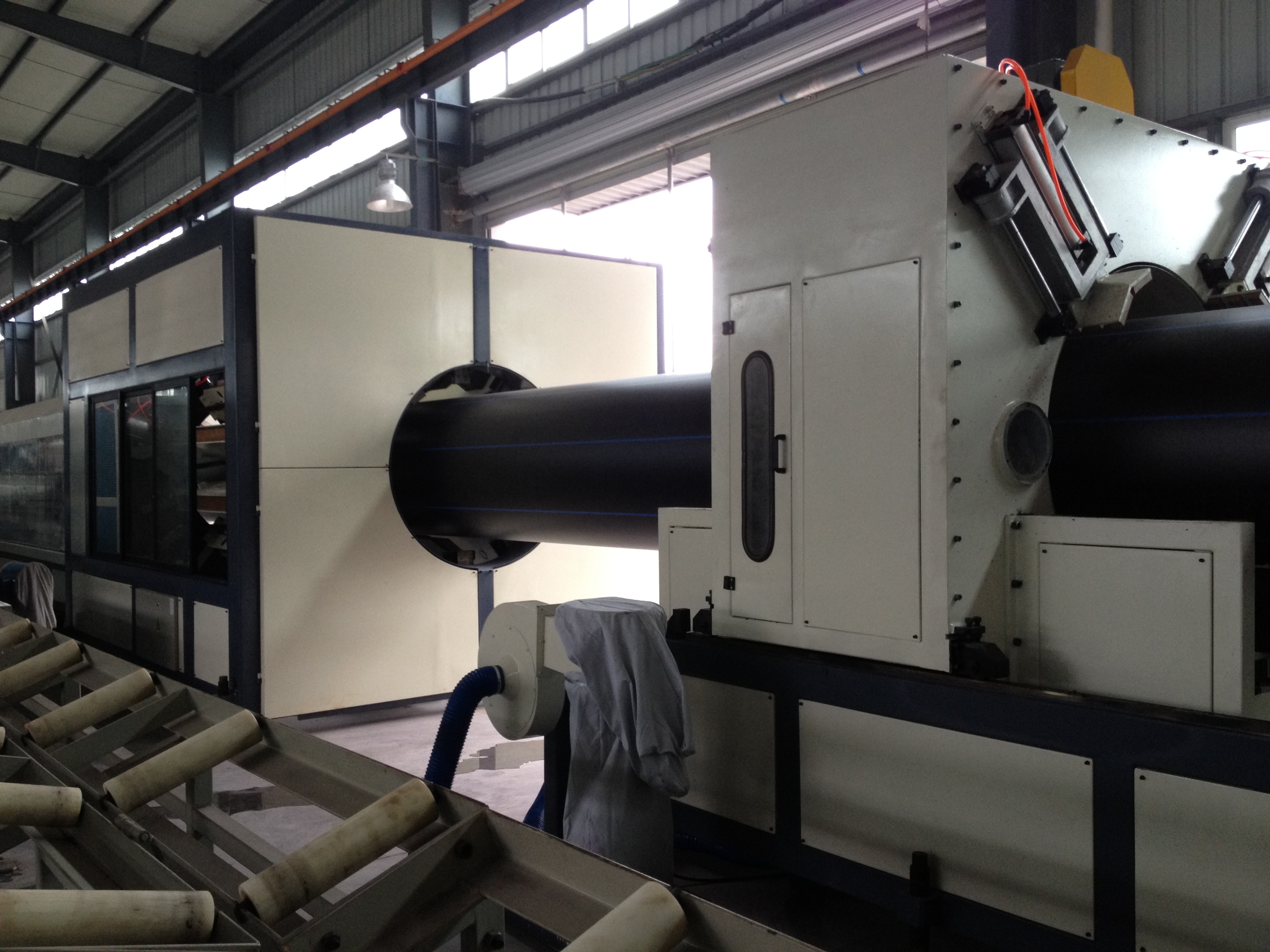

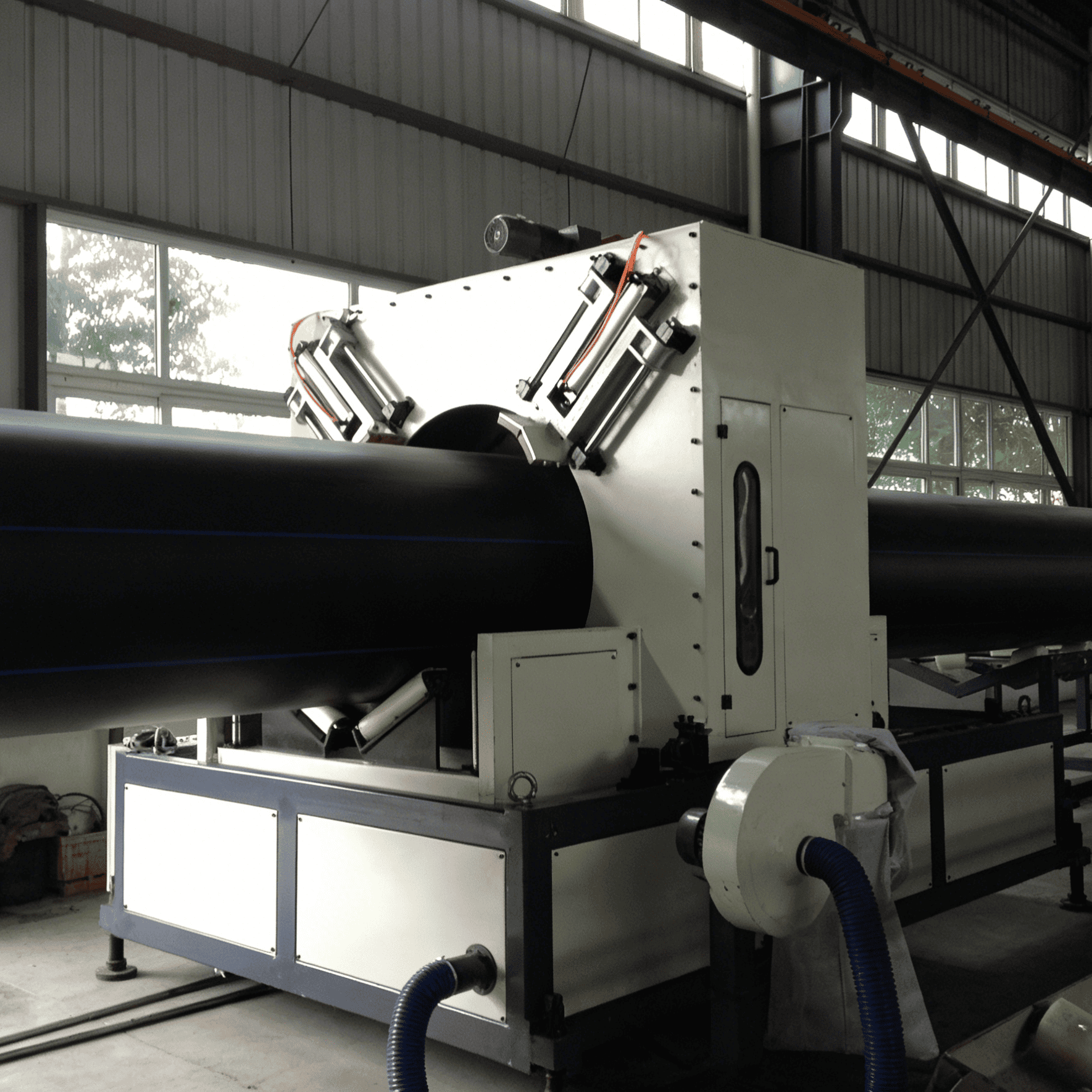

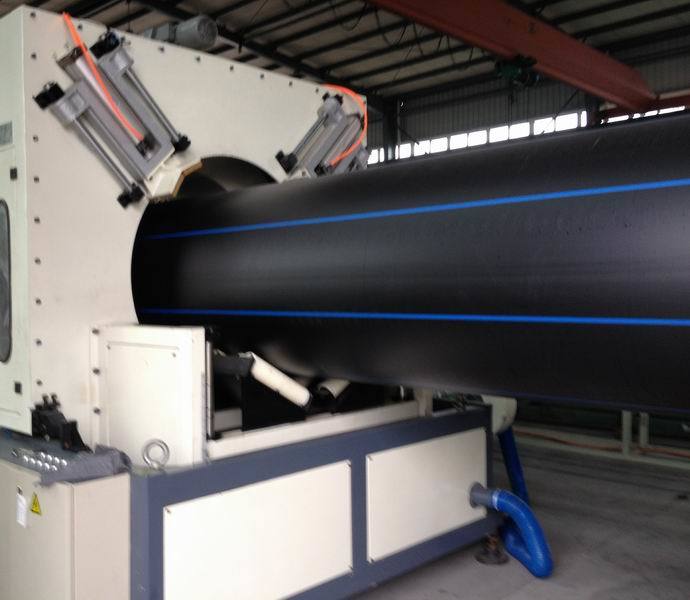

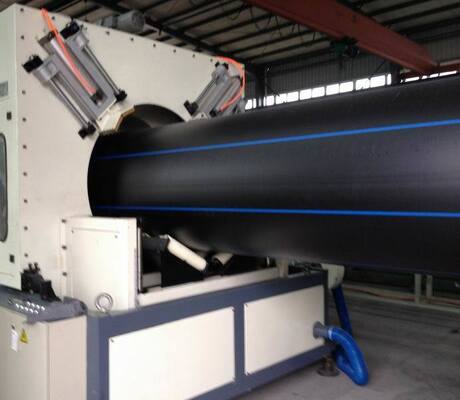

6. Chipless Planetary Cutting: Heavy-duty synchronous haul-off with chipless planetary cutting delivers dust-free, flat, burr-free cuts that meet environmental production standards.
7. Co-Extrusion Marking & Automatic Stacking: 25/25 color strip co-extrusion marks water and gas pipe identification lines, and the automatic pipe stacker supports continuous large diameter pipe production.

• 1 set Vacuum automatic loader — continuous quantitative PE resin feeding
• 1 set Hopper dryer — raw material dehumidification
• 1 set High-torque SJ150×33 38CrMoAlA nitrided single screw extruder
• 1 set 25/25 color marking co-extruder — automatic pipeline identification
• 1 set Stainless steel vacuum calibration table with water film lubrication
• 2/4 sets Gradient water spray cooling tanks
• 1 set Heavy-duty synchronous haul-off traction machine
• 1 set Chipless planetary cutting machine — dust-free environmental cutting
• 1 set Automatic pipe stacker and tipping table

• 710–1600mm Large Diameter Coverage: Two SPEG models cover large-bore water and gas mains in one equipment family, from 710mm up to 1600mm.
• 2000–2500 kg/h Peak Output: The SPEG-2200 delivers high throughput for large-scale water main pipe production contracts.
• Helical Basket Die Head Technology: Superior melt mixing and uniform temperature give consistent PE100 pipe hoop strength for high-pressure applications.
• ±0.1mm Calibration Accuracy: Vacuum calibration with water film lubrication keeps diameter and roundness within tolerance on heavy pipes.
• PLC Intelligent Control: Full-touch control for real-time parameter monitoring, automatic speed matching, and fault self-diagnosis.
• Chipless Planetary Cutting: Dust-free, burr-free cutting improves finished pipe appearance and meets factory environmental standards.

• Turnkey Large Diameter Solution: Layout design, installation, commissioning, and operator training for HDPE PE100 water & gas main pipe production, backed by BV audited factory capabilities.
• 389+ Globally Verified Projects: Deployed in Russia, Turkey, UAE, Iran, Kazakhstan, and 60+ countries, with mature PE100 pipe extrusion technology adapted to diverse regional standards.
• 23 Years Professional Engineering: Plastic Machinery R&D Center with 11 senior engineers specializing in HDPE pipe extrusion lines.
• Certified Quality: BV audited supplier with CE and ISO9001 certification for global project compliance.
