Radiation Cross-Linked PE Heat Shrink Sleeve for Corrugated Drainage Pipe Joint Sealing

Our high-performance radiation cross-linked PE heat shrink sleeve is a professional corrugated drainage pipe joint sealing material developed for waterproof protection of HDPE hollow wall spiral wound pipe joints, steel reinforced corrugated pipe joints, and PVC-U sewer pipe connections in municipal drainage and sewage networks. Every drainage pipe joint is a potential leak point where groundwater infiltration and soil erosion begin — this drainage pipe heat shrink sleeve closes that weak point with a tight, flexible, long-life waterproof pipe joint sleeve seal.

This corrugated pipe joint sleeve adopts a premium two-layer composite construction: radiation cross-linked polyethylene backing (tensile strength 19.47 MPa, elongation 626%) matched with high-adhesion imported hot melt adhesive (peel strength 145.6 N/cm to steel, 190.0 N/cm to PE layer). Together they form a continuous protective barrier that keeps sewer pipe joint sealing performance stable under soil load, ground movement, and long-term buried service.

Available in three configurable supply styles with thickness options from 1.2 mm to 2.5 mm and widths from 100 mm to 900 mm — covering drainage pipe joint coating specifications for municipal drainage, sewage, and underground pipeline projects worldwide.

This radiation cross-linked PE heat shrink sleeve is engineered for HDPE pipe joint wrap applications where joints must resist groundwater ingress and soil stress for decades. The imported hot melt adhesive delivers ultra-high peel strength — 145.6 N/cm to steel, 205.9 N/cm to epoxy primer, 190.0 N/cm to PE layer (all tested per ASTM D1000) — far exceeding the ≥70 N/cm minimum. This strong bonding eliminates hollow gaps, peeling, and water penetration at hollow wall pipe joint and spiral wound pipe sleeve connections.

This drainage pipe joint coating sleeve supports easy torch-heating-only on-site installation — no special tools, no surface grinding, no complex equipment required. When heated by a standard propane torch, the radiation cross-linked PE outer layer shrinks uniformly while the inner hot melt adhesive melts evenly, sealing the joint in one heat application and significantly cutting corrugated pipe joint sleeve construction labor hours and trench excavation time.

With elongation of 626% and environment stress crack resistance above 1000 hours (GB/T1842), this waterproof pipe joint sleeve flexes with soil movement without cracking, providing reliable long-term sewer pipe joint sealing for buried steel reinforced pipe joint and HDPE drainage connections.

1. Drainage Pipe Joint Waterproofing: Seals corrugated and sewer pipe joints against groundwater ingress and infiltration, protecting underground drainage networks from joint leakage.
2. Outstanding Chemical Resistance: Resists 10% HCl, NaOH, NaCl, and harsh underground chemical media — tensile retention ≥85% after 7-day immersion (ASTM D638), keeping drainage pipe heat shrink sleeve performance stable in aggressive soil environments.
3. Extreme Temperature Range: Vicat softening point ≥90°C (tested 92°C, ASTM D1525); brittleness temperature <−65°C (ASTM D2671C) — reliably serving buried HDPE pipe joint wrap applications in extreme cold regions (Russia, Kazakhstan, Central Asia) and warm climates.
4. Excellent Stress Crack Resistance: Environment stress crack resistance >1000 h (GB/T1842) — maintaining joint integrity under long-term soil load.
5. Long-Term Thermal Aging Resistance: After 150°C × 168 h thermal aging — tensile strength retention ≥14 MPa (tested 20.7 MPa), elongation retention ≥300% (tested 630%).
6. Universal Joint Solution: Compatible with HDPE hollow wall spiral wound pipe, steel reinforced corrugated pipe, and PVC-U sewage pipe joints, plus 3LPE/2LPE steel pipe field joints and pre-insulated pipe girth weld joints.

This radiation cross-linked PE heat shrink sleeve is purpose-built for corrugated drainage pipe joint sealing and joint protection across buried pipeline systems:

1. Corrugated Drainage Pipe Joint Sealing — the primary application; provides waterproof, anti-corrosion joint protection for municipal drainage and sewage pipe connections.
2. HDPE Hollow Wall Spiral Wound Pipe Joint — seals spiral wound pipe connections against groundwater ingress.
3. Steel Reinforced Corrugated Pipe Joint — provides waterproof wrapping for steel reinforced corrugated drainage pipe connections.
4. PVC-U Sewer Pipe Joint Sealing — waterproof joint protection for PVC-U sewage pipelines.
5. 3LPE/2LPE Steel Pipe Field Joint Repair and Pre-Insulated Pipe Girth Weld Joint Sealing — restores anti-corrosion protection and seals district heating and chilled water pipe joints.

Field joint coating of steel pipe with 3LPE coating

Sealing pre-insulated pipe

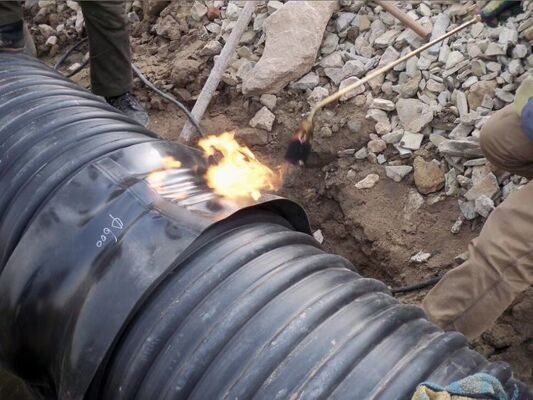

Connecting and sealing drain pipes

• Fast uniform shrinkage speed for high-efficiency corrugated pipe joint construction
• Superior fully sealed waterproof performance blocking groundwater penetration at drainage pipe joints
• Flexible long-term performance under soil stress and ground movement
• Ultra-long buried service life for permanent sewer pipe joint sealing
• Pure virgin PE raw material and imported hot melt adhesive — stable, consistent batch quality for high-volume drainage pipe joint projects

We supply three configurable styles of radiation cross-linked PE heat shrink sleeve for corrugated drainage pipe joint sealing:

1. Pre-cut heat shrink sleeve with separate closure patch — standard configuration for most drainage and sewer pipe joint applications.
2. Pre-cut heat shrink sleeve with pre-attached integrated closure patch — streamlined single-component installation for faster joint construction.

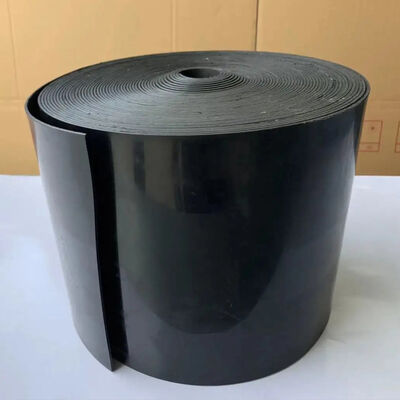

3. Continuous heat shrink sleeve roll tape (closure patch ordered separately) — for high-volume projects requiring customized cut lengths on site.

• Thickness: 1.2 mm, 1.6 mm, 1.8 mm, 2.0 mm, 2.5 mm
• Width: 100 mm, 200 mm, 300 mm, 500 mm, 600 mm, 900 mm

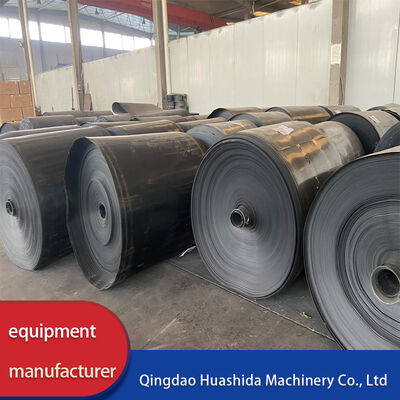

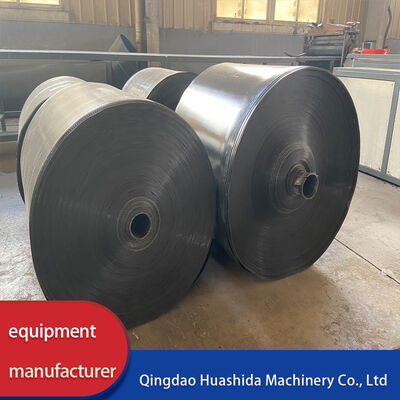

• Roll length: 30 m or 50 m per roll
• Custom dimensions available for large-volume drainage pipe joint projects

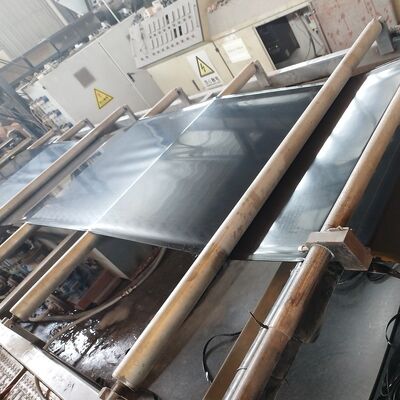

Heat shrink sleeve equipment

Qingdao Huashida Machinery Co., Ltd. is a professional manufacturer with 21 years of experience specializing in pipe joint protection materials — including radiation cross-linked PE heat shrink sleeves, electro-fusion weldable joint sleeves, and PE cold applied anti-corrosion tape — alongside PE hollow wall spiral pipe production lines, plastic pipe extrusion machinery, municipal pipeline equipment, and complete steel pipe anti-corrosion coating lines.

1. Radiation Cross-Linked PE Heat Shrink Sleeves — for drainage pipe joint sealing, 3LPE pipeline field joint repair, and pre-insulated pipe girth weld joint sealing (1.2–2.5 mm thickness, 100–900 mm width, 3 supply configurations)
2. Steel pipe FBE/2LPE/3LPE anti-corrosion coating lines (36–4200 mm)
3. HDPE jacket pipe pre-insulated pipe production line (110–2200 mm, district heating and chilled water)
4. Rigid PUR spray PE wrapping pre-insulated pipe production line (508–1620 mm)
5. Turnkey cold applied PE anti-corrosion tape production lines
6. PE pressure pipe / water gas supply pipe production line
7. Pipeline anti-corrosion materials: heat shrink joint coating sleeve, electro-fusion weldable joint sleeve, portable welding gun (extruder), PE/PP welding rod

We have successfully collaborated with over 400 international customers, exporting to Kazakhstan, Uzbekistan, Iran, Turkey, Russia, Nigeria, and 60+ countries worldwide — including municipal drainage contractors, pipe manufacturers, and EPC pipeline project teams.
