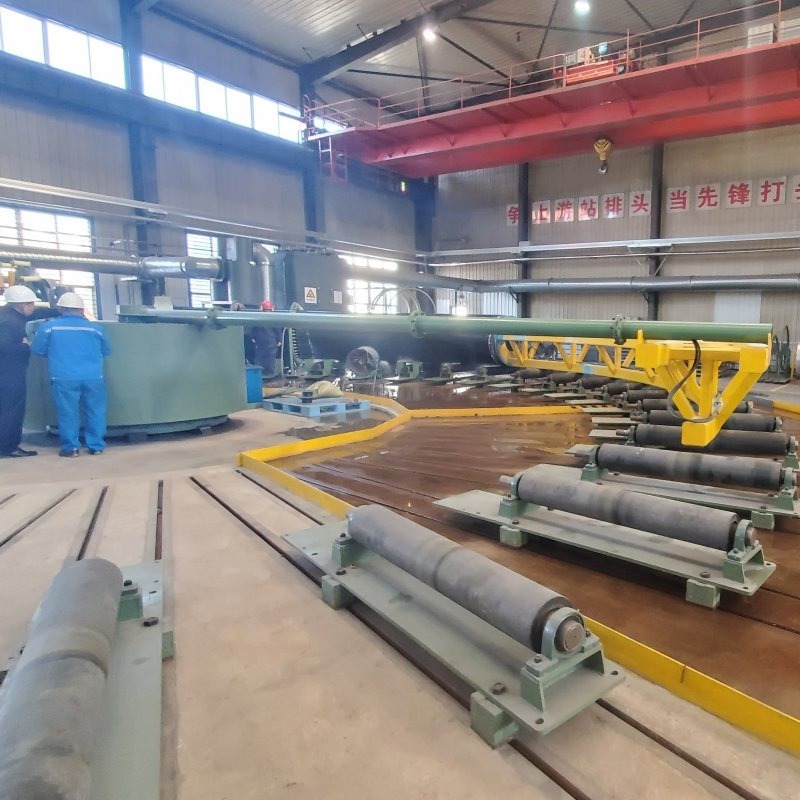

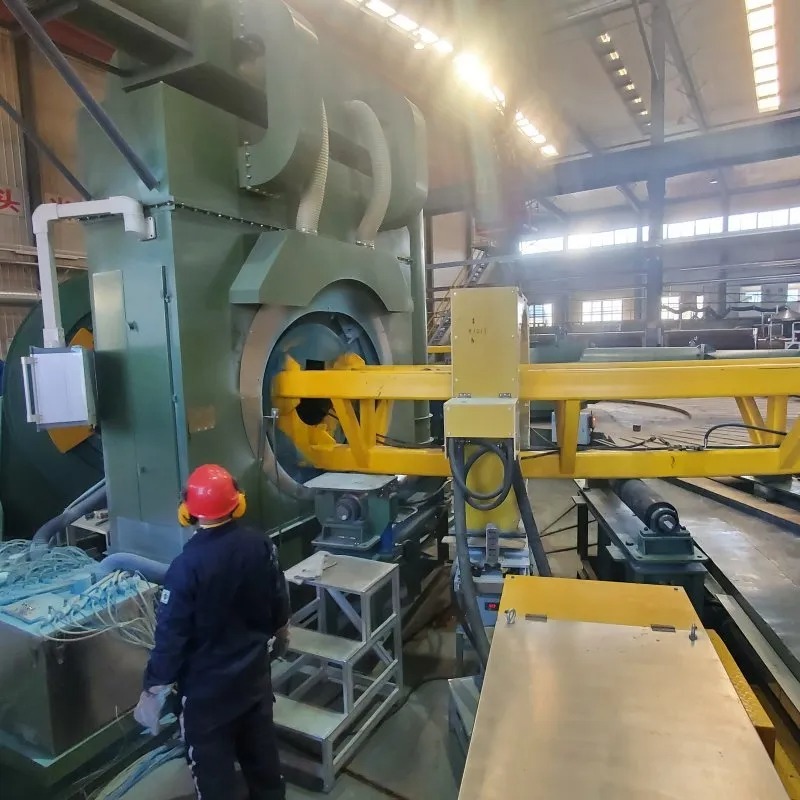

HUASHIDA Bend Pipe Elbow 3LPE 3PE Coating Line

Steel Elbow 3LPE Coating Line is for curve steel pipe blasting&coating and PE layer wrapping machinery.   It also can make 2PE/FBE coating pipe.  Radius of curvature: 5-8 times D,Bend angle: 15-90 degrees.

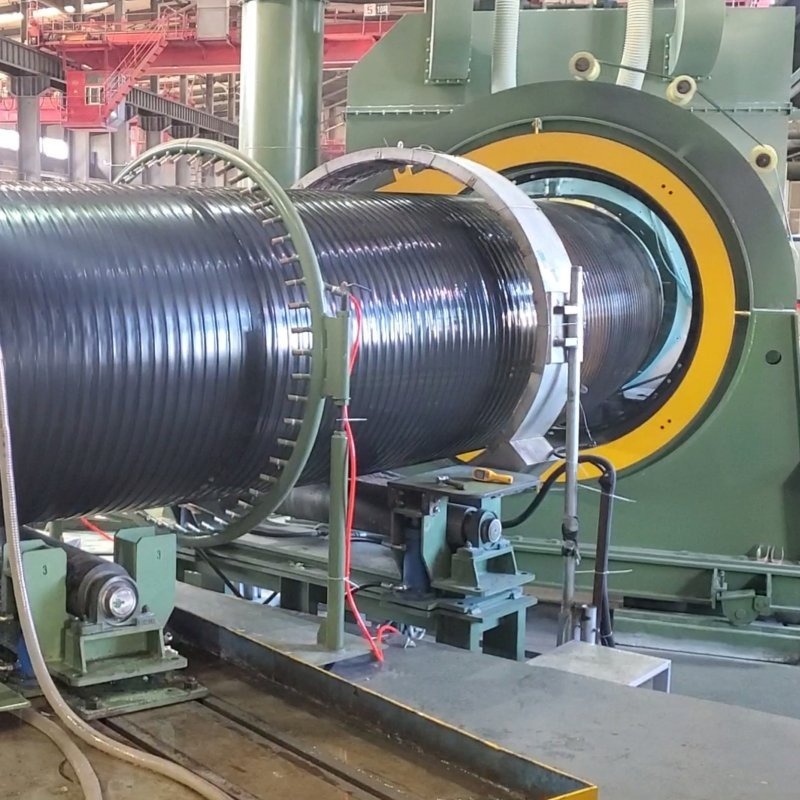

3LPE Elbow Coating Machinery is for curve steel pipe blasting&coating and PE layer wrapping machinery. Anticorrosion form: epoxy powder + adhesive + PE tape.
2PE,3PE and FBE Epoxy coated steel pipe is widely used in pipeline systems for the transmission of oil, gas, water and other fluids.They have high resistance to corrosive from chemicals, moisture, harmful environment, etc.

Overall dimension: 20 m X 15 m
Total water consumption: 30 cubic meters
Total power consumption: 450 kilowatts
Total gas consumption: 6 cubic meters/min.
Temperature condition: the temperature inside the workshop is higher than 5 degrees.
The diameter of steel pipe: 426, 630, 720, 820, 1020, 1220, 1420, 1620
Curvature radius: 4-6D
Bending angle: 15-90 degrees.
Steel tube wall thickness: 8 mm -12 mm
Epoxy powder thickness: ≥170 um
AD copolymer adhesive thickness: 170-250 um
PE layer thickness: 2.5 - 3.7 mm

Production line diagram:
