Features

Specifications

After-sales Service: Installation Training

Warranty: 12 Months

Product Type: PE Board

Board Layers: Multilayer

Screw No.: Single-screw

Automation: Automatic

Computerized: Computerized

Customized: Customized

Condition: New

Transport Package: Standard Package

Specification: 600.00cm * 230.00cm * 220.00cm

Sleeve Thickness: 0.5-3mm

Peel Strength: >150n/Cm (ASTM D1000)

Water-Intake Rate: 0.05% (ASTM D570)

Tensile Strength: 15-20MPa (ASTM D638)

Shear Strength: ≥100n/Cm (DIN 30 672)

Adhesive Softening Point: 70-80°C (ASTM E 28)

Finished Product Width: 1100-1200mm

Substrate Output: 150-200kg/H

Elongation At Break: ≥350%

Power Supply: 380V / 50Hz

Basic Infomation

Place of Origin: Qingdao, China

Brand Name: Huashida

Certification: CE, ISO

Model Number: 1100-1200 (Model 1350)

Payment & Shipping Terms

Packaging Details: 600cm*220cm*230cm

Delivery Time: 30-60 Days

Supply Ability: 100 Sets/Year

Gallery

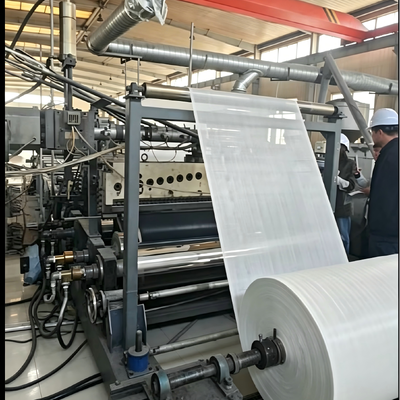

Automatic Hot Melt Adhesive Coating Machine for Heat Shrink Sleeve with Reactor

Product Description

Cross-Linked PE Heat Shrink Sleeve Production line for Pipeline Field Joint Protection

Product Overview

Developed by Qingdao Huashida Machinery with 21+ years of pipeline anti-corrosion equipment manufacturing experience, this TJ-700 hot melt coating line is a fully automatic adhesive coating machine for heat shrink sleeve and tape production. It is built for 1100-1200mm wide PE back film coating and is the core stage of our cross-linked sleeve equipment. It combines a 300L reactor, a PE backing stretching unit, an adhesive coating roller and a PLC control system to mass-produce high-performance pipeline anticorrosion sleeves for girth weld and field joint coating (FJC). It is widely used by customers in the Middle East, Russia, Central Asia and Africa.

This heat shrink sleeve machine works as a standalone coating line or alongside our RS-800 PE backing extrusion line. It supports standard two-layer sleeves and, with an added upgrade kit, three-layer fiberglass reinforced sleeves, so one sleeve making machine covers both product types. It complements our 650mm and 750-800mm models and covers the full size range for oil and gas transmission pipelines, district heating pre-insulated pipelines and municipal drainage pipelines.

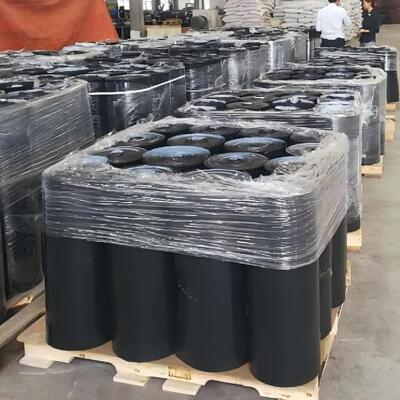

Finished Products

This adhesive coating machine supports customized mass production of radiation cross-linked PE protective materials for pipeline girth weld joints, in line with international anti-corrosion standards.

Standard Two-Layer Products: 1100-1200mm cross-linked PE heat shrink tapes, conventional sleeves and clip-on sleeves. With >150N/cm peel strength (ASTM D1000), they give stable anti-corrosion sealing for buried oil and gas pipeline girth welds and municipal field joint coating.

Upgraded Fiberglass Reinforced Products: three-layer reinforced heat shrink sleeves and tapes with 15-20MPa tensile strength, strong impact resistance and long-term aging resistance. Made on a fiber reinforced sleeve line, they suit large-diameter trunk pipelines in high-salinity, desert and cold-climate regions.

Sleeves made on this heat shrink tape coating line have stable shrinkage, strong bonding and excellent waterproof anti-corrosion performance:

Oil and Gas Pipeline Girth Weld Protection: long-distance large-diameter transmission pipelines, 2PE/3LPE coated steel pipe girth welds and seamless steel pipe field joints.
District Heating Pipeline Sealing: joint anti-corrosion and thermal sealing for PU foam pre-insulated pipelines.
Municipal and Industrial Drainage Protection: spiral corrugated pipes, steel-reinforced plastic pipes and PVC-U sewage pipes.
Pipeline On-Site Maintenance and Rehabilitation: gap sealing, damage repair and field joint renovation of buried pipelines.

Heat shrinkable sleeve for Oil & Gas Pipe

Automatic Hot Melt Adhesive Coating Machine for Heat Shrink Sleeve with Reactor

Heat-shrinkable sleeve for Thermo Insulated Pipe
Automatic Hot Melt Adhesive Coating Machine for Heat Shrink Sleeve with Reactor
For metal reinforced HDPE corrugated pipe (drainpipe)

Automatic Hot Melt Adhesive Coating Machine for Heat Shrink Sleeve with Reactor

Production Line Composition

This girth weld sleeve line uses a modular configuration of coating system, stretching unit, optional fiberglass upgrade device and PLC intelligent control for continuous production.

TJ-700 Adhesive Coating Line: automatic online PE back film coating with hot melt adhesive (DuPont, Sumitomo and Hanwha compatible), plus secondary stretching and shaping. It gives a uniform adhesive layer and >150N/cm peel strength.
RS-800 PE Backing Extrusion Line (matching unit): stable 150-200kg/h output of high-purity LDPE/HDPE backing film for 1100-1200mm sleeve production.
Fiberglass Reinforced Upgrade Configuration: fiber unwinding, constant-temperature heating and leveling equipment for three-layer reinforced sleeves.
Auxiliary and Intelligent Control System: circulating cooling system, precision haul-off unit, PLC electric control and ABB main motor for stable, adjustable, efficient operation.

Operating Environmental Conditions

Working Place: indoor non-hazardous production workshop
Power Supply: 380V 50HZ (-10%, +5%)
Working Humidity: ≤85%, no condensation
Circulating Cooling Water: ~0.5m³/min (≤20ºC, 0.3Mpa)
Compressed Air: ~0.4m³/min, working pressure >0.5Mpa

Main Equipment List (Standard Heat Shrinkable Tape Production Line)

RS-800 PE Backing Extruder Line


No.	Equipment Name	Quantity
1	Automatic Vacuum Feeder	1 Set
2	Hopper Dryer	1 Set
3	SJ-90×30 Single Screw Extruder	1 Set
4	T-Die Mold	1 Set
5	Hydraulic Filter Screen Changer	1 Set
6	3-Roller Calender	1 Set
7	Roller Temperature Control System	1 Set
8	Cooling Bracket with Lengthways Cutting Device	1 Set
9	Haul-Off Unit	1 Set
10	Coiler	1 Set
11	Electric Control System	1 Set

TJ-700 Adhesive Coating Production Line

No.	Equipment Name	Quantity
1	Unpowered Uncoil Device (Separate Uncoiler Optional)	2 Sets
2	PE Backing Stretching Unit	1 Set
3	300L Reactor	1 Set
4	Adhesive Coating Roller	1 Set
5	Cooling Water Tank	1 Set
6	Haul-Off Unit	1 Set
7	Digital Meter Counter	1 Set
8	Coiler	1 Set
9	Electric Control System	1 Set

Core Production Process

This hot melt coating line is the third step of a three-step molding process used worldwide for pipeline field joint coating materials:

Step 1, Substrate Extrusion: high-purity PE is extruded into flat, uniform back film on the RS-800 line.
Step 2, Electron Beam Radiation Crosslinking: professional irradiation gives the PE film a shape memory effect, high tensile strength and aging resistance. This is the core technology of any cross-linked sleeve equipment.
Step 3, Online Adhesive Lamination and Shaping: the cross-linked film is precisely stretched and compounded with imported hot melt adhesive from the 300L reactor. The finished sleeves meet ASTM D1000 and DIN 30672.

Three-Layer Fiberglass Reinforced Process: automatic fiberglass unwinding, constant-temperature heating and precise leveling are added to the standard process. This forms three-layer reinforced sleeves in one continuous pass, with ≥100N/cm shear strength (DIN 30672) and more stable shrinkage.

Automatic Hot Melt Adhesive Coating Machine for Heat Shrink Sleeve with Reactor

One Coating Machine, Two Products: the same adhesive coating machine makes standard two-layer and fiberglass reinforced three-layer sleeves, saving equipment investment.
Ultra-Wide 1100-1200mm Range: the widest in our sleeve line series, covering extra-large-diameter girth weld projects.
International Standard Performance: >150N/cm peel strength, ≥100N/cm shear strength and ≤0.05% water absorption.
Intelligent and Energy-Saving: PLC and ABB motor give automatic, continuous operation with lower labor and energy costs.
Premium Adhesive Compatibility: works with world-class brand hot melt adhesives for long-term bonding on buried pipeline joints.
Proven Technology: independent R&D, a national expert workstation, 9 senior engineers and 389+ global project cases.

Automatic Hot Melt Adhesive Coating Machine for Heat Shrink Sleeve with Reactor

Technical Parameters of Finished 1100-1200mm Cross-Linked PE Heat Shrink Sleeves

All finished radiation cross-linked PE heat shrink sleeves comply with ASTM, DIN and GB/T standards:

Tensile Strength: 15-20MPa (ASTM D638)
Elongation at Break: ≥350%
Peel Strength: >150N/cm (ASTM D1000)
Shear Strength: ≥100N/cm (DIN 30672)
Adhesive Softening Point: 70-80°C (ASTM E28)
Water Absorption Rate: ≤0.05% (ASTM D570)

Qingdao Huashida Machinery is a professional manufacturer of pipeline anti-corrosion equipment and plastic extrusion machinery with 21+ years of R&D and production experience. Our heat shrink sleeve machine family covers three width configurations:

Model 800 (650mm): confirmed Hot Item, anti-corrosion pipeline joints
Model 1000 (750-800mm): confirmed Hot Item, pipeline field joint coating
Model 1350 (1100-1200mm): girth weld protection and large-diameter field joint coating

All three models are exported to dozens of countries. We customize each hot melt coating line to the customer's required output, sleeve width and pipeline application.

Automatic Hot Melt Adhesive Coating Machine for Heat Shrink Sleeve with Reactor

Commercial Terms
Payment Terms: 30% deposit within 2 working days after contract signing, 67% before goods delivery, 3% within 10 days after installation and commissioning.

After-Sales Service and Warranty

Warranty: 12 months mechanical / 6 months electrical from equipment receipt date
Free Services: technical documents, electrical drawings and on-site operator training
Installation and Commissioning: professional engineers dispatched for on-site guidance
Long-Term Support: lifetime technical consultation, spare parts supply and troubleshooting

Delivery Time: 90 days after deposit confirmation
Packaging: standard wrap film; wooden pallets or cartons available

Automatic Hot Melt Adhesive Coating Machine for Heat Shrink Sleeve with Reactor
