Name: Customized One-Step Continuous PU Pre-Insulated Pipe Production Line
Brand: Qingdao Huashida Machinery Co., Ltd.
SKU: 20-350mm
Price: 1507500.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Type: Pipe Extruder

Apply To: Pert Flexible Insulation Pipes Rigid Insulation

Application: Used For Sewerage And Drainage In City

Power: 260kg

Highlight:

continuous PU pre-insulated pipe production line

customized pre-insulated pipe machine

one-step insulated pipe production equipment

Basic Infomation

Place of Origin: qingdao,china

Brand Name: huashida

Certification: CE, ISO9001:2008

Model Number: 20-350mm

Payment & Shipping Terms

Packaging Details: Standard Packing

Delivery Time: 60days

Payment Terms: L/C,D/P

Supply Ability: 30 Unit/Year

Gallery

Customized One-Step Continuous PU Pre-Insulated Pipe Production Line

Product Description

Customized One-Step Continuous PU Pre-Insulated Pipe Production Line

The one-step polyurethane insulation pipe production line of Huashida produces small-diameter polyurethane insulation pipes with an outer diameter ranging from Φ32 to Φ426mm.

The main feature of this equipment is that multiple processes of the insulation pipe, such as extruding the outer protective pipe and injecting insulation materials, are continuously completed on the same production line, resulting in a relatively high production efficiency. It is mainly used for manufacturing polyurethane insulation pipes, etc., which can closely combine the inner pipe, insulation layer and outer protective layer of the insulation pipe. Its degree of automation can effectively reduce manual operation links and improve the stability of product quality.

Application scenario:
It is widely used in heat supply pipeline, oil transmission pipeline and other pipelines that need heat preservation.

Main Equipment:

Steel pipe derusting equipment
PE extrusion machine
Forming molds
Deviation-correcting devices

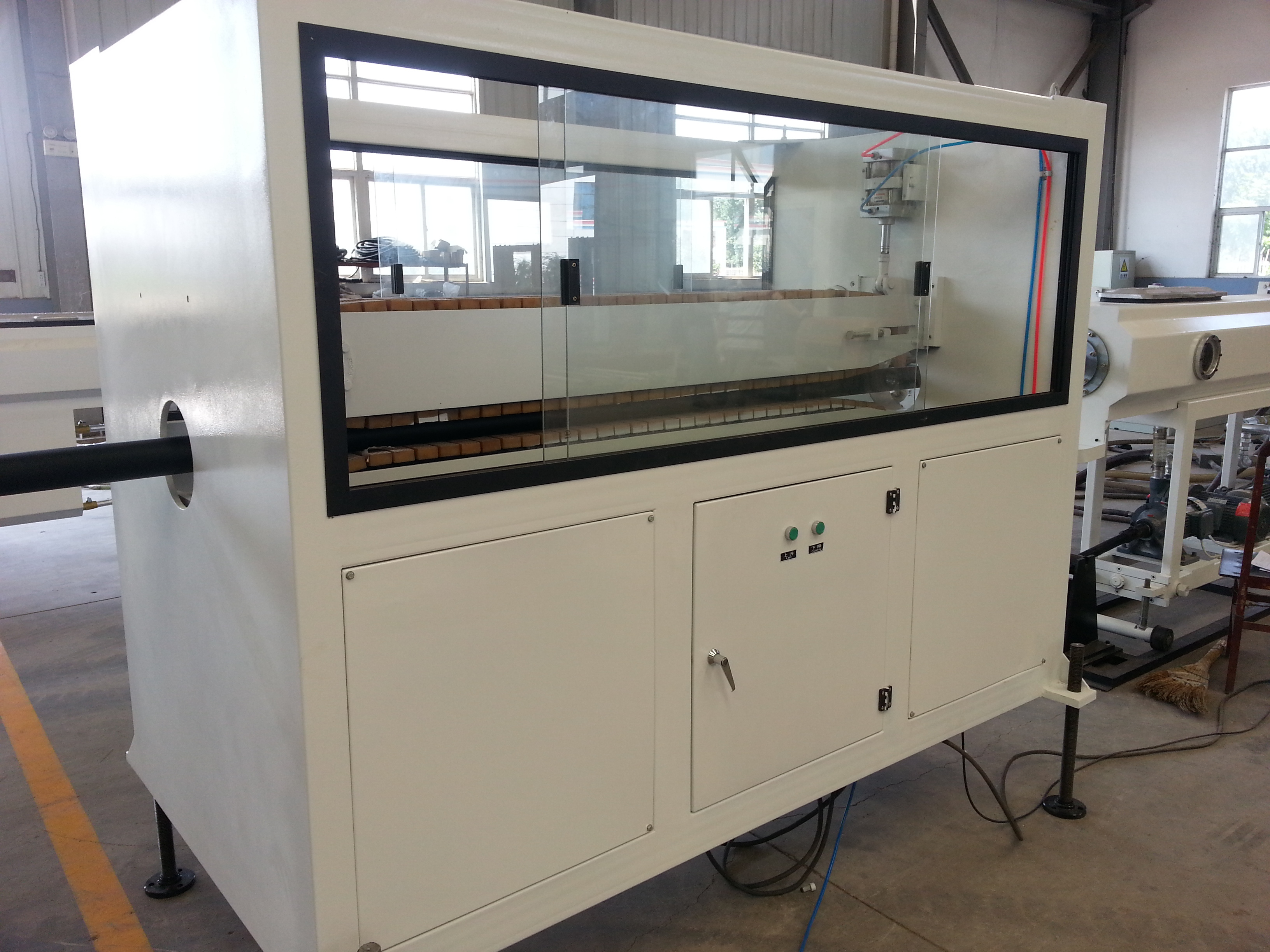

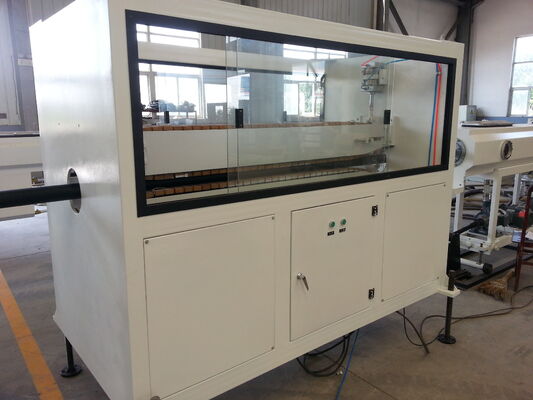

Cooling equipment
Cutting tools
Pipe transfer systems
Spray marking system

Production line parameter:
Processing Capacity: ≤250m²/h
Surface Cleaning Grade: Sa2.5

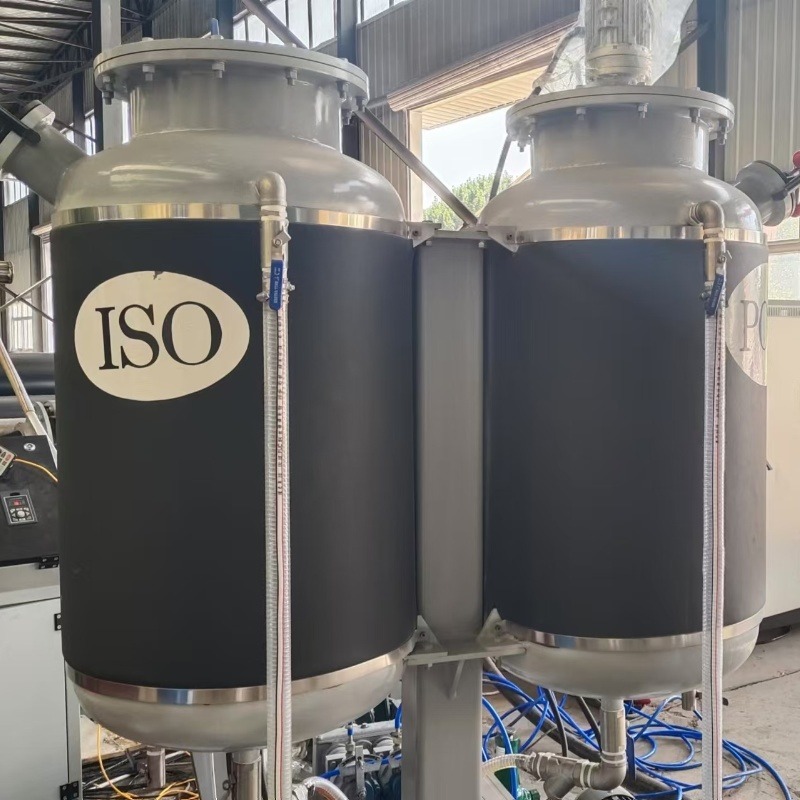

Materials Used: Black Material: Isocyanate ;White Material: Polyether Polyol Mixture

Equipment Show:
Customized One-Step Continuous PU Pre-Insulated Pipe Production Line

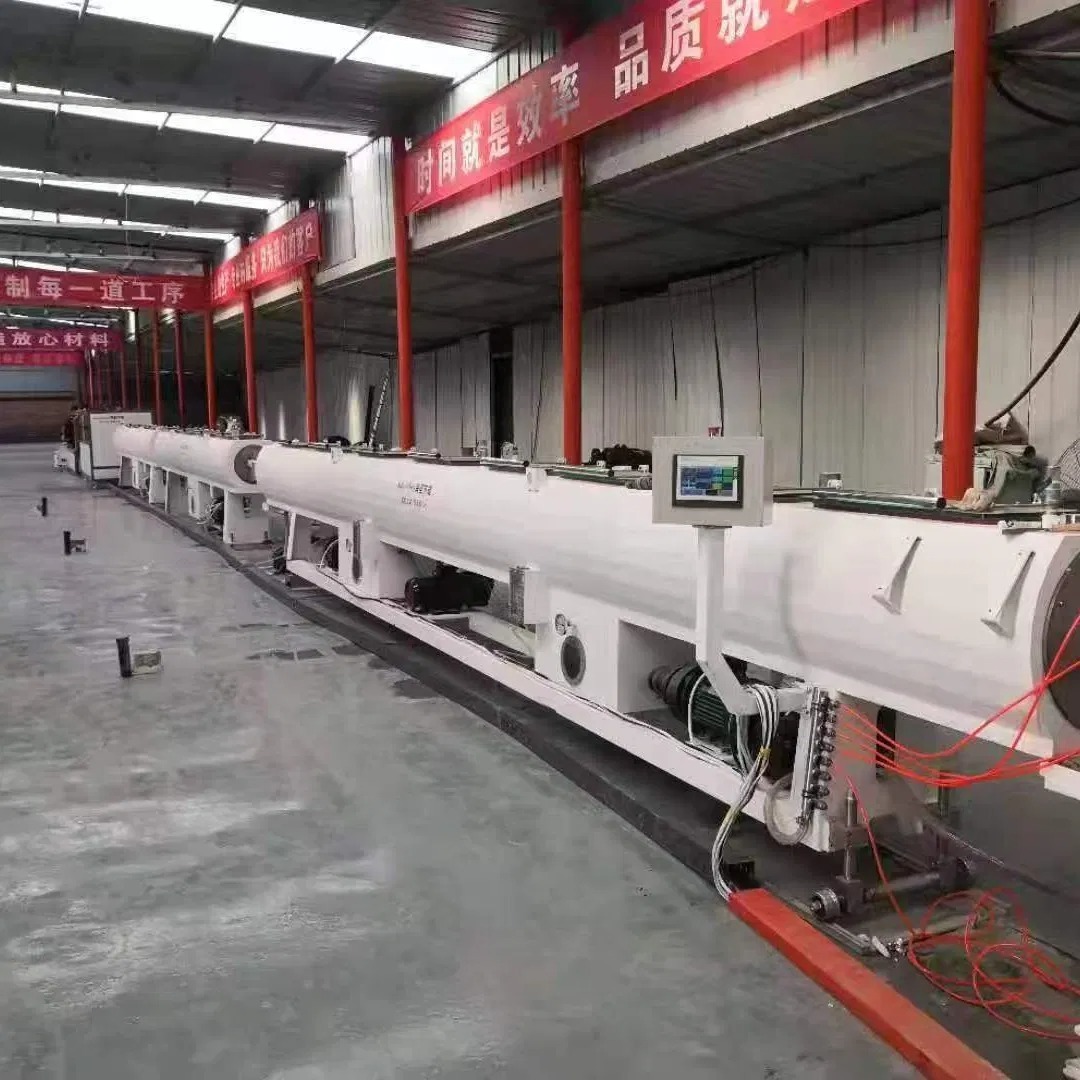

The whole production line is composed of:

Extruder → Die head → cooling water tank → Traction machine → Cutting machine → pipe clamping machine → Bracket and electrical control

Versatile Material Options:
Corrosion resistance: Compatible with fusion-bond epoxy powder and various coatings.
Thermal insulation: Options include high-temperature polyurethane foam or black pitch foam.
Outer jacket: Black, UV-resistant, and anti-aging, ensuring durability.
Robust Layer Integration:
The jacket, foam, and anti-corrosion layers adhere firmly, providing superior protection.
Damage-free Rotation System:
Rubber wheels prevent damage to the anti-corrosion layer during operation.
Advanced Alignment Technology:
The Automatic Hydraulic Deviation-correcting Machine ensures stable performance and precise rectification.

1. Recognized as the First Batch of Key Technical Equipment in Shandong Province
2.Standardization Assessment Report for Qingdao's Scientific and Technological Achievements
3.Holder of Multiple National Patents
4.Smart Automation with Reduced Manual Intervention
5.High-Efficiency Energy-Saving Solution with Low Production Overheads
6.Stable & Reliable Performance with High Finished Product Yield and Minimal Scrap
