Certified 3LPE FBE Steel Pipe Anti-Corrosion Coating Line for Water Gas Supply

This ISO 21809 3LPE FBE steel pipe anti-corrosion coating line is a fully automatic, modular turnkey pipe coating production system engineered for factory-applied FBE and 3LPE anti-corrosion treatment of large-diameter steel pipes for water gas supply pipelines, oil and gas transmission, district heating pipe fabrication, municipal water supply networks, and buried pipeline infrastructure.

Certified to ISO 21809-1, DIN 30670, DNV, and SY/T0413 simultaneously - the most comprehensive multi-standard coating compliance available in this product category - this line delivers the broadest international certification coverage for global water gas supply pipeline EPC project bidding and regulatory approval.

Fusion Bonded Epoxy (FBE) powder is a non-toxic, thermosetting anti-corrosion coating material. After precision high-temperature curing at ± 2°C temperature accuracy, it forms a dense, high-molecular crosslinked protective film delivering outstanding chemical corrosion resistance, abrasion resistance, anti-aging performance, and high mechanical strength - meeting ISO 21809-1, DIN 30670, and DNV international standards for water gas supply and oil gas pipeline anti-corrosion coating.

The FBE primer layer bonds tightly to the Sa2.5 blast-cleaned steel substrate, providing superior adhesion, acid-alkali tolerance, and excellent cathodic disbondment resistance - the core performance indicator for buried water gas supply and oil gas pipeline anti-corrosion systems.

• ISO 21809-1 Multi-Standard Compliance: The internationally recognized multi-layer polymer coating standard for steel pipelines - ISO 21809-1 alongside DIN 30670, DNV, and SY/T0413 gives this water gas supply pipeline coating line the most comprehensive certification coverage for global EPC project compliance
• Modular Coating Configuration Flexibility: Single-layer FBE, 2LPE, 2LPP, and full 3LPE composite anti-corrosion coating from one flexible production platform - adaptable for municipal water gas supply, oil gas transmission, district heating, and diversified industrial buried water gas pipeline coating requirements
• ± 2°C Medium-Frequency Induction Heating Precision: Ensures uniform FBE epoxy powder melting and consistent 3LPE coating adhesion for reliable water gas supply pipeline anti-corrosion quality batch after batch
• Zero-Toxicity FBE for Water Supply: Smooth internal FBE lining meets potable water supply pipeline safety standards - approved for drinking water contact applications alongside gas supply pipeline anti-corrosion service
• 250m²/h High-Throughput Performance: Full PLC automatic control sustains 250m²/h processing capacity at 0-6m/min adjustable line speed - keeping high-volume water gas supply pipeline coating contracts on schedule without production bottlenecks

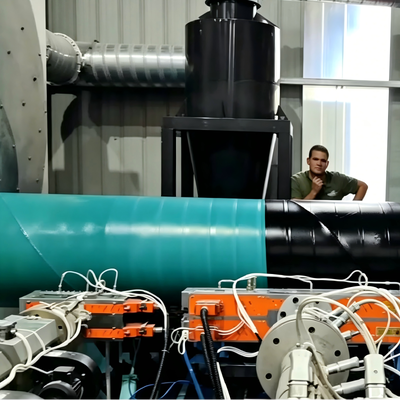

• Zero-Emission Environmental Compliance: Integrated cyclone and pulse dust collection plus FBE powder recovery unit fully satisfies CE and ISO14001 standards - supporting green factory requirements for water gas supply pipeline coating workshops globally

• Pipe Diameter Coverage: Φ325-1200mm, Φ325-1620mm, Φ325-1820mm, Φ508-1620mm, Φ508-2540mm, Φ508-4200mm
• Processing Capacity: 250m²/h
• Line Speed: 0-6m/min
• Surface Cleaning: Sa2.5
• Coating System: FBE powder (150-800 μm) + 3LPE polyethylene
