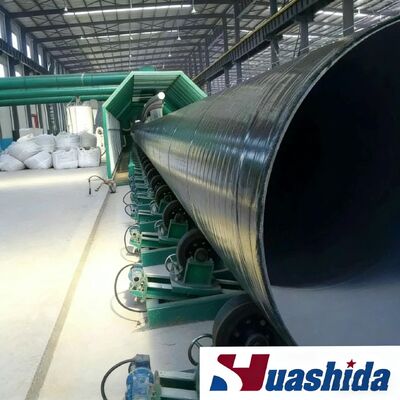

BV Audited 3LPE FBE Steel Pipe Coating Line for Water Gas Pipelines
Full Automatic 3LPE FBE Steel Pipe Anti-Corrosion Coating Line with Shot Blasting
Internal & External FBE Powder Coating
The BV Audited 3LPE FBE steel pipe coating line is a fully automatic, turnkey pipe coating production system engineered for factory-applied internal FBE and external 3LPE anti-corrosion treatment of large-diameter steel pipes for water gas pipelines, oil and gas transmission, district heating pipe fabrication, municipal water supply networks, and buried pipeline infrastructure. As a Bureau Veritas (BV) audited supplier (ID: MIC-ASR2551964) - the strictest international third-party factory verification standard - this line combines independently verified manufacturing quality with the broadest multi-standard coating compliance available: ISO 21809-1, DIN 30670, DNV, and SY/T0413 simultaneously.
Designed for oil and gas pipeline manufacturers, oilfield service companies, municipal water gas pipeline fabricators, district heating pipe producers, and buried pipeline EPC contractors, this BV Audited FBE 3LPE steel pipe anti-corrosion coating line supports multiple coating configurations - single-layer FBE, 2LPE, 2LPP, and full 3LPE composite anti-corrosion coating - from one flexible production platform. The line is actively deployed across the Middle East, Central Asia, Russia, Africa, and Southeast Asia water gas pipeline markets.

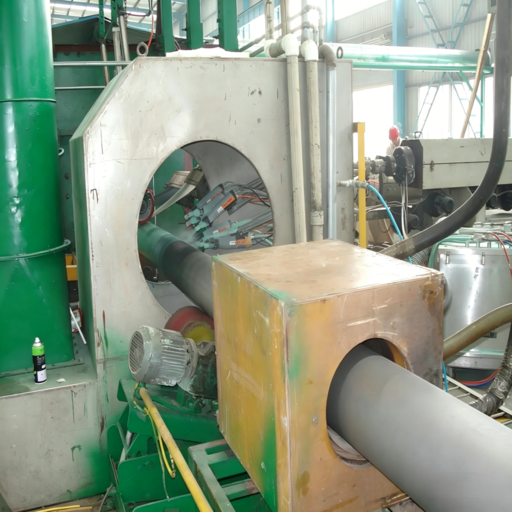

This complete turnkey 3LPE FBE coating production line integrates internal and external shot blasting derusting (Sa2.5), medium-frequency induction heating (±2°C accuracy), electrostatic FBE epoxy powder spraying, hot melt adhesive extrusion, outer three-layer polyethylene (3LPE) cladding, water spray cooling, pipe end beveling, and centralized PLC automatic control into a single continuous workflow - achieving one-step synchronous forming of the internal Fusion Bonded Epoxy (FBE) primer layer, intermediate adhesive layer, and outer 3LPE polyethylene protective layer at 0-6m/min adjustable line speed delivering 250m²/h processing capacity for water gas pipeline anti-corrosion coating manufacturing.
Coating Principle
Fusion Bonded Epoxy (FBE) powder is a non-toxic, thermosetting anti-corrosion coating material. After precision high-temperature curing, it forms a dense, high-molecular crosslinked protective film delivering outstanding chemical corrosion resistance, abrasion resistance, anti-aging performance, and high mechanical strength. The FBE primer layer bonds tightly to the Sa2.5 blast-cleaned steel substrate, providing superior adhesion, acid-alkali tolerance, and excellent cathodic disbondment resistance - the core performance indicator for buried and offshore oil gas and water gas pipeline anti-corrosion systems complying with ISO 21809-1, DIN 30670, and DNV international standards.
The intermediate polymer adhesive layer fuses seamlessly onto the uncured FBE epoxy surface, then bonds firmly with the outer polyethylene sheath, forming a robust three-layer composite anti-corrosion structure (3LPE) - the defining technical advantage of this BV Audited industrial-grade water gas pipeline coating equipment.
Product Characteristics
- BV Audited Manufacturing Quality: Bureau Veritas independently audited factory capabilities, manufacturing processes, and quality management systems (ID: MIC-ASR2551964) - the strictest third-party supplier verification standard for water gas pipeline coating line procurement at the $235,000-$353,000 price point
- Superior FBE 3LPE Anti-Corrosion Performance: Combined internal FBE and external 3LPE multilayer protection shields water gas pipeline steel pipe from chemical erosion, aging, and mechanical impact, ensuring reliable long-term operation in harsh oilfield, underground, coastal, and offshore corrosive environments
- Zero-Toxicity Internal FBE for Water Supply: Smooth FBE internal lining reduces fluid transmission resistance and is approved for potable municipal water supply pipeline internal coating without harmful substance leaching
- Broad Water Gas Pipeline Engineering Compatibility: Preferred 3LPE FBE anti-corrosion solution for long-distance oil gas transmission, urban gas distribution, municipal water supply, district heating, and large-scale buried water gas pipeline infrastructure projects
- High Automation & Low Total Cost of Ownership: Fully automatic continuous production minimizes labor input; stable low-failure-rate operation delivers favorable total cost for water gas pipeline steel pipe anti-corrosion manufacturers worldwide
- ISO 21809-1, DIN 30670, DNV and SY/T0413 Compliance: Four international standards simultaneously - supporting EPC water gas pipeline project bidding and regulatory approval across all major international markets
Process Adaptability
Flexible, modular equipment design supports independent single-layer FBE spraying or full composite 3LPE anti-corrosion coating, including combined outer 3LPE + internal FBE (TPEP) dual-layer structures. This adaptability makes the BV Audited coating line ideal for municipal water gas supply pipe, long-distance oil gas transmission pipe, district heating pipeline, and diversified industrial buried water gas pipeline coating engineering requirements across Middle East, Central Asia, Russian, African, and Southeast Asian markets.
Efficient and Stable High-Speed Performance
Precision medium-frequency induction heating maintains ± 2°C temperature accuracy, ensuring uniform FBE epoxy powder melting and consistent 3LPE coating adhesion batch after batch for water gas pipeline production. Adjustable spiral pipe conveyor speed accommodates variable large-diameter steel pipe from 325-4200mm, delivering stable 250m²/h throughput and repeatable 3LPE FBE anti-corrosion coating quality at 0-6m/min line speed across every water gas pipeline production run.
Environmental Compliance
Equipped with an integrated cyclone and pulse dust collection system plus a closed-loop FBE powder recovery unit, this BV Audited 3LPE FBE water gas pipeline coating line fully satisfies CE and ISO 14001 environmental protection standards. Zero visible dust emission ensures compliance with global factory HSE requirements for steel pipe shot blasting and FBE powder coating workshops - meeting environmental compliance requirements for water gas pipeline coating factories across Middle East, European, and Central Asian regulatory environments.
Global Service Network
With more than 50 completed domestic and overseas turnkey projects and BV Audited (ID: MIC-ASR2551964) manufacturing verification, Huashida's 3LPE FBE water gas pipeline coating production lines are commissioned and running in Russia, Iran, the UAE, India, Belarus, Kazakhstan, and other international markets - earning strong recognition among global water gas pipeline fabricators, EPC contractors, and oil gas infrastructure developers.
Frequently Asked Questions
Q1. What makes this line BV Audited and why does it matter for water gas pipeline projects?
A: Bureau Veritas (BV) independently audited Huashida's factory capabilities, manufacturing processes, and quality management systems (ID: MIC-ASR2551964) - the strictest third-party supplier verification for water gas pipeline coating line procurement. BV audited status alongside ISO 21809-1, DIN 30670, DNV, and SY/T0413 delivers the most comprehensive independent quality verification in this product category.
Q2. What are the production line's technical parameters for water gas pipeline coating?
A: Steel pipe diameter coverage: Φ325-1200mm, Φ325-1620mm, Φ325-1820mm, Φ508-1620mm, Φ508-2540mm, and Φ508-4200mm. Processing capacity: up to 250m²/h. Line speed: 0-6m/min adjustable. Surface cleaning level: Sa2.5. Coating material: Fusion Bonded Epoxy (FBE) powder and three-layer polyethylene (3LPE).
Q3. What coating thickness range does the line support for water gas pipelines?
A: 150-800 μm, fully customizable to project-specific water gas pipeline anti-corrosion coating specifications complying with ISO 21809-1, DIN 30670, DNV, and SY/T0413.
Q4. What international standards does the coated water gas pipe comply with?
A: ISO 21809-1, DIN 30670, DNV, and SY/T0413 - supporting global EPC water gas pipeline bidding and cross-border regulatory approval across Chinese, European, and international markets.
Q5. Can the coating line be customized for different water gas pipeline applications?
A: Yes - modular design supports single-layer FBE, 2LPE, 2LPP, and full 3LPE composite coating, adaptable for oil gas transmission, municipal water gas supply, district heating, and industrial pipeline coating projects.
Q6. Does the equipment meet environmental compliance requirements for water gas pipeline factories?
A: Yes - integrated cyclone and pulse dust collection plus FBE powder recovery meets CE and ISO 14001 environmental standards; zero visible dust emission for global factory HSE compliance in water gas pipeline coating workshops.
Q7. What is the standard delivery time and warranty?
A: 2-3 months after deposit confirmation; 12-month mechanical warranty and 6-month electrical warranty with overseas installation, operator training, and 24-hour remote technical support.
Q8. What after-sales services are included?
A: Pre-sale: free workshop planning and water gas pipeline production capacity assessment. Sale: on-site engineer installation, commissioning, and operator training. After-sales: 24-hour remote technical support for the operating life of the 3LPE FBE coating line.
Company Profile
Qingdao Huashida Machinery Co., Ltd. - BV Audited Manufacturer of 3LPE FBE Water Gas Pipeline Coating Lines
Qingdao Huashida Machinery Co., Ltd., founded in 2003, is a Bureau Veritas (BV) Audited supplier (ID: MIC-ASR2551964) specializing in the R&D and manufacturing of 3LPE FBE steel pipe anti-corrosion coating lines for water gas pipelines, polyurethane pre-insulated pipe production lines, large-diameter underground pipeline machinery, and plastic pipe fitting equipment - backed by more than 21 years of pipeline industry experience. Huashida maintains long-term technical cooperation with Tsinghua University, Beijing University of Chemical Technology, South China University of Technology, and other leading research institutes - ranking among China's top-3 manufacturers of pipeline processing equipment.
Core Product Range:
- BV Audited 3LPE FBE Steel Pipe Coating Lines for Water Gas Pipelines (325-4200mm, ISO 21809-1/DIN 30670/DNV/SY/T0413)
- High Speed FBE 3LPE Internal External Coating Lines for Oil Gas Pipelines
- 36-4200mm External Shot Blasting 3LPE Steel Pipe Coating Lines
- Turnkey PUR Spray PE Pre-Insulated Pipe Production Lines (508-1620mm)
- HDPE Jacket Pipe Casing Extrusion Lines (110-2200mm)
- BV Audited HDPE PE100 Pipe Extrusion Lines for Municipal Water Gas Supply
