Mining Slurry Pipeline 3PE Coating Line, Wear & Corrosion Resistant Equipment for Mine Transport Pipe

Qingdao Huashida Mining Slurry Pipeline 3PE Coating Line is a professional anti-corrosion coating system designed for DN114mm - DN1020mm steel pipes. This line features extra-thick pe top layer for mechanical protection, impact-resistant coating formulation, robust construction for mining environments, proven coating technology for heavy-duty service, delivering reliable coating quality for coal mine slurry transport, mineral concentrate pipelines, tailings disposal lines, mining dewatering pipelines, mineral processing plant piping.

With 280kW PE extruder and 1000kW intermediate frequency heating, this system is optimized for the China, Australia, Africa, South America, mining companies, mineral processing operators market. Backed by over 20 years of manufacturing experience since 2003, with 58 invention patents, and 50+ successful installations worldwide, Huashida ensures stable operation, low maintenance cost, and coating quality that meets international standards.



1. Food-grade coating material compatible for drinking water contact applications

2. Large-diameter capability up to DN2600mm for major water diversion and transmission projects

3. Proven in South Africa DN508-2540mm large water pipeline project (2025)

4. Optional internal epoxy coating meets GB/T 17219 drinking water contact standard

5. Cost-effective 2PE/3PE options for municipal water and sewage pipeline projects

The anti-corrosion coating processing line includes:

Coating Process: 3PE coating optimized for oil & gas pipeline specifications

Standard 3PE Process Sequence:

Pipe Loading -> External Shot Blasting (Sa 2.5) -> Pipe Internal Air Purging
-> Pipe End Masking -> Intermediate Frequency Heating (~200deg C)
-> FBE Epoxy Powder Spraying -> AD Adhesive Extrusion & Wrapping
-> PE Extrusion & Wrapping -> Water Spray Cooling -> Joint Cutting
-> PE End Beveling -> Holiday Detection -> Finished Pipe Unloading

3. Key Configuration

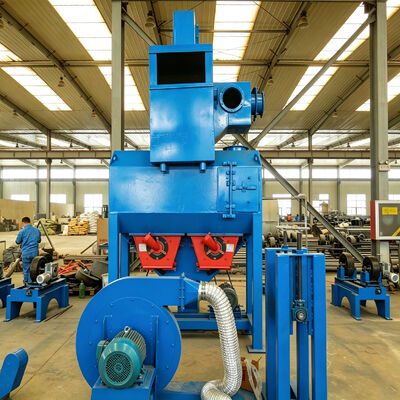

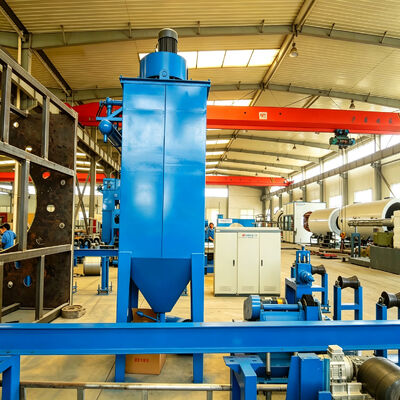

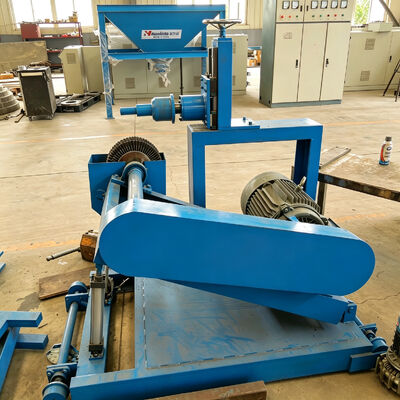

Designed for pipe diameter range of DN114mm - DN1020mm, this production line handles standard pipe lengths of 6-15 meters (12m standard). The line begins with external shot blasting using external shot blasting machine, 2x37kw blast wheels, 350kg/minx2, sa 2.5 grade, achieving Sa 2.5 cleaning grade per ISO 8501-1 with anchor profile depth of 50-90um.

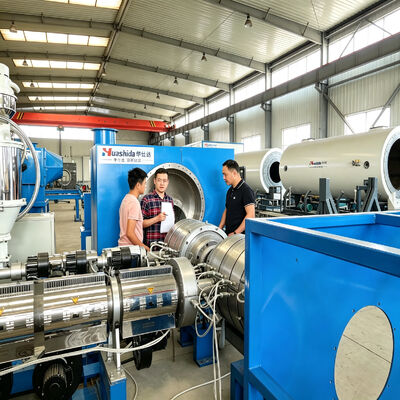

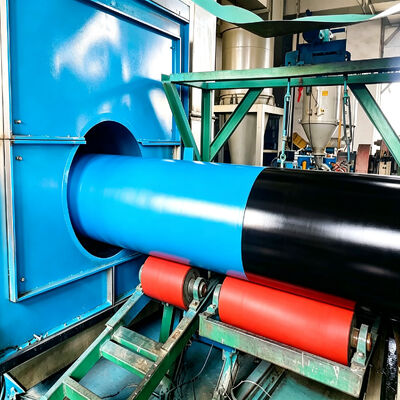

Following surface preparation, the 1000kw intermediate frequency heating, c-type coil, pure water cooling brings the pipe to approximately 200deg C for FBE powder curing. The coating process employs SJ-65/30 single screw extruder, 45kW, max output 100 kg/h for adhesive application and SJ-120/33 single screw extruder, 280kW, max output 750 kg/h for the top polyethylene layer. Both extruders feature 38CrMoAlA nitrided steel screws with nitriding depth of 0.4-0.7mm and hardness exceeding HV740.

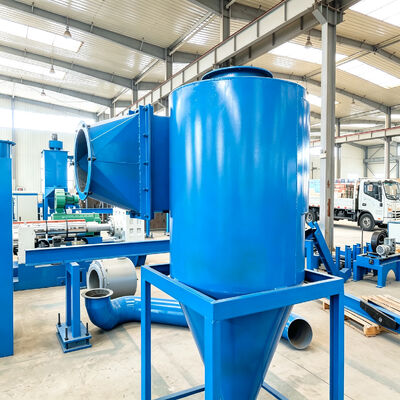

The FBE spraying station uses multi-gun electrostatic spray with redundant (n+1)x2 design, achieving over 95% powder recovery rate. Control is managed through internationally recognized PLC with 10-inch industrial-grade HMI, supporting recipe storage for one-click diameter changeover. VFD options include internationally recognized brands with industrial-grade electrical control components. Cooling uses water spray quench at <=20deg C and >=0.3MPa with 26-30 m3/h flow rate. End beveling uses a rotary peeler knife completing each end in approximately 40 seconds with kraft paper masking. Final inspection includes high-voltage holiday detection and thickness measurement. The line requires 4-5 operators and workshop height of no less than 9 meters for large diameter configurations.

This coating line is specifically suited for:

• Coal mine slurry transport, mineral concentrate pipelines, tailings disposal lines, mining dewatering pipelines, mineral processing plant piping

• Oil & gas transmission and distribution pipelines

• Municipal water supply and sewage pipelines

• Chemical plant process piping

• Mining and slurry transport pipelines

Target Market: China, Australia, Africa, South America, mining companies, mineral processing operators

Export Countries: Russia, UAE, Saudi Arabia, Iran, Uzbekistan, Kazakhstan, Nigeria, South Africa, India, Thailand

4. Standards Compliance

This equipment is designed and manufactured in compliance with:

• GB/T 23257-2017

• DIN 30670

• ISO 21809-1

• ISO 8501-1 (Sa 2.5)

All coating parameters (FBE >=150um, AD >=170um, PE 3.3-4.2mm per GB/T 23257-2017) can be configured to meet project-specific inspection and test plans (ITP). Coating thickness calculated per formula: coating weight = surface area x thickness x material density.
