Name: Large Diameter HDPE Jacket Pipe Extrusion Line for Pre-Insulated Pipes
Brand: Qingdao Huashida Machinery Co., Ltd.
SKU: 110-2200MM
Price: 1507500.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Raw Material: PE

Application: Producing Pre-Insulated Pipe Jacket

Cutting Method: Dust-Free Planetary Cutting

Calibration Method: Vacuum And Water Spraying Cooling

Highlight:

HDPE jacket pipe extrusion line

pre-insulated pipe production line

large diameter HDPE pipe extrusion

Basic Infomation

Place of Origin: QINGDAO,CHINA

Brand Name: HUASHIDA

Certification: CE, ISO9001:2008

Model Number: 110-2200MM

Payment & Shipping Terms

Packaging Details: Standard Package

Delivery Time: 60DAYS

Payment Terms: L/C,D/P,T/T

Supply Ability: 30 Sets/Year

Gallery

Large Diameter HDPE Jacket Pipe Extrusion Line for Pre-Insulated Pipes

Product Description

Large Diameter HDPE Jacket Pipe Extrusion Line for Pre-Insulated Pipes

Qingdao Huashida Machinery Co., Ltd. presents a state-of-the-art Large Diameter HDPE Jacket Pipe Extrusion Line for Pre-Insulated Pipes designed to manufacture high-quality insulated pipes with diameters ranging from 110mm to 2200mm. Leveraging advanced German extrusion technology, this integrated system combines precision engineering with operational efficiency to meet diverse industrial and municipal pipeline demands.
HDPE jacket pipes are produced by vacuum calibration method, with smooth inner and outer walls, a long service life, good anti-corrosion and heat preservation performance, and mechanical properties.
Diameter range: 110mm - 2200mm (customizable)
Output capacity: 250-1600 kg/h (material-dependent)

Style	PE-110/500	PE-655/1380	PE-960/1860	PE-1155/2200
Main Extruder	SJ-75/33	SJ-120/33	SJ-150/33	SJ-150/33
Pipe diameter	Φ110-600mm	Φ655-1380mm	Φ960-1860mm	Φ1155-2200mm
Capacity	250-350kg/h	700-900kg/h	1000-1200kg/h	1350kg/h
Installed power	160kw	480kw	580kw	650kw
Length	26m	36m	45m	45m

Production line composition:

-1set   Vacuum loader
-1set   Hopper dryer

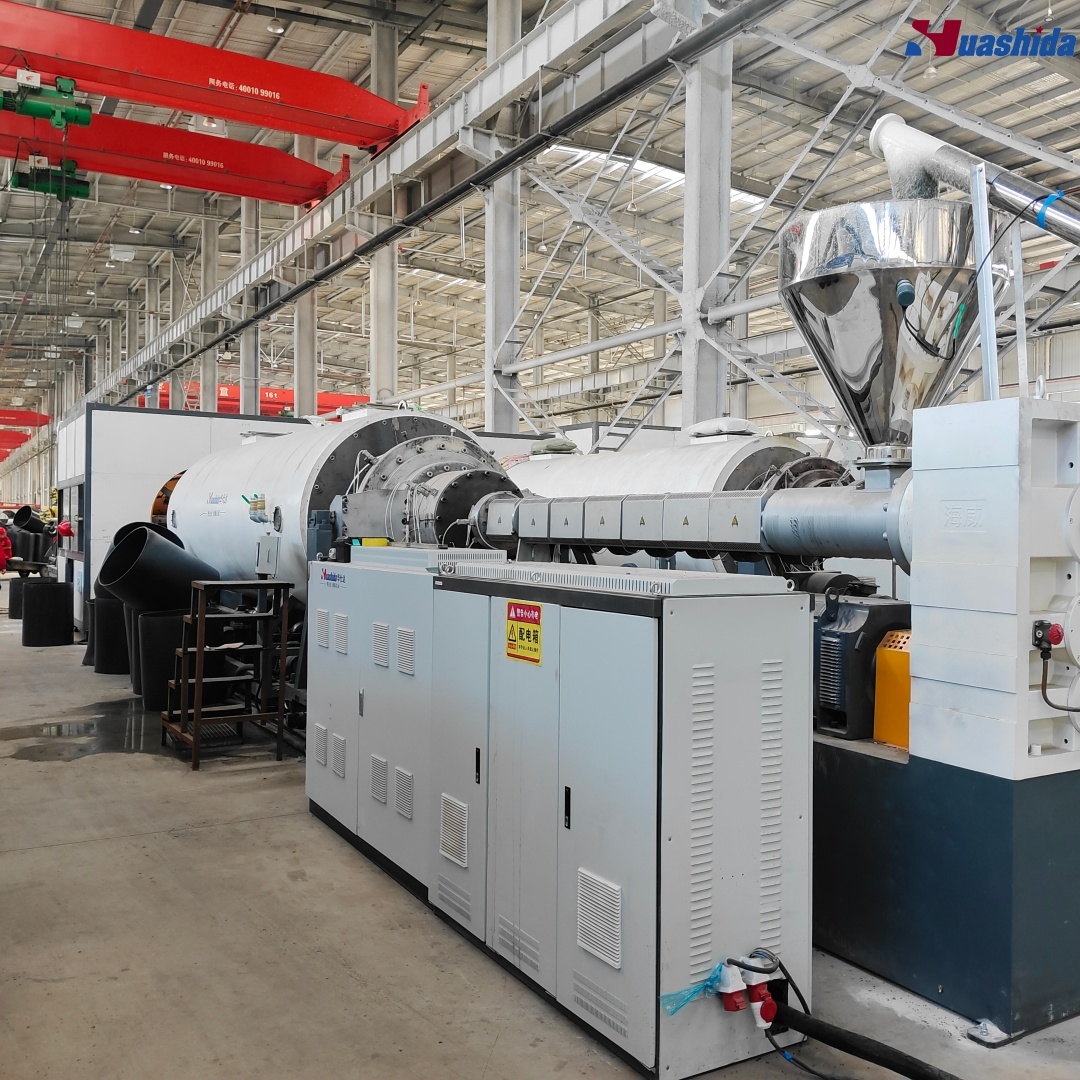

-1set   High-efficiency single screw extruder
-1set   Vacuum calibration table
-1set   Water spraying tank

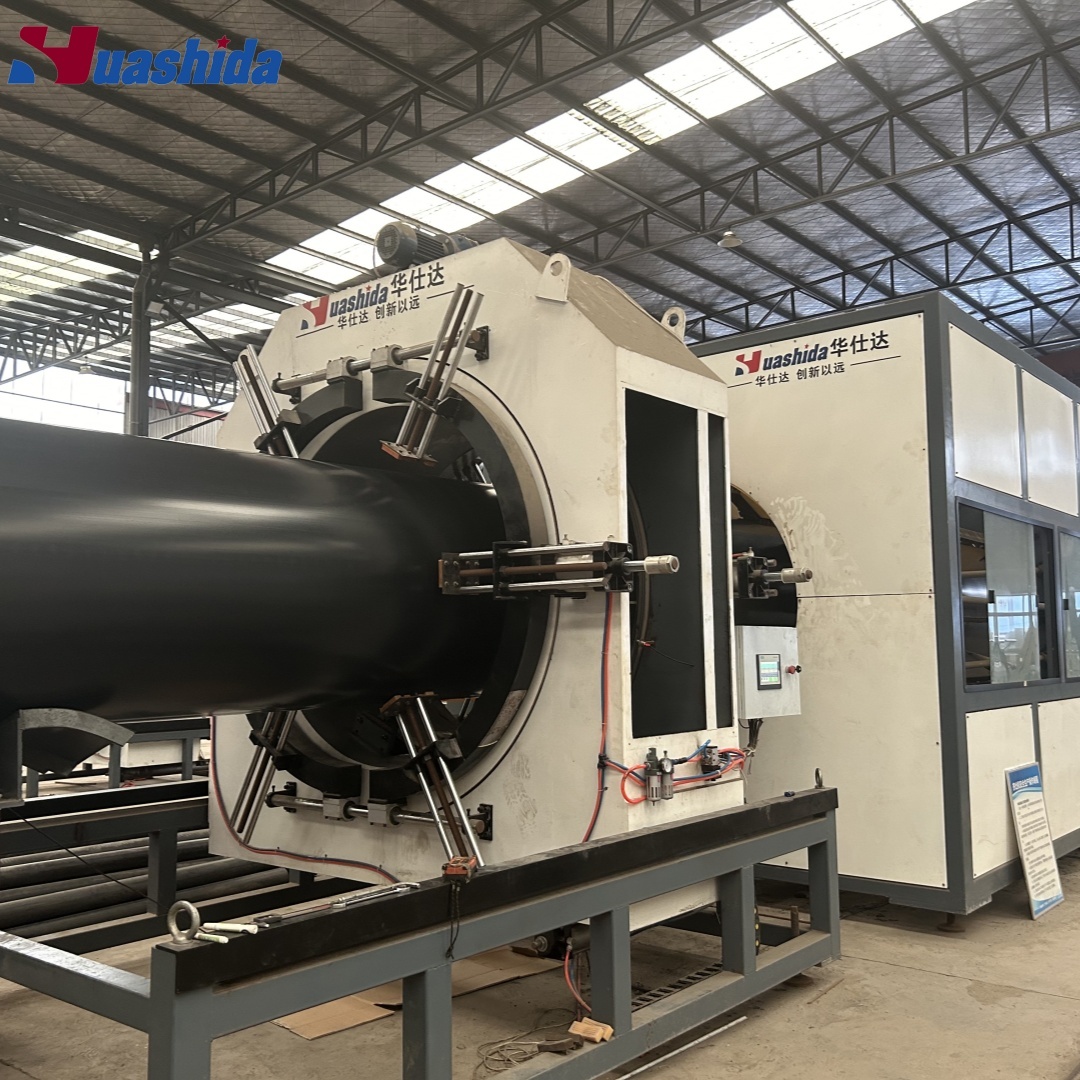

-1set   Hauling machine

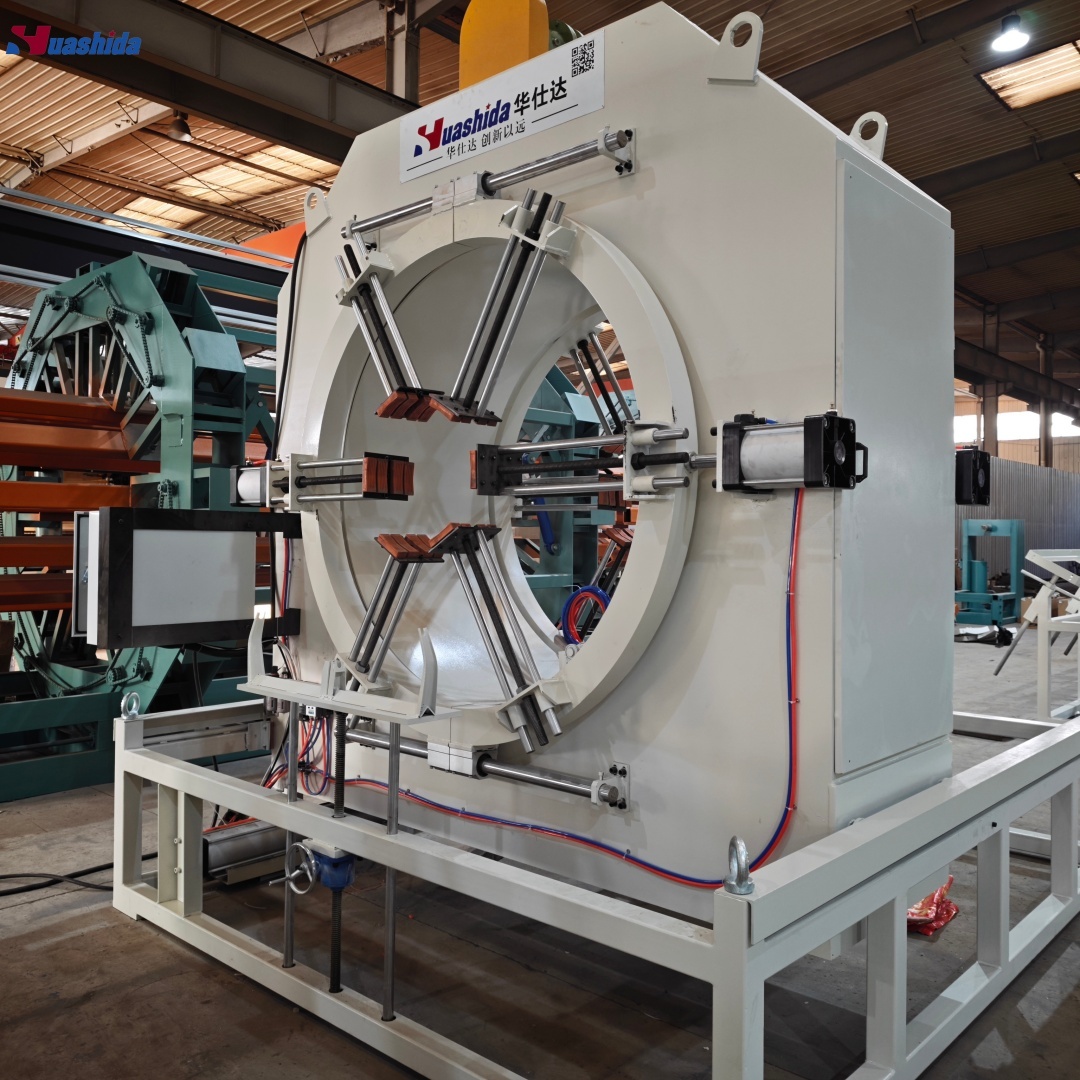

-1set   Cutting machine
-1set   Discharging Frame
-1set PLC

Technical Highlights:

Single-screw extruder
Proprietary single-screw extruder optimized for polyethylene (PE) materials

Vacuum Sizing Equipment - Extruder. Structural features: High strength,

wear resistance, and corrosion resistance; the screw ensures excellent

plasticizing performance. The temperature control system utilizes ceramic

heating bands and fan cooling, with automatic temperature regulation

managed by temperature sensors and controllers.

Vacuum Calibration
Patented vacuum calibration system replaces traditional internal

pressure methods
Stable production speed and smooth finished product surfaces.

Smart Automation
The control system utilizes centralized control via PLC and features proprietary DCL software design. This enables seamless integration between the system, the processing window, and the HMI, endowing the machine with AI-driven intelligence while ensuring ease of operation. It saves labor and effort, and operates safely without hidden risks.

Features of the HDPE sleeve production line:
1.small dimension
2.high degree of automation, can be operated by one person, saving labor costs
3.long service life.
4.high-efficiency extruder gives larger output, stable performance
5.pipe wall is average and smooth
6.no waste of raw material
7.One-time molding

The advantages of our company:
1.Provide a comprehensive and fully integrated production solution, including design, installation, commissioning, and training.
2.Share you 389 sets of production experience from all the world
3.Having 9 professional senior engineers
4.Having a high-end plastic machinery equipment expert workstation in China

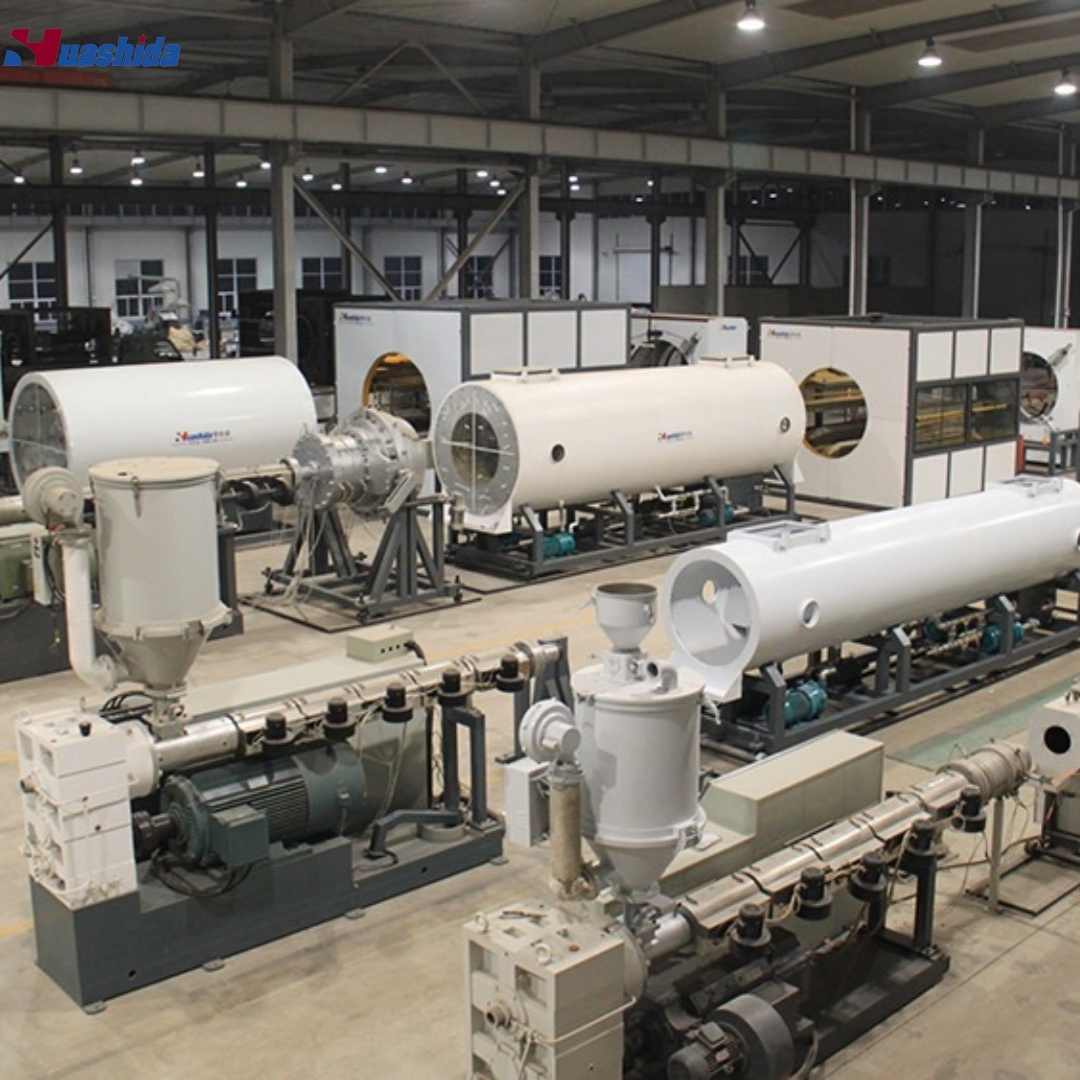

Factory overview
Large Diameter HDPE Jacket Pipe Extrusion Line for Pre-Insulated Pipes

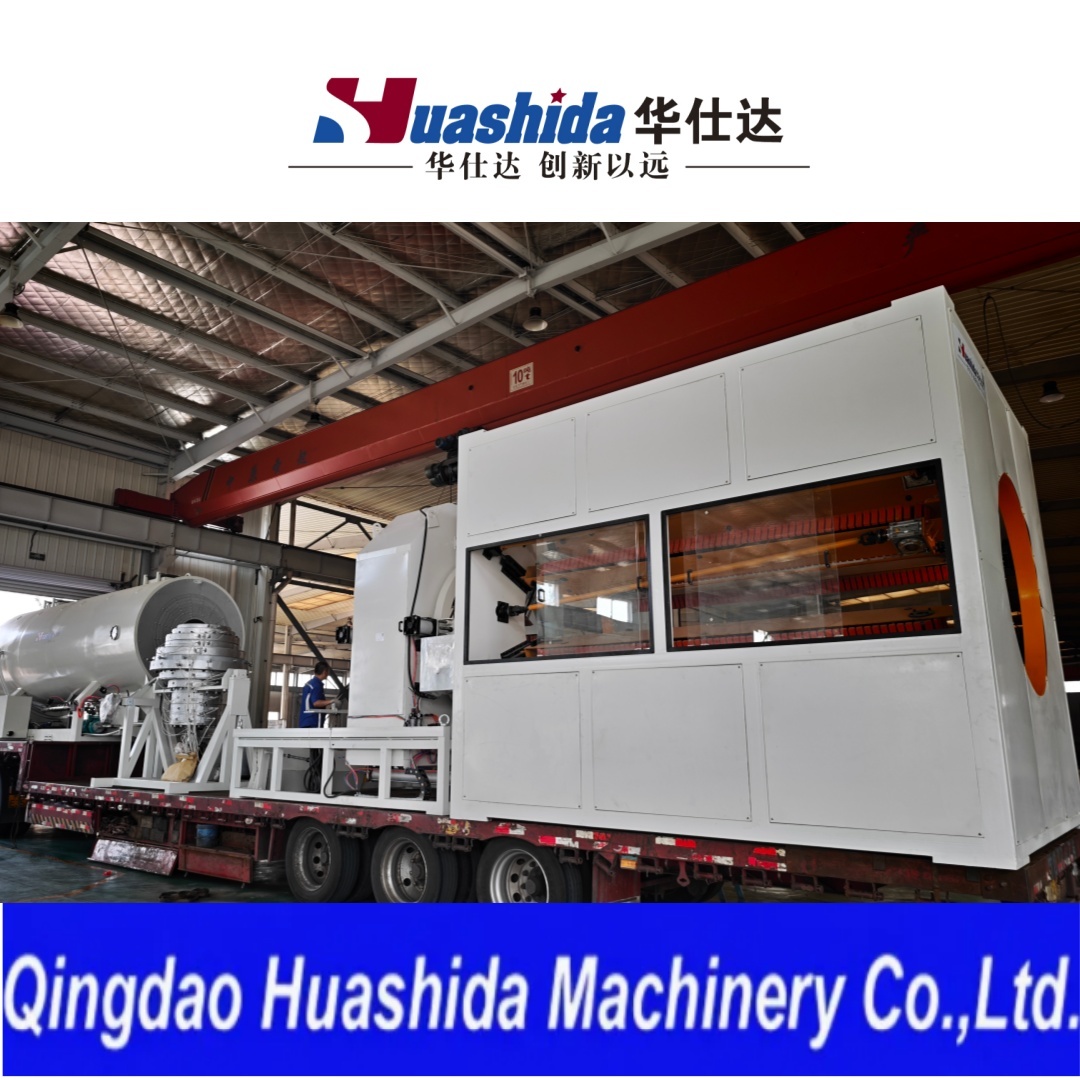

Delivery
