Vacuum Calibration HDPE Jacket Pipe Extrusion Line for Pre-Insulated Pipes

1
MOQ
US$200,000.00-1,000,000.00
Price
Vacuum Calibration HDPE Jacket Pipe Extrusion Line for Pre-Insulated Pipes
Features Gallery Product Description Request A Quote
Features
Specifications
Screw No.: Single-screw
Raw Material: PE
Cutting Method: Dust-Free Planetary Cutting
HDPE Jacket Pipe Color: Can Be Customized
Control System: PLC
Highlight:

Vacuum Calibration HDPE Jacket Pipe Extrusion Line

,

Pre-Insulated Pipe Production Line with HDPE

,

Pipe Extrusion Line for Pre-Insulated Pipes
Basic Infomation
Place of Origin: QINGDAO,CHINA
Brand Name: HUASHIDA
Certification: CE, ISO9001:2008
Model Number: 110-2200MM
Payment & Shipping Terms
Packaging Details: Standard Package
Delivery Time: 60DAYS
Payment Terms: L/C,D/A,T/T
Supply Ability: 30 Sets/Year
Product Description
Vacuum Calibration HDPE Jacket Pipe Extrusion Line for Pre-Insulated Pipes



Product Description
The Vacuum Calibration HDPE Jacket Pipe Extrusion Line for Pre-Insulated Pipes is a high-performance production solution designed for manufacturing protective HDPE outer casing pipes used in PU foam thermal insulation systems.
By adopting the vacuum calibration forming process, the line ensures excellent pipe roundness, uniform wall thickness, smooth surfaces, and strong durability.
The finished jacket pipes feature outstanding corrosion resistance, stable thermal protection, long service life, and reliable mechanical strength, fully meeting international standards for pre-insulated pipeline systems.
Vacuum Calibration HDPE Jacket Pipe Extrusion Line for Pre-Insulated Pipes
Vacuum Calibration HDPE Jacket Pipe Extrusion Line for Pre-Insulated Pipes
Vacuum Calibration HDPE Jacket Pipe Extrusion Line for Pre-Insulated Pipes
Product Parameters



Style PE-110/500 PE-655/1380 PE-960/1860 PE-1155/2200
Main Extruder SJ-75/33 SJ-120/33 SJ-150/33 SJ-150/33
Pipe diameter Φ110-600mm Φ655-1380mm Φ960-1860mm Φ1155-2200mm
Capacity 250-350kg/h 700-900kg/h 1000-1200kg/h 1350kg/h
Installed power 160kw 480kw 580kw 650kw
Length 26m 36m 45m 48m

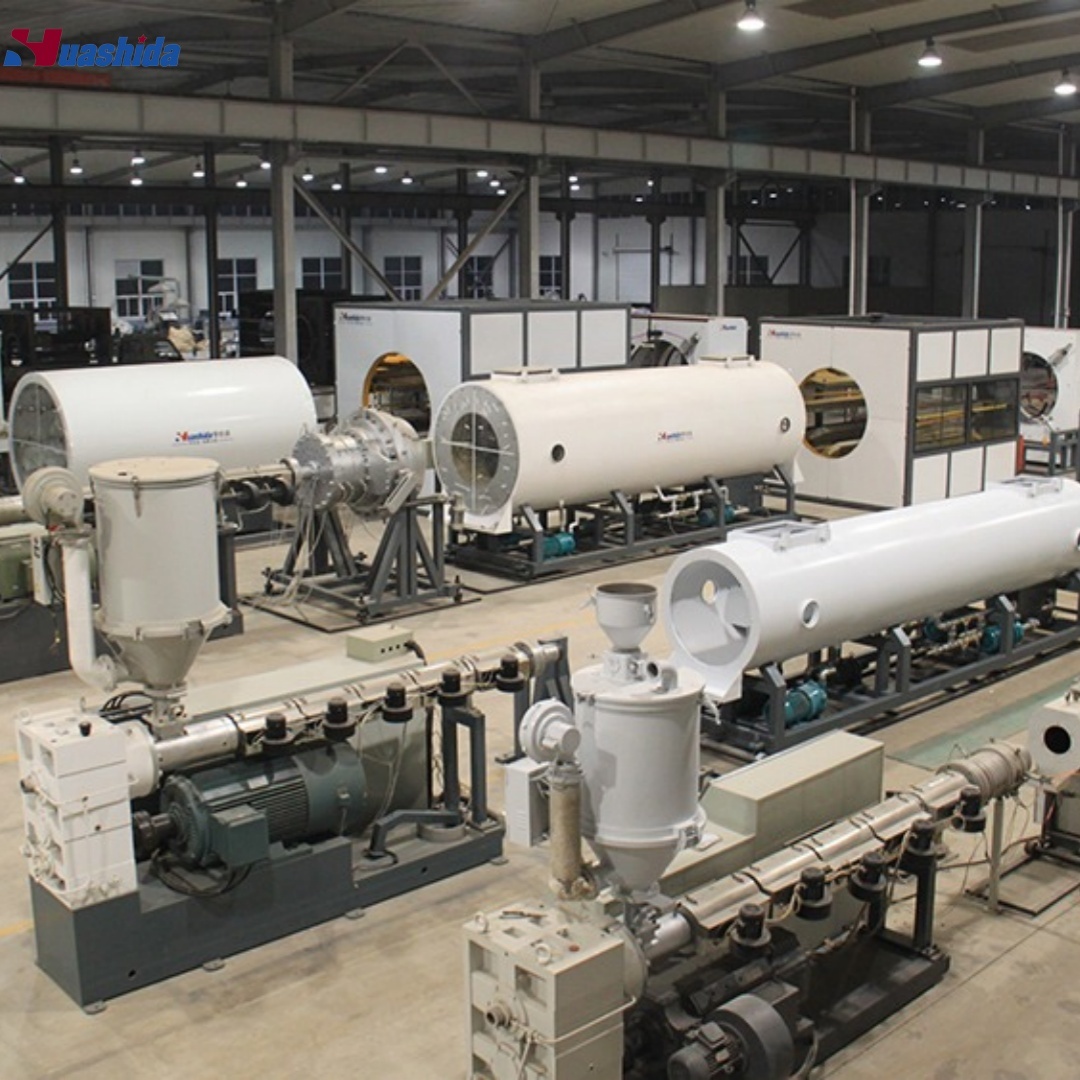

Production line composition:

-1set   Vacuum loader
-1set   Hopper dryer

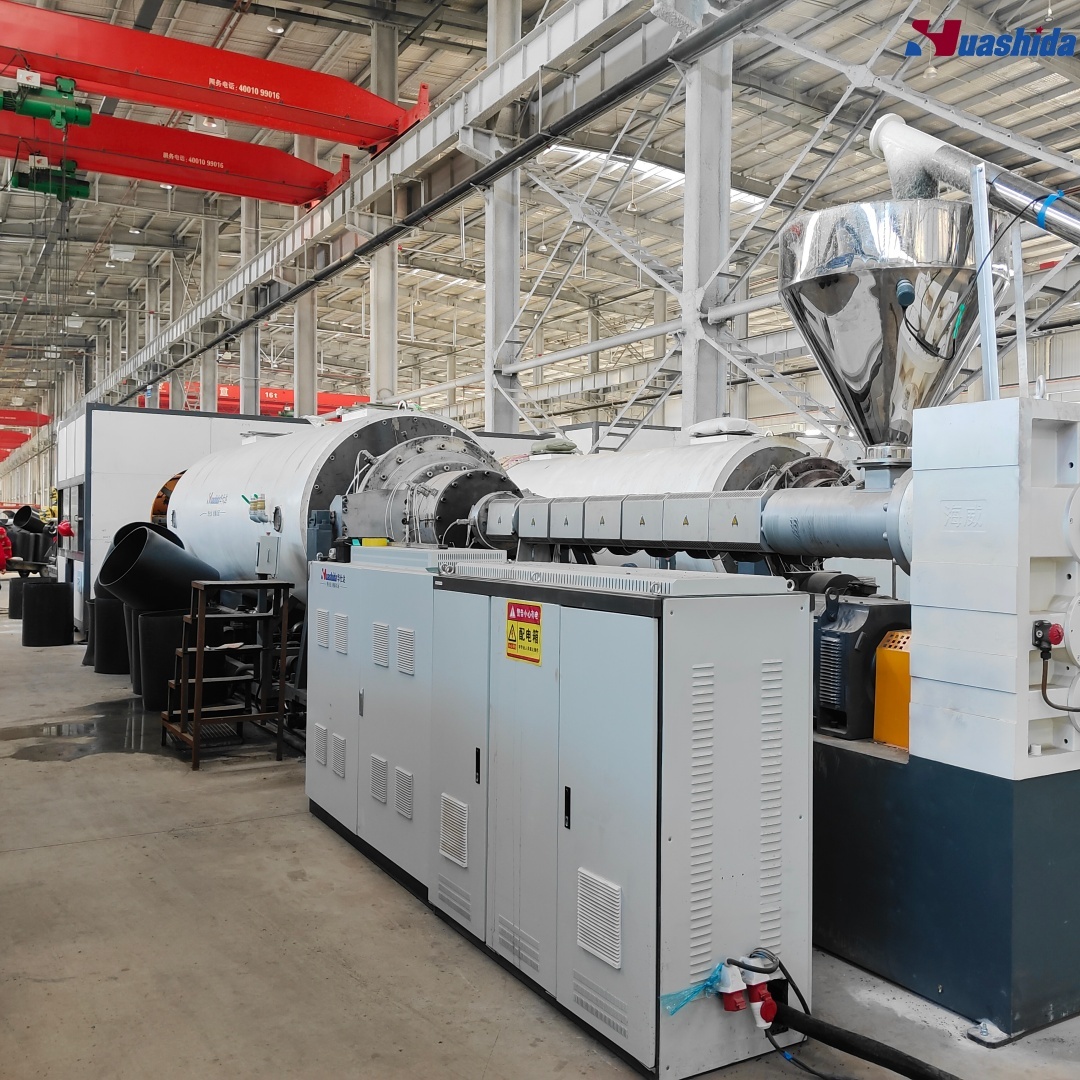

-1set   High-efficiency single screw extruder

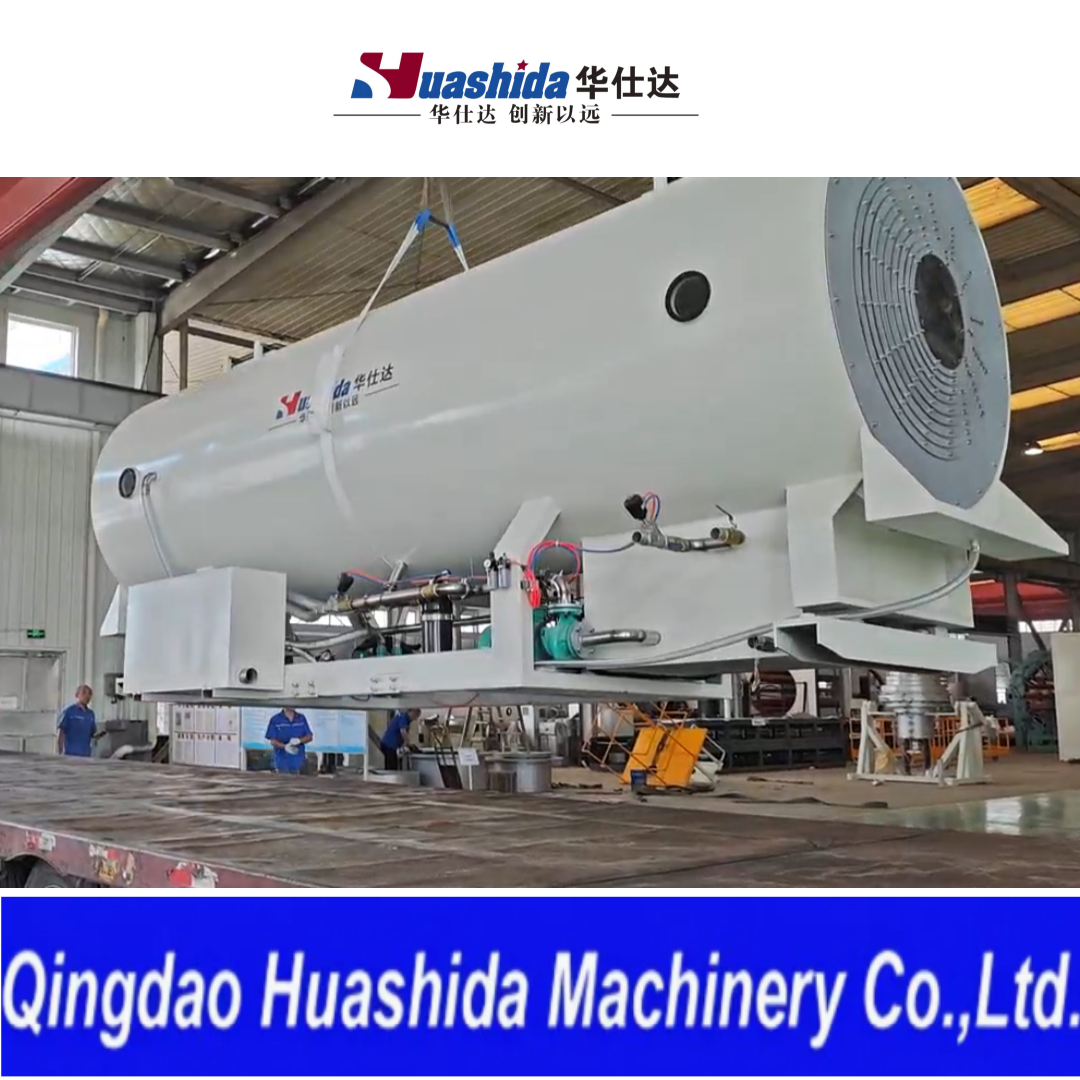

-1set   Vacuum calibration table
-1set   Water spraying tank
-1set   Hauling machine
-1set   Cutting machine
-1set   Discharging Frame
-1set   PLC

Technical Highlights:

Single-screw extruder Precision temperature control system ensures consistent material fusion
Proprietary single-screw extruder optimized for polyethylene (PE) materials
Vacuum Calibration Patented vacuum calibration system replaces traditional internal pressure methods
Smart Automation Fully integrated PLC control system
Real-time process monitoring
Production Capabilities Diameter range: 110mm - 2200mm (customizable)
Output capacity: 250-1600 kg/h (material-dependent)



Our Advantages

Features of the HDPE sleeve production line:

1.small dimension
2.high degree of automation, can be operated by one person, saving labor costs
3.long service life.
4.high-efficiency extruder gives larger output, stable performance
5.pipe wall is average and smooth
6.no waste of raw material
7.One-time molding

PE-110/500

Vacuum Calibration HDPE Jacket Pipe Extrusion Line for Pre-Insulated Pipes

PE-650/1380

Vacuum Calibration HDPE Jacket Pipe Extrusion Line for Pre-Insulated Pipes                                                PE-960/1860
Vacuum Calibration HDPE Jacket Pipe Extrusion Line for Pre-Insulated Pipes

Qingdao Huashida Machinery Co., LTD., founded in 2003, is a global developer, manufacturer and solution provider of plastic extrusion equipment. 70% of its customers come from overseas countries such as Europe, America, the Middle East and Southeast Asia.
Welcome to our factory to discuss cooperation!


Our Main Products Include:
HDPE Jacket Pipe Extrusion Line
3LPE Steel Pipe Anti-Corrosion Coating Line
Hollow Wall Spiral Pipe Production Line
Double Wall Corrugated Pipe Production Line
PE/PP Geo Membrane Production Line
PE/PP Sheet Board Extrusion Line
Rubber Foam Insulation Pipe Production Line
