High-Performance HDPE Jacket Extrusion Line for Pre-Insulated Heat Pipelines

MOQ

US$200,000.00-1,000,000.00

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Screw No.: Single-screw

Cutting Method: Dust-Free Planetary Cutting

Raw Material: PE

Application: Producing Pre-Insulated Pipe Jacket

Highlight:

HDPE jacket extrusion line

pre-insulated pipe production line

heat pipeline extrusion machine

Basic Infomation

Place of Origin: QINGDAO,CHINA

Brand Name: HUASHIDA

Certification: CE

Model Number: 110-2200MM

Payment & Shipping Terms

Packaging Details: Standard Package

Delivery Time: 60DAYS

Payment Terms: L/C,D/P,T/T

Supply Ability: 30 Sets/Year

Gallery

High-Performance HDPE Jacket Extrusion Line for Pre-Insulated Heat Pipelines

Product Description

High-Performance HDPE Jacket Extrusion Line for Pre-Insulated Heat Pipelines

HDPE Jacket Pipe production line is high-efficiency equipment with high speed and energy saving for producing HDPE pipe used as protective cover of PU foam thermal Pre-Insulated Pipe according to international standard.
HDPE jacket pipes are produced by vacuum calibration method, with smooth inner and outer walls, a long service life, good anti-corrosion and heat preservation performance, and excellent mechanical properties.

Style	PE-110/500	PE-655/1380	PE-960/1860	PE-1155/2200
Main Extruder	SJ-75/33	SJ-120/33	SJ-150/33	SJ-150/33
Pipe diameter	Φ110-600mm	Φ655-1380mm	Φ960-1860mm	Φ1155-2200mm
Capacity	250-350kg/h	700-900kg/h	1000-1200kg/h	1350kg/h
Installed power	160kw	480kw	580kw	650kw
Length	26m	36m	45m	48m

Production line composition:

-1set   Vacuum loader
-1set   Hopper dryer
-1set   High-efficiency single screw extruder

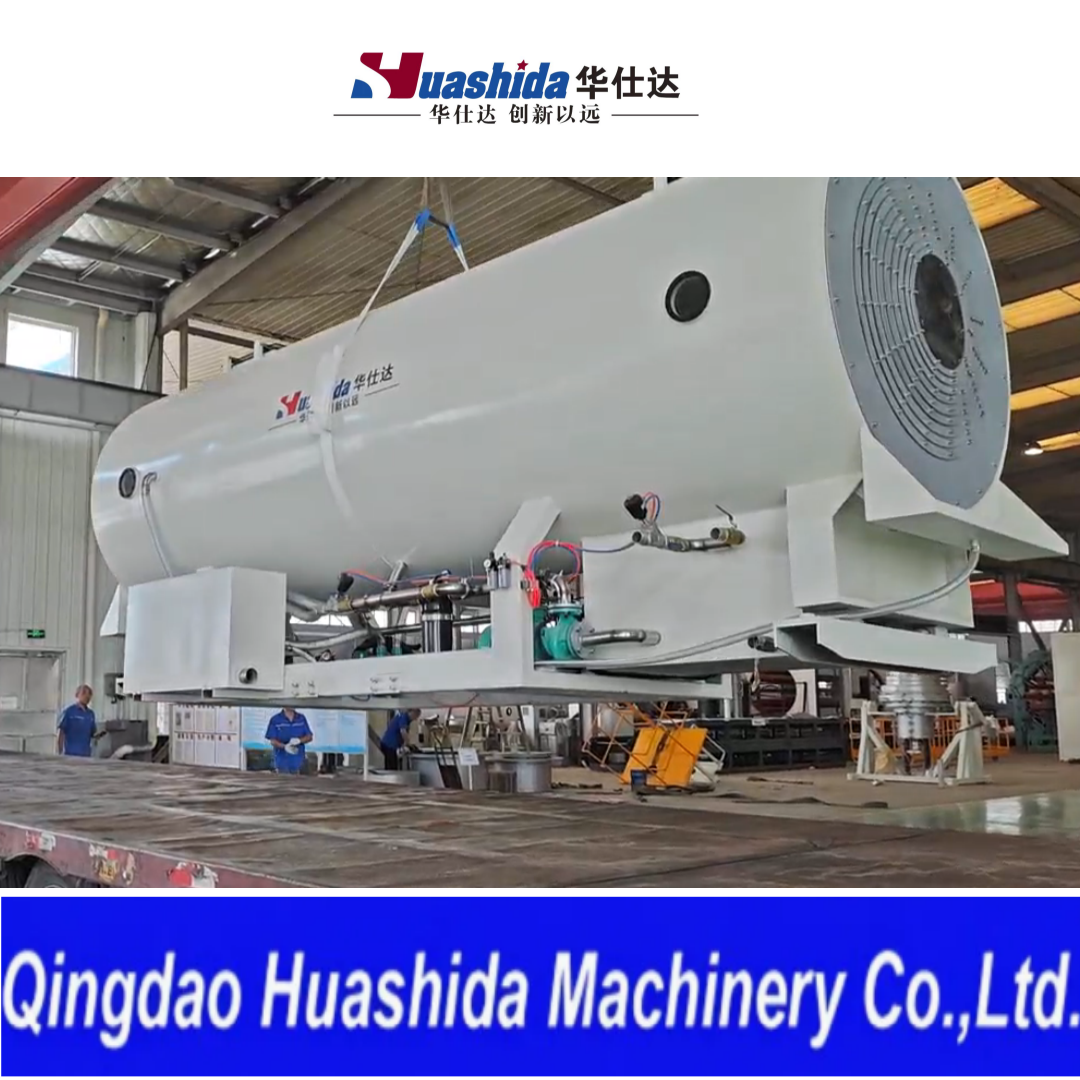

-1set   Vacuum calibration table
-1set   Water spraying tank
-1set   Hauling machine
-1set   Cutting machine
-1set   Discharging Frame
-1set PLC

Technical Highlights:

Single-screw extruder	Precision temperature control system ensures consistent material fusion Proprietary single-screw extruder optimized for polyethylene (PE) materials
Vacuum Calibration	Patented vacuum calibration system replaces traditional internal pressure methods
Smart Automation	Fully integrated PLC control system Real-time process monitoring
Production Capabilities	Diameter range: 110mm - 2200mm (customizable) Output capacity: 250-1600 kg/h (material-dependent)

PE-110/500

High-Performance HDPE Jacket Extrusion Line for Pre-Insulated Heat Pipelines PE-650/1380

PE-960/1860

High-Performance HDPE Jacket Extrusion Line for Pre-Insulated Heat Pipelines

Features:

1.small dimension
2.high degree of automation, can be operated by one person, saving labor costs
3.long service life.
4.high-efficiency extruder gives larger output, stable performance
5.pipe wall is average and smooth
6.no waste of raw material
7.One-time molding

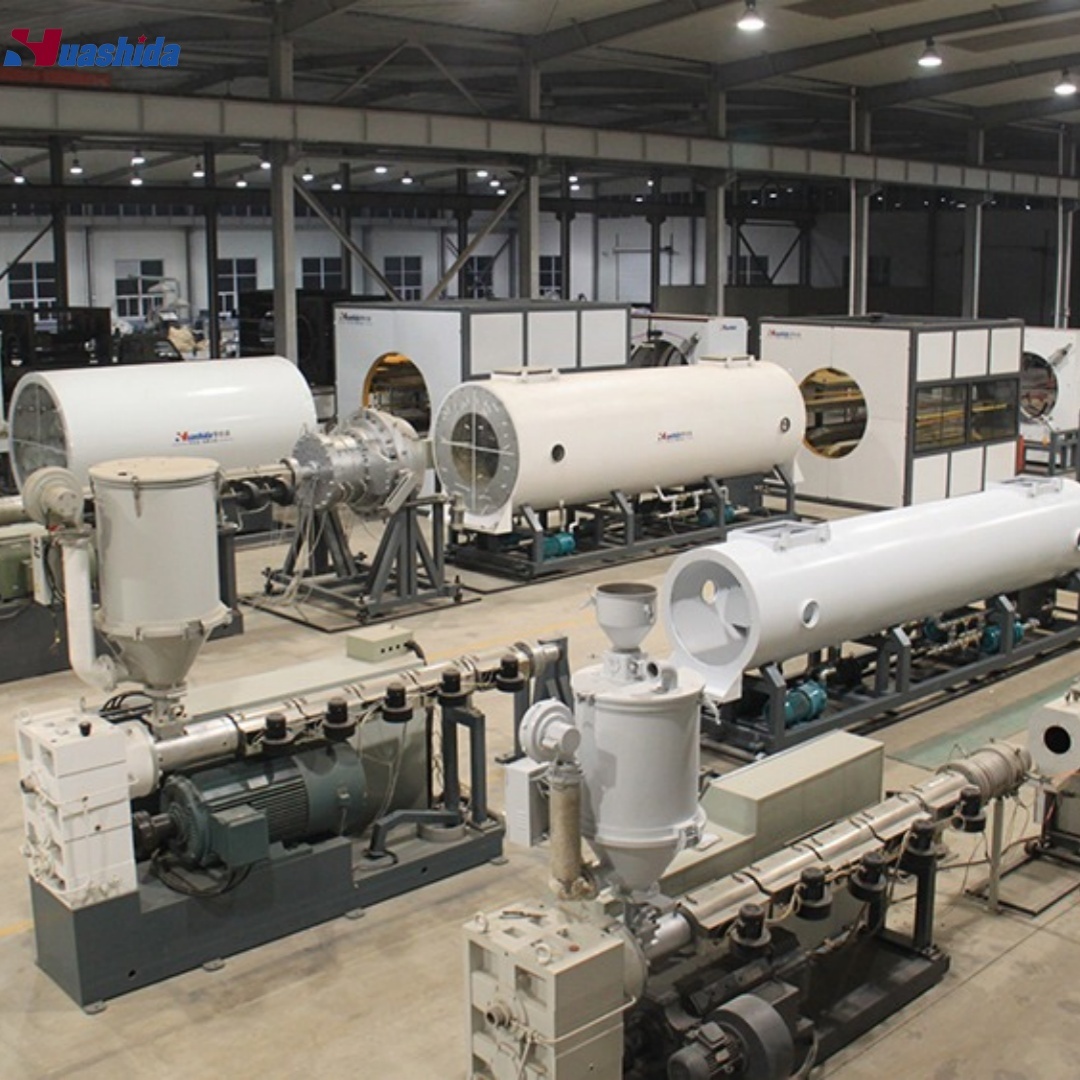

Factory overview
