PLC Controlled Pre-Insulated Pipe Extrusion Line with Vacuum Calibration and Integrated System
Product Overview
The HDPE Jacket Pipe Extrusion Line by Qingdao Huashida Machinery Co., Ltd. is designed for the production of HDPE outer protective pipes used in pre-insulated pipe systems.
The complete line integrates extrusion, vacuum calibration, cooling, haul-off, cutting and stacking into one continuous production process. It features high automation, stable operation, high extrusion capacity and reliable long-term performance.
Compared with traditional internal-pressure sizing systems, vacuum calibration provides better dimensional accuracy, higher pipe stiffness, improved pressure resistance and a smooth, uniform surface.
Production Process
HDPE Jacket Pipe Production Process
Vacuum Feeding → Hot Air Drying → Extrusion & Plasticizing → Molding → Vacuum Calibration → Water Cooling → Haul-off → Cutting → Stacking
The process ensures stable pipe dimensions and consistent product quality from raw material to finished HDPE jacket pipe.
PU Foaming Pre-Insulated Pipe Process
A typical PU pre-insulated pipe consists of:
- Steel pipe surface pretreatment
- HDPE outer protective pipe production
- PU insulation layer foaming
For PU foaming, the steel pipe is inserted into the HDPE jacket pipe, with supports placed in the annular space. Both ends are sealed with flanges, and the assembly is placed on the foaming platform. A high-pressure foaming machine injects polyurethane material into the annular space. After foaming and curing, the end sealing structures are removed to complete the insulated pipe.
Product Parameters
| Model |
PE110-600 |
PE655-1380 |
PE960-1680 |
PE1155-2000 |
| Main Extruder |
SJ-75/33 |
SJ-120/33 |
SJ-150/33 |
SJ-150/33 |
| Pipe Diameter (mm) |
110-550 |
655-1380 |
960-1680 |
1155-2000 |
| Capacity (kg/h) |
250-350 |
800-950 |
1200 |
1350 |
| Installed Power (kW) |
160 |
480 |
560 |
600 |
| Line Length (m) |
24 |
36 |
45 |
45 |
Main Equipment
Hopper Dryer - Removes moisture from PE raw materials before extrusion.

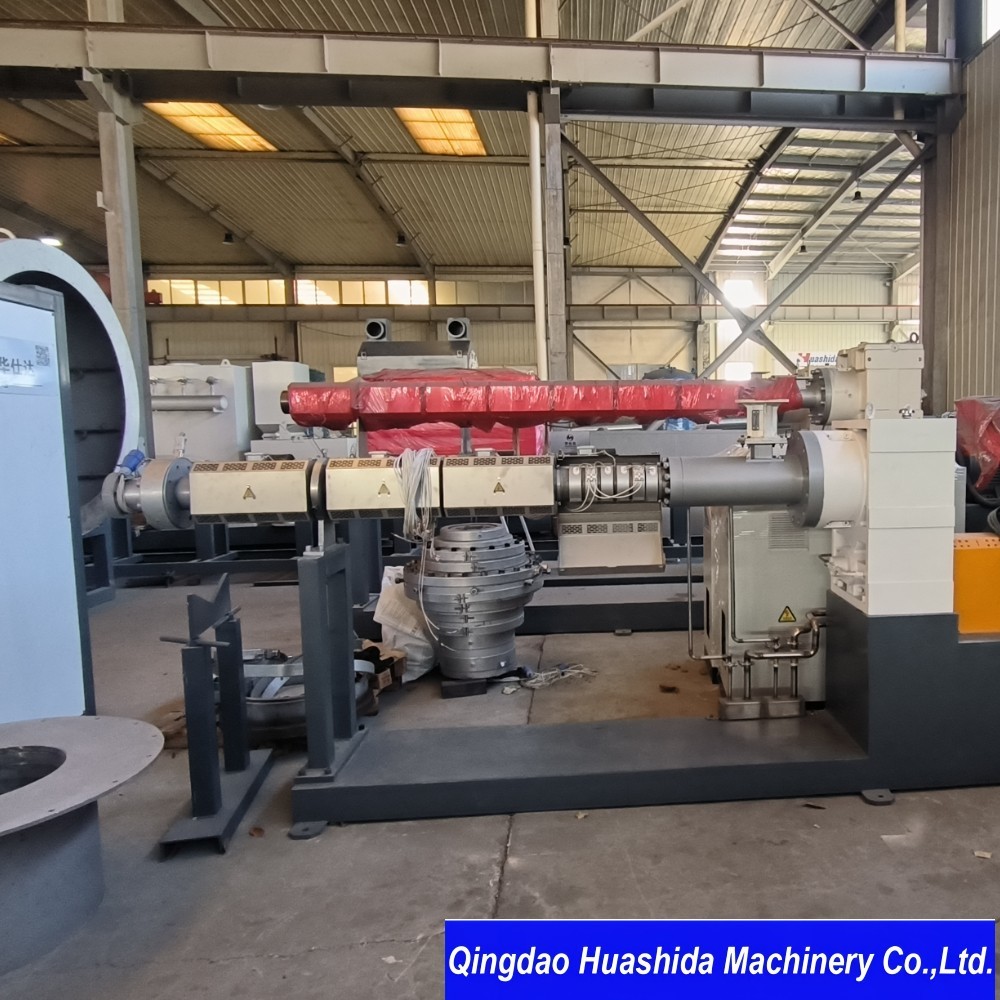

Single Screw Extruder - Provides stable plasticizing and high extrusion capacity.
Extrusion Die - Shapes the molten HDPE material into the required pipe diameter.
Head Bracket - Provides stable support for the extrusion head.
Vacuum Calibration Device - Ensures accurate pipe dimensions and smooth surface quality.
Water Cooling Tank - Rapidly cools and solidifies the HDPE pipe.

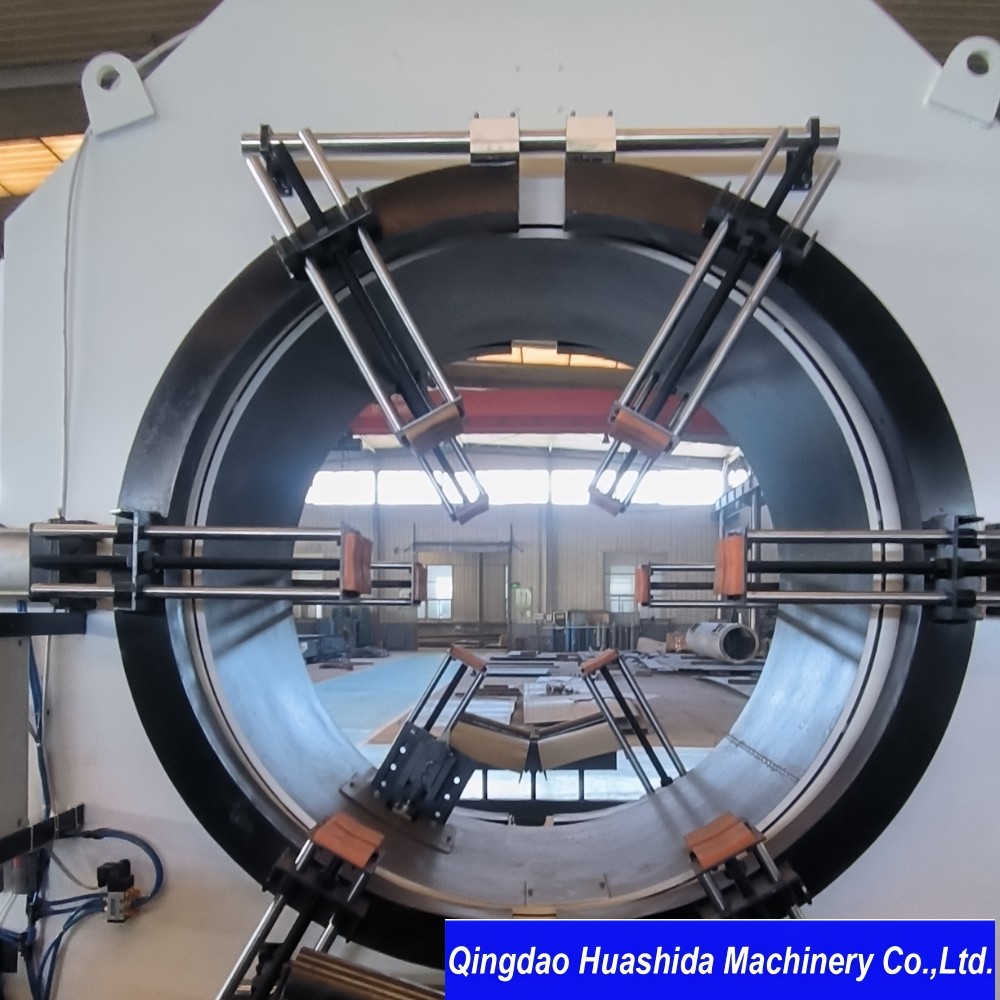

Haul-off - Provides stable and continuous pipe pulling.
Planetary Cutting Machine - Precisely cuts pipes to the required length.
Pipe Bracket - Supports and guides the finished pipe during production.
Loader - Automatically feeds PE material into the production system.
PLC Control System - Provides centralized automatic control and monitoring of the production line.
Application Scenarios
The HDPE jacket pipe produced by this line is widely used as the outer protective casing for PU pre-insulated pipes, commonly applied in:
- District heating systems
- Heating and cooling pipelines
- Hot water transportation
- Industrial thermal pipelines
- Underground pre-insulated pipeline systems
Company Profile
Established in 2003, Qingdao Huashida Machinery Co., Ltd. is a professional high-tech manufacturer specializing in plastic extrusion equipment.
We integrate R&D, manufacturing, sales and after-sales service, with a team of experienced engineers and modern production facilities. Huashida holds ISO 9001, ISO 14001, SGS, DVGW and CE certifications, as well as more than 30 technical patents.
Through cooperation with leading universities including Tsinghua University, Beijing University of Chemical Technology and South China University of Technology, we continuously develop advanced extrusion technologies.
Our main products include PE insulation jacket pipe extrusion lines, 3PE anti-corrosion coating lines, and PE hollow wall spiral pipe production lines, serving customers in markets worldwide.
