PLC Controlled Pre-Insulated Pipe Extrusion Line with Vacuum Calibration and Integrated System

1
MOQ
US$100,000.00 - 2,000,000.00
Price
PLC Controlled Pre-Insulated Pipe Extrusion Line with Vacuum Calibration and Integrated System
Features Gallery Product Description Request A Quote
Features
Specifications
After-sales Service: Overseas Installation, Free Technical Supporting
Cutting Method: Planeatry Cutting
Transmission Type: Rigid
Computerized: Computerized
Customized: Customized
Highlight:

PLC Controlled Pre-Insulated Pipe Extrusion Line

,

Vacuum Calibration PE Casing Pipe Extrusion Line

,

Integrated System HDPE Jacket Pipe Extrusion Line
Basic Infomation
Place of Origin: China
Brand Name: huashida
Certification: ISO9001:2008, QS
Payment & Shipping Terms
Delivery Time: 60 days
Payment Terms: T/T,Western Union,L/C,D/A
Supply Ability: 60sets/year
Product Description
PLC Controlled Pre-Insulated Pipe Extrusion Line with Vacuum Calibration and Integrated System for Stable Performance
PUF Pre-insulated Pipe PE Protective Casing Jacket Pipe Extruder Extrusion Production Line
PE casing pipe extrusion production line is high-efficiency equipment with high speed and energy saving for producing PE pipe used as a protective cover of PU foam thermal pre-insulated pipe according to international standard.
The production line adopts vacuum calibrating method instead of inner inflation method to produce the pipes, which are with smooth internal and external wall, long service life, good anti-corrosion insulation and high mechanical performance.
Advantages of HUASHIDA
  • More than 20 years of production experience of plastic extrusion machine
  • Has more than 40 product and technology patents
  • High-tech enterprise qualification
  • Won the government award as "the first set of major technical equipment in Shandong Province"
Automatic HDPE Outer Casing Extrusion Thermal Pre-Insulated Pipe Jacket Machine
Applications
The PE casing pipe is used as an outer protective casing of PUF thermal insulated pipe, which is widely used in central heating, cooling oil & gas transmission and other industrial areas.
Automatic HDPE Outer Casing Extrusion Thermal Pre-Insulated Pipe Jacket Machine
Our Advantages
  • Small dimension
  • High degree of automation, can be operated by one person, saving labor costs
  • Long service life
  • High-efficiency extruder gives larger output, stable performance
  • Pipe wall is average and smooth
  • No waste of raw material
  • Once forming. No need trim edge
Production range: 110-2000mm (by different models)
Automatic HDPE Outer Casing Extrusion Thermal Pre-Insulated Pipe Jacket Machine
Production Line Composition
  • 1 set Vacuum loader
  • 1 set Hopper dryer

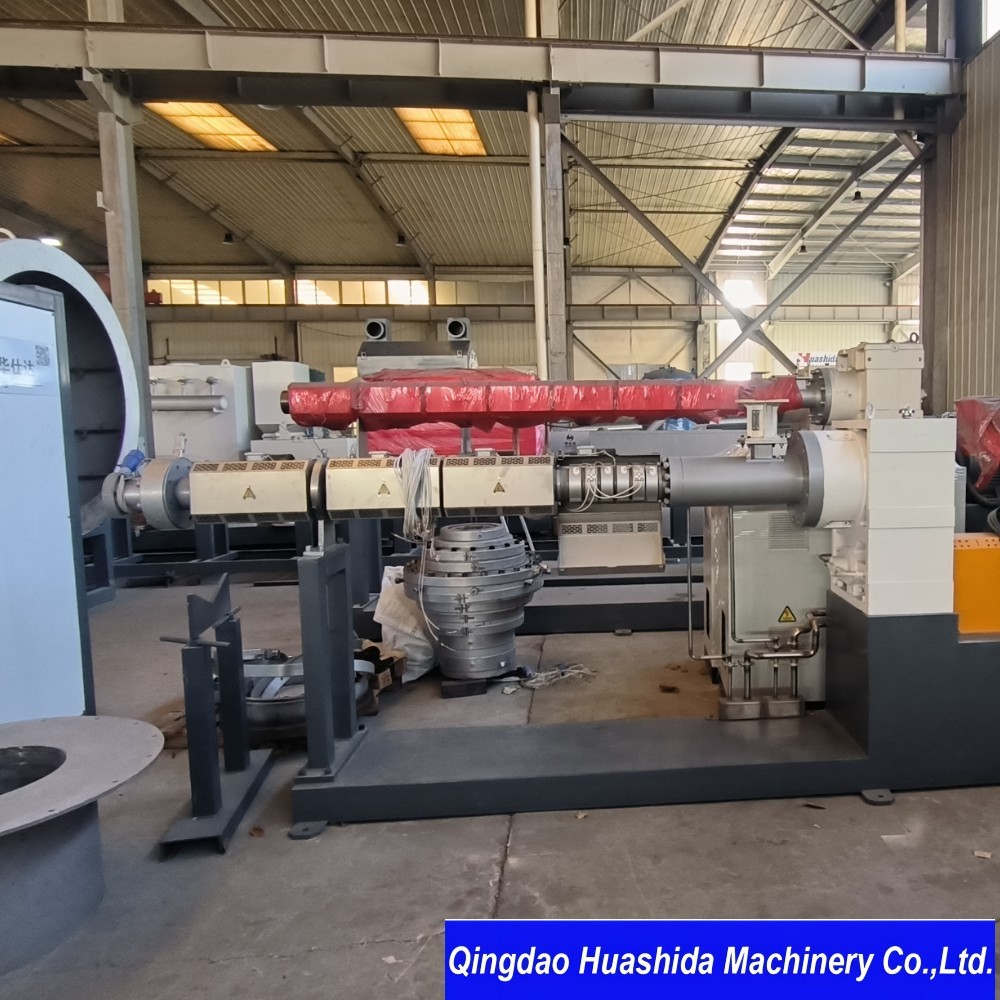

  • 1 set High-efficiency single screw extruder

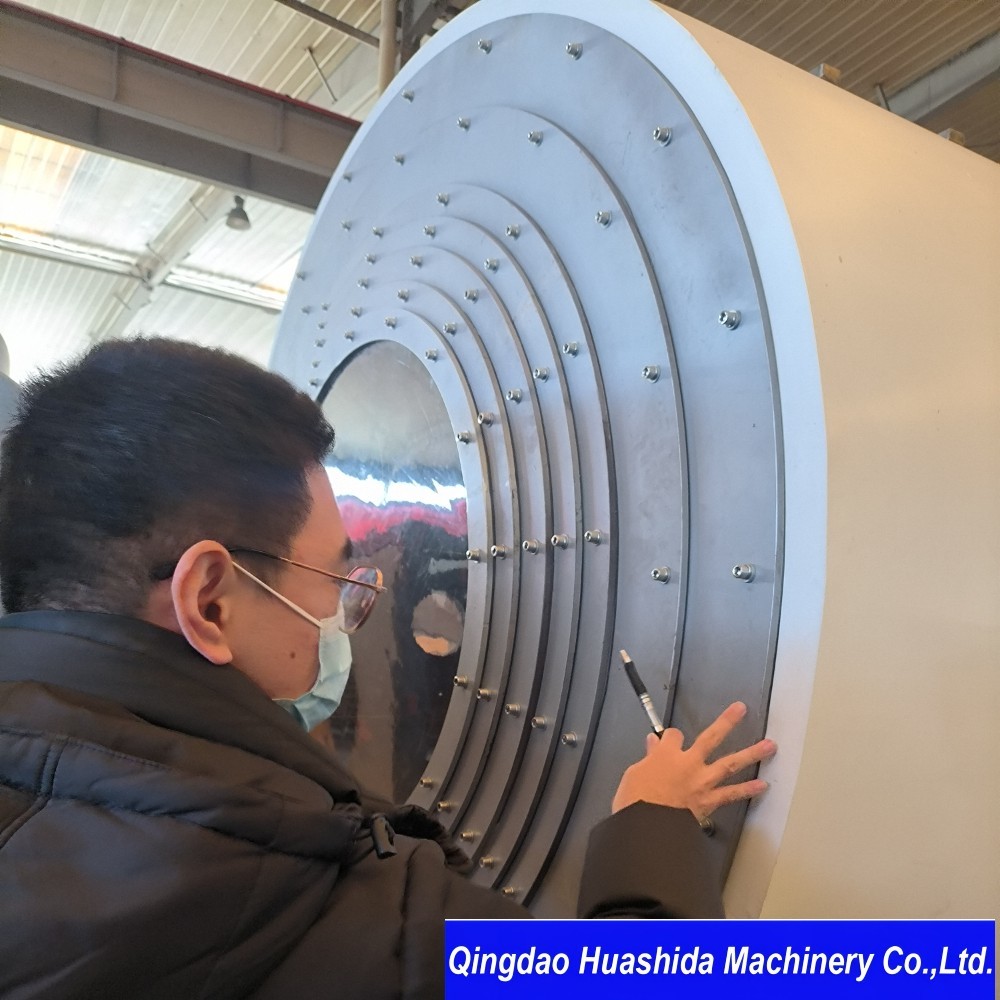

  • 1 set Vacuum calibration table
  • 1 set Water spraying tank
  • 1 set Hauling machine
  • 1 set Cutting machine
  • 1 set Discharging Frame
Product Parameters
Style PE-110/600 PE-365/760 PE-655/1380 PE-960/1680 PE-1054/1860
Main Extruder SJ-75/33 SJ-90/33 SJ-120/33 SJ-150/33 SJ-150/33
Pipe diameter Φ110-600mm Φ365-760mm Φ655-1380mm Φ960-1680mm Φ1054-1860mm
Capacity 250-300kg/h 400-500kg/h 700-900kg/h 1000-1200kg/h 1000-1250kg/h
Installed power 160kw 240kw 480kw 580kw 580kw
Length 26m 32m 36m 40m 45m
Automatic HDPE Outer Casing Extrusion Thermal Pre-Insulated Pipe Jacket Machine Automatic HDPE Outer Casing Extrusion Thermal Pre-Insulated Pipe Jacket Machine
Company Profile
Qingdao Huashida Machinery Co., LTD, is a manufacturer of series of plastic pipe machines, municipal pipe machines, pipe insulation & anticorrosion machines, and pipe jointing & anticorrosion materials, with 21 years of production experience.
Our Main Products:
  • HDPE jacket pipe for pre-insulated pipe Production Line (110-2000mm)
  • Rigid pre-insulated pipe Production Line
  • Flexible pre-insulated pipe (PERT) production line
  • Steel pipe FBE/2LPE/3LPE anti-corrosion coating line
  • Steel pipe derusting line
  • PE pressure pipe/Water Gas supply pipe production line
  • PP/PE plastic board/sheet/geomembrane production line
  • NBR PVC Thermal insulation tube/plate production line
  • Pipeline anti-corrosion materials and instruments: heat shrink joint coating sleeve, electro-fusion weldable joint sleeve, portable welding gun (extruder), PE PP welding rod
We have been working with more than 400 overseas customers and exporting our products to Kazakhstan, Uzbekistan, Iran, Turkey, Russia, Nigeria and other countries.
Factory Overview
Huashida Machinery Factory Overview
Our Team
Huashida Machinery Professional Team
Delivery
Huashida Machinery Product Delivery
Exhibition
Huashida Machinery Exhibition Participation
Certifications
Huashida Machinery Certifications Huashida Machinery Quality Certifications
