Large Diameter HDPE Casing Pipe Extrusion Line for PUF Pre-Insulated Pipelines

The PE Series Pre-Insulated Pipe Extrusion Line from Qingdao Huashida Machinery Co., Ltd. is designed with advanced German extrusion technology. It integrates extrusion, vacuum calibration, cooling, pulling, cutting, and stacking into one highly automated production system.
The line features strong extrusion capacity, stable operation, high production efficiency, and long service life, providing a reliable solution for PE pre-insulated pipe production.
Compared with traditional internal pressure calibration, vacuum calibration offers excellent pipe stiffness, higher pressure resistance, and a smoother, more uniform surface finish. This technology helps ensure consistent pipe quality and efficient production.
Specification
Applications
This production line is mainly used to produce HDPE outer sheath pipes for PUF (polyurethane foam) pre-insulated pipes.
Such pre-insulated pipes are widely used in:
- Energy-saving heating pipe networks
- Urban centralized heating systems
- Trenchless pipeline engineering
- Underground pre-insulated pipeline systems

Key Configurations

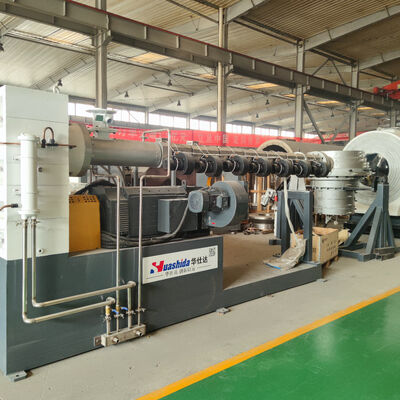

Main Extruder: SJ-90/33, SJ-120/33, SJ-150/33
Vacuum Sizing System: Ensures stable pipe dimensions, high roundness, and a smooth surface
Cooling System: High-efficiency cooling to improve production efficiency
Haul-off System: Stable traction to ensure continuous pipe production
Cutting System: Automatic cutting, suitable for different length requirements
Stacking System: Automatically completes the collection and stacking of finished pipes

Fully Integrated Production System for Polyurethane Foam (PUF) Pre-Insulated Pipe

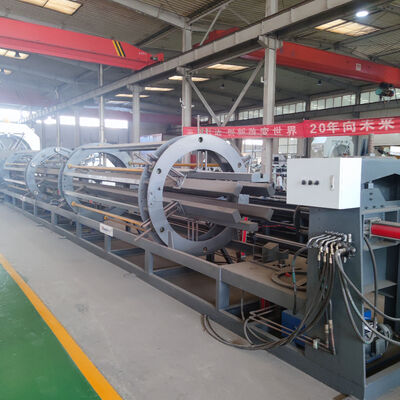

PLC Controlled Pre-Insulated Pipe Extrusion Line with Vacuum Calibration and Integrated System for Stable Performance

PLC Controlled Pre-Insulated Pipe Extrusion Line with Vacuum Calibration and Integrated System for Stable Performance
Technical Specifications
Working pressure: up to 1.6 MPa
Water temperature: up to 130 °C (403 K)
Short-term temperature peak: 150 °C (423 K)

Pipe Structure (Pipe-in-Pipe Design)
Inner carrier pipe: Steel or galvanized steel
Middle layer: Polyurethane foam thermal insulation
Outer jacket pipe: High-density polyethylene (HDPE) for underground installation or galvanized steel sheet for above-ground installation
Fully Integrated Production System for Polyurethane Foam (PUF) Pre-Insulated Pipe
Fully Integrated Production System for Polyurethane Foam (PUF) Pre-Insulated Pipe
Fully Integrated Production System for Polyurethane Foam (PUF) Pre-Insulated Pipe



Technical Specifications

Model
PE-365/760
PE-420/960
PE-850/1372
PE-960/1680
Main extruder
SJ-90/33
SJ-90/33
SJ-120/33
SJ-150/33
Pipe diameter (mm)
Φ365-960
Φ420-960
Φ850-1372
Φ960-1680
Capacity (kg/h)
550-700
550-700
700-900
800-1200
Installed power (kw)
360
380
440
580
Length (m)
35
36
40
48
Key Advantages
Higher reliability of heating pipeline systems
Remote condition monitoring capability for early leak detection
Accident prevention by timely maintenance
Long service life with excellent mechanical strength and corrosion resistance
Fully Integrated Production System for Polyurethane Foam (PUF) Pre-Insulated Pipe
