Name: NBR/ Thermal Insulation Rubber Foam Pipe/Sheet Production Line
Brand: Qingdao Huashida Machinery Co., Ltd.
SKU: 1200, 1500
Price: 1,507,500.00 USD
Availability: InStock

NBR/ Thermal Insulation Rubber Foam Pipe/Sheet Production Line

MOQ

US$450,000.00-600,000.00

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Structure: Horizontal

Usage: Aircondition Cooper Protector

Sheet Width: 500-1500mm

Basic Infomation

Place of Origin: China

Brand Name: Huashida

Certification: CE, Rohs，TUV

Model Number: 1200, 1500

Payment & Shipping Terms

Packaging Details: Standard Package

Delivery Time: 60days

Payment Terms: T/T

Supply Ability: 30 Sets/Year

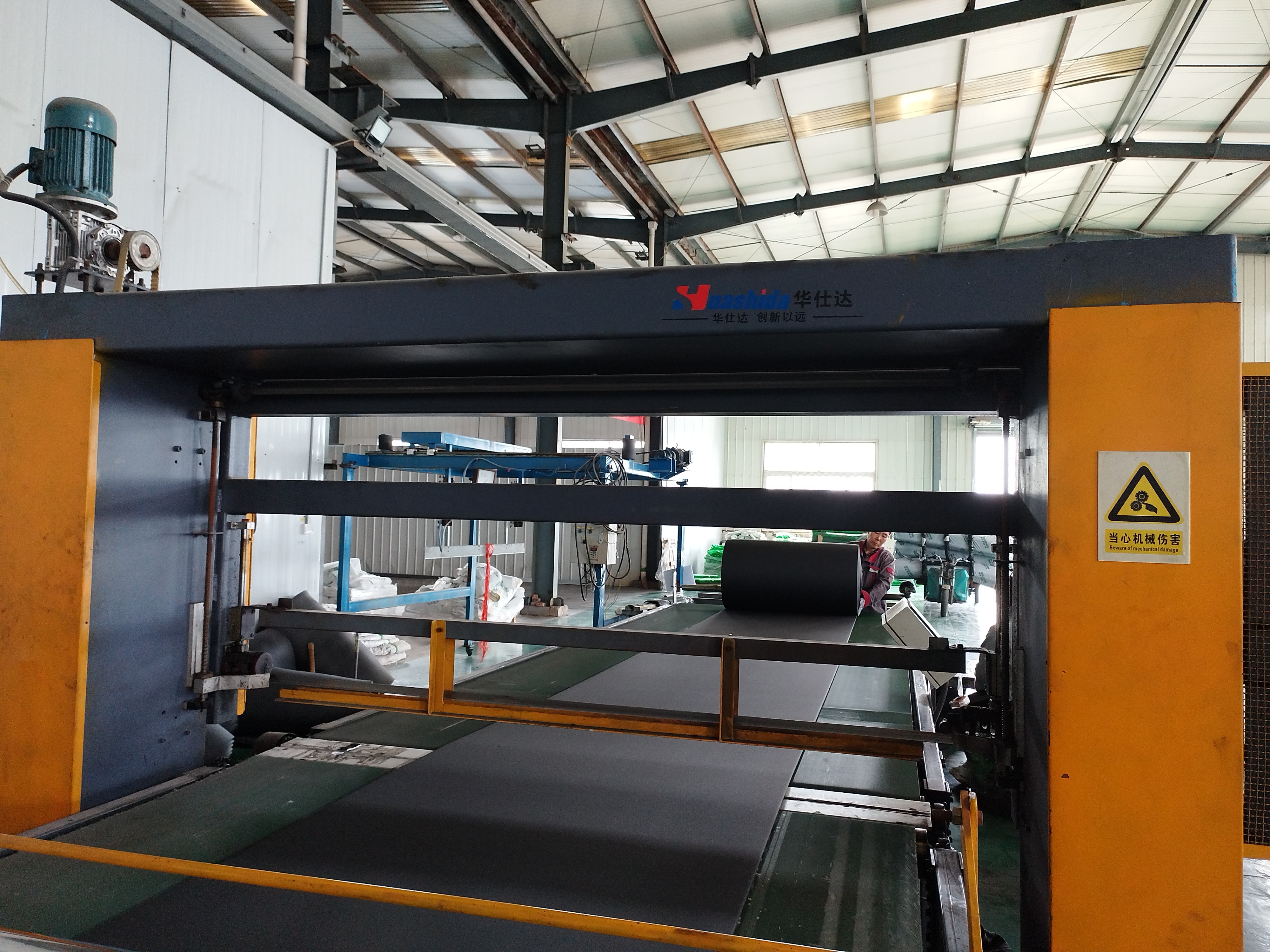

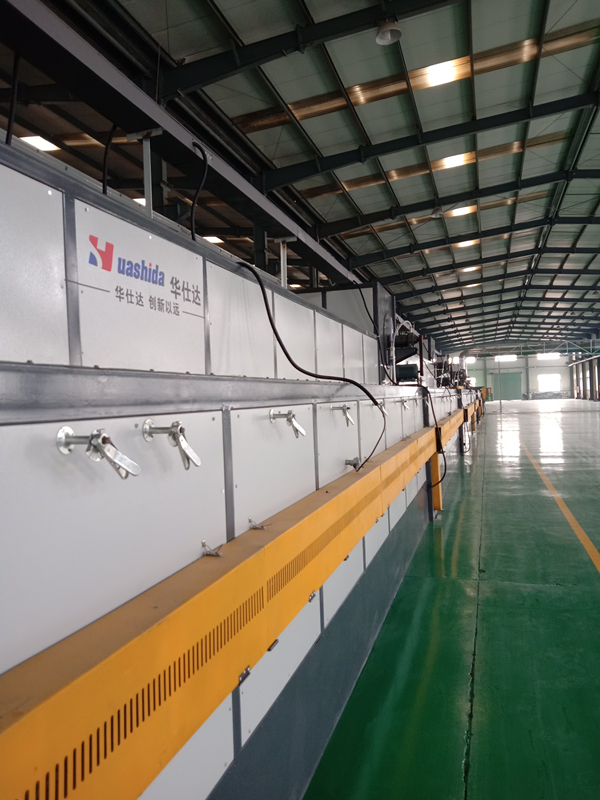

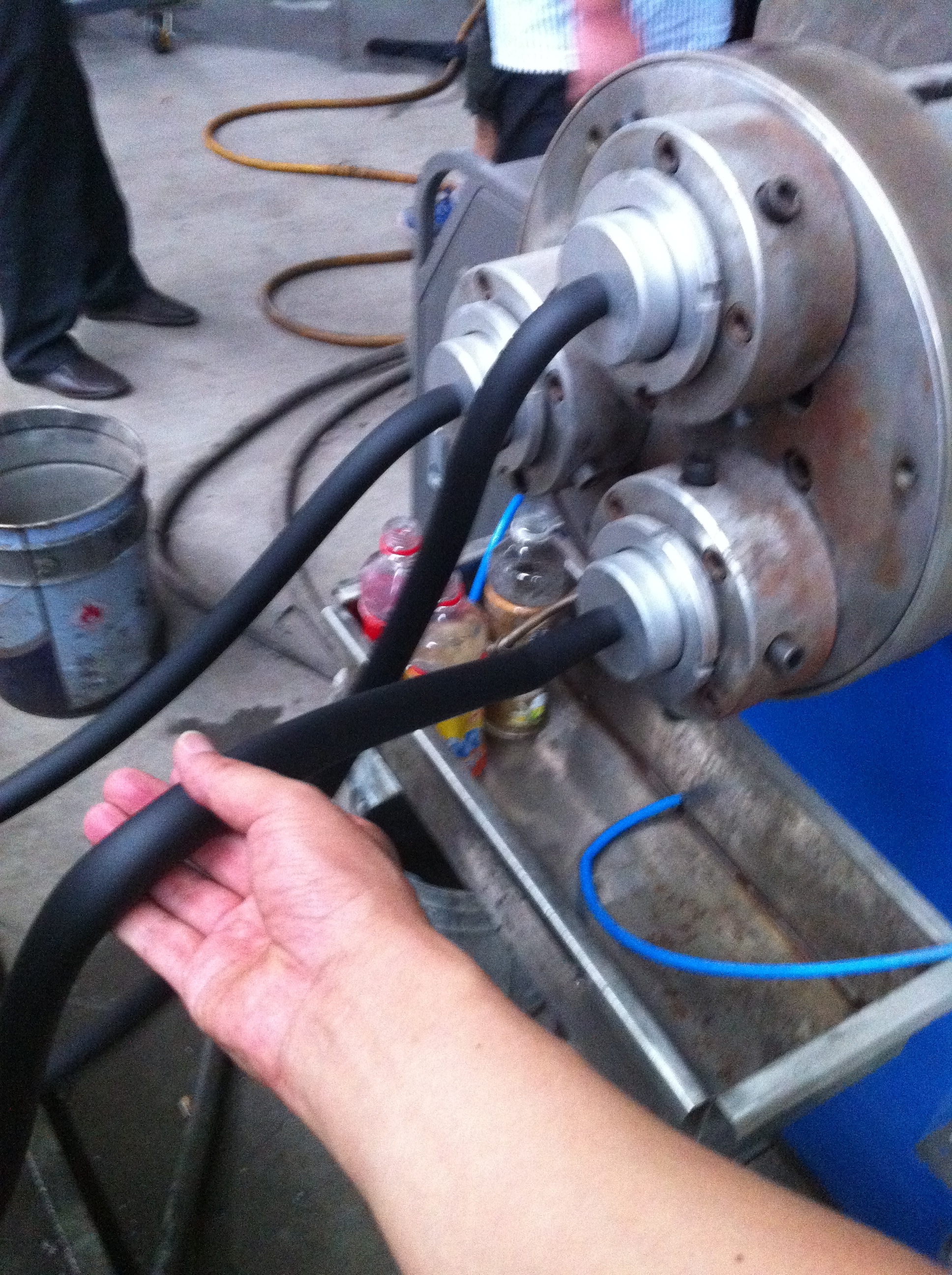

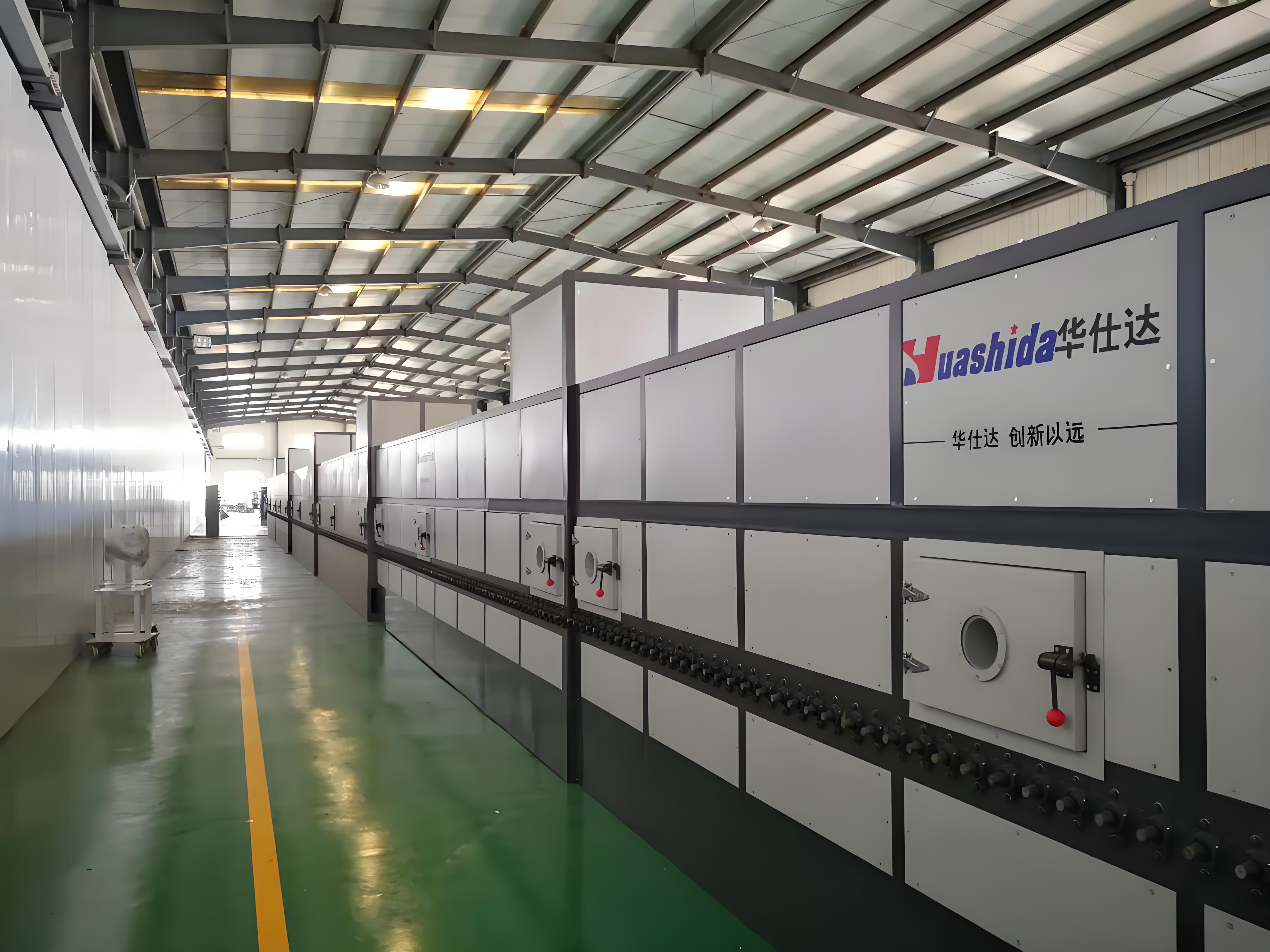

Gallery

NBR/ Thermal Insulation Rubber Foam Pipe/Sheet Production Line

Product Description

NBR/ Thermal Insulation Rubber Foam Pipe/Sheet Production Line

This production line is professionally designed for extruding diversified rubber products, including foamed and non-foamed rubber tubes, sheets, grips, protective sleeves and sealing strips. Adopting high-quality NBR (nitrile-butadiene rubber), PVC (polyvinyl chloride) and auxiliary raw materials, the equipment realizes targeted foaming via specialized craftsmanship, ultimately manufacturing flexible thermal insulation and

energy-saving rubber materials with stable performance.
Handles/Sheaths/Sealing Strips/Air Conditioner Thermal Insulation Rubber Foam Pipe/Sheet Production Line

model	floor space	line length	output capacity	total power
120model	1800	80m	150-180m³	500kw
150model	2400	100m	200-240m³	650kw

Equipment composition:

-Rubber cutter

-Internal mixer

-Bucket elevator

-Open mill

-Rubber extruder (with die head)

-Transition roller

-Infrared foaming stove

-Hot air foaming stove

-Conveying system

-Haul-off machine

-Tractor and cutter

-PLC

Production process:
Internal mixing materials - Open rolling - extrusion - foaming - cooling- cutting

Handles/Sheaths/Sealing Strips/Air Conditioner Thermal Insulation Rubber Foam Pipe/Sheet Production Line

1. Adopts cutting-edge technology to realize fully automatic continuous production, delivering superior overall performance compared with conventional equivalent production lines.
2. Equipped with precise automatic temperature control system, which effectively reduces energy consumption and improves production efficiency.

Rubber foam insulation pipe/sheet boasts such advantages as closed-cell structure, good aging resistance performance, low heating conductivity, moisture resistance factor, good fireproofing, easy installation.

Ther are widely used in the following fields:

1.Thermal insulation of pipes, vessels and other technological containers in industrial installations;

2.For cold and hot water supply and heating systems;

3.Coating of bodies and machine parts to reduce noise and vibration;

4.For freezers of various sizes.

Handles/Sheaths/Sealing Strips/Air Conditioner Thermal Insulation Rubber Foam Pipe/Sheet Production Line
