Name: Large-Diameter Pre-Insulated Pipe Production Line with chipless cutting machine
Brand: Qingdao Huashida Machinery Co., Ltd.
SKU: 110-2200mm
Price: 1,507,500.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Screw No.: Single-screw

Raw Material: PE

Application: Producing Pre-Insulated Pipe Jacket

Cutting Method: Dust-Free Planetary Cutting

Basic Infomation

Place of Origin: Qingdao, China

Brand Name: HUASHIDA

Certification: CE, ISO9001:2008

Model Number: 110-2200mm

Payment & Shipping Terms

Packaging Details: Standard Package

Delivery Time: 60DAYS

Payment Terms: L/C,D/P,T/T

Supply Ability: 30 Sets/Year

Gallery

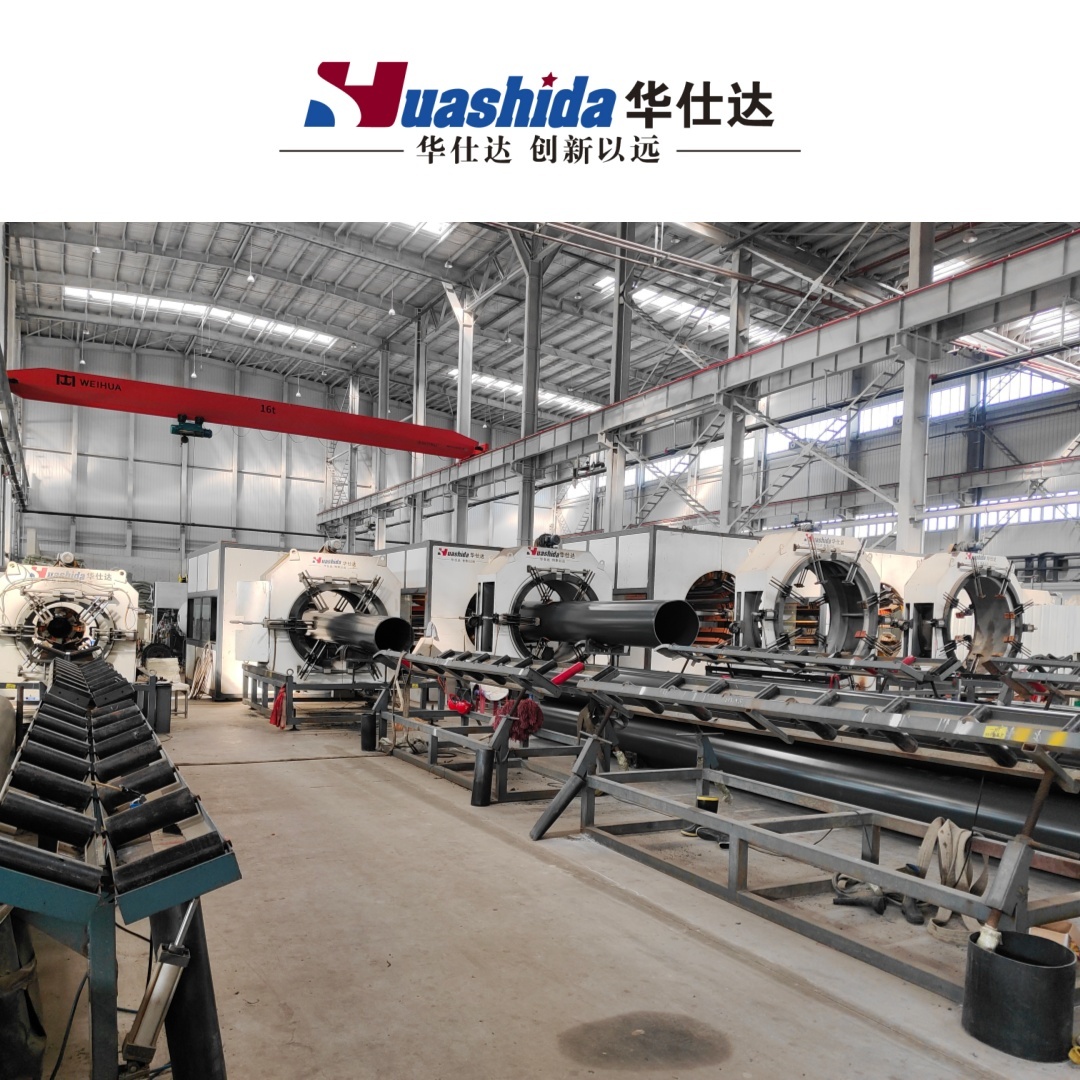

Large-Diameter Pre-Insulated Pipe Production Line with chipless cutting machine

Product Description

Large-Diameter Pre-Insulated Pipe Production Line with chipless cutting machine

Large-Diameter Pre-Insulated pipes deliver superior thermal insulation and long service life. Featuring a steel carrier pipe, PU insulation layer, and HDPE protective jacket, the system ensures excellent strength, corrosion resistance, and energy efficiency. Produced using advanced vacuum calibration technology, the HDPE jacket pipes offer high dimensional accuracy and consistent quality, making them an ideal choice for district heating and cooling pipeline systems.

The vacuum calibrating and insulation pipe production line is currently the most advanced and popular series of anti-corrosion and insulation vacuum sizing pipe production lines internationally.The "Insulation Pipe Production Line" of Qingdao Huashida Machinery Co., Ltd. has been recognized as a First (Set) Technical Equipment in Shandong Province.

Advantages of the production line:
1. High-performance extruder: strong, wear- and corrosion-resistant with excellent plasticizing capability
2. Precise temperature control: ceramic heating rings + fan cooling with automatic regulation
3. Intelligent control system: PLC + DCL software with intuitive HMI for easy operation

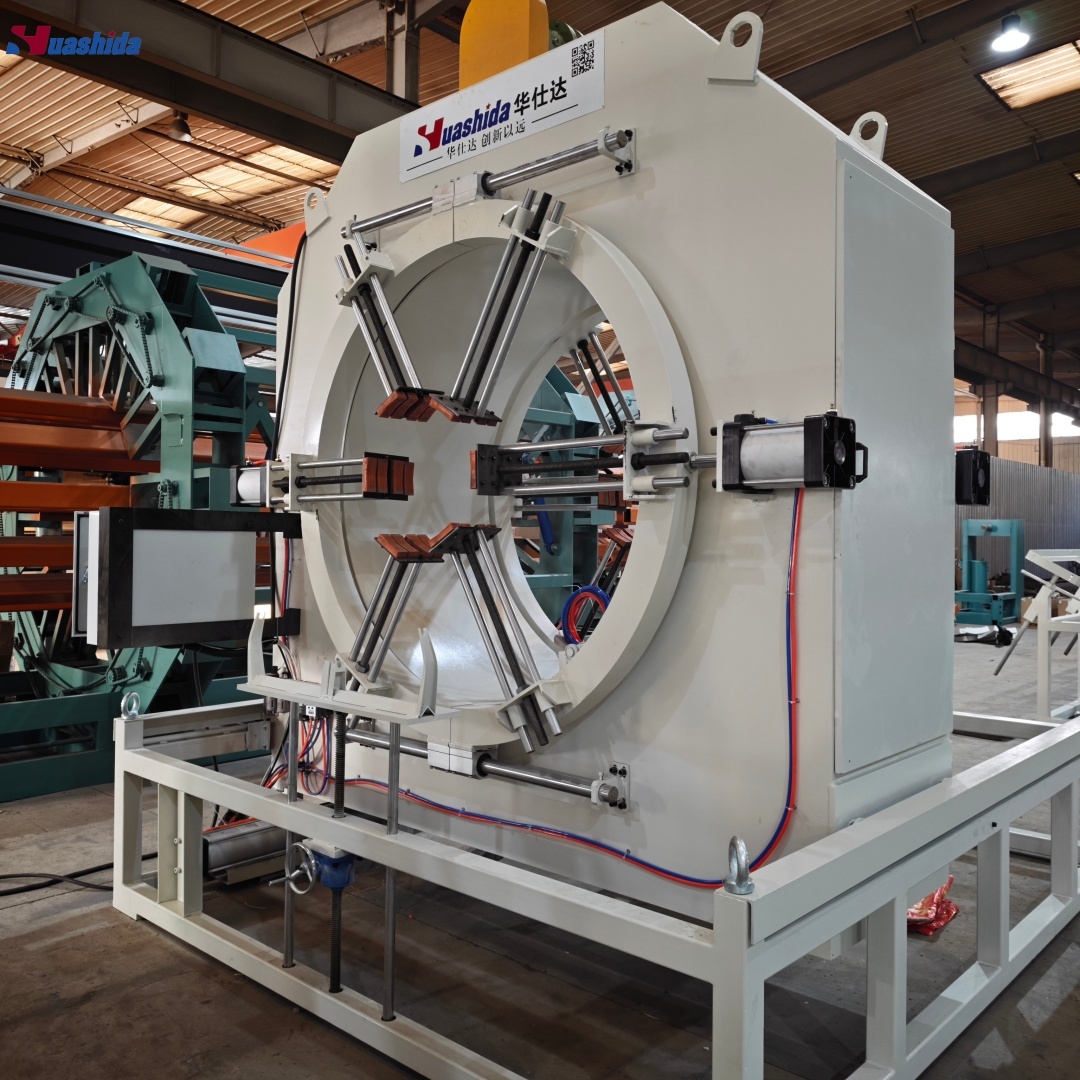

4. Efficient cutting: planetary cutting unit with segmented head for clean, vertical cuts, no secondary processing
5. Clean production: integrated sawdust collection system keeps the workspace tidy

Style	PE-110/500	PE-655/1380	PE-960/1860	PE-1155/2200
Main Extruder	SJ-75/33	SJ-120/33	SJ-150/33	SJ-150/33
Pipe diameter	Φ110-600mm	Φ655-1380mm	Φ960-1860mm	Φ1155-2200mm
Capacity	250-350kg/h	700-900kg/h	1000-1200kg/h	1350kg/h
Installed power	160kw	480kw	580kw	650kw
Length	26m	36m	45m	48m

Technical Highlights:

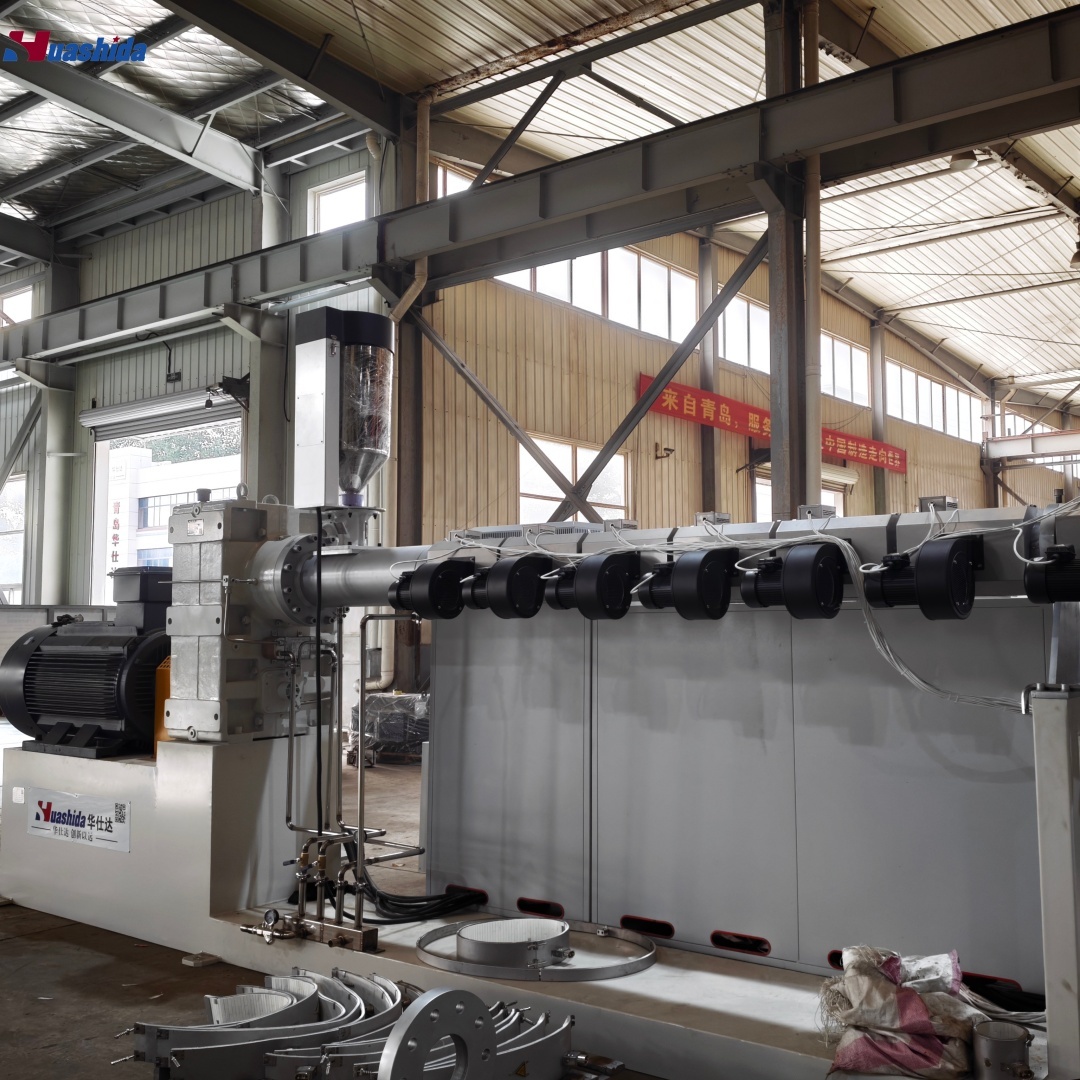

Single-screw extruder	Precision temperature control system ensures consistent material fusion Proprietary single-screw extruder optimized for polyethylene (PE) materials

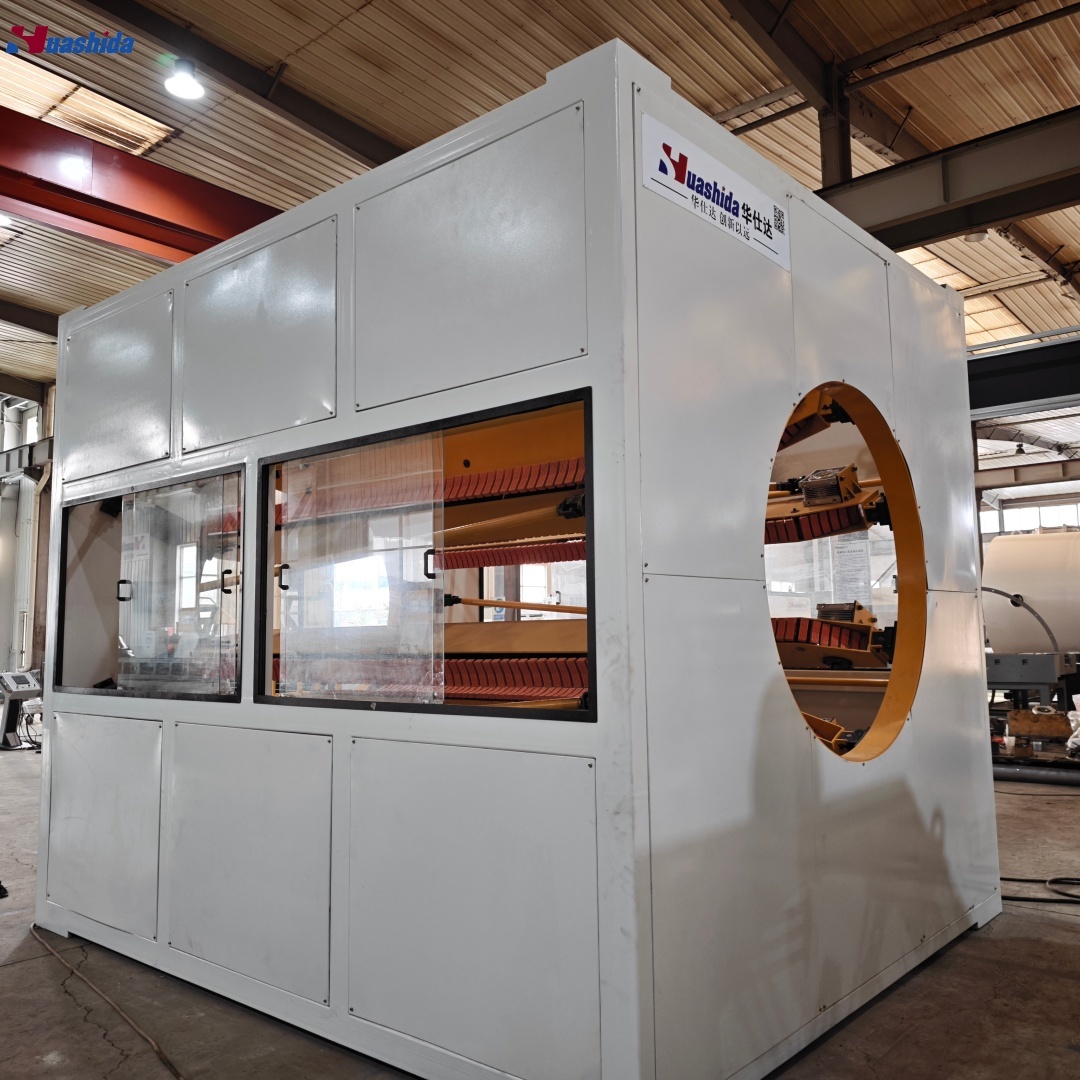

Vacuum Calibration	Patented vacuum calibration system replaces traditional internal pressure methods
Smart Automation	Fully integrated PLC control system Real-time process monitoring
Production Capabilities	Diameter range: 110mm - 2200mm (customizable) Output capacity: 250-1600 kg/h (material-dependent)

Large-Diameter Pre-Insulated Pipe Production Line with chipless cutting machine

Features :
1.small dimension
2.high degree of automation, can be operated by one person, saving labor costs
3.long service life.
4.high-efficiency extruder gives larger output, stable performance
5.pipe wall is average and smooth
6.no waste of raw material
7.One-time molding

Qingdao Huashida Machinery Co., LTD., founded in 2003, is a global developer, manufacturer and solution provider of plastic extrusion equipment. 70% of its customers come from overseas countries such as Europe, America, the Middle East and Southeast Asia.
Welcome to our factory to discuss cooperation!
