PE/PP/ABS Single- and Multi-Layer Sheet Plate Board Extrusion Machine

Our company can provide large single screw extruder with a maximum diameter of 200mm. The width of the plate can be customized according to customer's requirements and the thickness of the plate can be from 1mm to 35mm.
It consists of SBJZ-series plate &sheet special-purpose single screw extruder SJZ-series conical twin screw extruder Or SJ-series parallel twin screw extruder; Equipped with auxiliary downstream accessories and moulds, it can produce: PP, PS, HIPS, PE, ABS, EVA, PMMA, PC, PT, PVB, PVC and other board & sheet.

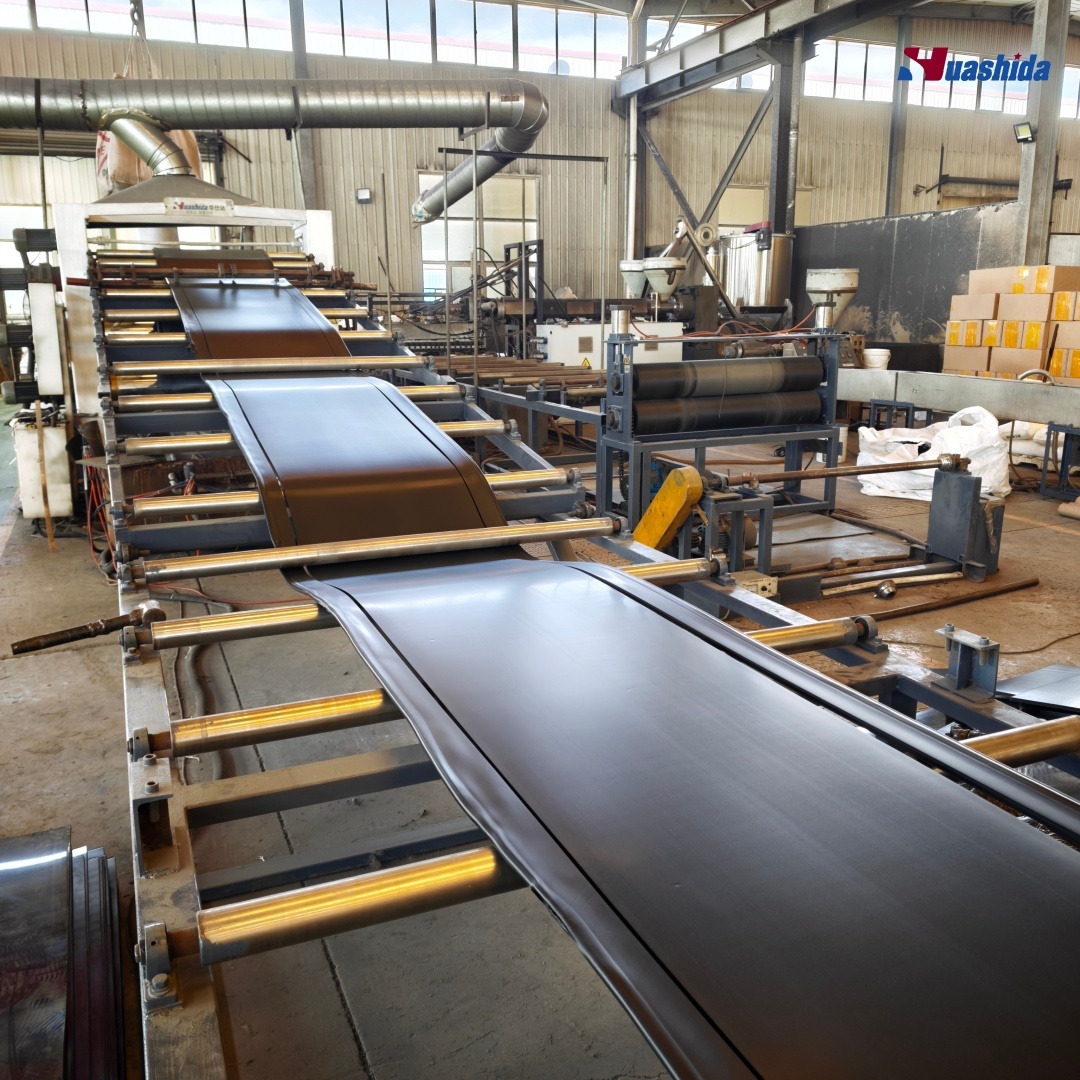

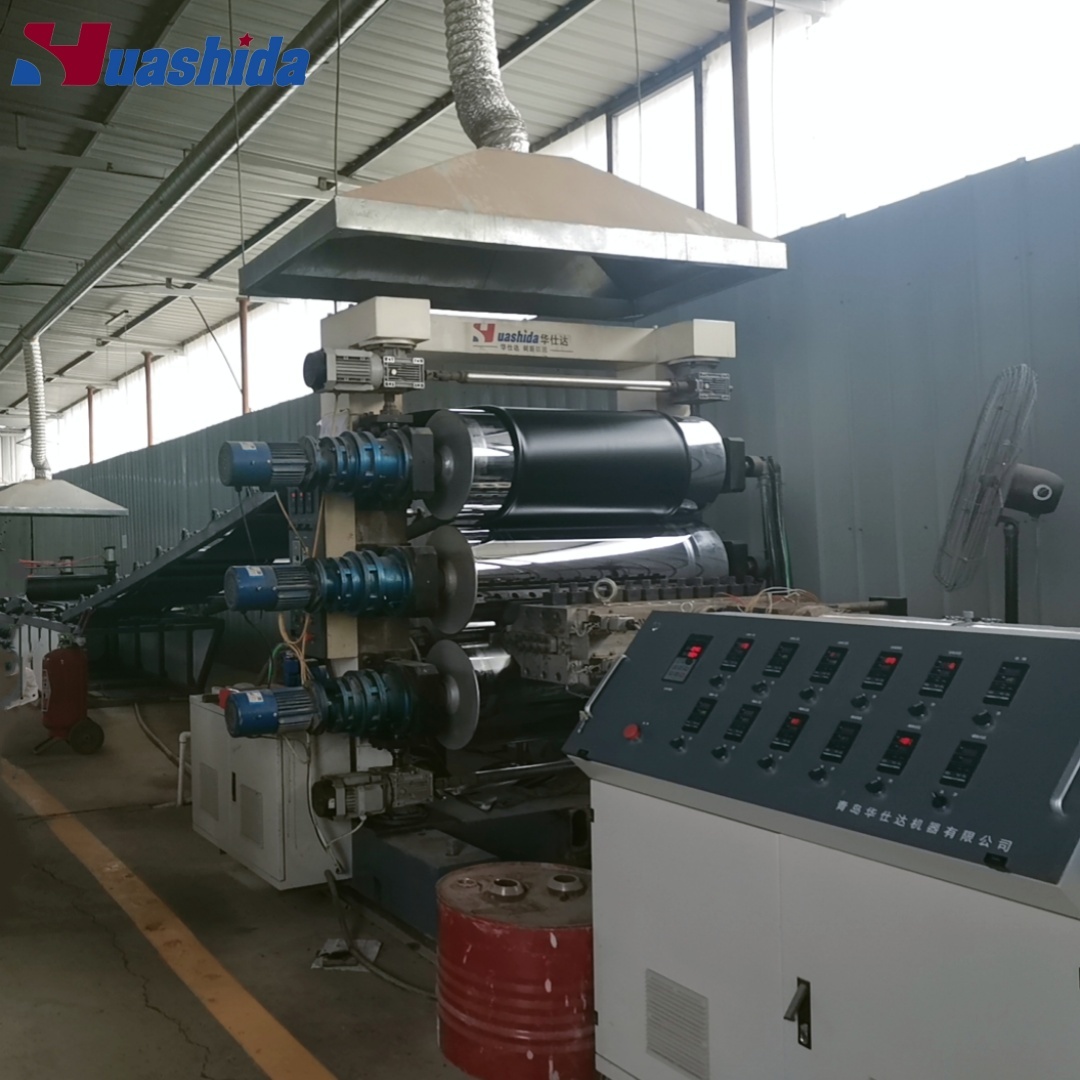

The machinery unit consists of extruder, Screen changing device, melt pump, T-die, 3-rollr or multiple-roller calender, cooling device, edge cutter, Haul-off system, plate cutter winder, electrical control system.
Others, The working principle is the 3 states of the hot-plastics at different temperatures: The pushing force of the screw change the physical stat from glass state to high elastic state, then glutinous-and-fluid sate, it comes out from the slim gap of the die, the rest of the procedures are calendar, cooling-shaper, edge-cutter, Haul-off, cutter, winder.



Features of the machinery unit:
High grade alloy structural steel ( 38CRMOALA) made material barrel& screw and mould, after nitriding treatment. It gets high hardness, corruption and long service life. Choice T-die the flowing passage is designed for easy flowing of thehout any detaining, and the product thickness is even, For the calender, large conical slot is designed, the cooling quality inside the roller is good, and the temperature synchronization,PC/PP hollow cross-section plate. PVC transparent soft & hard plat & sheet. PVC foamed plate, PMMA/ABS co-extrusion bathing plate, inside chamber plate of the refrigerator and other multiple-layer composite co-extrusion plate & sheet size: Width: 300MM-700MM thickness0.2MM-45MM: Output rate: 80-1800KG. /H. The machinery unit is the best solution for plate & sheet production.


Technical parameters:

Qingdao Huashida Machinery Co., Ltd. was established in 2003 and is a manufacturer specializing in thermal insulation and anti-corrosion equipment.We offer one-stop pipeline solutions and have exported to more than 40 countries.
The insulation pipe production lines and 3lpe Anti-Corrosion Coating line developed and manufactured by Huashida are widely used in the construction of municipal heating, sewage, water supply, natural gas and communication pipe networks, crude oil pipeline transportation, communication and agricultural irrigation and other fields.

Huashida Factory located in Qingdao High & New Technology Industrial Area- Qingdao Huashida industrial Park, covers an area of about 4000 square meters. We have obtained more than 10patents and many industry certifications at home and abroad. Huashida company has high qualified and experienced teams for reaching& designing, manufacturing and site operation.
We have reliable products of different models because of our powerful making capacity. We can satisfy our customer's special need because of our outstanding R&D and design capacity. We can offer our user with timely and convenient techniqual support because of our perfect after-sales service.
