PE & PP Plastic Sheet Board Extrusion Line with Three-Roll Calender

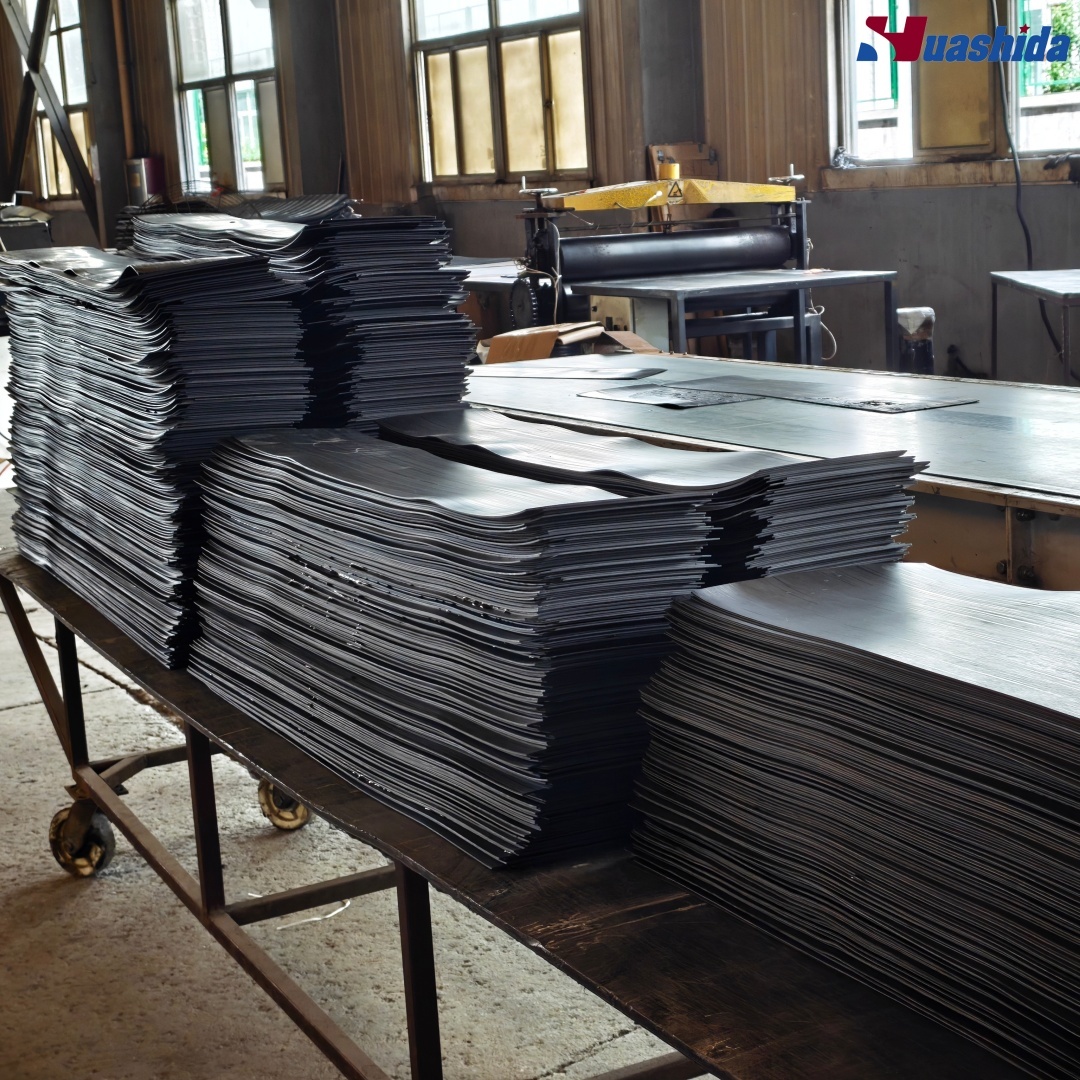

This sheet extrusion line is fitted with a vertical three-roller calender and consists of a high-performance vented extruder, screen changer system, cooling rack, haul-off unit, cutting unit and other assemblies. It is used to produce single-layer and multi-layer PE, PP, PS, HIPS, ABS and PVC sheets, featuring a thickness range of 0.1-35 mm and a maximum width of 3000 mm, while the sheet width can be customized as per customer demands.

Extruder

Efficient single screw extruder with water-cooling force feeding system, and barrel with grooving in the feeding zone are designed to save power of main motor; Long L/D ratio and mixing head are designed to get perfect jellification and high output.

Die head

T die, Treated by nitrification and polishing, special design to manage sensitive adjustment of thickness.

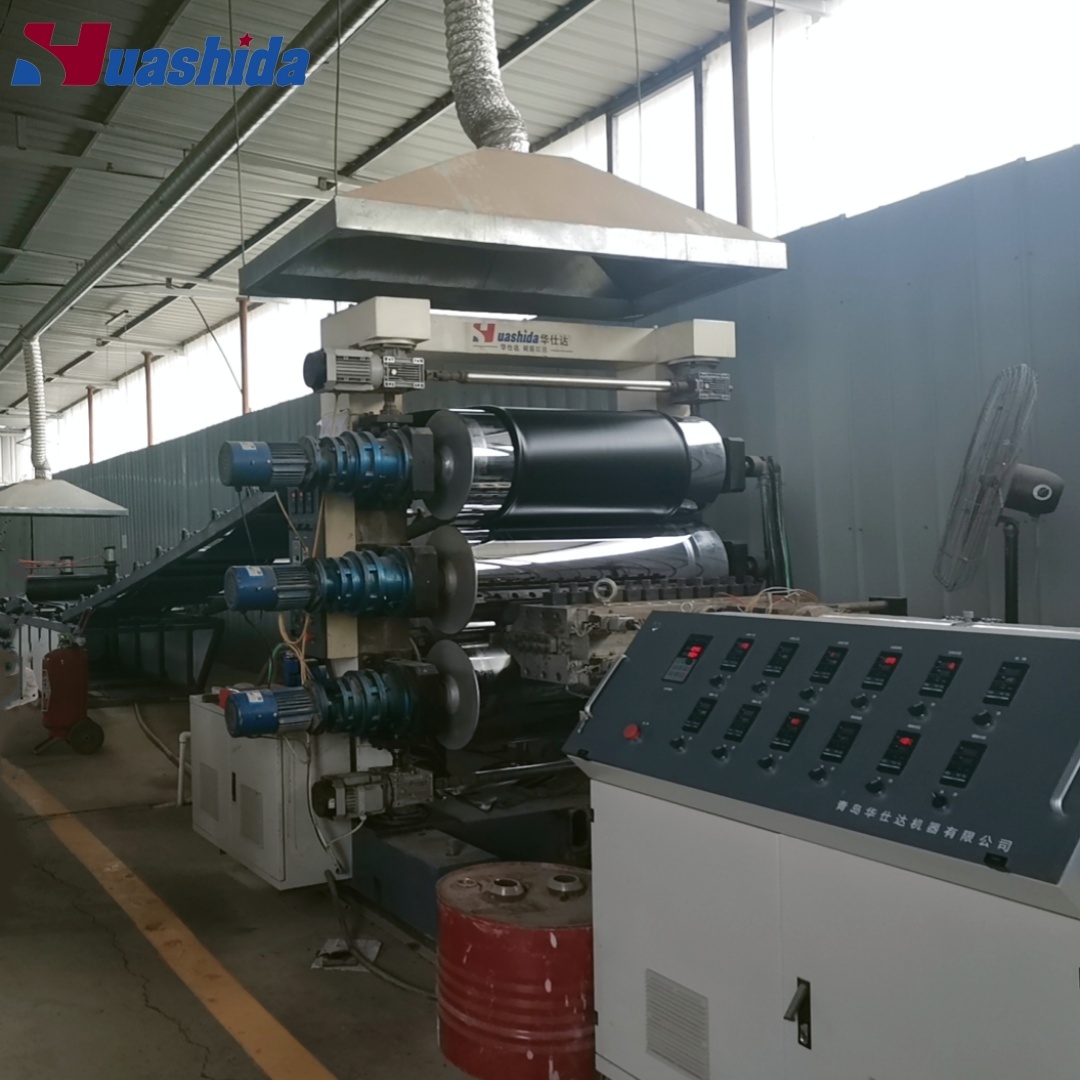

Three Calender

It has Verical and Oblique structures according to different width of the sheet. Specially designed flow path inside the roll ensures precisely controlling of roller temperature, then ensure flat and brightness of the roller.

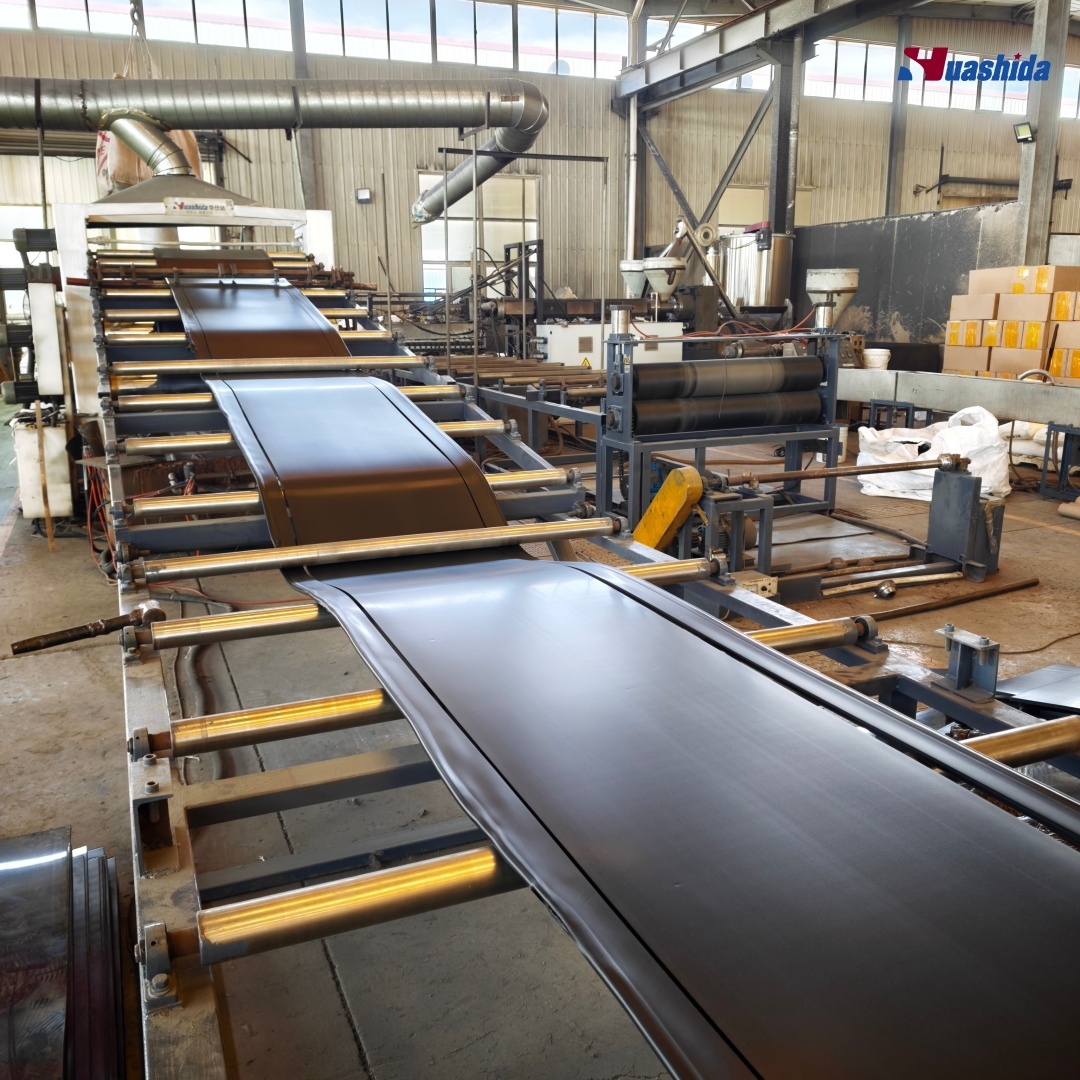

Cooling Rack



HMI Controlling System

Our Services
 Quality guarantee period:  12 months or 14 months from date of Bill of Lading.
During this period, the seller will provide free service for all problems caused by quality of equipments, however except the problems caused by the buyer because of wrong operation.

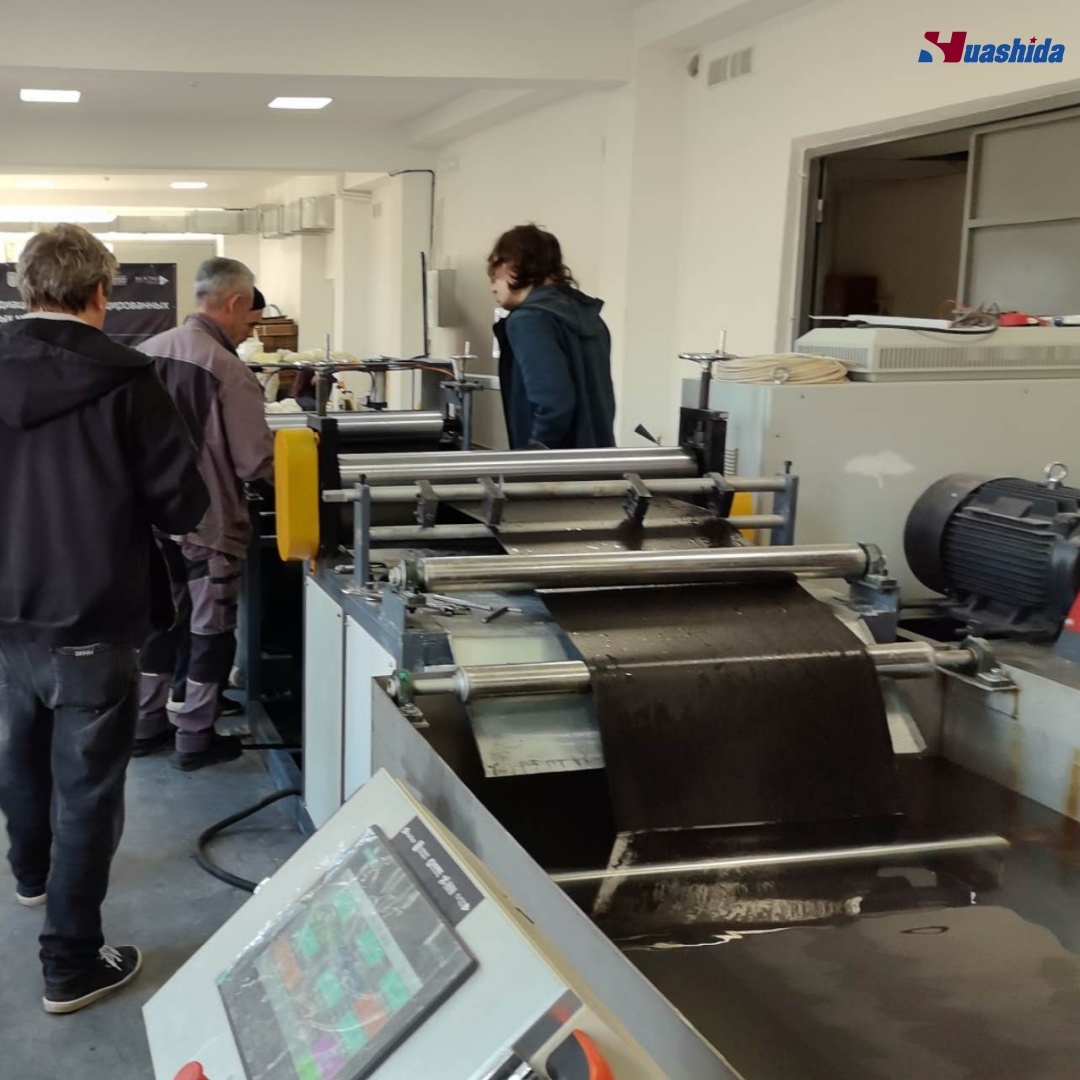

Service:  The seller would send technician to the buyer's factory to test the new machine and train people of the buyer. The buyer should pay for round-trip transportation expense, food, accommodation, insurance locally and related salary.



Qingdao Huashida Machinery Co., Ltd is one of the top manufacturers of plastic extrusion machines in China, specialized in dealing with Steel pipe in terms of anticorrosion and insulation technology, R&D of the coating technique, design and manufacture of the equipment for coating, products and materials, researching and development of plastic extrusion equipments, especially of Vacuum Calibrating method PE insulation jacket pipe extrusion line, and PE hollow wall spiral pipe production line, PE PP sheet extrusion line, and pipe joints and welding tools such as heat shrinkable sleeve, Electro fusion sleeve etc.
Up to now, We have successfully entered the oversea markets of Russia, Iran, UAE, India, Belarus, Kazakhstan and son on. Our pipeline production line is nearly 500sets at home and abroad.
Huashida Factory located in Qingdao High & New Technology Industrial Area- Qingdao Huashida industrial Park, covers an area of about 4000 square meters. We have obtained more than 10patents and many industry certifications at home and abroad. Huashida company has high qualified and experienced teams for reaching& designing, manufacturing and site operation.
We have reliable products of different models because of our powerful making capacity. We can satisfy our customer's special need because of our outstanding R&D and design capacity. We can offer our user with timely and convenient techniqual support because of our perfect after-sales service.
