Hot Bend Pipe 3PE Anti-Corrosion Coating Production Line with Shot Blasting for 426-820mm Steel Elbows

1
MOQ
US$200,000.00-400,000.00 1 Piece (MOQ)
Price
Hot Bend Pipe 3PE Anti-Corrosion Coating Production Line with Shot Blasting for 426-820mm Steel Elbows
Features Gallery Product Description Request A Quote
Features
Specifications
Coating: Powder Coating
Type: Coating Production Line
Substrate: Steel
Condition: New
Curvature Radius: 4-6 Times D
Heating Type: Intermediate Frequency Heating
Customized Service: Available
Highlight:

Intermediate Frequency Heating 3LPE Coating Pipe Production Line

,

Powder Coating 3PE Coating Pipe Production Line

,

Customized Service Anti-Corrosion Pipe Production Line
Basic Infomation
Place of Origin: qingdao,China
Brand Name: huashida
Certification: CE, ISO, RoHS
Model Number: 001
Payment & Shipping Terms
Packaging Details: Standard Package for Export
Delivery Time: 60 days
Payment Terms: L/C,Western Union,D/P
Supply Ability: 30 sets/year
Product Description
Industrial 3LPE Coating Pipe Production Line with Intermediate Frequency Heating
Product Overview
Steel Pipe Bend Elbow Derusting 3PE 3LPE VUS Anticorrosion Coating Line

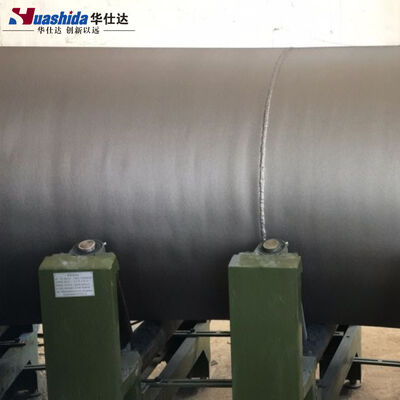

Steel pipe coating machine in operation Close-up view of 3PE coating application
Description
2PE, 3PE and FBE Epoxy coated steel pipes are widely used in pipeline systems for the transmission of oil, gas, water and other fluids. They provide high resistance to corrosion from chemicals, moisture, and harmful environments.
3 layer PE anti-corrosion coating consists of first FBE coating, middle adhesive layer and outer polyethylene layer. The Bend Pipe 3PE Coating Equipment is specifically designed for bend pipe 3PE coating applications.
Equipment Components
  • Bend pipe transportation equipment
  • Bend pipe blasting machine
  • Bend pipe intermediate frequency heating
  • Bend pipe 3PE coating system
  • Bend pipe spraying cooling
Coating line overview Pipe coating process detail Equipment operation view Finished coated pipes
Technical Specifications
Overall Dimension 20 m * 15 m
Total Water Consumption 30 cubic meters
Total Power Consumption 450 kilowatts
Total Gas Consumption 6 cubic meters/min
Temperature Condition Workshop temperature higher than 5°C
Steel Pipe Diameter 426, 630, 720, 820 mm
Curvature Radius 4-6D
Bending Angle 15-90 degrees
Steel Tube Wall Thickness 8 mm - 12 mm
Epoxy Powder Thickness ≥170 μm
AD Copolymer Adhesive Thickness 170-250 μm
PE Layer Thickness 2.5 - 3.7 mm
Company Profile
Qingdao Huashida Machinery Co., Ltd was established in 2003 and has specialized in plastic polyurethane insulation pipe production lines, 3PE anti-corrosion pipe production lines, large diameter underground pipe production lines, and plastic pipe joints for over 20 years.
The company maintains strong research and development partnerships with Beijing University of Chemical Technology, Qingdao University of Technology, and other scientific research institutions. By integrating advanced domestic and international technologies, Huashida has become one of the top three manufacturers in the industry in China after 20 years of dedicated development.
Huashida machines are well-received in international markets including Saudi Arabia, Kazakhstan, Uzbekistan, United Arab Emirates, Turkey, Russia, and beyond.
Qingdao Huashida Machinery manufacturing facility
Additional Information
Exhibition
Huashida exhibition display at industry trade show
Client Projects
Huashida client project installations
Packaging
Professional equipment packaging for shipment
Certifications
Huashida quality certification 1 Huashida quality certification 2 Huashida quality certification 3
