Name: High-Efficiency PP/HDPE Double Wall Corrugated Pipes Production Line
Brand: Qingdao Huashida Machinery Co., Ltd.
SKU: Corrugated Pipe Production Line
Price: 180000 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Number Of Layers: Double Layer

Material: PP/HDPE

Max Output: 1000kg/H

Field: Drainage/Water Supply/Sewage Discharge/Agricultura

Highlight:

PP HDPE corrugated pipe production line

double wall corrugated pipe machine

high-efficiency pipe production equipment

Basic Infomation

Place of Origin: QINGDAO,CHINA

Brand Name: HUASHIDA

Certification: CE

Model Number: Corrugated Pipe Production Line

Payment & Shipping Terms

Packaging Details: Standard Packing

Delivery Time: 60DAYS

Payment Terms: L/C,T/T

Supply Ability: 30 Set/Year

Gallery

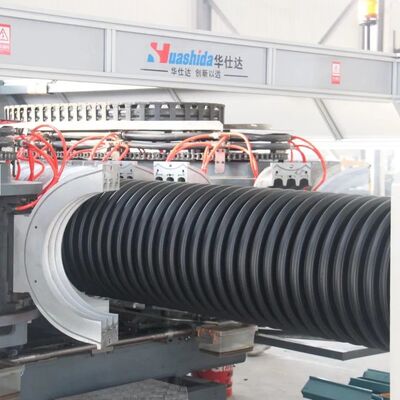

High-Efficiency PP/HDPE Double Wall Corrugated Pipes Production Line

Product Description

High-Efficiency PP/HDPE Double Wall Corrugated Pipes Production Line

Double Wall Corrugated Pipe Production Line is a new type of high-speed water-cooled corrugated pipe production line developed and designed by ourselves based on advanced foreign technology. Mainly using polypropylene (PP) or high-density polyethylene (HDPE) as raw materials. Production of single and double wall corrugated pipes. Due to its unique structure, this pipe has the advantages of light weight, good impact resistance, strong corrosion resistance, and cold and heat resistance. It is widely used in urban drainage (water supply), geographical infiltration, construction water supply and drainage, PEF, wire and cable laying, bridge steel cable sheath, agricultural irrigation, and other fields.

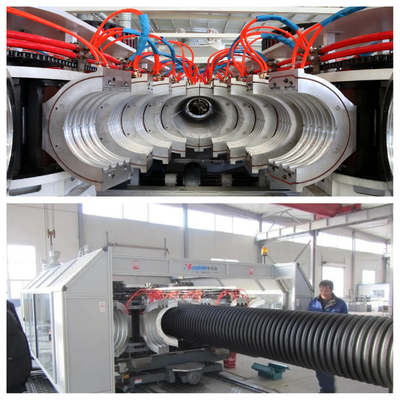

The DWCP series high-speed corrugated pipe forming machine adopts a closed water-cooled structure, and the mold base drives the left and right modules to move within the closed curve. The mold base adopts a gear dynamic structure, which has the advantages of automatic compensation for mechanical wear, smooth operation, low noise, long service life, and highsynchronization. The unique design of the circulating water circuit has high reliability, good cooling effect, and low water impact in the pipeline, which improves the reliability of continuous production of pipes and ensures the surface forming quality of pipes.

Double-Wall Corrugated Pipe Production Line Components

Component	Description
Extruder	Single-screw extruder: Simple structure, lower cost, suitable for applications with relatively low production requirements. Twin-screw extruder: Provides excellent plasticizing and mixing performance with stable extrusion, making it suitable for higher production efficiency.
Corrugator	Equipped with corrugated forming modules to ensure continuous and stable pipe forming. Provides the necessary vacuum and cooling functions during the corrugation process.
Cooling System	Supports water cooling, air cooling, or a combination of both. Water cooling provides higher cooling efficiency and faster temperature reduction, while air cooling features a simpler structure and lower cost.
Cutting Equipment	Planetary cutter or fully automatic corrugated pipe cutter precisely cuts the finished pipe, providing high cutting accuracy and smooth cutting edges.
Control System	PLC control system enables precise control and coordinated operation of all major production line components, ensuring stable and efficient production.

Application:
It is widely used in urban water supply and drainage, underground infiltration, construction water supply and drainage, wire and cable laying, bridge steel cable sheathing, agricultural irrigation and other fields. It will gradually replace the plastic pipe, cement pipe, cast iron pipe due to low assembly cost, easy operation, convenient connection and economical construction. It enjoys broad application prospects and great market potential.

Model	Diameter Range (mm)	Max. Capacity (kg/h)	Power Consumption (kW)
S-55/30	Φ10 - Φ32	80	40
S-65/30	Φ20 - Φ63	120	55
S-75/33	Φ50 - Φ160	250	85
S-90/33	Φ75 - Φ250	300	110
S-90/33	Φ110 - Φ315	400	130
S-120/33	Φ250 - Φ630	800	300
S-150/33	Φ315 - Φ800	1100	380
S-120/38	Φ710 - Φ1200	1300	480

Qingdao Huashida Machinery Co., LTD., founded in 2003, is a global developer, manufacturer and solution provider of plastic extrusion equipment. 70% of its customers come from overseas countries such as Europe, America, the Middle East and Southeast Asia.
Welcome to our factory to discuss cooperation!
