Name: Full Range HDPE PE100 Pipe Extrusion Line for water gas Municipal Pipeline
Brand: Qingdao Huashida Machinery Co., Ltd.
SKU: 16-1600 mm
Price: 1,507,500.00 USD
Availability: InStock

Features Gallery Product Description Ratings & Review Request A Quote

Features

Specifications

Warranty: 12 Months

Product Type: PE Pipe

Screw No.: Single-screw

Automation: Automatic

Computerized: Computerized

Certification: CE, ISO

Customized: Customized

Condition: New

After-sales Service: Overseas Installation, Free Technical Supporting

Transport Package: Standard Export Package

Specification: 800.00cm * 220.00cm * 200.00cm

Application: Produce Water-Supply Gas-Supply Pressure Pipe

Screw Material: 38crmoala (Nitrided For Wear Resistance)

Max Output Capacity: 800 - 1200 Kg/H

Raw Material: PE80, PE100

Installed Power: 160kw - 450kw (Depends On Line Size)

Cooling Method: Water Cooling (Stainless Steel Vacuum Tank)

Cutting Mode: No-Dust Planetary Cutting / Chip Less Cutting

Pipe Diameter Range: 16-1600mm

Mold Type: Spiral Mold

Basic Infomation

Place of Origin: Qingdao, China

Brand Name: Huashida

Certification: CE, ISO

Model Number: 16-1600 mm

Payment & Shipping Terms

Packaging Details: 800cm*200cm*200cm

Delivery Time: 45-90 days

Payment Terms: T/T,L/C

Supply Ability: 30 Sets/Year

Gallery

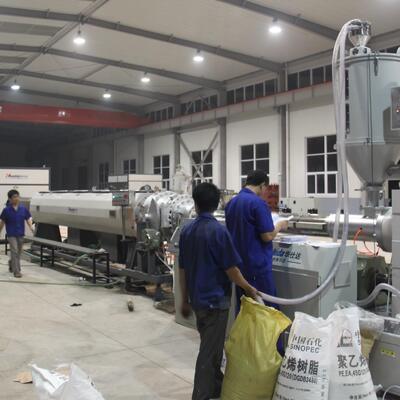

Full Range HDPE PE100 Pipe Extrusion Line for water gas Municipal Pipeline

Product Description

16-1600mm HDPE PE100 Pipe Extrusion Line for Municipal Water Gas Supply with SGS

The 16-1600mm HDPE PE100 Pipe Extrusion Line is a professional, high-efficiency plastic pipe extrusion solution independently developed by Qingdao Huashida Machinery. Specially designed for mass production of PE80/PE100 high-pressure HDPE pipes, this full-series pipe manufacturing equipment covers a complete diameter range from 16mm to 1600mm, fully catering to municipal water supply, urban gas distribution, agricultural irrigation and industrial pipeline engineering. Equipped with nine standardized model configurations, the line supports adjustable production output from 350kg/h up to 2500kg/h, meeting small-batch and large-scale industrial pipe production demands.

As a SGS, CE, ISO9001:2015 triple-certified HDPE pipe extrusion machine, this turnkey production line features authoritative third-party quality verification, fully compliant with international infrastructure project bidding standards. Adopting premium 38CrMoAlA nitrided alloy screw, advanced helical basket die head and PLC intelligent control system, the equipment ensures stable extrusion precision, uniform pipe wall thickness, excellent hoop strength and long-term operational stability for HDPE PE100 pressure pipes. It is the preferred production equipment for global pipe manufacturers, municipal engineering contractors and water & gas infrastructure projects.

Full Range HDPE PE100 Pipe Extrusion Line for water gas Municipal Pipeline

Technical specification

Our PE Pipe Production Machinery comes in various configurations to meet diverse output requirements.

Model	Pipe Diameter (mm)	Main Extruder	Power (kW)	Output (kg/h)
SPEG-110	16 - 63	SJ75 X 33	180	350
SPEG-250	75 - 250	SJ90 X 33	280	500 - 1000
SPEG-630	160-315	SJ120 X 33	522	1000 - 1200
SPEG-630	160-355	SJ120 X 33	522	1000 - 1200
SPEG-630	200-450	SJ120 X 33	522	1000 - 1200
SPEG-630	160-630	SJ120 X 33	522	1000 - 1200
SPEG-630	355-630	SJ120 X 33	522	1000 - 1200
SPEG-1200	710 - 1200	SJ150 X 33	680	1000 - 1600
SPEG-2200	1000 - 1600	SJ150 X 33	1200	2000 - 2500

Applications

This full-range HDPE PE100 pipe extrusion line manufactures high-standard pressure pipes widely used in municipal infrastructure and industrial fields worldwide, perfectly matching global engineering construction standards:

Municipal Water & Gas Supply Engineering: Core equipment for producing high-pressure PE100 water delivery pipes and urban natural gas transmission pipes. SGS certification meets international project bidding and municipal procurement compliance requirements, suitable for large-scale urban infrastructure construction.
Agricultural Irrigation & Drainage: Small and medium-diameter HDPE pipes produced by SPEG-110 and SPEG-250 models are widely applied in farmland irrigation, rural water delivery and drainage projects, serving agricultural infrastructure construction in Central Asia, Middle East and African regions.
Industrial & Mining Engineering: Produces durable anti-corrosion HDPE pipes for landfill leachate collection, chemical medium transportation and mining pressure pipeline systems, featuring stable pressure resistance and long service life.
Geothermal & Renewable Energy Projects: Manufactures high-temperature and high-pressure resistant PE100 pipes for geothermal heating systems and new energy pipeline projects, adapting to complex underground service environments.

Production Line Process Flow

The fully automatic HDPE PE100 pipe extrusion production line adopts a streamlined integrated process, realizing low-consumption, high-precision and zero-waste continuous pipe production:

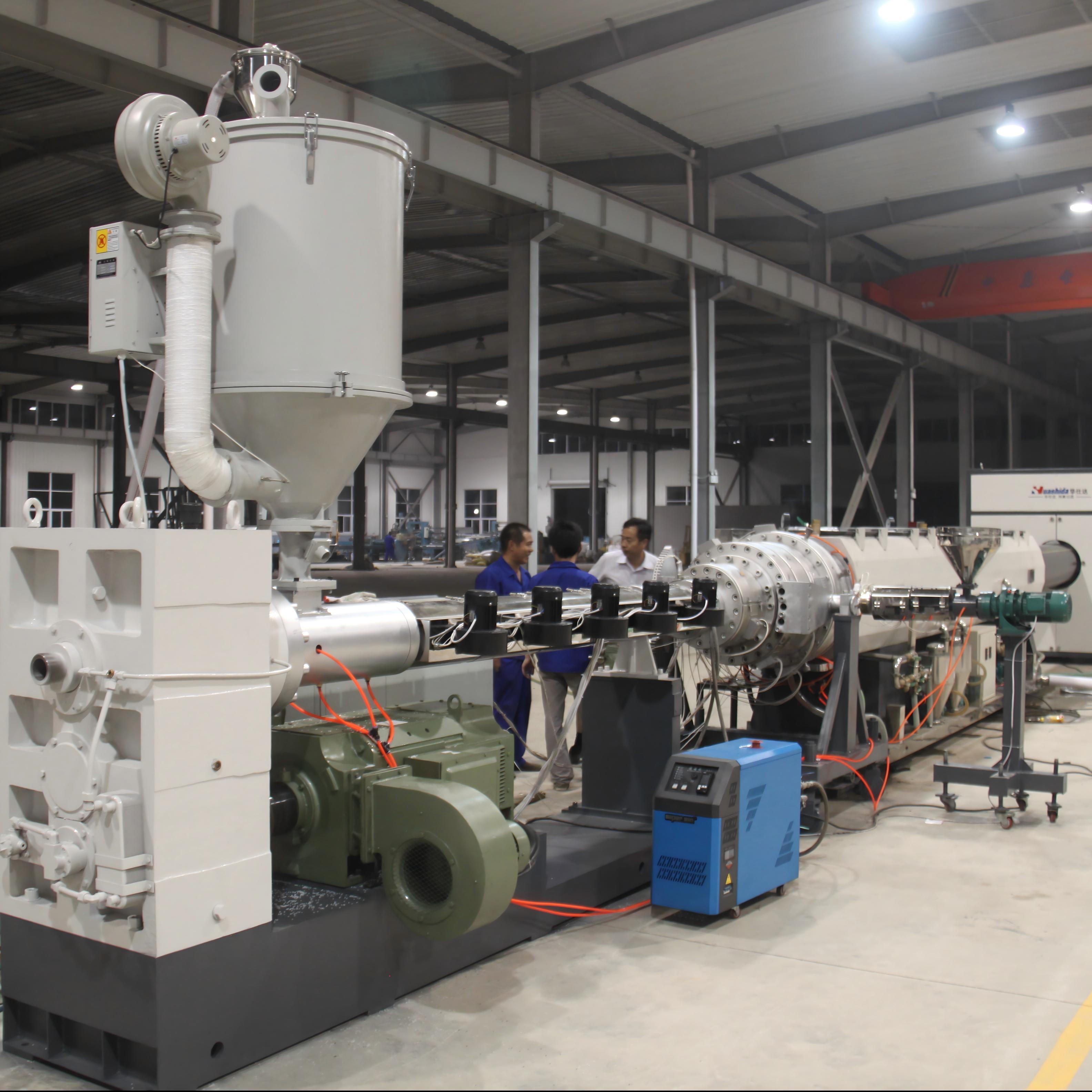

1. Automatic Feeding & Drying: Equipped with vacuum automatic loader and hopper dryer to completely remove moisture from PE80/PE100 resin raw materials, ensuring pure and dry raw material input and avoiding pipe bubble defects, laying a foundation for high-quality pipe extrusion.

2. High-Torque Uniform Extrusion: Adopts 38CrMoAlA nitrided alloy single screw extruder with high torque drive. The screw features uniform plasticization and stable melt pressure, ensuring consistent physical performance of PE100 high-pressure pipes.

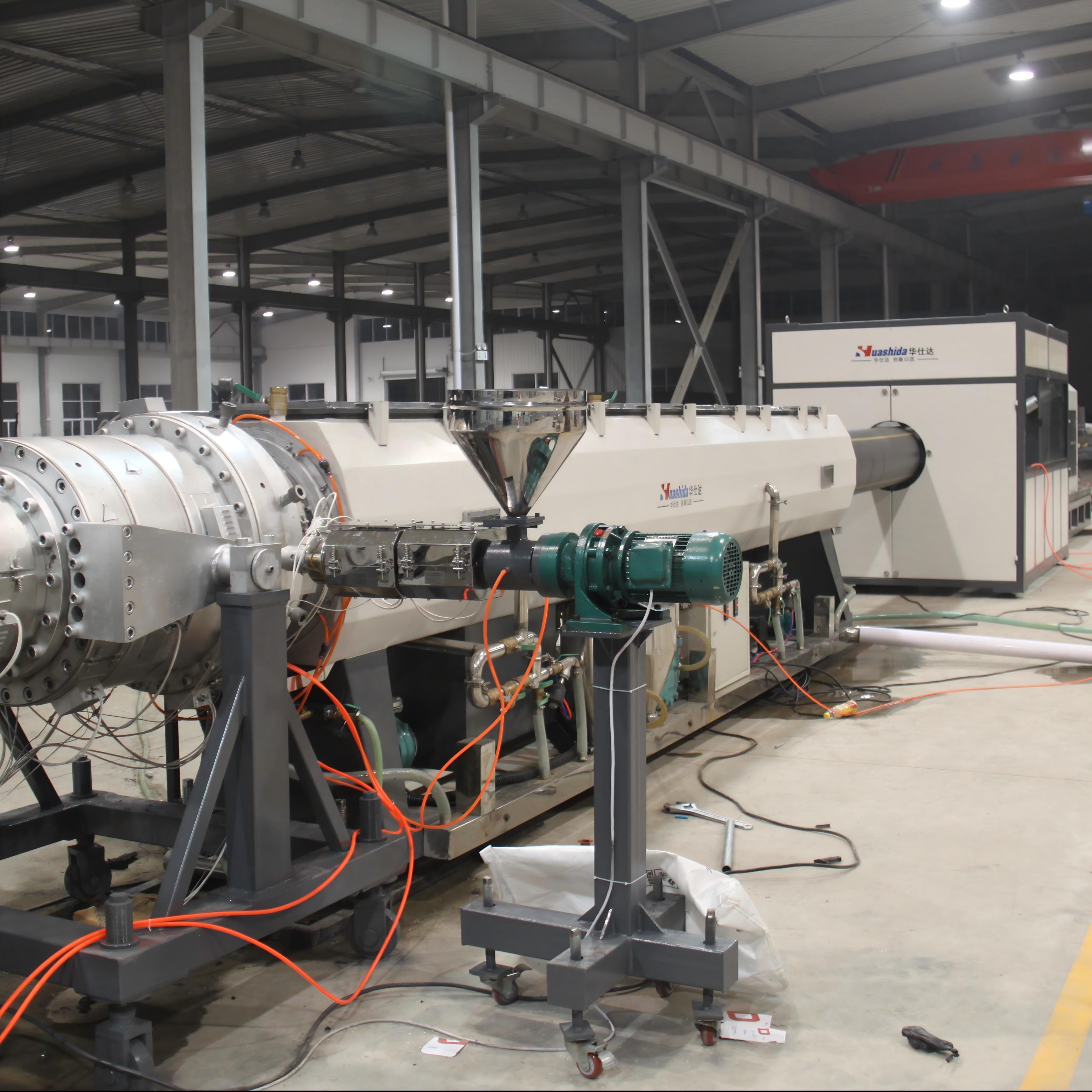

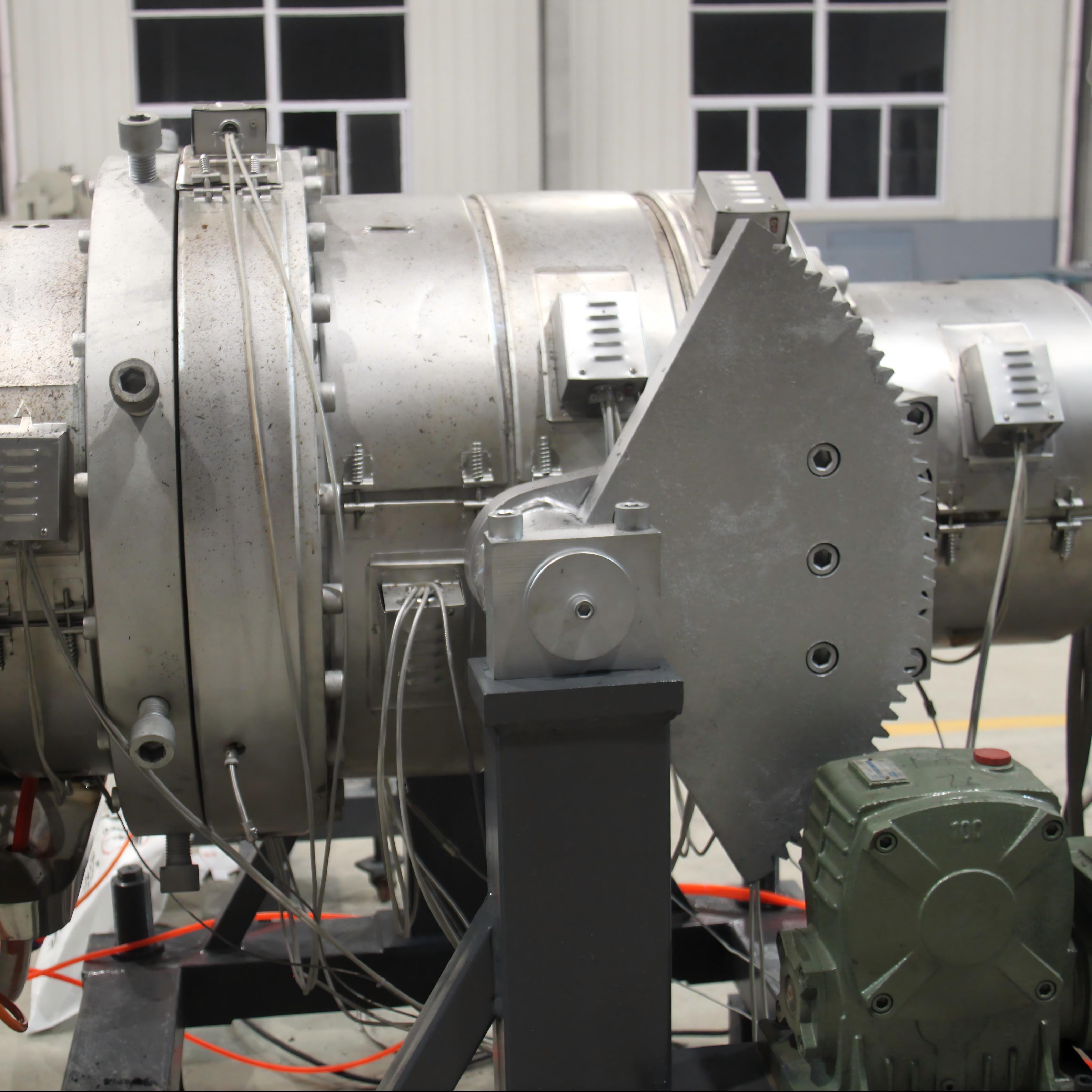

3. Helical Basket Die Head Forming: Advanced low-temperature helical basket co-extrusion die head realizes uniform melt mixing, effectively improving pipe roundness and hoop strength, meeting the high-pressure resistance requirements of municipal water and gas pipelines.

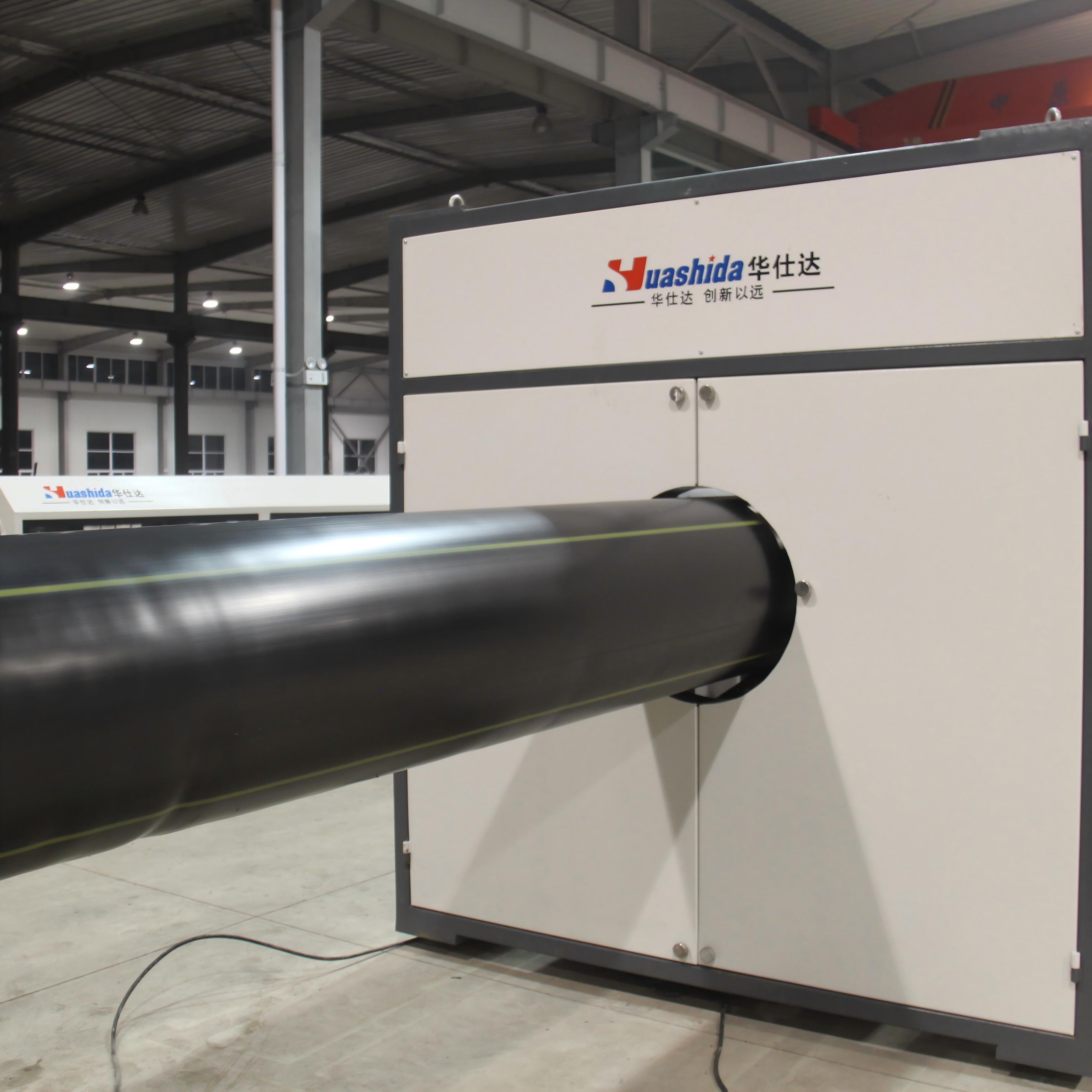

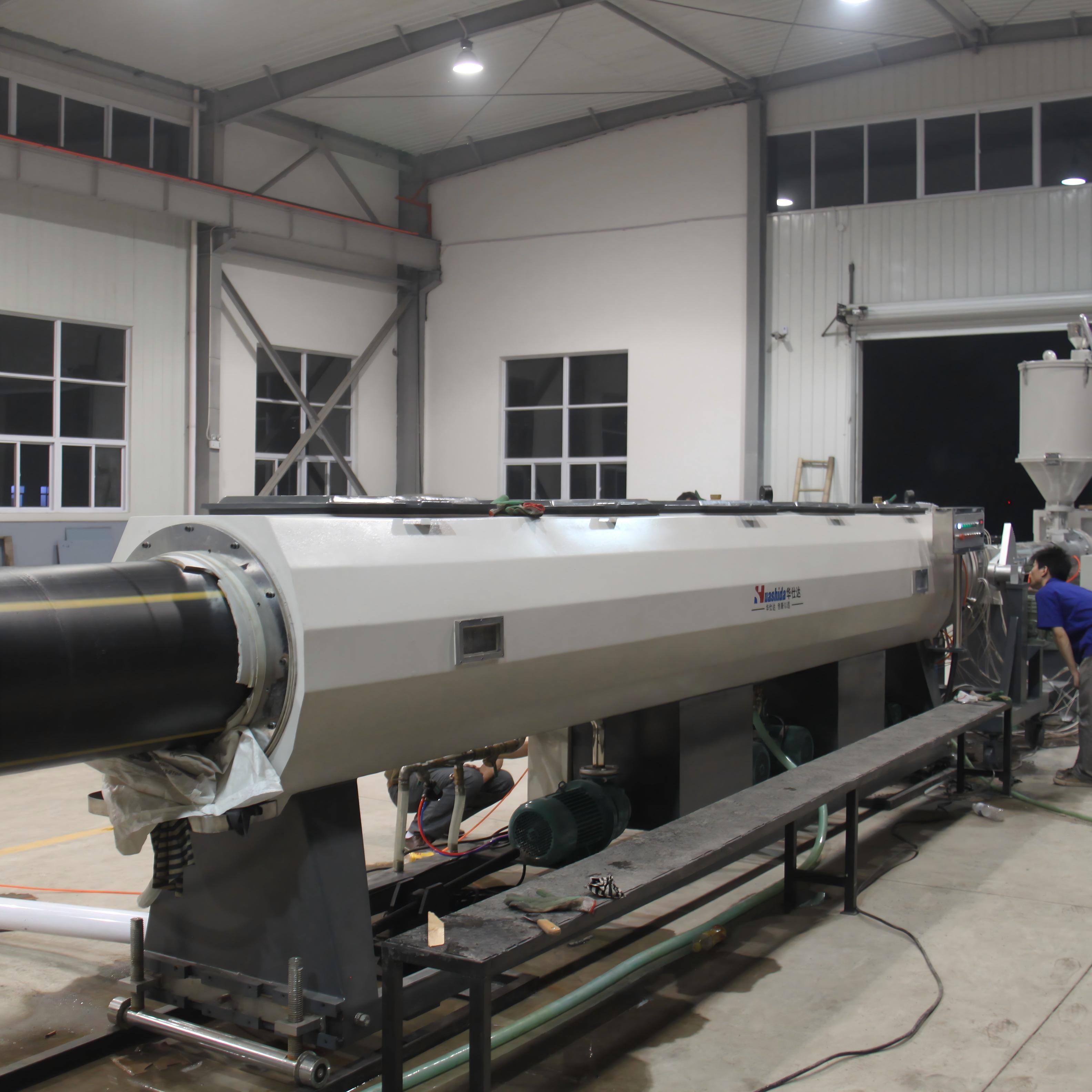

4. Precision Vacuum Calibration: Stainless steel vacuum calibration tank with water film lubrication and precise sizing rings ensures pipe diameter accuracy within ±0.1mm, realizing standard shaping of large and small diameter HDPE pipes.

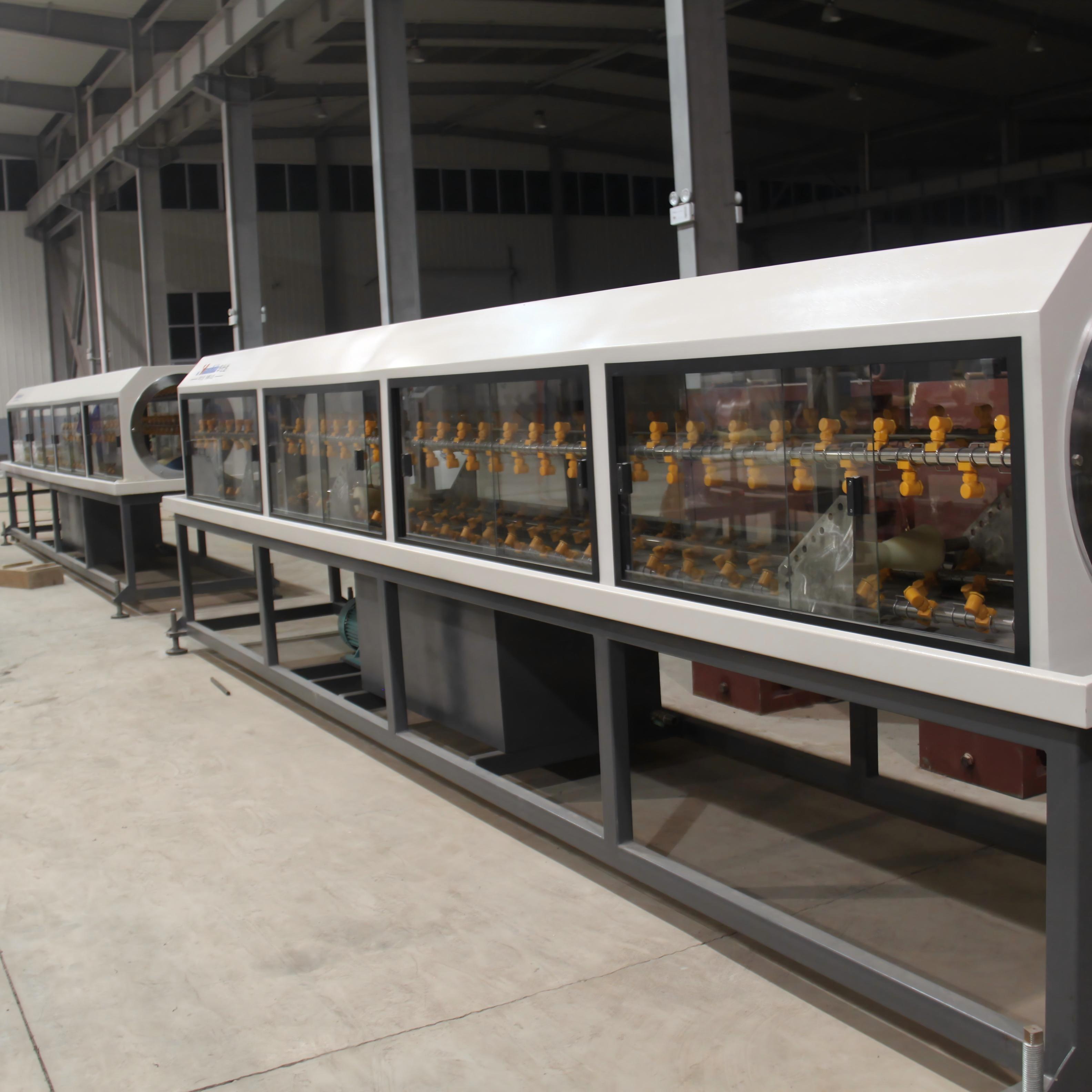

5. Multi-Stage Spray Cooling: Gradient water spray cooling system ensures uniform cooling of pipe wall, prevents pipe deformation, and enhances the overall structural toughness of finished HDPE pipes.

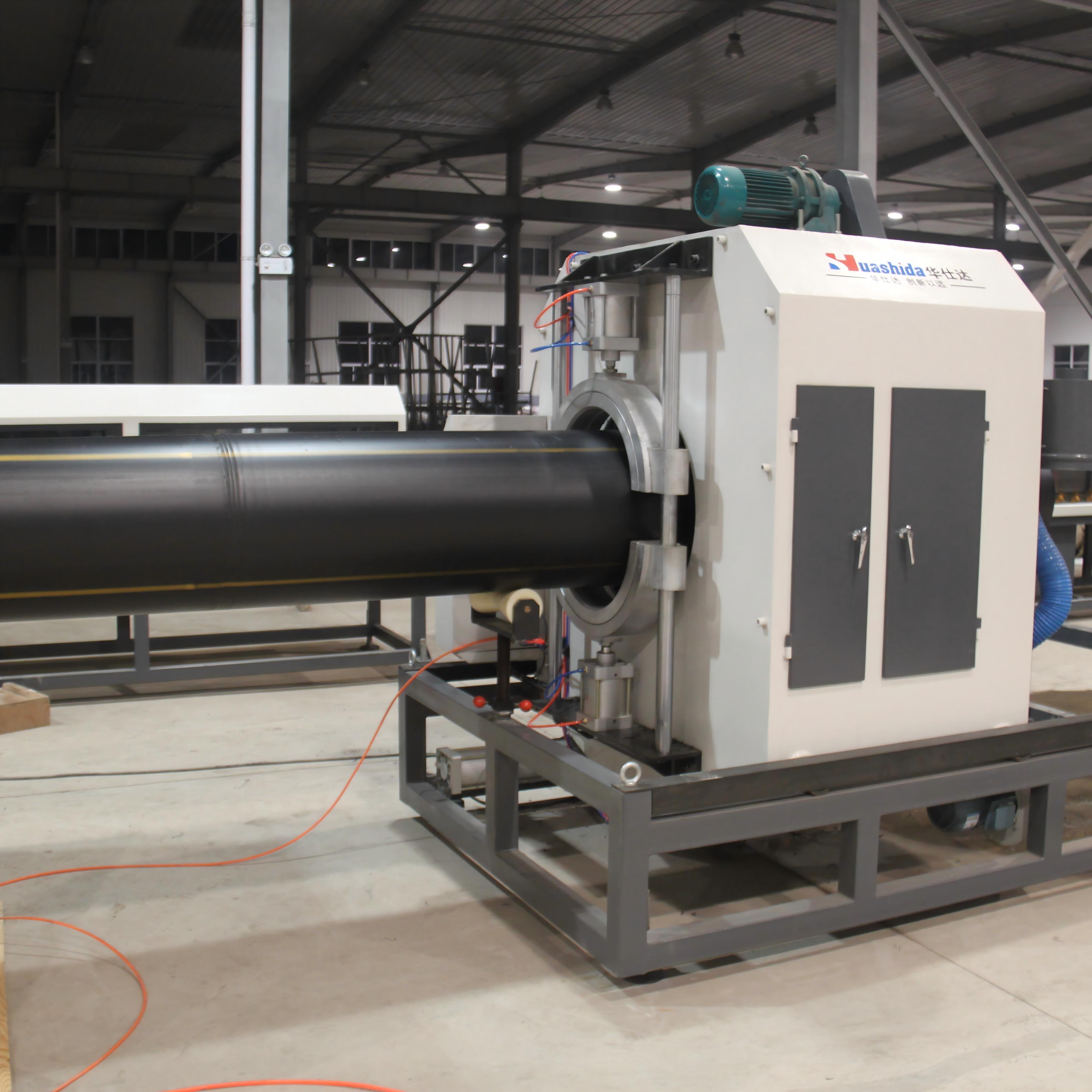

6. Synchronous Hauling & Chipless Cutting: Heavy-duty synchronous haul-off unit ensures stable pipe traction. Matched with planetary chipless cutting machine, it realizes dust-free, flat and burr-free pipe cutting, meeting environmental protection and factory clean production standards.

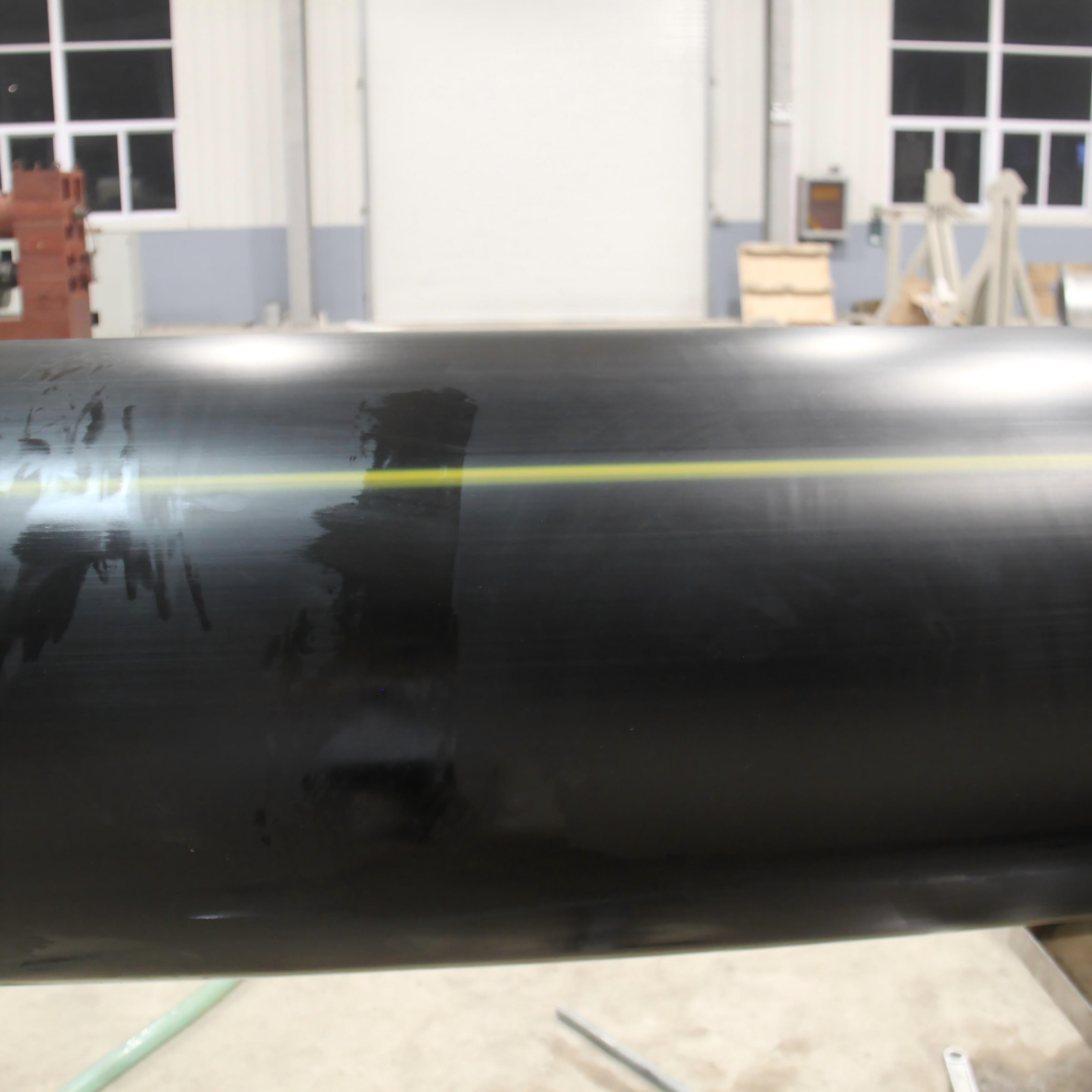

7. Co-Extrusion Marking & Automatic Stacking: 25/25 color strip co-extrusion system automatically marks water and gas pipe identification lines. The automatic pipe stacker realizes orderly collection of finished pipes, realizing fully unmanned continuous production.

Main Equipment List

Automatic Vacuum Feeder: Continuous quantitative feeding for PE resin materials
Hopper Dryer: Professional raw material dehumidification and drying equipment
High-torque 38CrMoAlA Nitrided Single Screw Main Extruder
25/25 Color Marking Co-Extruder: Automatic pipeline identification strip extrusion
Stainless Steel Vacuum Calibration Table with Water Film Lubrication System
Multi-group Water Spray Cooling Tank: Gradient cooling and shaping system
Heavy-duty Synchronous Haul-off Traction Machine
Chipless Planetary Cutting Machine: Dust-free environmental protection cutting
Automatic Pipe Stacker & Tipping Table

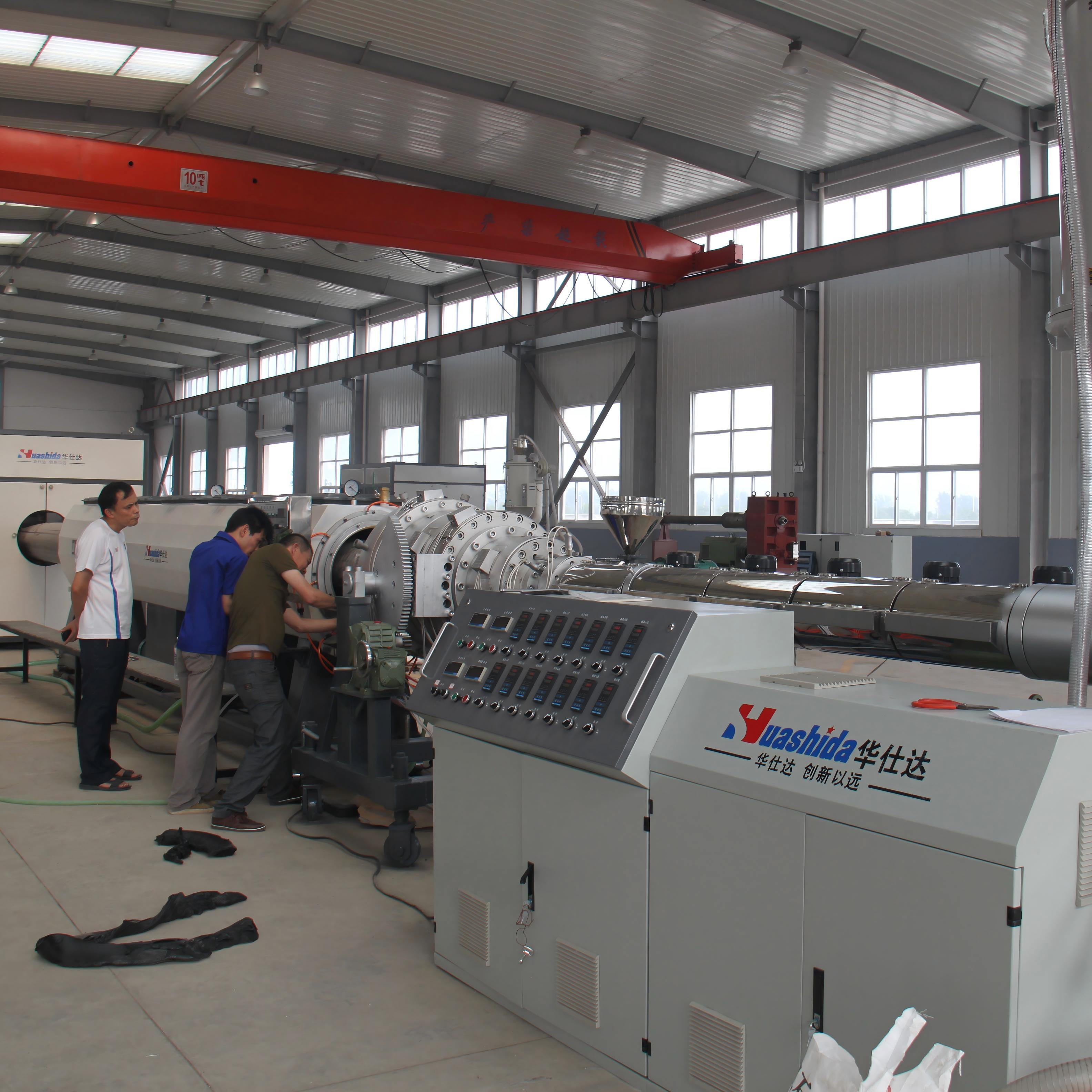

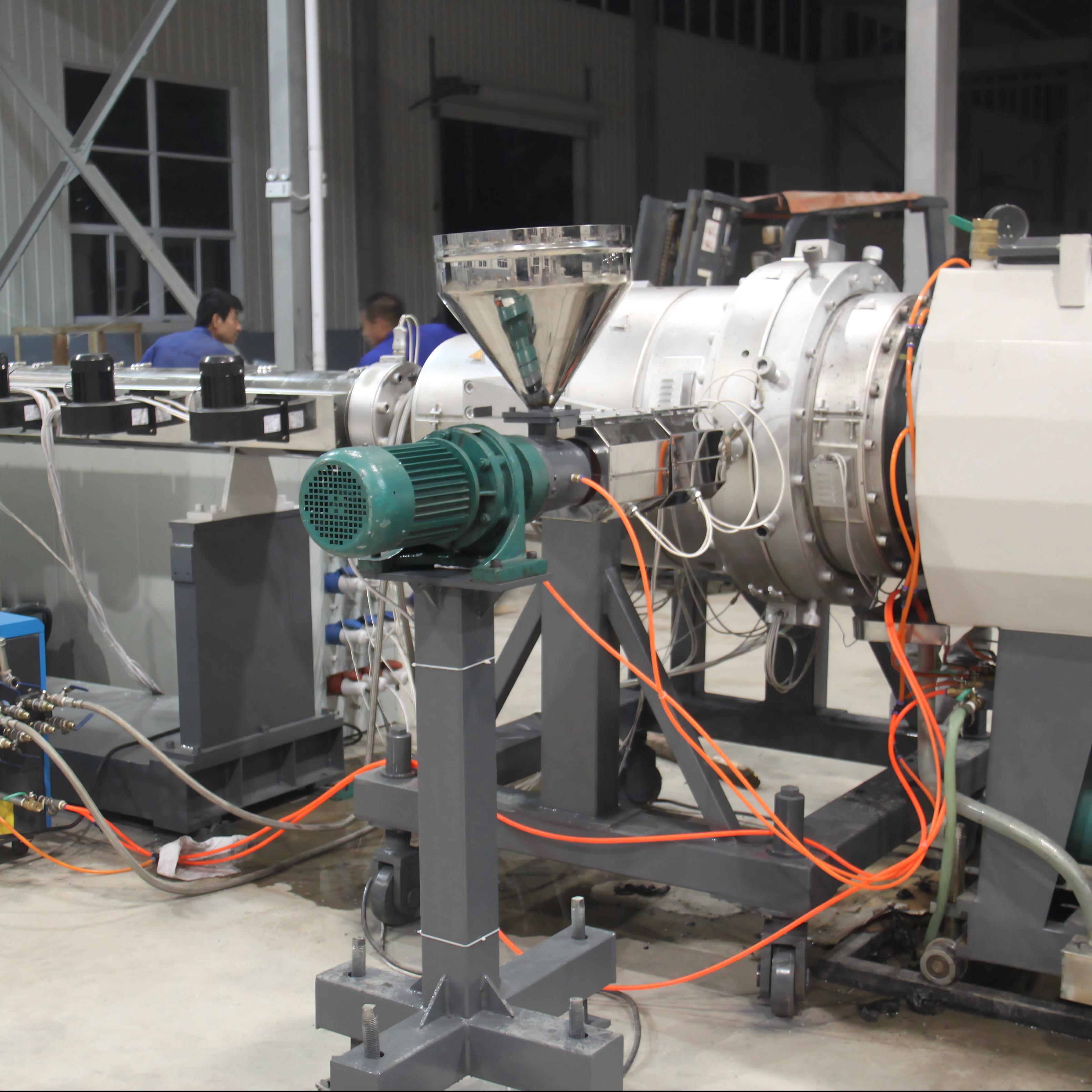

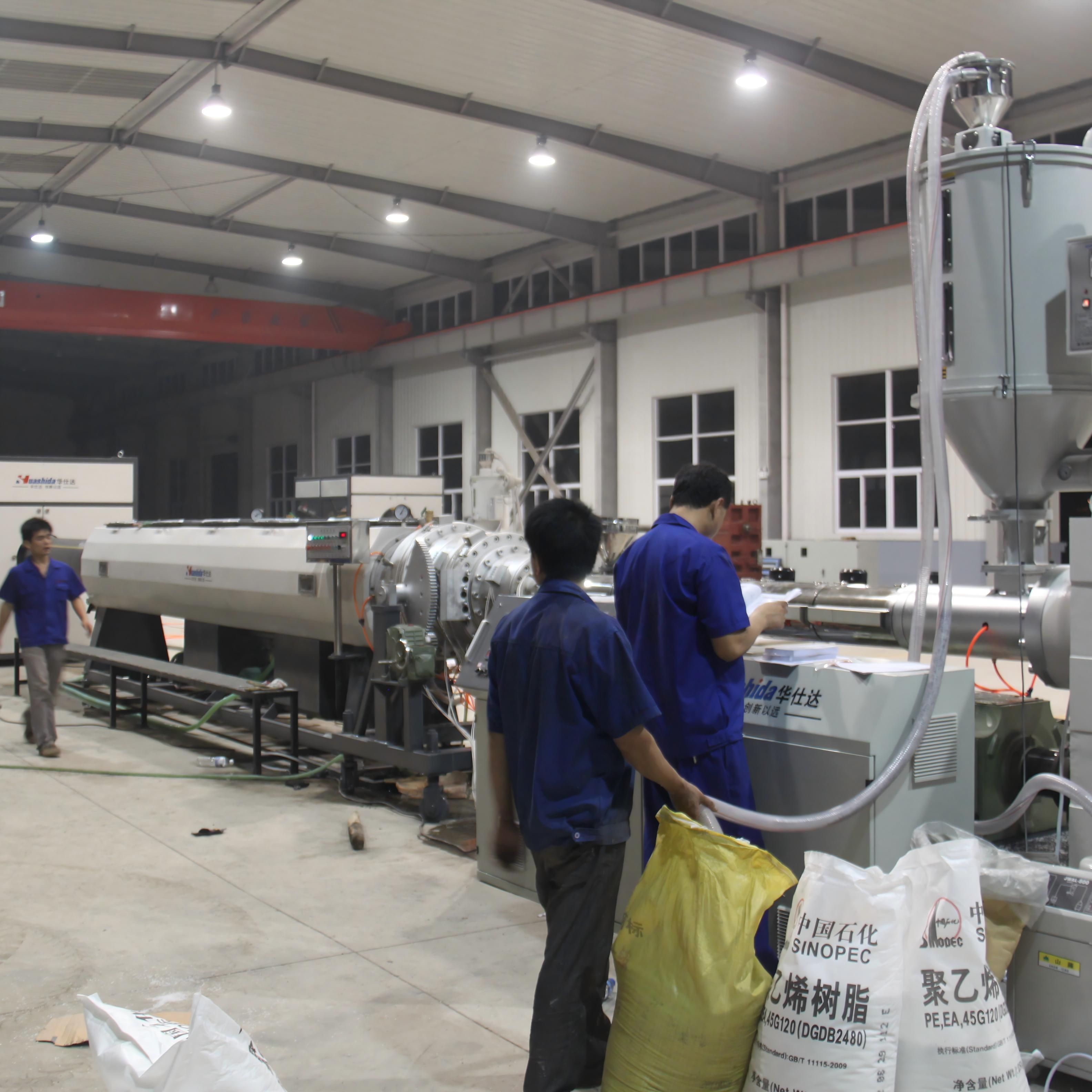

Detail photos

Full Range HDPE PE100 Pipe Extrusion Line for water gas Municipal Pipeline

Full Diameter Coverage: 9 standard models cover 16mm small-bore gas pipes to 1600mm large-diameter water transmission pipes, one line family meets all municipal pipeline production specifications
Super High Production Output: The flagship SPEG-2200 model achieves 2000-2500kg/h ultra-high output, supporting large-scale municipal pipeline mass production and shortening delivery cycle
High-Precision Die Head Technology: Helical basket die head reduces melt temperature difference, improves pipe hoop strength and pressure resistance, suitable for long-term buried high-pressure pipeline service

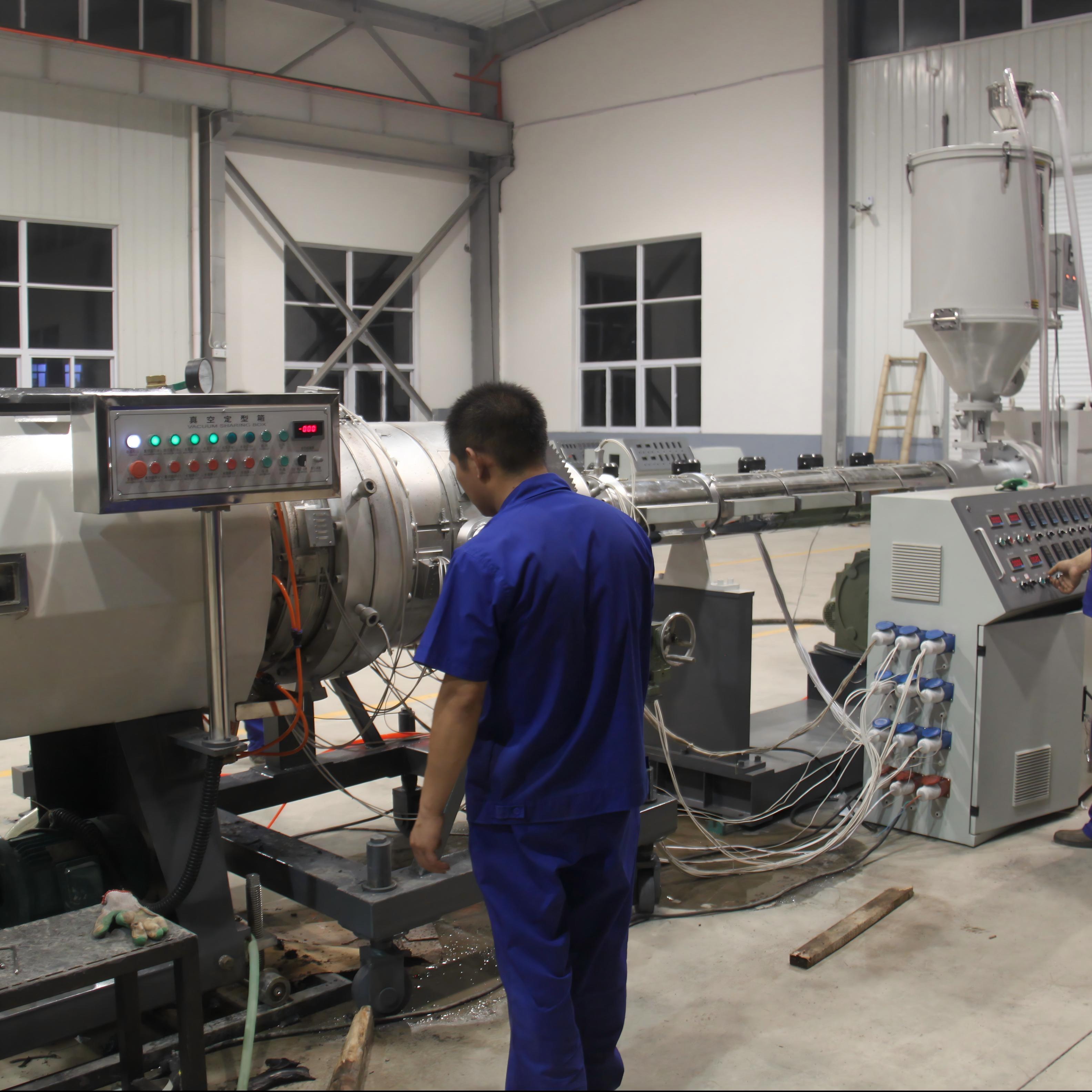

Intelligent PLC Control: Full-touch intelligent control system realizes real-time parameter monitoring, automatic speed matching and fault self-diagnosis, reducing manual operation errors
Authoritative Triple Certification: SGS + CE + ISO9001 certified, third-party verified quality, fully compliant with international project bidding and export trade standards
Environmental Chipless Cutting: Dust-free cutting design avoids plastic dust pollution, meets factory environmental protection standards and improves finished pipe appearance quality

Full Turnkey Solution: Provides one-stop services including factory layout design, equipment installation, on-site commissioning and operator training, helping customers quickly build professional HDPE pipe production factories
Global Verified Project Cases: 389+ successful overseas projects in Russia, Turkey, UAE, Iran, Kazakhstan and other countries, mature technology adapted to various regional climate and engineering standards
23 Years Professional R&D Strength: Professional plastic machinery R&D center with 11 senior engineers, focusing on HDPE PE100 pipe extrusion technology innovation and upgrading
Stable Certified Quality: Triple authoritative certification ensures equipment stability and finished pipe qualification rate, effectively supporting customers' international project bidding and market expansion

Founded in 2003, Qingdao Huashida Machinery Co., Ltd. is a professional high-tech manufacturer focusing on plastic pipe extrusion equipment and pipeline anti-corrosion machinery. With 23 years of R&D and manufacturing experience, the company specializes in 16-1600mm HDPE PE100 pipe extrusion lines, steel pipe anti-corrosion coating lines, pre-insulated pipe production lines and geomembrane extrusion equipment. All core equipment has passed SGS, CE and ISO9001 international certifications, with stable product quality and global after-sales service system. Our equipment is widely exported to more than 60 countries and regions, deeply trusted by municipal engineering contractors and pipe manufacturers worldwide.

Core Product Range:

16-1600mm HDPE PE100 Pipe Extrusion Lines (350-2500kg/h, Municipal Water and Gas Supply, SGS Certified)
3LPE/FBE Steel Pipe Anti-Corrosion Coating Lines (36-4200mm)
Turnkey Pre-Insulated Heat Pipe Production Systems (Rigid and Flexible Polyurethane)
Large Diameter HDPE Jacket Pipe Extrusion Lines (110-2200mm)
Geomembrane and Plastic Sheet Extrusion Equipment
