3LPE FBE Anti-corrosion Coating Line of Steel Pipe

This external 3LPE & FBE anti‑corrosion coating line is designed for plant‑applied anti‑corrosion treatment of steel pipes covering a wide range of diameters.

The 3‑layer PE system consists of a fusion‑bonded epoxy powder primer, a copolymer adhesive intermediate layer and a polyethylene outer sheath. This coating system is extensively adopted for oil‑gas trunk pipelines, municipal gas and water supply networks, as well as diverse fluid conveyance piping.

3LPE coating delivers outstanding mechanical reinforcement for steel substrates, featuring superior electrical insulation, water resistance, abrasion resistance and anti‑ageing capabilities.

Three‑layer polyethylene (3LPE) coating represents an advanced outer‑protection solution for buried steel pipelines. It is extensively deployed for corrosion mitigation of oil & gas trunk lines, municipal gas distribution networks, water supply piping and other fluid‑conveying pipelines.

The 3LPE coating improves the mechanical strength of steel substrates, and delivers excellent electrical resistance, water impermeability, abrasion resistance and long‑term anti‑ageing properties.

The anti-corrosion coating processing line includes:

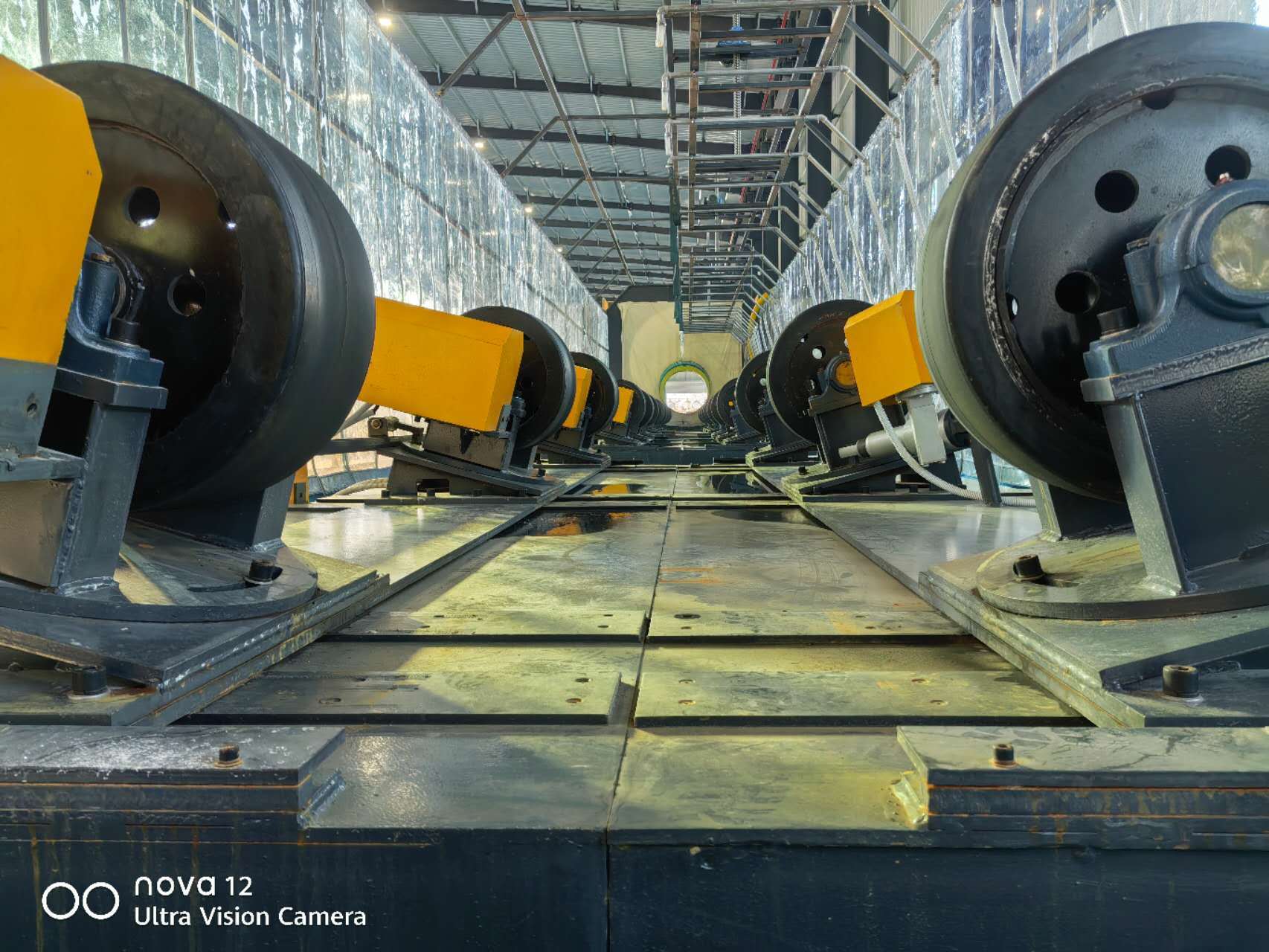

• steel pipe transmission system
• surface treatment system
• pipe dust removal system
• pipe heating system
• electrostatic spraying system
• coating system
• water cooling system
• end cutting system
• hydraulic and pneumatic system
• testing system
• electronic control system
• much more extensively across a diverse range of engineering construction projects.

Shot Blasting Line: Steel Pipe in →Transfer pipe to Internal High-Pressure Blowing ( with Dust collector) and water washing →Transfer to external High-Pressure Water Washing→Gas oven preheating →External Shot Blasting (with Dust collecting) → Internal high pressure Blowing ( with Dust collector)

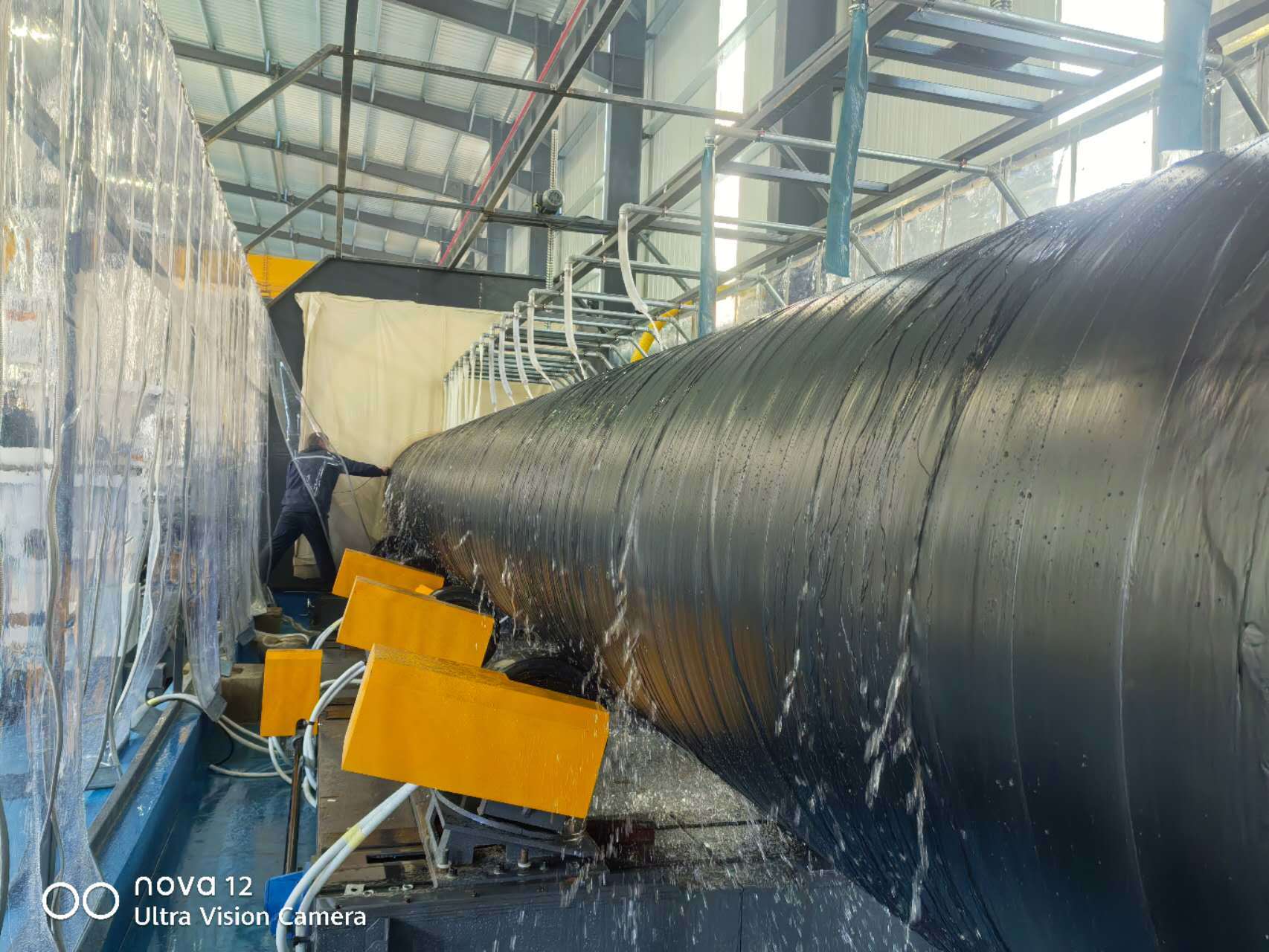

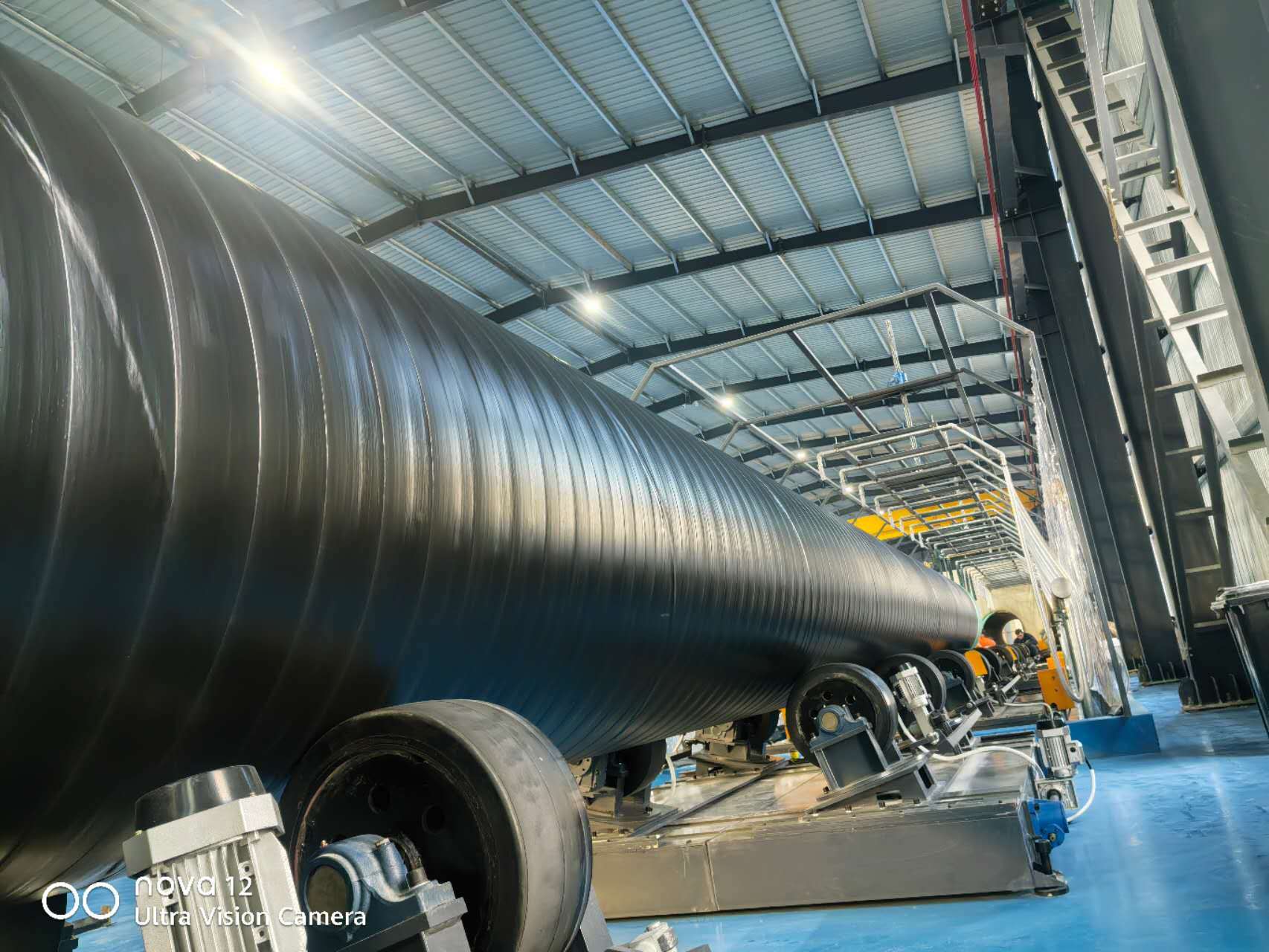

Coating Line: Loading onto 3LPE conveyor after blasting→High pressure blower→IF Heating →Automatic Powder Feeding→FBE Powder Coating(with Dust collector)→AD Adhesive powder Spraying→PE Wrapping → Water Cooling → Coating Inspection→Both Ends PE Layer Turning and Grinding→Holiday Inspection→ External Marking Application→Packaging and Offline Loading

Core Advantages of the Equipment

• Small dimension, suitable for various venues, enabling flexible deployment
• High degree of automation, can be operated by one person, saving labor costs
• Long service life, low maintenance cost

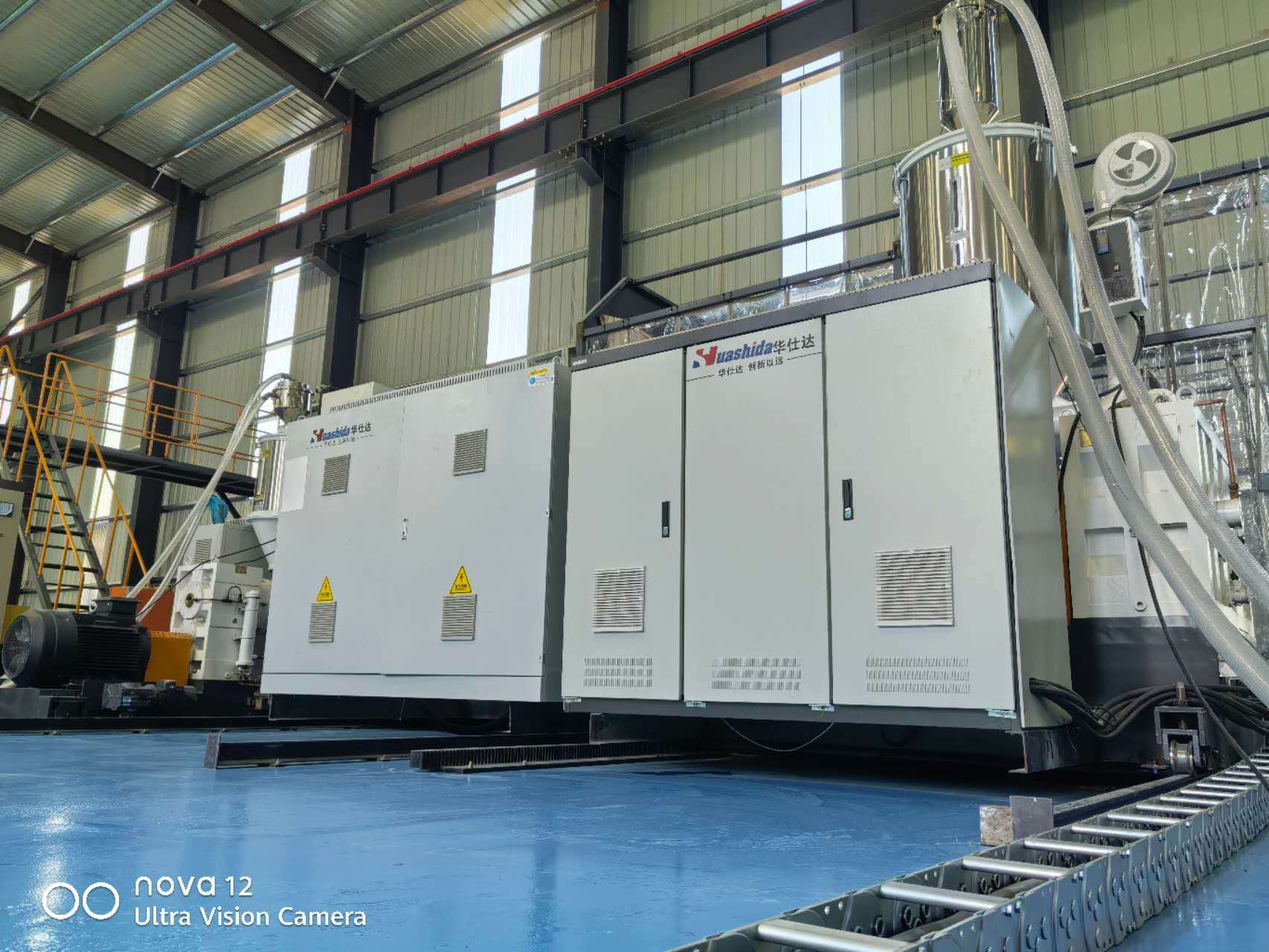

• Equipped with a high-efficiency extruder, ensuring sufficient output and stable performance
• Uniform wall thickness of pipes, smooth surface, good forming effect and controllable quality
• High raw material utilization rate
• One-time forming process, no need for additional trimming

Service and Guarantee

• Provide a one-stop complete production solution includes design, installation, commissioning and training
• With a total of 389 sets of practical production line experience worldwide, we boast mature technology and strong implementability, and are ready to share
• Set up a professional technical team with professional senior engineers to provide full-process technical support
• Our company has a high-end expert workstation for plastic machinery equipment in China

1. Pipe diameter: 50-4200mm
2. Processing capacity: ≥250m²/h
3. Cleaning level: ≥Sa2.5
4. Materials for production: epoxy powder, adhesive, polyethylene

Qingdao Huashida Machinery Co., Ltd. is founded on 2003. It is a comprehensive private high-tech enterprise integrating scientific research, manufacturing, marketing, service and trade.The factory covering an area of 50 mu with a total construction area of around 40000 square meters. 80% of its customers come from overseas countries such as Russia, Lartin America, the Middle East, Southeast Asia and so forth.
