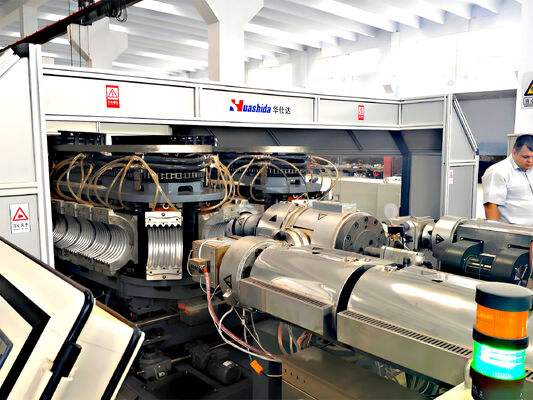

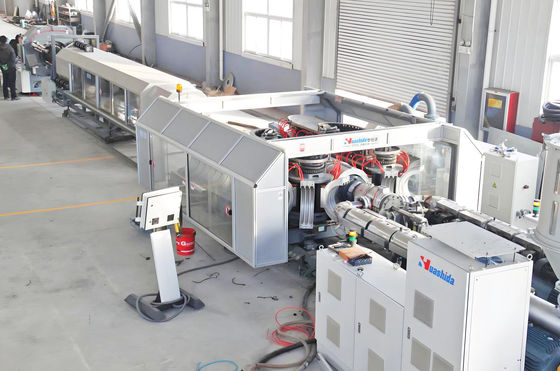

High-Speed PE/PP Double-Wall Corrugated Pipe Production Line
Leveraging world‑class technical references, we have self‑designed this new‑generation high‑speed water‑cooled corrugated pipe production system. Working with HDPE and PP feedstock, it supports flexible production of single‑wall and double‑wall corrugated pipe products.
Application: The pipes produced by this line find extensive applications in municipal water supply‑drainage, underground permeable drainage, building plumbing, cable protection conduits, bridge stay‑cable sheaths and farmland irrigation projects. Thanks to low installation costs, simple on‑site handling and reliable joint connections, they serve as a competitive alternative to conventional plastic, concrete and cast‑iron pipes. Hence, they possess promising market prospects and huge commercial potential.
Fourth-Generation Double-Wall Corrugated Pipe Technology
Circumferential Continuous Sealed Pressure Water-Cooling Molding Technology
- Fully continuous, uninterrupted water cooling
- Fixed water-cooling pipeline connection—no plugging/unplugging required when changing molds
- Cooling section length: 6.3 meters
- Higher efficiency with lower energy consumption
Our Advantages
Higher production speed: mold adopts continuous circumferential pressure water cooling along the entire running track, delivering superior cooling effect. The output can be up to 3 times higher than models with air cooling or conventional water cooling
Lower power consumption: The extruder is equipped with a buffered forced feeding zone, which greatly reduces power consumption of the main drive motor (by 30%)The screw features a large L/D ratio of 36:1, offering strong material adaptability and excellent plasticization effect.
Mold Interchangeability: Moulds for large‑ and small‑capacity lines are mutually compatible. It brings great convenience for production planning, minimizes spare‑parts stock and accelerates order delivery.
More stable and durable: Optimized guide tracks for mould blocks and water‑cooling loops deliver much smoother operation. Fixed‑type cooling water connections prevent water leakage and component deterioration triggered by repeated hose disconnections. The shortened die‑head flow channel cuts internal operating pressure, alleviates abrasion on critical components, so both extruder screw and die head can serve for much longer time.
Features of the PE/PP Double-Wall Corrugated Pipe Production Line
DWCP‑series double‑wall corrugated pipe production line is engineered by Qingdao Huashida Machinery Co., Ltd. Oriented toward real‑world market needs and global technical evolution, it incorporates and improves state‑of‑the‑art international technologies. Representing our 4th‑generation high‑speed water‑cooled solution, it achieves high‑speed extrusion for PE and PP feedstock.

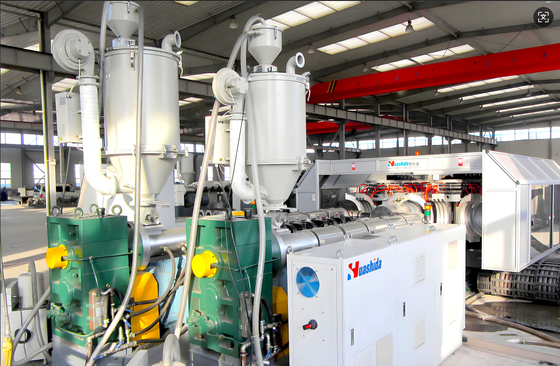

Equipped with dual‑extruder co‑extrusion molding technology and specialized B&R automation platform for double‑wall corrugated pipe production, the whole line boasts outstanding automation capacity and steady running performance.
Product Parameters
| Item |
Unit |
DWCP-1200 |
DWCP-600 |
| Pipe ID range |
mm |
600-1200 |
200-600 |
| Extruder model |
- |
SJ-150×33 / SJ-120×33 |
SJ-120×33 / SJ-90×33 |
| Max. output |
kg*h¹ |
1000 |
600 |
| Corrugator model |
- |
DWCP-1200 |
DWCP-600 |
| Mold block pairs |
pairs |
39 |
36 |
| Max. line speed |
m*min¹ |
9 |
≤7 |
Company Background
Qingdao Huashida Machinery Co., Ltd. is founded on June 26, 2003, with a registered capital of 15M$(2.2M$). It is a comprehensive private high-tech enterprise integrating scientific research, manufacturing, marketing, service and trade.The factory covering an area of 50 mu with a total construction area of around 40K ㎡.
Huashida is a leading manufacturer of pipeline machinery, focusing on:
- Pre-insulated pipe extrusion lines (HDPE/PU jacket)
- 3LPE steel-pipe anti-corrosion coating equipment
- Single-wall/Double-wall corrugate pipe production lines
- PE / PP sheet and board extrusion lines
- Rubber-foam insulation tube / sheet lines
- Heat-shrinkable sleeves, electrofusion sleeves, portable plastic welders
These products are broadly applied in municipal heating networks, water supply & drainage systems, oil & gas pipelines, and other infrastructure fields.
Technical Strength & Innovation
- Approved as a technology-based enterprise by the Shandong Provincial Department of Science and Technology
- Holds independent intellectual property rights, with many patents covering core equipment
- Deep cooperation with top academic institutions including Tsinghua University, Beijing University of Chemical Technology, Qingdao University of Science & Technology, and others
Huashida maintains rigorous quality control and highly values technological innovation.
- Products have been awarded Shandong First-set Equipment and Qingdao Specialized & Sophisticated Products.
- Company has been recognized as a National High-Tech Enterprise, Qingdao Cleaner Production Enterprise, Outstanding Plastics Enterprise and so forth.
- Certified to ISO 9001 (quality management) and ISO 14001 (environmental management) standards
- Products comply with international safety and performance requirements
Global Reach
The company's equipment has been exported to over 20 countries and regions, including Russia, Iran, Turkey, UAE, Kazakhstan, Ukraine, and more.
Serves major clients in the oil & gas, municipal infrastructure, and pipeline industries.
Huashida actively participates in major industry exhibitions around the world, strengthening global partnerships and showcasing our latest pipeline production technologies.
