Name: Multi-Layer Co-Extrusion Cold-Applied HDPE Anti-Corrosion Tape Production Line
Brand: Qingdao Huashida Machinery Co., Ltd.
SKU: 1000mm
Price: 154,250.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Capacity: 160-200kg/H

Magnetic Powder Clutch: 100n·M + 200n·M Configuration

Board Layers: Multilayer

Basing Tape Thickness: 0.2-1mm

Adhesive Coating Thickness: 0.1-0.5mm

Maximum Tape Width: 1000mm

Highlight:

HDPE anti-corrosion tape production line

cold-applied HDPE extrusion line

multi-layer co-extrusion tape machine

Basic Infomation

Place of Origin: Qingdao, China

Brand Name: Huashida

Certification: CE, ISO 9001:2008

Model Number: 1000mm

Payment & Shipping Terms

Packaging Details: 260cm*120cm*250cm

Delivery Time: 90-120 Days

Payment Terms: L/C,T/T

Supply Ability: 30 Units/Year

Gallery

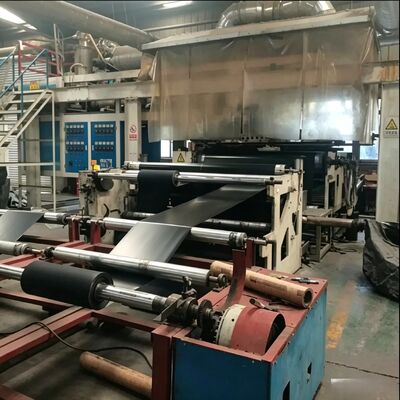

Multi-Layer Co-Extrusion Cold-Applied HDPE Anti-Corrosion Tape Production Line

Product Description

Multi-Layer Co-Extrusion Cold-Applied HDPE Anti-Corrosion Tape Production Line

This purpose-built production line manufactures high-performance cold-applied polyethylene wrapping tape for buried pipeline protection. Widely deployed for oil-gas transmission, natural gas distribution, municipal water supply and industrial buried pipeline anti-corrosion projects across Middle East, Central Asia, Russia and Africa, this turnkey pipeline tape machinery integrates every critical production phase: PE base film co-extrusion, surface pre-treatment, slot-die butyl adhesive coating, tension-controlled slitting and multi-station rewinding.

Adopting proven multi-layer co-extrusion technology, the line processes HDPE, LDPE and butyl-based adhesive compounds to produce uniform cold-applied anti-corrosion wrapping tape with stable peel strength, high mechanical impact resistance and long-term chemical durability. It delivers 160-200kg/h stable output with maximum finished tape width of 1000mm.

Production Process

1. PE Base Film Co-Extrusion
This line uses high-grade HDPE and LDPE as base raw materials. Polymer pellets are fully melted and plasticized by high-efficiency SJ-75×30 single-screw extruder, extruded through 1000-type precision die, then shaped and cooled by multi-roller tape-casting units. This automated co-extrusion workflow delivers consistent base-film thickness (0.2-1mm), excellent surface flatness and strong inter-layer bonding.

2. Corona Treatment & Slot-Die Adhesive Coating
Before adhesive lamination, the PE substrate receives dedicated surface modification to boost surface energy and secure firm bonding between butyl adhesive and polyethylene backing. The integrated slot-die coating unit evenly applies high-performance butyl rubber adhesive compound with adjustable coating thickness 0.1-0.5mm onto single or double sides of PE film.

3. Tension-Controlled Slitting & Multi-Station Rewinding
In the final production stage, the coated master roll passes through automatic constant-tension slitting equipment, precisely cut to custom commercial widths up to maximum 1000mm. Processed material is fed into high-speed multi-station rewinding unit to produce neatly wound finished tape rolls ready for packaging and export distribution.

Technical Specifications

PE Base Film Extrusion Line Components

No.	Equipment Name	Quantity
1	Vacuum automatic feeder	1
2	Hopper dryer	1
3	SJ-75X30 extruder	1
4	Hydraulic screen changer	1
5	Die head mold type 1000	1
6	Multi roller tape-casting machine	1
7	Winding machine	1
8	PLC computer control system	1

Adhesive Coating Machine Components

No.	Equipment Name	Quantity
1	Frame	1 unit
2	200N*M Magnetic powder brake + Silicone stick 1300mm with corona processor	1 unit
3	100N*M Magnetic powder brake	1 unit
4	100N*M magnetic powder clutch	2 units
5	200N*M magnetic powder clutch	1 unit
6	Screw	1 unit
7	Force-feed device	1 unit
8	Constant pressure system	1 unit
9	Adhesive delivery pipe	1 unit
10	Winding machine	1 unit
11	Unwinding machine	2 units
12	Coating compound equipment	1 unit
13	Main engine frequency converter	1 unit
14	Extruder frequency converter	1 unit
15	Thermal switch	1 unit
16	PLC	1 unit

This fully automatic Turnkey Cold Applied PE Anti-Corrosion Tape Production Line delivers 160-200kg/h high output capacity, stable co-extrusion operation, corona-treated PE base film, precision slot-die adhesive coating, and tension-controlled multi-station rewinding.

Key Advantages

Complete Turnkey Pipeline Tape System: Integrates PE base-film co-extrusion, substrate pre-treatment, slot-die butyl adhesive coating and multi-station rewinding within one matched production unit
Multi-Layer Co-Extrusion Technology: Continuous one-process forming produces homogeneous cold-applied HDPE anti-corrosion wrapping tape with consistent peel strength and reliable chemical resistance
Optimized Substrate Surface Treatment: Improves substrate surface energy for maximum butyl-adhesive bonding performance
160-200kg/h High-Output Capacity: Higher sustained throughput than conventional single-layer tape lines
1000mm Maximum Tape Width: Covers full commercial width range for buried pipeline wrapping applications
CE & ISO9001 Certified: Equipment and output tape comply with international standards DIN30670, SY/T0414
Flexible OEM & ODM Customization: Customizable tape width, base-film thickness, adhesive thickness, and PLC electrical configuration
Proven Global Export Track-Record: 21+ years extrusion machinery experience with 400+ successful project references across 60+ countries

Quality Assurance
