1155-2000 Automatic PE Jacket Pipe Extruder for Pre-Insulated Pipeline

1 set
MOQ
250000 usd
Price
1155-2000 Automatic PE Jacket Pipe Extruder for Pre-Insulated Pipeline
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Pe Thickness: 2-3mm
Production Line Length: 30-50m
Production Capacity: 30 Sets/Year
Product Color: Black
Max Ouput: 1000kg/H
Loading Method: Vacuum Automatic Feeding
Origin: Qingdao China
Computer System: Full Auto
Basic Infomation
Place of Origin: China
Brand Name: HUASHIDA
Certification: ISO9001
Model Number: 1155-2000
Payment & Shipping Terms
Packaging Details: 1m*1m*1m
Delivery Time: 1-2 months
Payment Terms: T/T
Supply Ability: 10 set per year
Product Description
1155-2000 Automatic PE Jacket Pipe Extruder for Pre-Insulated Pipeline



This professional extrusion line is dedicated to manufacturing large-diameter PE outer jacket pipes for pre-insulated thermal pipelines.

Adopting optimized screw and barrel design, the machine achieves high output, stable plasticization and remarkable energy-saving effect. Equipped with precise vacuum calibration and intelligent PLC control system, it ensures uniform wall thickness, high roundness and smooth surface of finished pipes.

The complete production line runs continuously with easy operation and low failure rate.

Widely used for buried district heating, municipal heating and industrial heat transportation projects.

It is a reliable and cost-efficient production solution for pipe manufacturers across the globe.


1155-2000 Automatic PE Jacket Pipe Extruder — Equipment Composition List
Qingdao Huashida Machinery Co., Ltd. | Pre-Insulated Pipeline PE Outer Jacket Pipe Production Line
No. Equipment Name Specification / Model Qty Function Description
1 Raw Material Hopper & Auto Loader Stainless steel hopper, vacuum auto-loading 1 set Stores PE resin and automatically conveys raw material into the extruder feed throat; reduces manual labor and ensures continuous feeding.

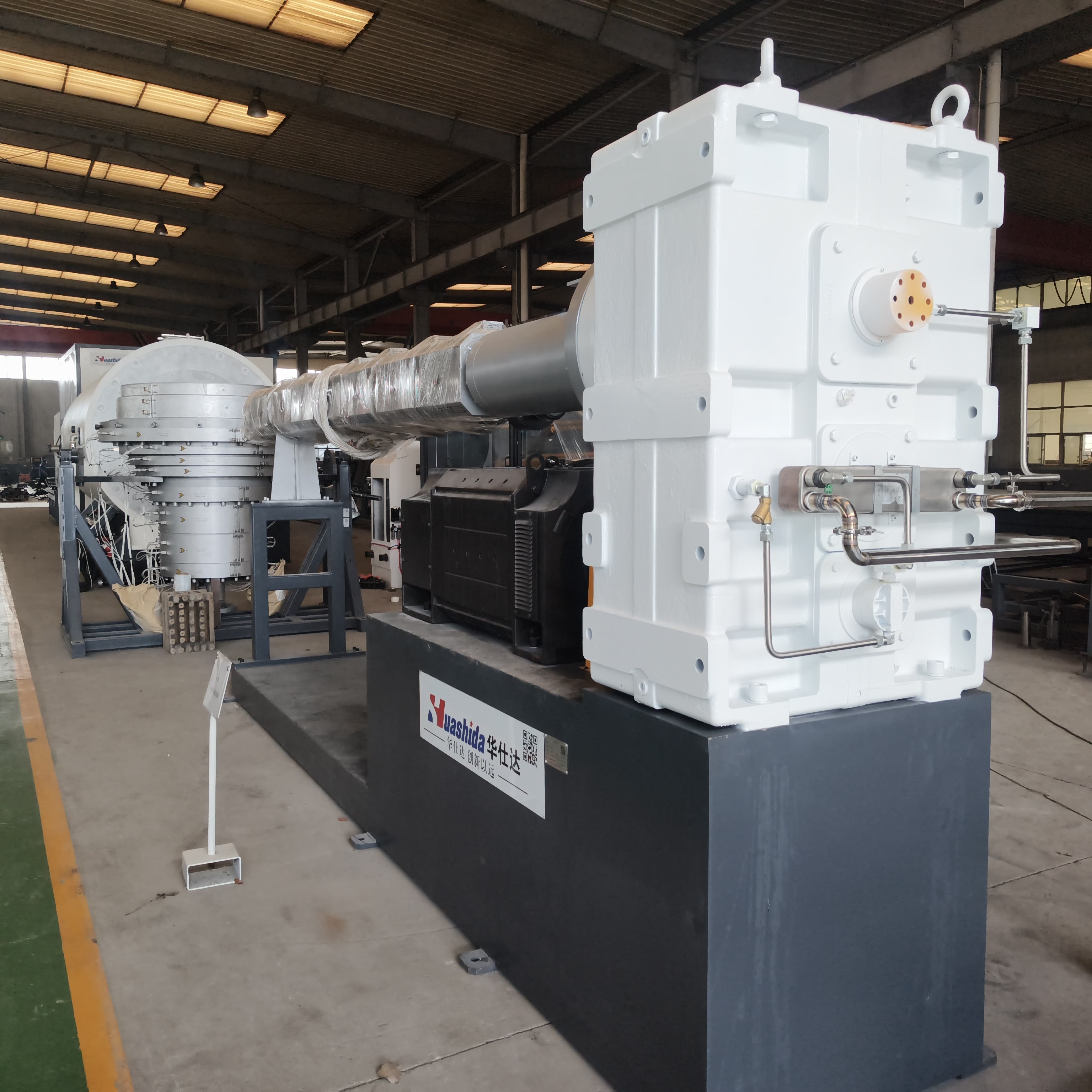

2 Single Screw Extruder SJ-150 / 33 1 set Core extrusion unit; plasticizes and melts PE resin with stable output, designed for large-diameter jacket pipe production.

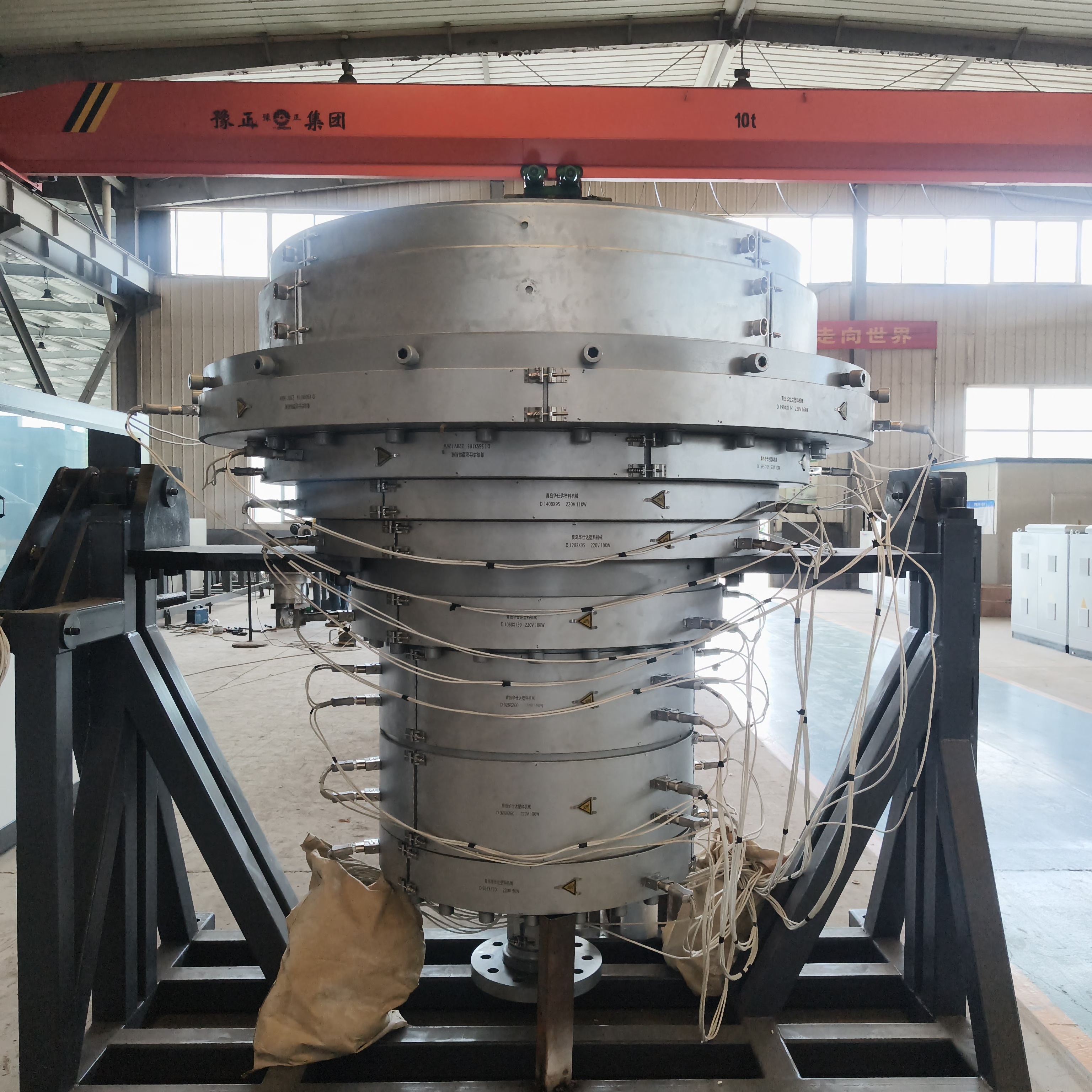

3 Extrusion Die Head (Mold) Spiral mandrel die, Φ1155–2000mm range 1 set Forms molten PE into a continuous tubular shape; ensures uniform wall thickness and concentricity of the jacket pipe.

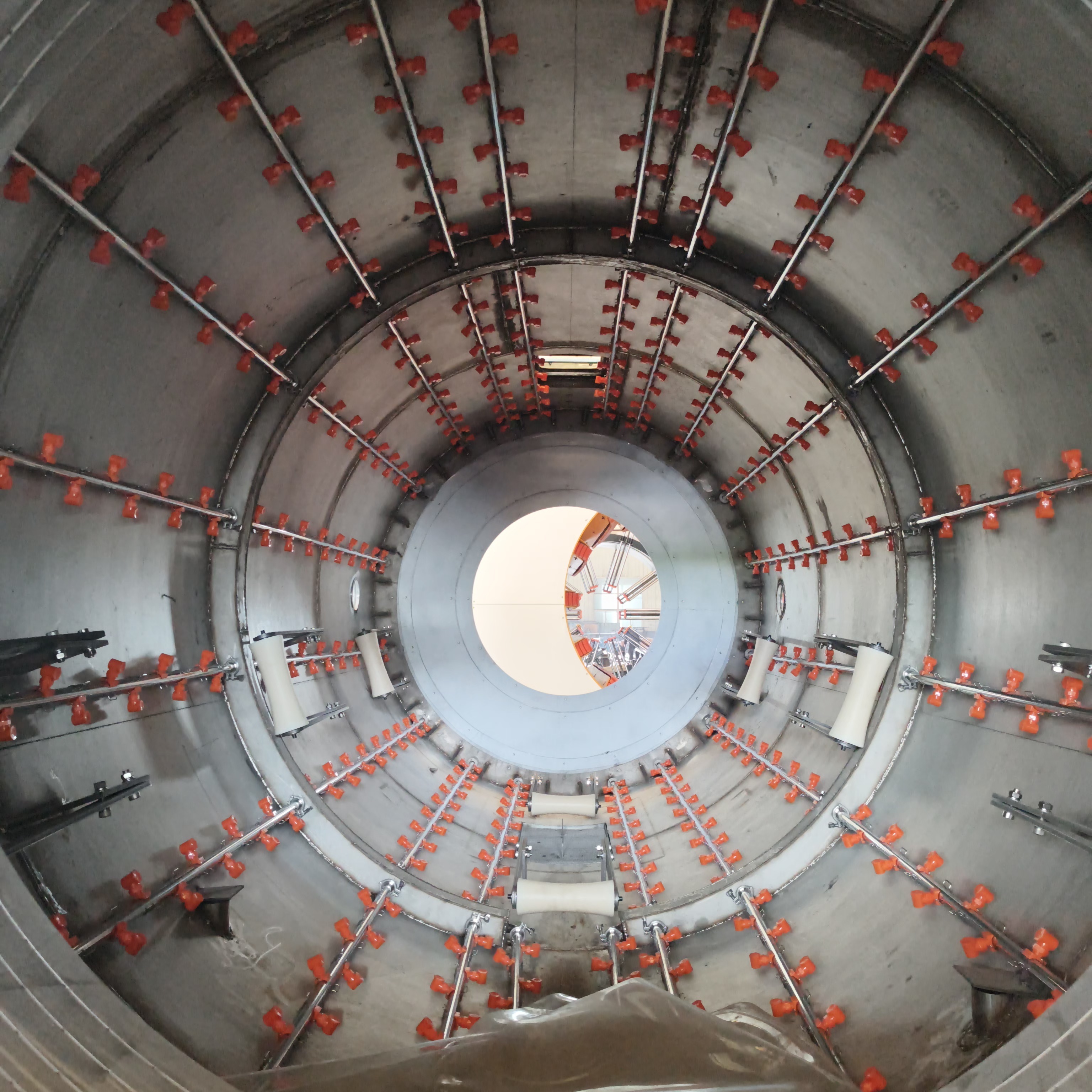

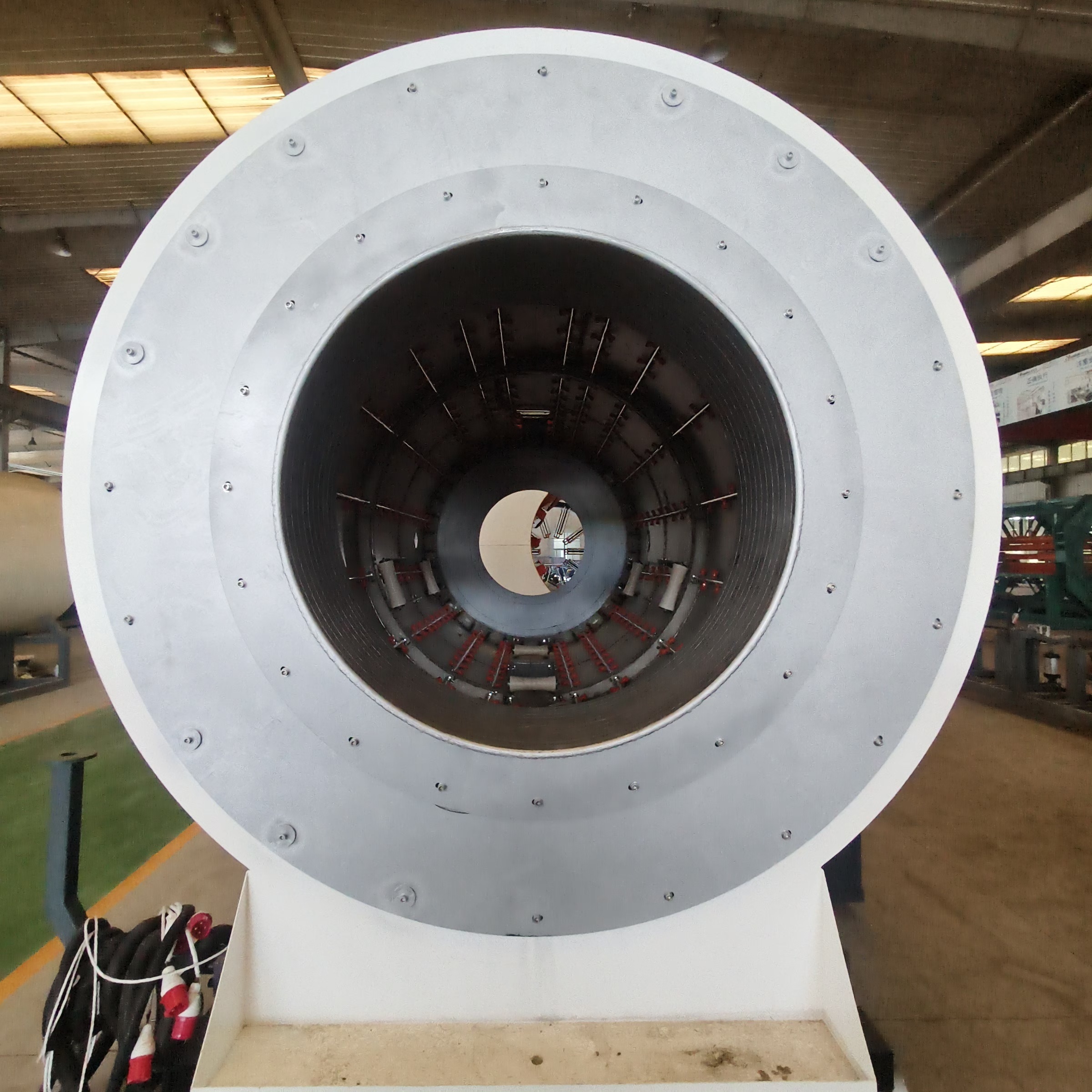

4 Vacuum Calibration Tank Stainless steel, vacuum + water cooling 1 set Fixes pipe diameter and roundness under vacuum; cools and sizes the extruded pipe with precise dimensional control.

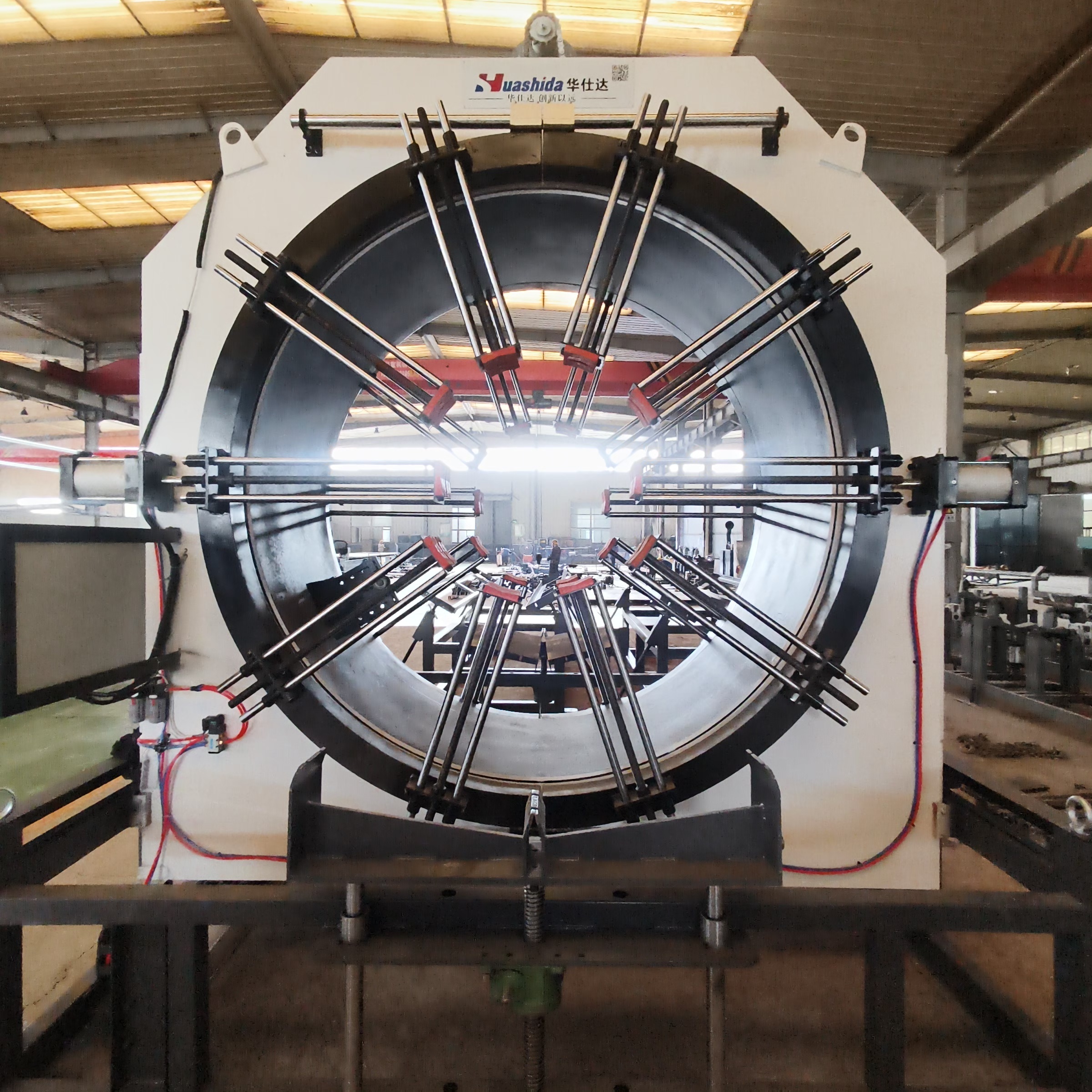

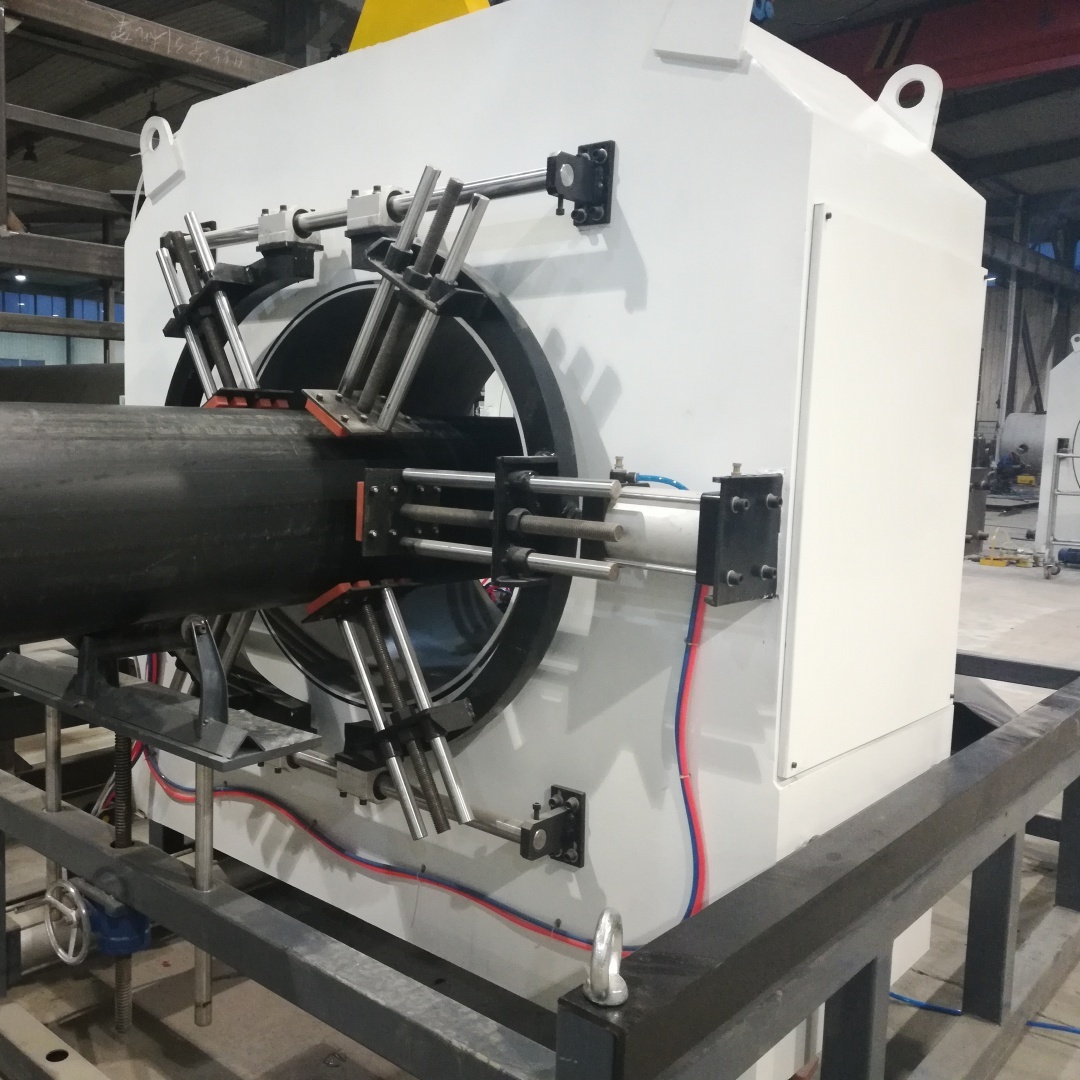

5 Haul-off Machine (Tractor) multi-track, variable speed 1 set Pulls the pipe forward at a constant speed synchronized with extrusion; maintains stable production line speed.
6 Planetary Chipless Cutter Planetary rotary cutting, dust-free 1 set Cuts PE jacket pipe to required lengths automatically; produces clean, burr-free cut ends without material waste.

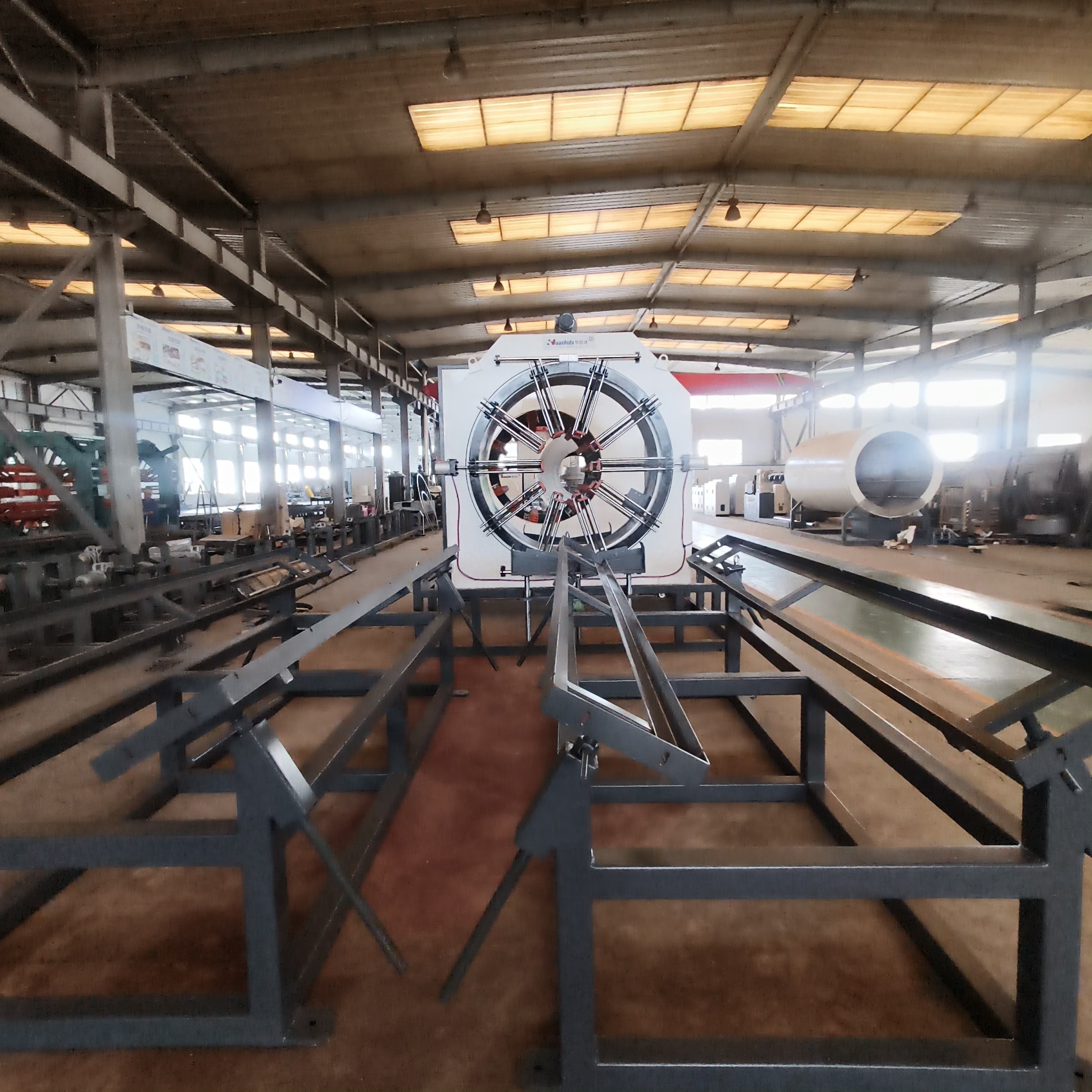

7 Pipe Discharge Rack
1 set Receives and stacks finished pipes
8 Electrical Control Cabinet PLC + touch screen HMI, inverter drive 1 set Central control system; monitors and regulates temperature, speed, vacuum and cutting parameters for fully automatic operation.
Note: Specifications are configurable based on pipe diameter range (Φ1155–2000mm) and customer production requirements.

1155-2000 Automatic PE Jacket Pipe Extruder for Pre-Insulated Pipeline

1155-2000 Automatic PE Jacket Pipe Extruder for Pre-Insulated Pipeline

1155-2000 Automatic PE Jacket Pipe Extruder for Pre-Insulated Pipeline

1155-2000 Automatic PE Jacket Pipe Extruder for Pre-Insulated Pipeline


1155-2000 Automatic PE Jacket Pipe Extruder for Pre-Insulated Pipeline
