O-type Extrusion Type Anti-Corrosion Coating Production Line for 3LPE Steel Pipe
Product Description
The 3LPE (Three-Layer Polyethylene) coated anti-corrosion production line has good chemical corrosion resistance: it can resist the erosion of various chemical media, such as acid, alkali, salt, oxidant, etc. It is suitable for media transportation in different environments and prolongs the service life of the steel pipe.

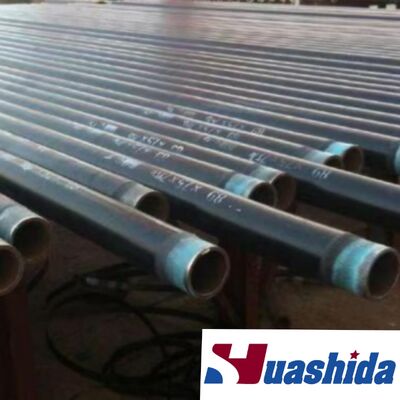

O-type Extrusion Type 3LPE anti-corrosion coated steel pipe has good chemical resistance: it can resist the erosion of a variety of chemical media,,such as acids, bases, salts, oxidants, etc,suitable for medium transportation in different environments,prolong the service life of steel pipe. This kind of anti corrosive steel pipe is widely used in oil, natural gas transmission pipelines, water supply and drainage pipelines and many other fields.
Technological processes:

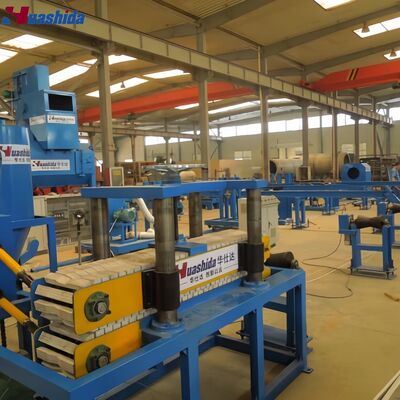

Upload pipes→pipes screw conveyor→rust removal→intermediate frequency heating→Epoxy powder coating→outer layer adhesive polyethylene coating→cooling spray→pipes screw conveyor→grinding pipe ends→unload pipes
Parameter of production line:
Technical Parameters
| Pipe Diameter Range |
50-325 mm |
| Production Capacity |
≥250 m²/h |
| Surface Cleaning Level |
≥Sa 2.5 |
| Coating structure |
|
| First Layer |
Fusion-bonded epoxy (FBE) |
| Second layer |
Copolymer adhesive |
| Third Layer |
High-density polyethylene (HDPE) |
This three-layer coating is widely recognized as one of the most effective anti-corrosion systems for buried steel pipelines.
Advantages:
1. Good chemical resistance
2. It can resist the erosion of various chemical media, such as acids, alkalis, salts, oxidants, etc., and is suitable for the transportation of media in different environments, thus extending the service life of steel pipes
3. It is widely applied in many fields such as oil and gas transportation pipelines, water supply and drainage pipelines, etc
Main equipment list
| No. |
Name |
Set |
| A. Derusting Equipment |
| 1 |
Pipe-converying Equipment |
1 |
| 2 |

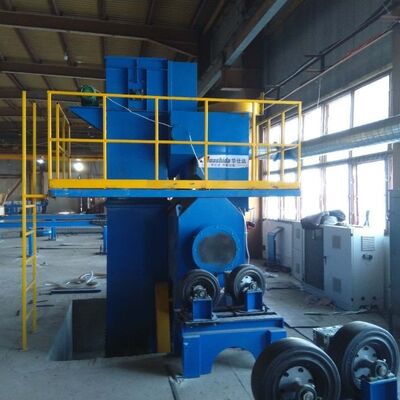

Shot Blast Cleaning Machine |
1 |
| 3 |
Cyclone Dust Collector |
1 |
| 4 |
Pulse dust collector |
1 |
| 5 |
Centrifugal exhaust fan |
1 |
| 6 |
Rust removal equipment PLC control system |
1 |
| B. Coating equipment |
| 1 |
Coating transfer equipment |
1 |
| 2 |
IF heating device |
1 |
| 3 |
Powder spraying device |
1 |
| 4 |
Automatic loading dryer |
2 |
| 5 |
SJ-65/30 Extruder |
1 |
| 6 |
SJ-90/30 Extruder |
1 |
| 7 |
Hot melt adhesive extruder die |
1 |
| 8 |

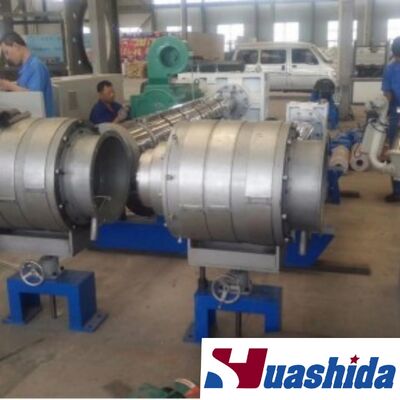

PE extruder head mold |
1 |
| 9 |

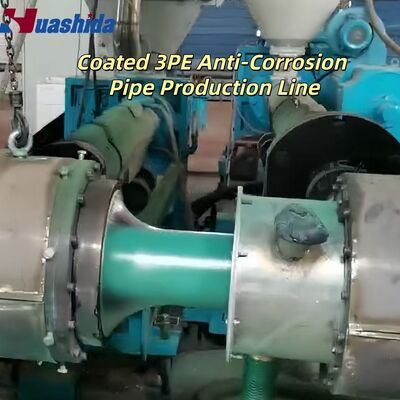

Hot melt adhesive/PE coating device |
1 |
| 10 |
Cooling Spray equipment |
1 |
| C.Platform Equipment |
| 1 |
Steel pipe platform |
1 |
| 2 |
Post-rust removal transition platform |
1 |
| 3 |
Product tube storage platform |
1 |
| 4 |
Hydraulic Equipment |
2 |
| D.Groove Equipment |
| 1 |
PE Beveling Machine |
2 |
| 2 |
Hydraulic Lifting and Turning Machinery |
1 |
| 3 |
Hydraulic Equipment |
1 |
Shipment
Qingdao Huashida Machinery Co., LTD., founded in 2003, is a global developer, manufacturer and solution provider of plastic extrusion equipment. 70% of its customers come from overseas countries such as Europe, America, the Middle East and Southeast Asia.
Welcome to our factory to discuss cooperation!
