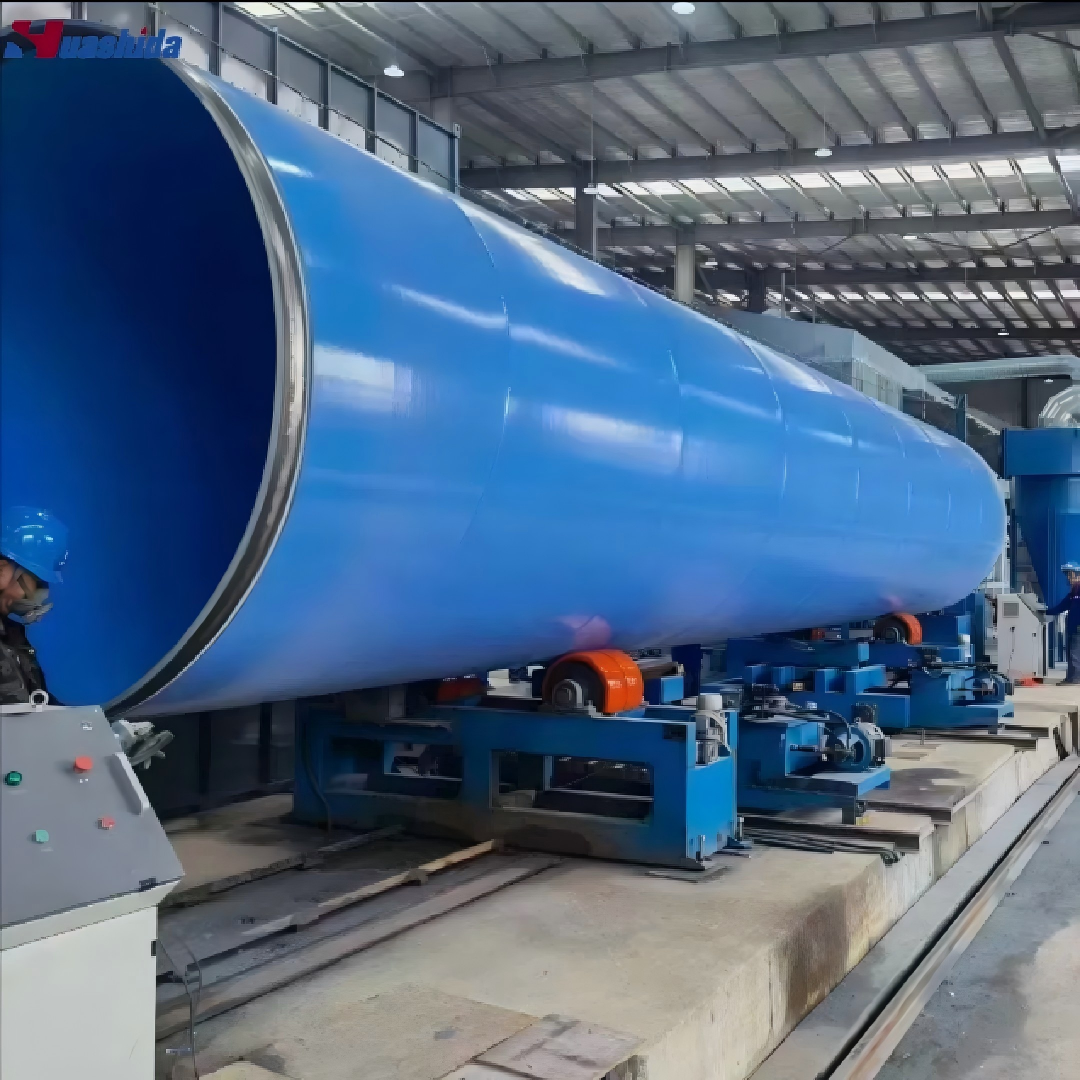

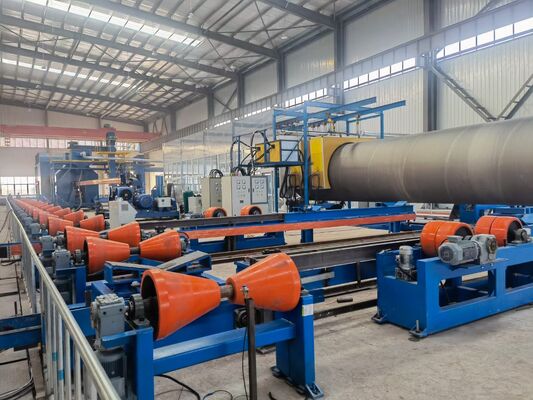

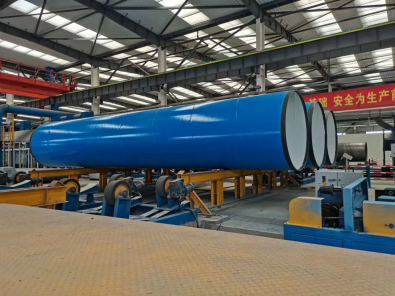

Automatic Steel Pipe Internal External FBE Coating Line for Water Supply Pipelines

The internal-external FBE epoxy powder coating process for steel pipe inner and outer walls is the globally-acknowledged high-performance anti-corrosion standard for oil & gas long-distance transmission pipelines, offshore pipeline construction, municipal water supply networks and industrial fluid transportation systems.

Widely specified for large-scale energy infrastructure projects across the Middle East, Central Asia, Russia and Africa, this fully-automatic turnkey steel pipe internal-external FBE epoxy coating line delivers a complete unified FBE coating solution for regional EPC contractors, pipe fabricators and pipeline operators facing harsh desert, saline, cold-climate and coastal operating conditions.

This integrated turnkey system combines Sa2.5-grade internal & external shot blasting derusting and precision electrostatic Fusion Bonded Epoxy (FBE) epoxy powder spraying within one vendor-matched production unit for large-diameter steel pipe anti-corrosion treatment.

The equipment complies with major international project standards: DNV, SY/T0413, GB/T23257, DIN 30670, DIN 30678, SY/T0315-2005 and CNPC38-2002 - delivering comprehensive multi-standard FBE coating certification required by oil-gas tender specifications across global emerging-market energy projects.

Fusion Bonded Epoxy (FBE) powder is a thermosetting, non-toxic anti-corrosion coating material purpose-built for steel pipe surface protection, widely adopted for pipeline projects across the Middle East, Central Asia, Russia and Africa.

Key performance benefits of FBE epoxy coating:

• Outstanding FBE coating adhesion on Sa2.5 shot-blasted steel pipe internal and external surfaces
• Superior cathodic disbondment resistance, complying with DNV requirements for buried onshore & offshore oil and gas pipelines
• Powerful chemical corrosion resistance against acids, alkalis, salts, complex oilfield media and various industrial transported chemicals
• Low-friction smooth inner wall: internal FBE epoxy coating cuts fluid flow resistance and enhances transmission efficiency for long-distance oil & gas pipeline transportation
• Non-toxic formulation: fully suitable for internal lining of potable water supply pipelines, apart from oil-gas pipeline anti-corrosion service

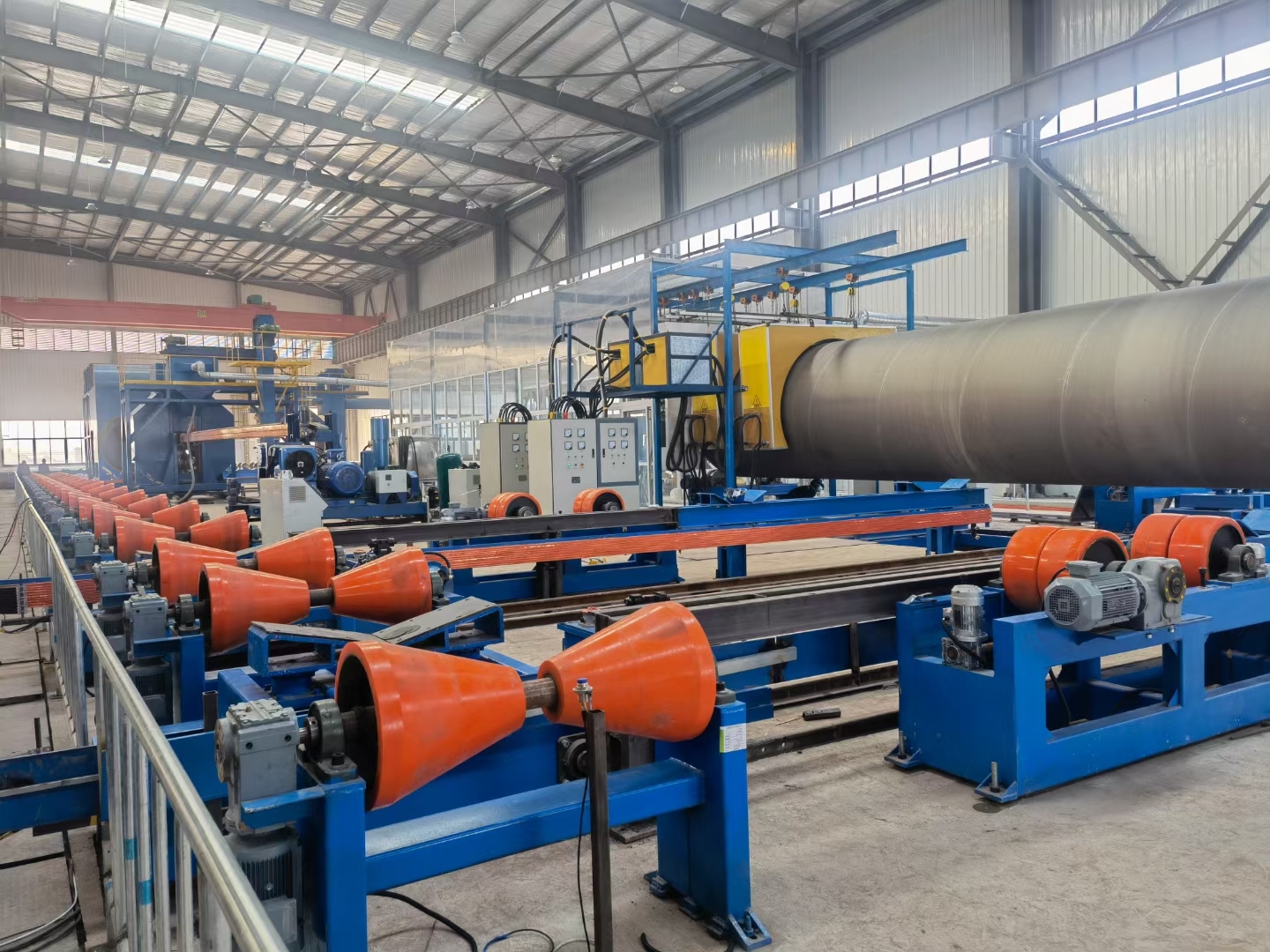

• Fully Turnkey FBE Epoxy Coating System - Shot blasting, medium-frequency induction heating, internal & external FBE epoxy powder spraying, powder recovery and pipe end trimming are fully integrated within one harmonized production line.
• National Patented Core Technology - Supported by a domestic high-end plastic machinery expert workstation, our internal-external FBE coating line owns 10+ independent national patents.
• Specialized FBE Process Engineering Team - Nine senior engineers focus on FBE powder curing profiles, steel pipe surface preparation and dual-wall coating process optimization.
• 4,000m² Intelligent Manufacturing Factory - Full ISO9001:2015 quality management implemented throughout every manufacturing procedure.
• 99.8% Operational Stability - Each complete internal-external FBE coating line undergoes full-load factory pre-commissioning prior to shipment.
• Sa2.5 Dual-Wall Shot Blasting Performance - Simultaneously reaches Sa2.5 international cleanliness grade on steel pipe inner and outer surfaces.
• Zero-Dust-Emission Environmental Design - Equipped with dedicated powder recycling unit plus cyclone & pulse dust collectors.
• Multi-Standard EPC-Ready Compliance - Certified compatible with DNV, SY/T0413, GB/T23257, DIN 30670, DIN30678, SY/T0315-2005 and CNPC38-2002.

Qingdao Huashida Machinery Co., Ltd. - Leading Manufacturer of Turnkey Steel Pipe FBE Epoxy Coating Lines

Founded in 2003, Qingdao Huashida Machinery Co., Ltd. holds over 21 years of specialized manufacturing experience in turnkey steel pipe internal-external FBE epoxy coating lines, complete steel pipe anti-corrosion systems, pre-insulated pipe production equipment and large-diameter underground pipeline machinery.

Core Product Range:

• Turnkey Steel Pipe Internal External FBE Epoxy Coating Lines (325-4200mm) for long-distance oil & gas transmission pipelines
• High-Speed FBE & 3LPE Internal-External Coating Lines for oilfield gathering and trunk-line projects
• 36-4200mm External Shot Blasting 3LPE Steel Pipe Anti-Corrosion Coating Lines
• PUR Spray PE Pre-Insulated Pipe Production Lines (508-1620mm) for district heating pipelines
• HDPE Jacket Pipe Casing Extrusion Lines (110-2200mm) for buried thermal-insulated pipeline systems
• Cross-Linked PE Heat Shrink Sleeve Production Lines for steel pipe field joint anti-corrosion coating
• Automatic HDPE PE100 Pressure Pipe Extrusion Lines (16-1600mm) for water-supply & gas-distribution networks
