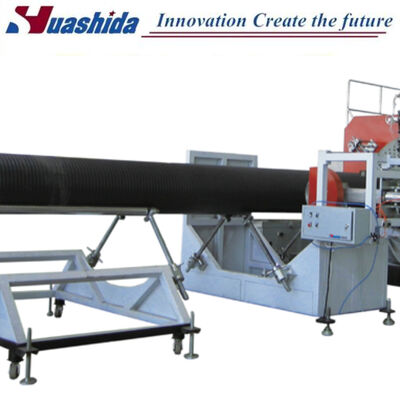

Automatic HDPE Krah Pipe Extrusion Line for 300mm-1200mm High Ring Stiffness Corrugated Pipe Production

Qingdao Huashida Machinery Co., Ltd. has developed a complete production line for spiral structured wall HDPE pipes, leveraging advanced German technology and holding independent intellectual property rights. This production line achieves international advanced performance standards and is highly automated, controlled by a PLC system.

• High Ring Stiffness
• High Impact Strength and Low Weight
• Good Creep Deformation Resistance
• Outer Pressure Resistance
• Erosion Resistance (such as acid, alkali, and salt)
• Long Service Life: Approximately 50 years

• Storm Water Management
• Storm Water Attenuation Applications
• Sewerage Pipelines
• Drainage Pipelines
• Culverts
• Pipe Rehabilitation
• Landfill Drainage/Leachate
• Mine Drainage
• HDPE Manholes / Manhole Drops
• Floats
• Irrigation

Raw materials→Mixing→Vacuum feeding→Material drying→Single screw extrusion→Calibration→Spray cooling→Traction→Single screw glue extrusion→Winding and forming→Water cooling→Cutter→Pipe bracket→Inspecting & Packing

The complete production line includes two parts:

1. PE Pipe Extrusion Line - to extrude the PE/PP Square Shaped Pipe (according to customers' requirements)
   • Single Screw Extruder
   • Die Head (mold and mandrill)
   • Calibrator
   • Vacuum calibration & cooling Tank
   • Spray Cooling Tank
   • Haul-off
2. Spiral Forming Line - to form and weld the big pipe
   • Single Screw Extruder
   • Die Head
   • Spiral forming unit
   • Cutter
   • Bracket

The extruder is equipped with the forced water-cooling feeding section and slotted barrel, which makes the power consumption of the main drive motor greatly reduced.
