HDPE Large Diameter Steel-Reinforced Spiral Corrugated Pipe Production Line with High Ring Stiffness and Corrosion Resistance

Huashida's HDPE Large Diameter Steel-Reinforced Spiral Corrugated Pipe is quickly becoming the ideal choice for urban sewage and drainage systems, poised to gradually replace traditional plastic, cement, and cast iron pipes, thanks to its unique structure and outstanding performance.

This innovative piping solution combines multiple advantages:

• High Ring Stiffness: External steel reinforcement provides the pipe with exceptional circumferential stiffness, resisting external pressure and soil deformation.
• High Impact Strength & Lightweight: It offers both excellent impact resistance and a lighter self-weight, making transportation and installation more convenient.
• Superior Creep Deformation Resistance: The pipe maintains its shape under long-term pressure, ensuring system stability and durability.
• Outstanding External Pressure Resistance: Capable of withstanding high external loads and soil pressure, suitable for complex geological conditions.
• Excellent Erosion Resistance: Exhibits strong resistance to various chemical media, including acids, alkalis, and salts, extending the pipe's service life.
• Significant Material Cost Savings in Production: The unique structural design effectively reduces material consumption, enhancing economic benefits.

The HDPE Large Diameter Steel-Reinforced Spiral Corrugated Pipe is already widely adopted in urban sewage and drainage systems. Its advantages, such as low assembly costs, easy operation, convenient connection, and economical construction, give it broad application prospects and significant market potential. It not only enhances pipeline system performance but also delivers substantial economic and social benefits.

• HDPE Large Diameter Hollow Wall steel reinforced Winding Pipe Production Line designed with advanced technology includes 1st single screw extruder for profiled T belts, profiled T belts extrusion die, vacuum calibration cooling platform, haul-off, coiler; 2nd single screw extruder for HDPE plates, 3rd single screw extruder for melting glue material, spiral forming unit, cutting unit and stack unit.

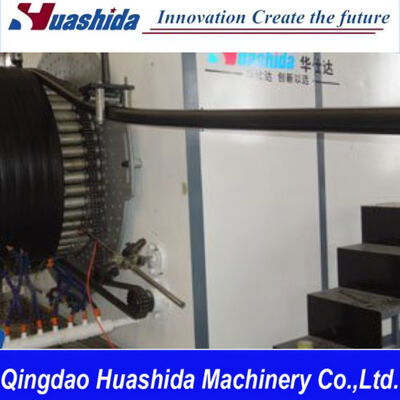

• Spiral forming unit: Adopts advanced multi-axes transmission box with feature of high transmission force and stable running performance. Unique design of composite die-head, rotational molding after combined feed, and two sets of extruder extrude PE for winding pipe. High quality of winding pipe produced by adopting the unique winding process for pipe forming. The glue extruder can be moved in up and down, left and right direction. PLC computer control system with touch screen interface can realize automatic and reliable operation.
• Cutting part: Saw cutting with desired length. OMRON or MITSUBISHI PLC computer control system with touch screen interface can realize automatic and reliable operation.
• PLC computer control system with touch screen: With super high speed and large storage capacity. Multi control points: Forming pipe extrusion, melting PE adhesive extrusion, winding and cutting process can be auto-tail controlled synchronously. Separately controlling two extruder and winding unit in tandem with two touch screens.
• It includes two parts:

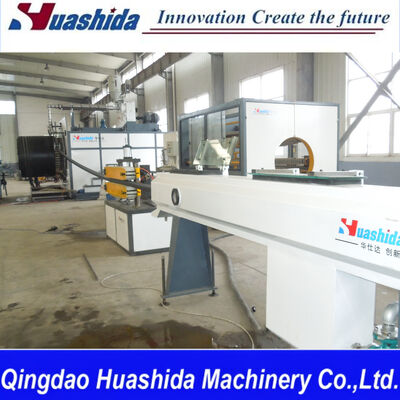

  • The first part is PE Pipe Production Line. The function of it extrude PE/PP profiled T belt. It includes as following equipment: SJ series Single Screw Extruder / Die Head (outer mold and mandrill) / Calibration & Cooling platform, Haul-off and coiler.
  • The second part is Forming Machine of HDPE double flat Wall steel reinforced Winding Pipe. The function of it can produce qualified HDPE double flat Wall steel reinforced Winding Pipe. It includes as below equipment: SJ series Single Screw Extruder / Die Head / Spiral forming unit / Cutting Unit / Stack Unit / PLC control system with touch screen.
