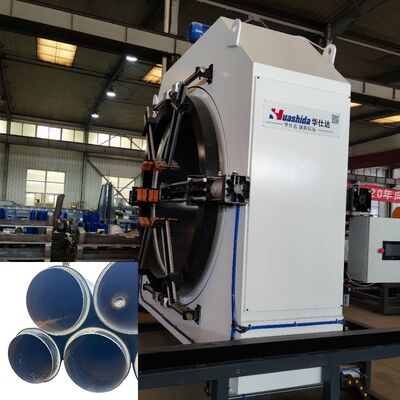

Automatic 3LPE Coating Pipe Production Line with PLC Control System and FBE Epoxy Powder Coating

HUASHIDA Oil & Gas Pipe 3LPE Anti-Corrosion Coating Line is designed for applying anti-corrosion coatings on steel pipes. It is widely used in various engineering construction projects, especially in the fields of oil, gas, heating, and water pipeline systems.

This production line is capable of applying different types of coatings, including:

• Fusion Bonded Epoxy (FBE)
• 2-Layer FBE
• 2-Layer PE
• 2-Layer PP
• 3-Layer PE (3LPE) Anti-Corrosion Coating

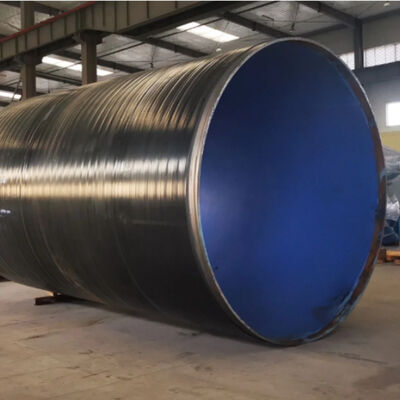

The 3-layer PE coating consists of an inner Fusion Bonded Epoxy (FBE) layer, a middle adhesive layer, and an outer polyethylene layer. This advanced coating technology offers excellent anti-corrosion performance and mechanical strength, significantly extending the service life of pipelines. It features high electrical resistance, superior waterproof properties, wear resistance, and excellent anti-aging performance, making it suitable for various buried pipelines.

Pipe Loading → Screw Conveyor → Intermediate Frequency Heating & Rust Removal → Epoxy Powder Coating → Adhesive & Polyethylene Coating → Cooling Spray → Screw Conveyor → Pipe End Grinding → Pipe Unloading

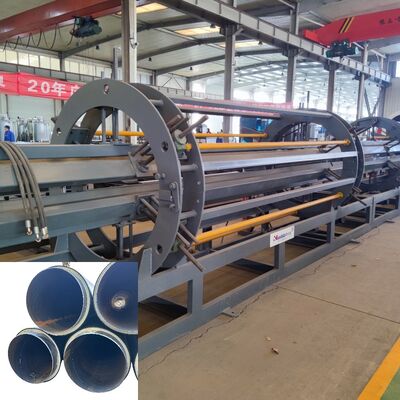

• Steel Pipe Transmission System
• Surface Treatment System
• Pipe Dust Removal System
• Pipe Heating System
• Electrostatic Spraying System
• Coating System
• Water Cooling System
• Pipe End Cutting System
• Hydraulic and Pneumatic System
• Testing System
• Electronic Control System

The 3-layer PE coating process, using epoxy powder as the bottom layer, combined with adhesive and polyethylene layers, is widely used for anti-corrosion protection of steel pipes in industries such as:

• Oil Transmission Pipelines
• Natural Gas Pipelines
• Chemical Material Pipelines
• Water Supply Pipelines
• Urban Gas Supply Networks

Qingdao Huashida Machinery Co., LTD is a manufacturer of series of plastic pipe machines, municipal pipe machines, pipe insulation & anticorrosion machines, and pipe jointing & anticorrosion materials, with over 20 years of production experience.

• HDPE jacket pipe for pre-insulated pipe Production Line (110-2000mm)
• Rigid pre-insulated pipe Production Line
• Flexible pre-insulated pipe (PERT) production line
• Steel pipe FBE/2LPE/3LPE anti-corrosion coating line
• Steel pipe derusting line
• PE pressure pipe/Water Gas supply pipe production line
• PP/PE plastic board/sheet/geomembrane production line
• NBR PVC Thermal insulation tube/plate production line
• Pipeline anti-corrosion materials and instruments: heat shrink joint coating sleeve, electro-fusion weldable joint sleeve, portable welding gun (extruder), PE PP welding rod

We have been working with more than 400 overseas customers and exporting our products to Kazakhstan, Uzbekistan, Iran, Turkey, Russia, Nigeria and other countries.
