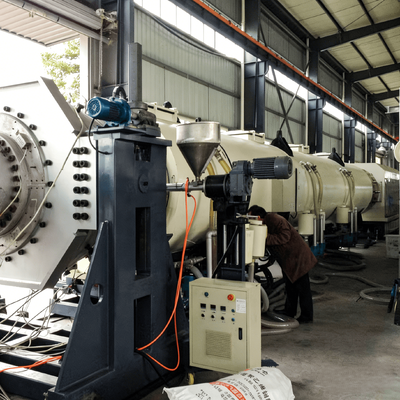

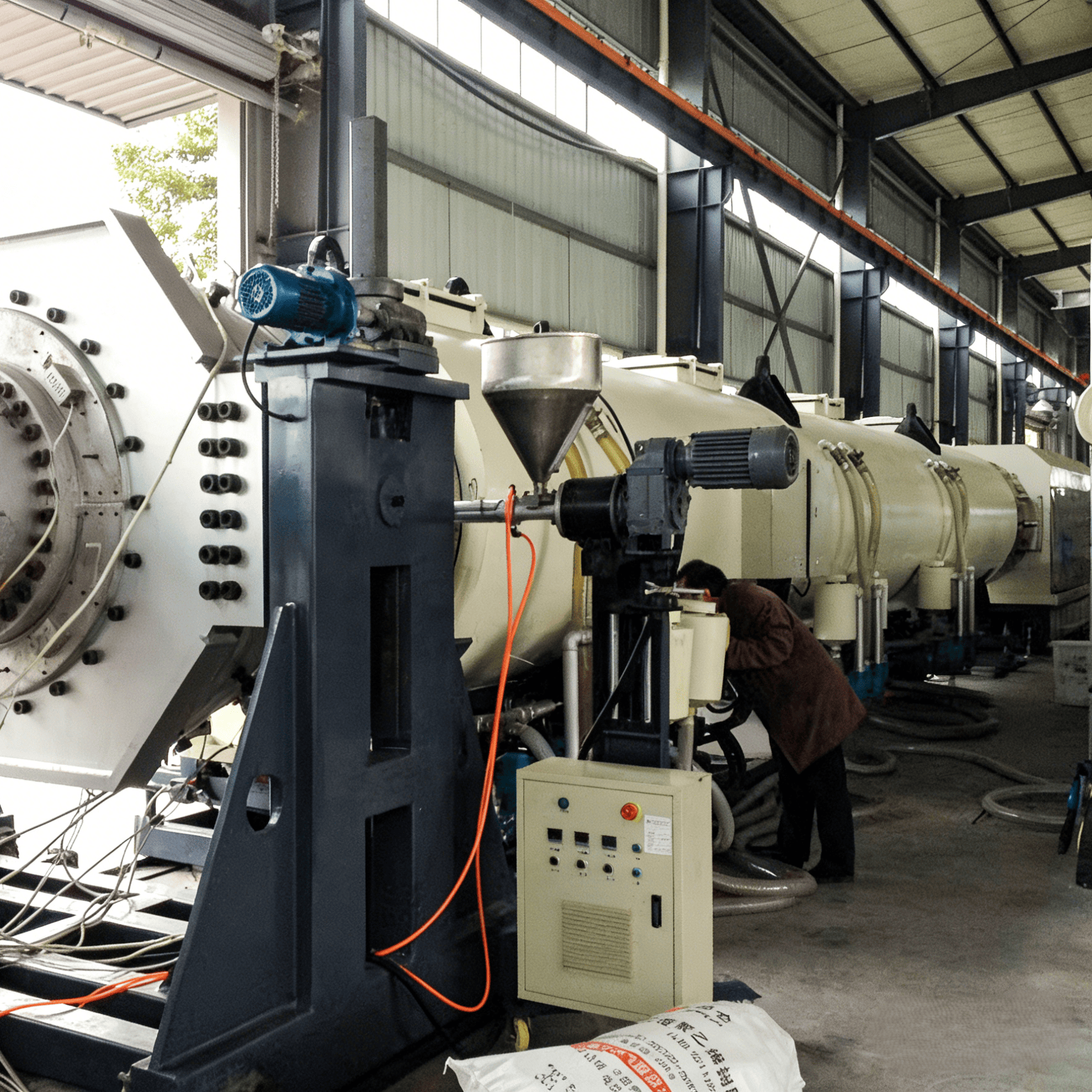

16-1600mm HDPE PE100 Pipe Extrusion Line for Municipal Water Gas Supply

The 16-1600mm HDPE PE100 Pipe Extrusion Line by Huashida is a professional-grade solution engineered for high-speed, large-volume production of PE80 and PE100 grade municipal water and gas supply pipes - covering a complete diameter range from Ø16mm to Ø1600mm across nine standard configurations with peak output reaching 2000-2500kg/h on the largest SPEG-2200 model.

As the only listing in this product family holding CE, ISO9001:2015, and SGS triple certification - the most comprehensive certification package available for HDPE PE100 municipal water gas supply pipe extrusion lines globally - this is the preferred choice for municipal engineering teams, infrastructure contractors, and pipe manufacturers requiring third-party SGS verified quality compliance for international project bidding.

By integrating a 38CrMoAlA nitrided alloy single screw extruder, an advanced helical basket co-extrusion die head, and an intelligent PLC touch-screen control system, this extrusion line ensures high-precision wall thickness, excellent PE100 pipe hoop strength, and consistent high-output performance for high-pressure underground solid wall municipal water and gas supply pipe applications.

Our PE Pipe Production Machinery comes in various configurations to meet diverse output requirements.

This versatile 16-1600mm HDPE PE100 pipe manufacturing equipment serves critical municipal infrastructure and industrial sectors globally:

• Municipal Water and Gas Networks: Municipal water distribution pipeline and urban natural gas pipeline manufacturing for city-scale infrastructure - the primary application for PE100 high-pressure pipe extrusion lines worldwide; SGS certification directly supports municipal procurement compliance requirements
• Agricultural Irrigation: High-efficiency agricultural irrigation pipe production and drainage systems - SPEG-110 and SPEG-250 small-diameter configurations deliver high-volume output for irrigation pipe manufacturing across Central Asia, the Middle East, and Africa
• Energy and Mining: Landfill leachate collection, industrial chemical transport, and high-pressure energy conduit pipelines requiring durable PE100 polyethylene pressure pipe with consistent wall thickness
• Renewables and Geothermal: Geothermal heating systems and high-pressure energy conduits requiring long-service-life HDPE PE100 pipe meeting international pressure pipe standards

Our automated 16-1600mm HDPE PE100 pipe extrusion workflow is designed for maximum uptime, minimal waste, and consistent municipal water gas supply pipe quality:

• Feeding and Drying: Automated vacuum loader feeding and moisture removal via hopper dryer - ensuring clean, dry PE80/PE100 resin input for consistent high-output extrusion quality across the full 16-1600mm diameter range
• High-Torque Extrusion Molding: 38CrMoAlA nitrided screw plasticizes PE80 and PE100 raw material granules at high torque - maintaining consistent melt pressure and material stability for premium PE100 municipal pipe extrusion resins

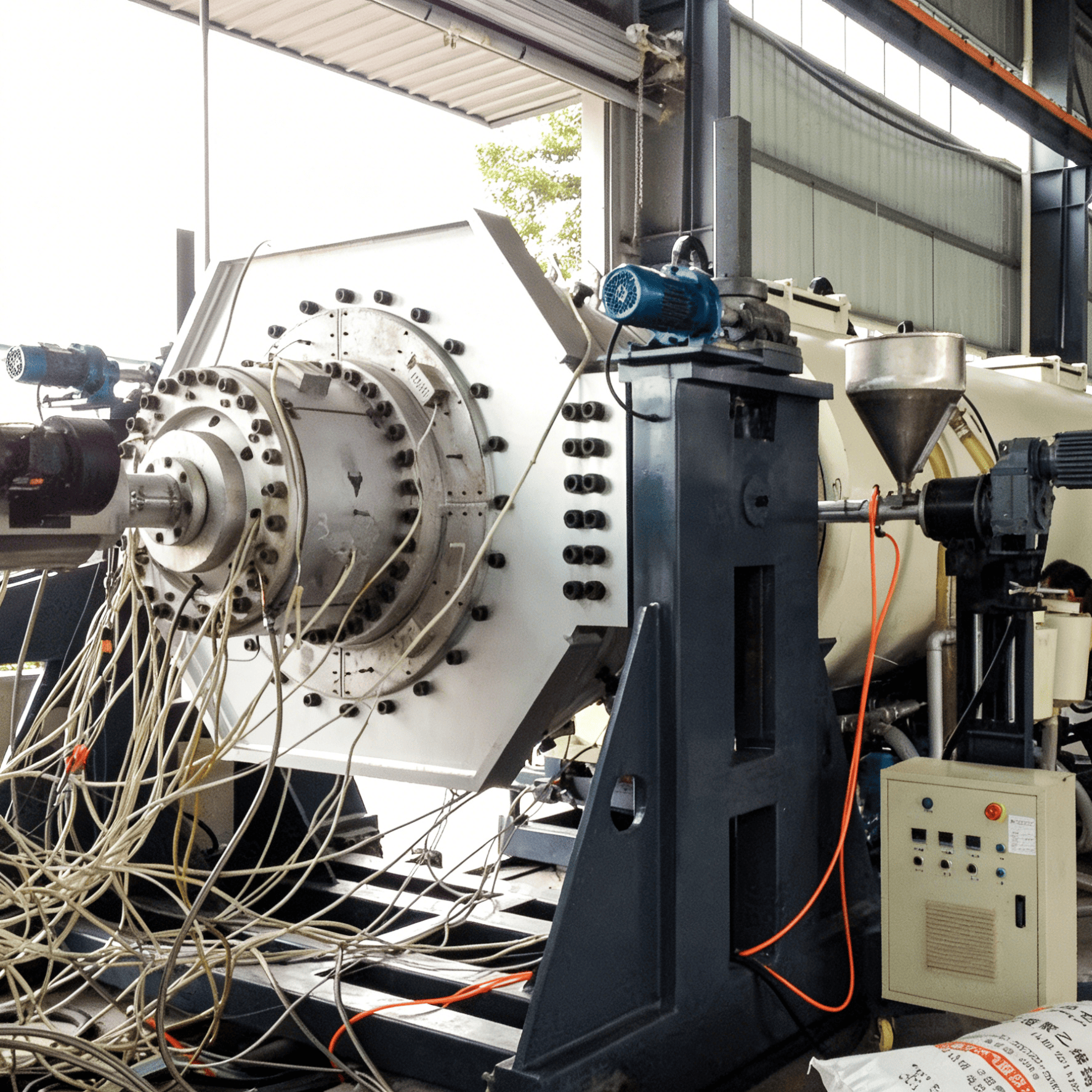

• Helical Basket Die Head Forming: Advanced helical basket co-extrusion die head provides low-melt temperature processing and superior mixing - delivering consistent PE100 pipe hoop strength for high-pressure municipal water supply and gas distribution pipeline applications
• Vacuum Calibration: Precision shaping in the stainless steel vacuum calibration tank with water film lubrication and sizing ring cooling - ensuring perfect pipe roundness and ± 0.1mm diameter accuracy for PE100 high-pressure municipal water gas supply pipe

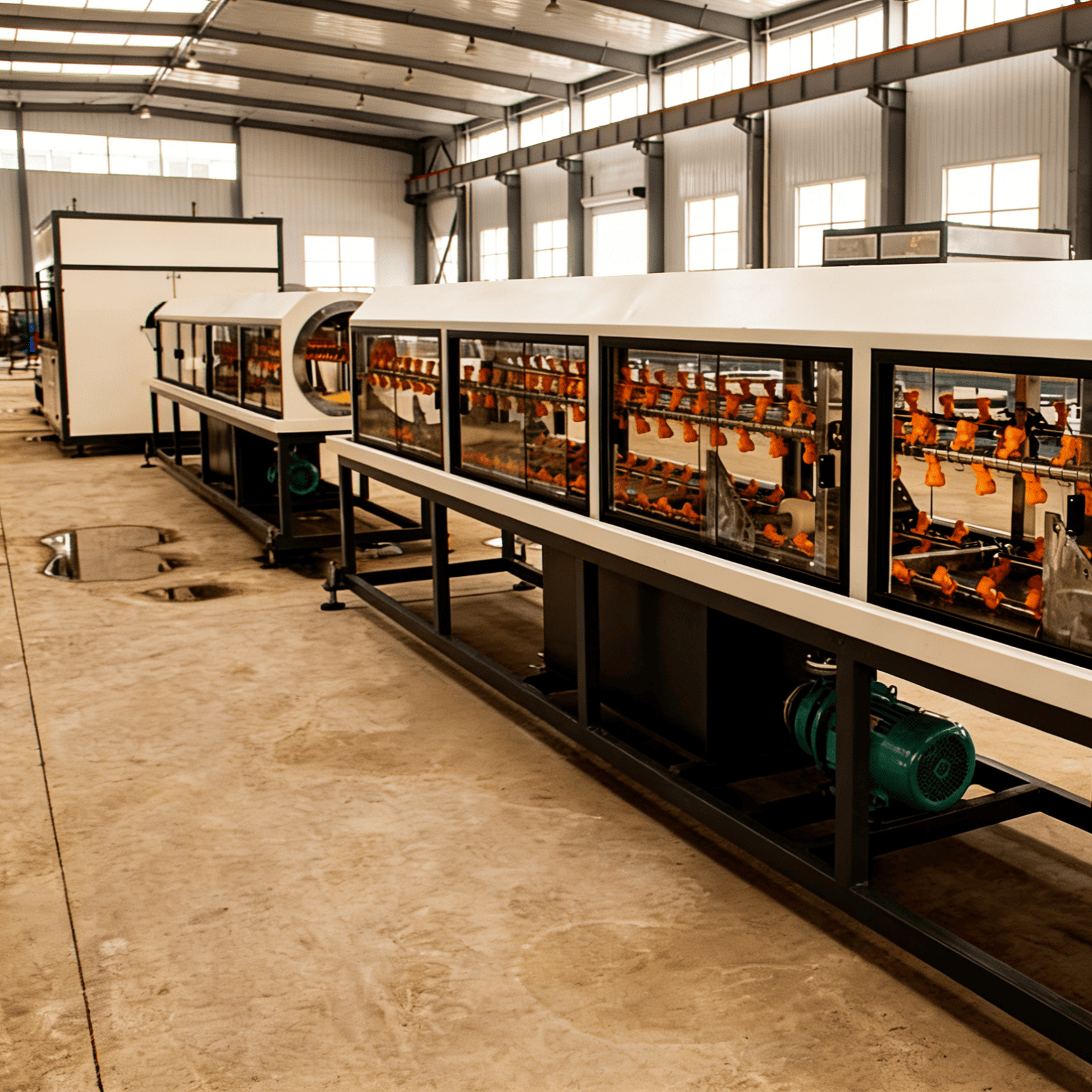

• Spray Cooling: Multi-stage water spraying cooling tanks for structural integrity of finished high-pressure PE100 municipal water gas supply pipe

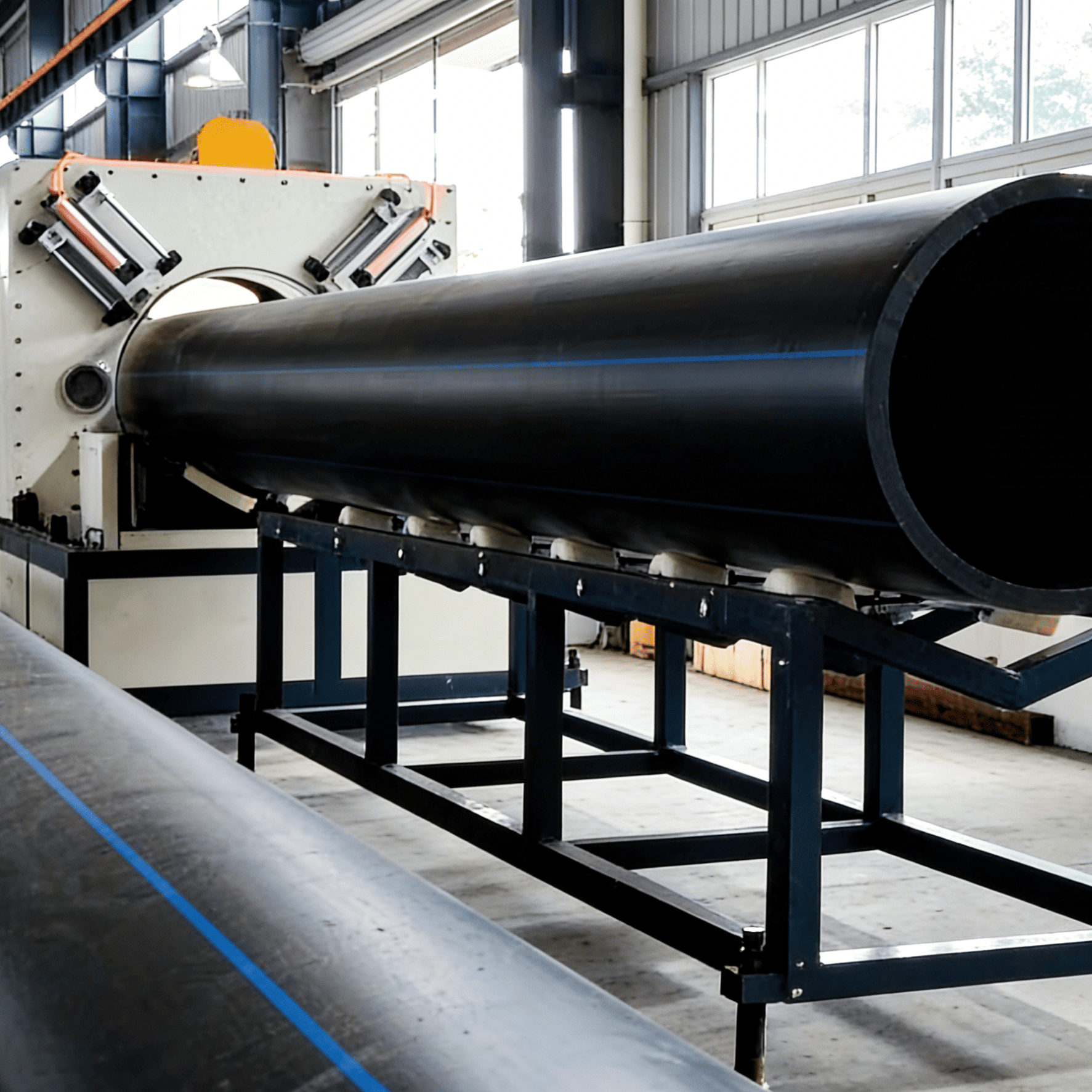

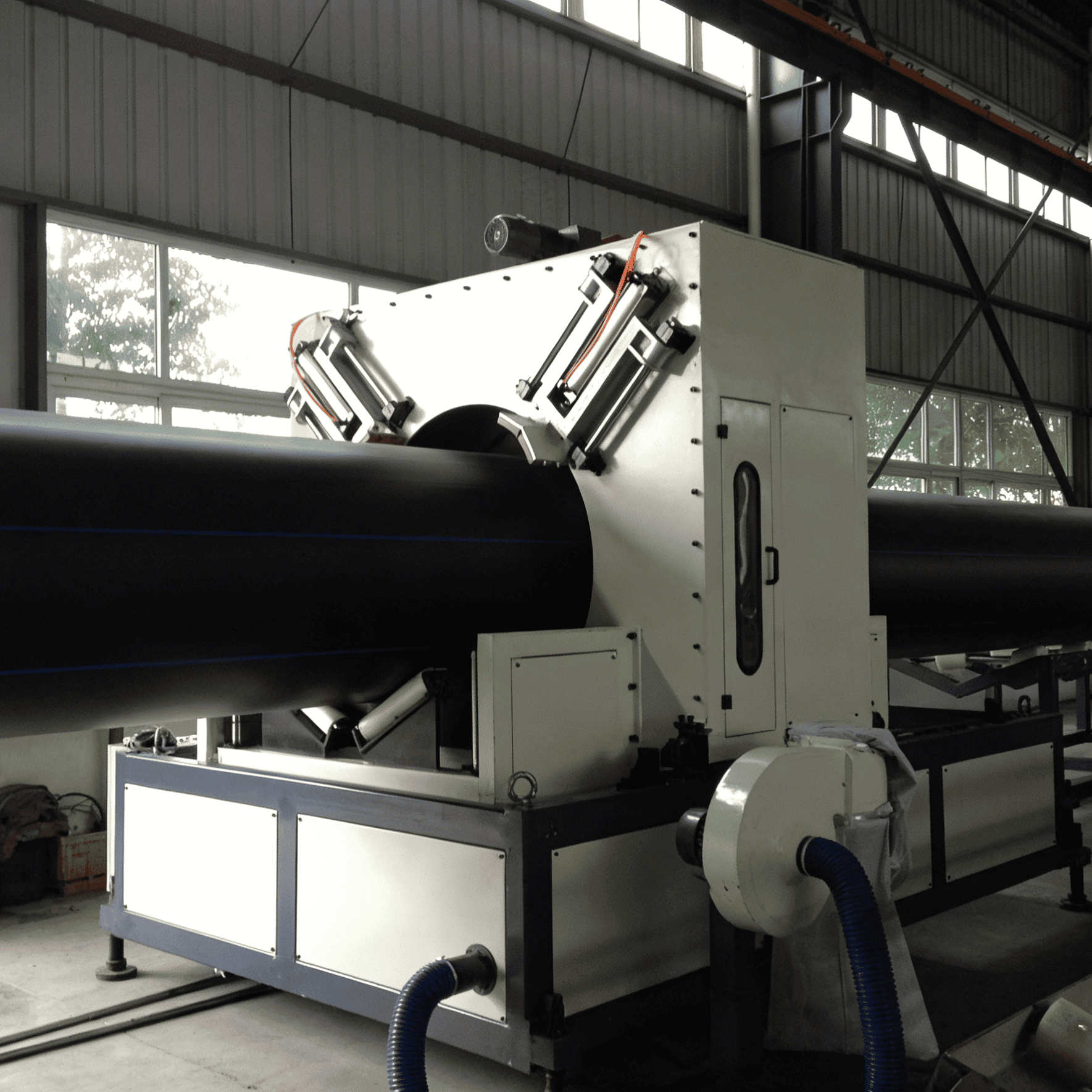

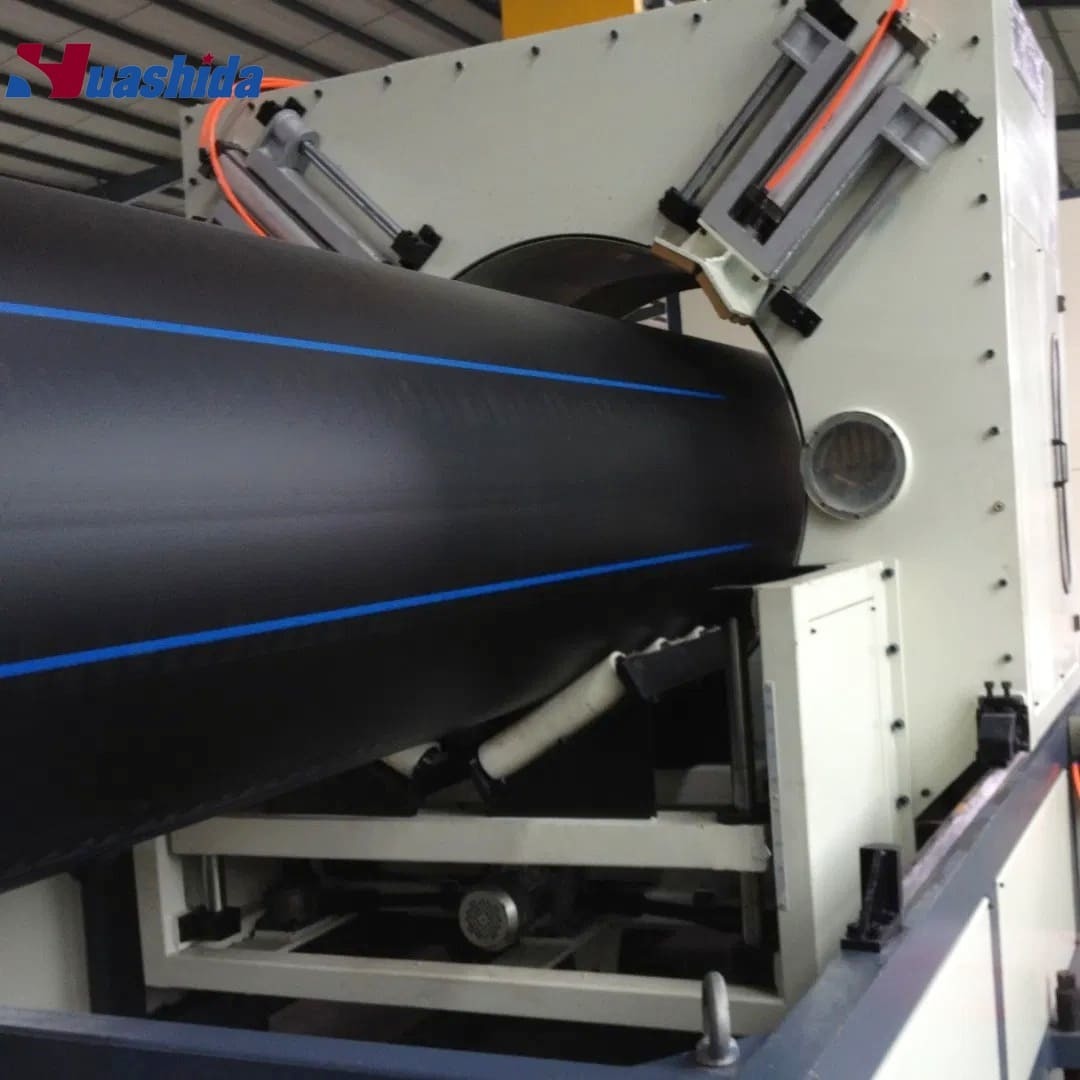

• Hauling and Chipless Cutting: Synchronized heavy-duty haul-off traction and chipless planetary cutting - dust-free pipe cutting eliminating airborne plastic particles, keeping municipal pipe production facilities clean and environmentally compliant without secondary cleanup
• Co-Extrusion Marking and Stacking: Automatic 25/25 co-extrusion marking line applies color-coded identification strips for PE100 municipal water gas pipe identification, with final discharge on the automatic pipe stacker

• 1 set Vacuum loader - automated PE80/PE100 granule feeding for continuous production
• 1 set Hopper dryer - moisture removal ensuring consistent resin quality
• 1 set High-torque 38CrMoAlA nitrided single screw extruder (Main Extruder)
• 1 set 25/25 marking line co-extruder - color-coded PE100 municipal pipe marking
• 1 set Stainless steel vacuum calibration table with water film lubrication
• 2/4 sets Water spraying cooling tank
• 1 set Heavy duty haul-off machine (Traction unit)
• 1 set Chipless planetary cutting machine - dust-free, environmentally compliant production
• 1 set Automatic pipe stacker / tipping table

• 16-1600mm Complete Diameter Coverage: Nine standard SPEG models covering small-bore municipal gas distribution (16-63mm) through large-diameter water transmission pipe (1000-1600mm) - one product family serving every municipal water and gas supply pipe diameter specification
• 2000-2500kg/h Peak High-Output Performance: Powerful 38CrMoAlA nitrided screw with high-torque drive ensures material stability for premium PE100 municipal pipe extrusion resins - delivering peak 2000-2500kg/h throughput on SPEG-2200 for large-scale municipal water supply contracts
• Helical Basket Co-Extrusion Die Head: Advanced helical basket die head design provides low-melt temperature processing and superior mixing for superior PE100 pipe hoop strength - the critical performance parameter for high-pressure municipal water supply and gas distribution pipeline applications
• PLC Intelligent Control: Fully integrated PLC touch-screen control system for real-time parameter monitoring and synchronized line operation - the industry-trusted control platform for 16-1600mm HDPE PE100 pipe extrusion lines serving municipal infrastructure projects globally
• SGS and CE and ISO9001 Triple Certified: The most comprehensive certification package in this product category - SGS independent third-party verification alongside CE and ISO9001:2015, meeting the strictest municipal water gas supply pipe manufacturing procurement requirements for global project bidding
• Chipless Planetary Cutting: Dust-free pipe cutting eliminates airborne plastic particles - keeping municipal PE100 pipe production facilities clean and OSHA/environmental compliance-ready without secondary cleanup between production shifts

• Turnkey Municipal Water Gas Supply Solutions: End-to-end services including complete 16-1600mm HDPE PE100 pipe production line plant design, workshop layout, installation, commissioning, and factory staff training - from first pipe to full municipal production capacity
• SGS Verified Global Project Authority: Over 389 successful PE100 pipe extrusion line projects deployed worldwide across Russia, Turkey, UAE, India, Iran, and Kazakhstan - including municipal water supply, gas distribution, and agricultural irrigation pipeline projects; SGS certification supports international project compliance verification
• Engineering Depth: 23 years of manufacturing expertise backed by a premier Plastic Machinery R&D Center in China - one of the top 3 plastic pipe extrusion machine manufacturers in the Chinese industry with 11 dedicated R&D engineers specializing in PE100 municipal pipe extrusion technology
• Triple Certified Quality: CE, ISO9001:2015, and SGS certified - the most comprehensive certification package in this product category, meeting the strictest 16-1600mm HDPE PE100 municipal pipe manufacturing compliance requirements globally
