Radiation Cross-Linked PE Heat Shrink Sleeve for Pre-Insulated Pipe Girth Weld joint

1
MOQ
US$8.00-15.00
Price
Radiation Cross-Linked PE Heat Shrink Sleeve for Pre-Insulated Pipe Girth Weld joint
Features Gallery Product Description Request A Quote
Features
Specifications
Operating Temperature: 60C-110C
Roll Length: 30m Or 50m Per Roll
Width: 100/200/300/500/600/900
Peeling Strength: 70N
Thickness: 1.2mm.1.6mm.1.8mm.2.0mm, 2.5mm
Adhesive Lap Shear: ≥1.0MPa (ASTM D1002, Tested: 1.5MPa)
Highlight:

Radiation cross-linked PE heat shrink sleeve

,

Heat shrink sleeve for pipe girth weld

,

Pre-insulated pipe joint heat sleeve
Basic Infomation
Place of Origin: Qingdao, China
Brand Name: Huashida
Certification: CE, ISO
Model Number: HSD
Payment & Shipping Terms
Packaging Details: 2000cm*220cm*150cm
Delivery Time: 7-15 days
Payment Terms: L/C,Western Union,T/T
Supply Ability: 1000PCS/Day
Product Description
Radiation Cross-Linked PE Heat Shrink Sleeve for Pre-Insulated Pipe Girth Weld Joint
Our high-performance radiation cross-linked PE heat shrink sleeve is a professional pre-insulated pipe girth weld joint protection material exclusively developed for sealing and anti-corrosion protection of district heating pre-insulated pipe joints, chilled water distribution pipeline joints, and PU foam insulated pipeline girth weld connections - the standard field joint coating solution for buried pre-insulated pipe systems worldwide.
This pre-insulated pipe joint heat shrink sleeve adopts premium two-layer composite construction: radiation cross-linked polyethylene backing (tensile strength 19.47MPa, elongation 626%) matched with high-adhesion imported hot melt adhesive (peel strength 145.6N/cm to steel) - together forming an integrated, seamless protective barrier that maintains the thermal insulation integrity and anti-corrosion performance of every pre-insulated pipe girth weld joint to the same standard as the factory-manufactured pipe sections.
For complete long-term underground protection, this radiation cross-linked PE heat shrink sleeve must be used with a supporting non-solvent two-component epoxy primer - together forming a continuous, gap-free anti-corrosion and waterproofing system at every district heating pre-insulated pipe girth weld connection, eliminating the primary failure point of buried pre-insulated pipeline networks.
Available in three configurable supply styles with thickness options from 1.2mm to 2.5mm and widths from 100mm to 900mm - covering all pre-insulated pipe, district heating, and municipal pipeline girth weld joint protection specifications.
Key Characteristics
Purpose-Built for Pre-Insulated Pipe Girth Weld Joint Sealing
Specifically engineered for the unique demands of pre-insulated pipe girth weld joints - where the sleeve must simultaneously seal against groundwater ingress, maintain polyurethane foam thermal insulation integrity, and provide long-term anti-corrosion protection to the exposed steel carrier pipe at every joint connection.
Fast & Simple On-Site Pre-Insulated Pipe Joint Installation
Supports easy heating-only on-site installation - no special tools, no surface grinding, no complex equipment required. When heated by standard propane torch, the radiation cross-linked PE outer layer shrinks uniformly around the pre-insulated pipe joint diameter while the inner hot melt adhesive melts evenly.
Factory-Grade Pre-Insulated Pipe Joint Protection Standard
Combining this radiation cross-linked PE heat shrink sleeve with non-solvent two-component epoxy primer creates a continuous, solid, gap-free protective barrier at every pre-insulated pipe girth weld joint - maintaining the same thermal insulation and anti-corrosion performance standard as the factory-manufactured district heating pre-insulated pipe sections.
Core Product Benefits
  • Pre-Insulated Pipe Girth Weld Waterproofing: Permanently seals district heating and chilled water pre-insulated pipe joints against groundwater ingress
  • Outstanding Chemical Anti-Corrosion Resistance: Effectively resists erosion from 10% HCl, NaOH, NaCl, and all harsh underground chemical media
  • Extreme Temperature Range Performance: Vicat softening point ≥90°C; brittleness temperature <-65°C - reliably serving buried district heating pre-insulated pipe joint protection
  • Superior Electrical Insulation: Dielectric strength ≥25MV/m; volume resistivity ≥1*10¹³Ω.m - maintaining full cathodic protection system compatibility
  • Long-Term Thermal Aging Resistance: After 150°C * 168h thermal aging - tensile strength retention ≥14MPa, elongation retention ≥300%
  • Universal Pre-Insulated Pipe Joint Solution: Compatible with black and yellow jacket HDPE pre-insulated pipes, PU foam insulated steel pipes, and all standard district heating pipeline girth weld joint connection configurations
Radiation cross-linked PE heat shrink sleeve product overview Heat shrink sleeve installation demonstration Pre-insulated pipe joint protection application
Applications
  • District Heating Pre-Insulated Pipe Girth Weld Joint Sealing - seals every pre-insulated pipe girth weld connection against groundwater ingress and thermal insulation degradation
  • Chilled Water Pre-Insulated Pipe Joint Protection - seals chilled water distribution pre-insulated pipe joints where temperature differential creates persistent condensation risk
  • Petroleum Products Transmission Steel Pipe Field Joint Coating - provides factory 3LPE equivalent anti-corrosion protection at every pipeline girth weld joint
  • 3LPE/2LPE Anti-Corrosion Coated Steel Pipe Weld Joint Repair - restores full anti-corrosion system integrity at field joints and coating damage points
  • Municipal Drainage Corrugated Pipe Joint Anti-Corrosion Wrapping - provides waterproof and anti-corrosion joint protection for various sewage pipes

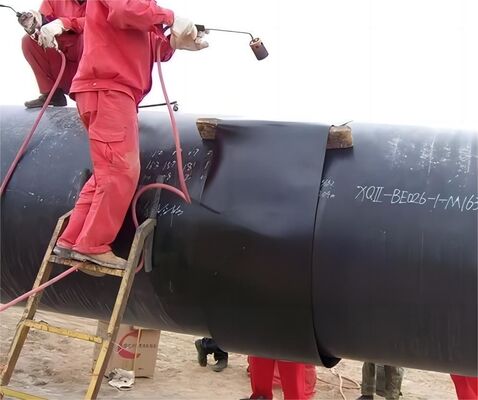

Field joint coating of steel pipe with 3LPE coating Sealing pre-insulated pipe joint application Connecting and sealing drain pipes with heat shrink sleeve
Product Parameters
Features:
  • Fast uniform shrinkage speed for high-efficiency pre-insulated pipe girth weld joint field construction
  • Superior fully sealed waterproof performance blocking groundwater penetration at district heating pre-insulated pipe joints
  • Premium long-term anti-corrosion and thermal insulation protection consistent with factory pre-insulated pipe coating standard
  • Ultra-long buried service life for permanent district heating pipeline girth weld joint protection
  • Pure virgin PE raw material and imported hot melt adhesive - stable, consistent batch quality
Technical Parameters - Back Material:
NO Test Item Unit Performance Test Result Test Method
1 Tensile Strength MPa ≥17 19.47 ASTM D638
2 Elongation % ≥400 626 ASTM D638
3 Vicat Softening Point ºC ≥90 92 ASTM D1525
4 Brittleness Temperature ºC <-65 <-65 ASTM D2671C
5 Dielectric Strength MV/m ≥25 33.13 ASTM D149
6 Volume Resistivity Ω.m ≥1*10¹³ 1.1*10¹³ ASTM D257
7 Environment Stress Crack h ≥1000 >1000 GB/T1842
Technical Parameters - Adhesive:
NO. Test Item Unit Performance Test Result Test Method
1 Softening Point ºC ≥90 90.1 ASTM E28
2 Brittleness Temperature ºC <-15 <-15 ASTM D2671C
3 Lap Shear MPa ≥1.0 1.5 ASTM D1002
4 Peel Strength (23±2ºC) N/cm ≥70 145.6 ASTM D1000
Ordering Information
We supply three configurable styles of radiation cross-linked PE heat shrink sleeve for pre-insulated pipe girth weld joint protection:
  • Pre-cut heat shrink sleeve with separate closure patch - standard configuration for most district heating and chilled water pre-insulated pipe girth weld joint applications
  • Pre-cut heat shrink sleeve with pre-attached integrated closure patch - streamlined single-component installation for faster pre-insulated pipe field joint construction
  • Continuous heat shrink sleeve roll tape (closure patch ordered separately) - for high-volume district heating pipeline pre-insulated pipe girth weld joint projects requiring customized cut lengths on site
Available Specifications:
  • Thickness: 1.2mm, 1.6mm, 1.8mm, 2.0mm, 2.5mm
  • Width: 100mm, 200mm, 300mm, 500mm, 600mm, 900mm
  • Roll length: 30m or 50m per roll
  • Custom dimensions available for large-volume pre-insulated pipe girth weld joint projects

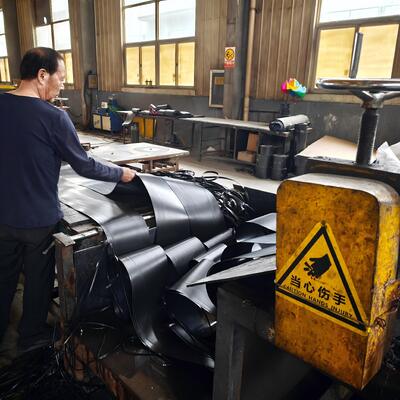

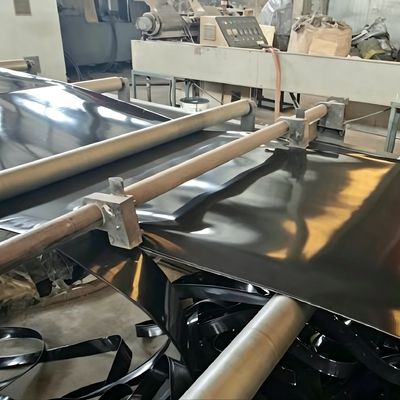

Heat shrink sleeve equipment and production
Qingdao Huashida independently designs and manufactures full sets of radiation cross-linked PE heat shrink sleeve production line equipment - available as a complete turnkey package alongside finished sleeves for pre-insulated pipe girth weld joint protection.
Customer Cases

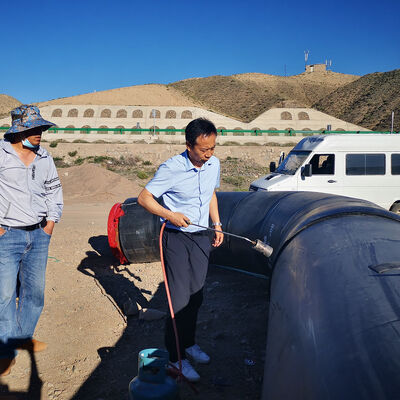

Customer installation case study
Company Profile
Qingdao Huashida Machinery Co., Ltd. is a professional manufacturer with 21 years of experience specializing in pre-insulated pipe girth weld joint protection materials - including radiation cross-linked PE heat shrink sleeves for district heating and chilled water pipelines, electro-fusion weldable joint sleeves, and PE cold applied anti-corrosion tape.
Our main products include:
  • Radiation Cross-Linked PE Heat Shrink Sleeves - for pre-insulated pipe girth weld joints, oil and gas pipeline field joint coating, and drainage pipeline joint protection
  • HDPE jacket pipe pre-insulated pipe production line (110-2200mm, district heating and chilled water)
  • Rigid PUR spray PE wrapping pre-insulated pipe production line (508-1620mm)
  • Flexible pre-insulated pipe (PERT) production line
  • Steel pipe FBE/2LPE/3LPE anti-corrosion coating lines (36-4200mm)
  • Turnkey cold applied PE anti-corrosion tape production lines
  • PE pressure pipe/water gas supply pipe production line
  • Pipeline anti-corrosion materials: heat shrink joint coating sleeve, electro-fusion weldable joint sleeve, portable welding gun (extruder), PE/PP welding rod
Our Team
Qingdao Huashida professional team
Delivery

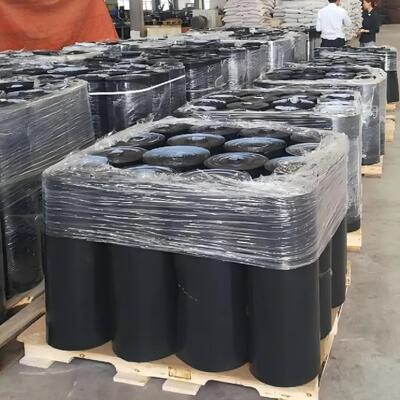

Product delivery and logistics
Exhibition
Industry exhibition participation
Certifications
Company certifications and quality standards
