Product Description

High-Speed Automatic Pre-Insulated Pipe Extrusion Production Line for pre-insulated pipe is designed by Qingdao Huashida Machinery Co., LTD. It  absorbs and improves developed HDPE pipe extruding technology. It is mainly composed of working steel pipe, PU insulation layer, plastic outer protective pipe and other parts.

Vacuum-calibrated polyurethane pre-insulated pipes deliver superior thermal insulation and long service life. Featuring a steel carrier pipe, PU insulation layer, and HDPE protective jacket, the system ensures excellent strength, corrosion resistance, and energy efficiency. Produced using advanced vacuum calibration technology, the HDPE jacket pipes offer high dimensional accuracy and consistent quality, making them an ideal choice for district heating and cooling pipeline systems.

The vacuum calibrating and insulation pipe production line is currently the most advanced and popular series of anti-corrosion and insulation vacuum sizing pipe production lines internationally.The "Insulation Pipe Production Line" of Qingdao Huashida Machinery Co., Ltd. has been recognized as a First (Set) Technical Equipment in Shandong Province.

Products Feathers

Adopting the world's advanced vacuum calibrating method (outperforming the internal pressure method), the production line ensures the HDPE jacket of pre-insulated pipes has excellent stiffness, strong pressure resistance, and a smooth surface. Absorbing and upgrading mature HDPE pipe extrusion technology, it guarantees stable and reliable product quality that meets global industry standards.

Featuring an integrated structure integrating extrusion, vacuum calibration, cooling, pulling, cutting, and stacking, the line realizes full-process automatic operation. It excels in extrusion capacity, operational stability, and long service life, significantly reducing manual intervention, improving production efficiency, and lowering labor costs for enterprises.

Widely used in manufacturing insulation pipelines for petroleum, hot water, chilled water, and chemical media, the production line caters to diverse industrial insulation needs. Its professional design for PU foaming injection pre-insulated pipes with HDPE jackets makes it a popular and advanced equipment in the global market, perfectly adapting to the demands of different industrial pipeline insulation projects.

Detailed Photos

-1set   Vacuum loader
-1set   Hopper dryer

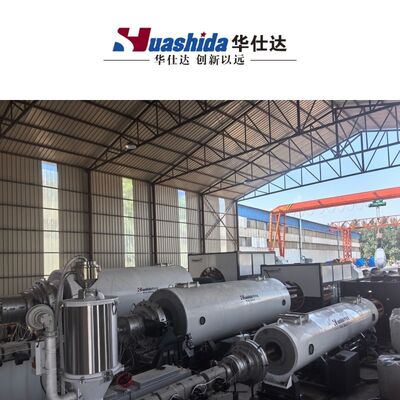

-1set   High-efficiency single screw extruder

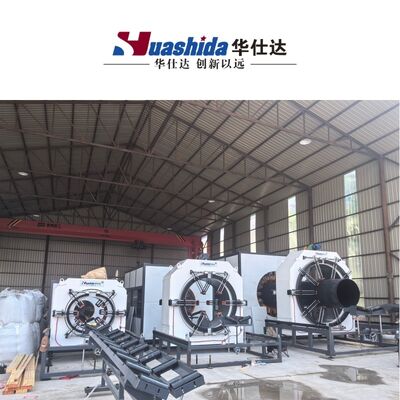

-1set   Vacuum calibration table
-1set   Water spraying tank
-1set   Hauling machine
-1set   Cutting machine
-1set   Discharging Frame
-1set   PLC

PU Foaming spray Pre Insulated Pipe Continuous Production Line

Polyurethane foam for jacket pipes

Company Profile

Qingdao Huashida Machinery Co., LTD., founded in 2003, is a global developer, manufacturer and solution provider of plastic extrusion equipment. 70% of its customers come from overseas countries such as Europe, America, the Middle East and Southeast Asia.
Welcome to our factory to discuss cooperation!
