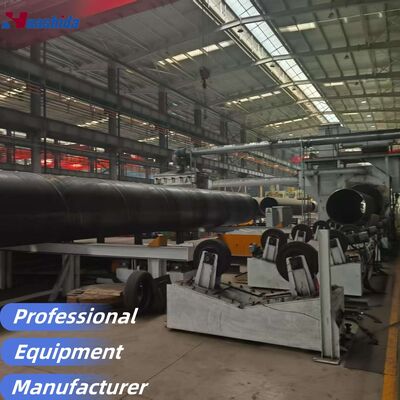

Durable Polyurethane PU Spraying Foam Pre-Insulated Pipe Production Line

The polyurethane sprayed polyethylene thermal winding preinsulation pipe production line, independently developed by Huashida, is composed of three main sections: the external shot blasting and derusting collector production line, the polyurethane spraying production line, and the PE winding production line. This production line holds numerous national patents and has been rated as having a technology advanced level of 5 by a third-party standardized evaluation, indicating that it has reached the domestic leading level. It has also been awarded the first set of technical equipment in Shandong Province.

Producing technology flow of the polyurethane coating steel preinsulated pipe equipment:

1. Remove rust from steel pipe surface
2. preheat the steel pipe to get it ready for polyurethane spraying

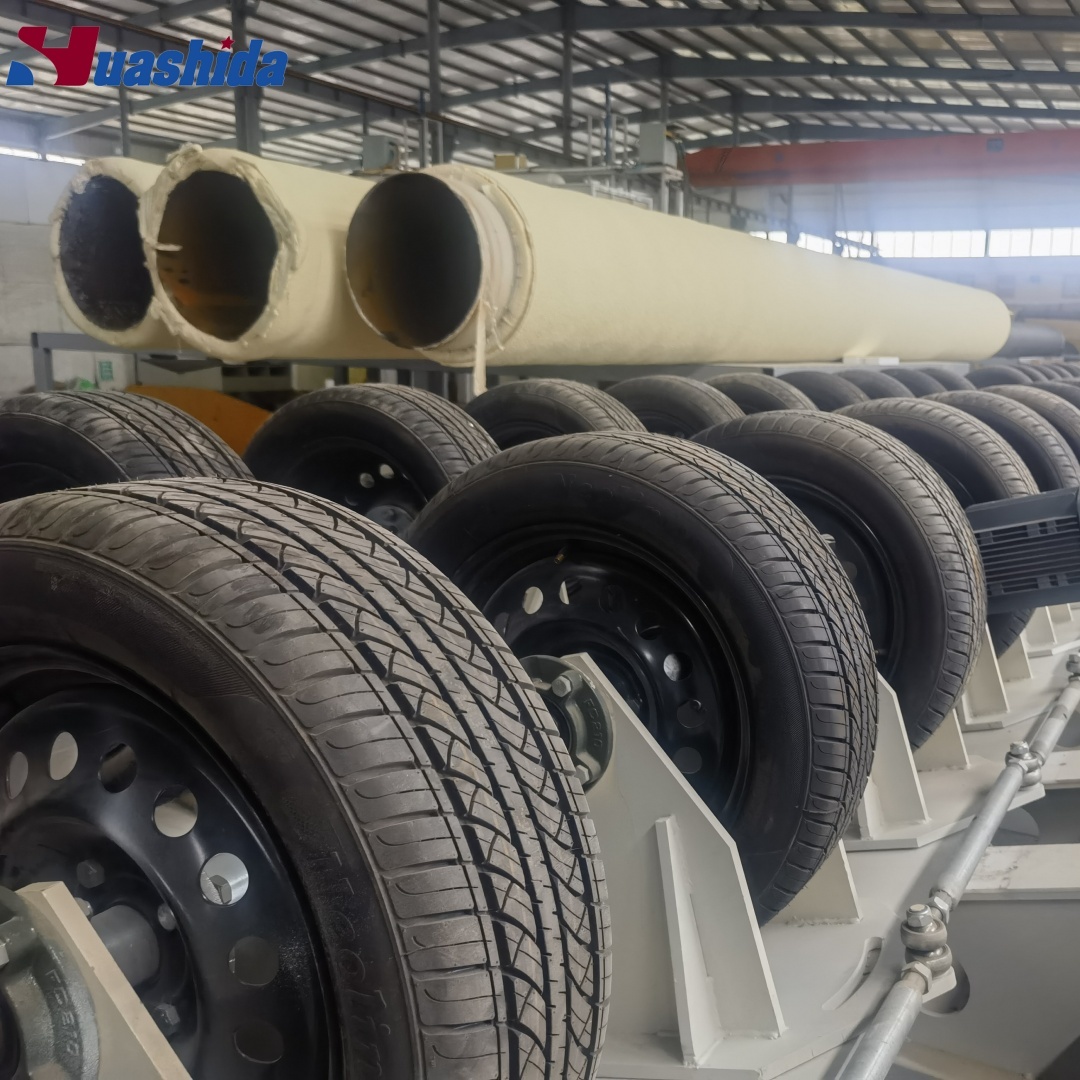

3. Spray polyurethane evenly on steel pipe outer surface
4. Wrap melted HDPE strap around the PU foam
5. Trim the pipe ends

Product Parameters



Steel pipe diameter	Thickness of insulation pipe	Diameter of outer protective tube	Minimum wall thickness of outer protective layer
500	30-60	580-640	5.6
630	30-60	710-772	6.6
710	30-60	790-850	7.2
800	30-60	885-950	7.9
900	30-60	980-1054	8.7
1000	30-60	1090-1155	9.4
1100	30-60	1190-1250	10.2
1200	40-100	1316-1436	11
1400	50-100	1538-1638	12.5
1500	50-100	1638-1738	12.5



Detailed Photos

Production line equipment Photos show

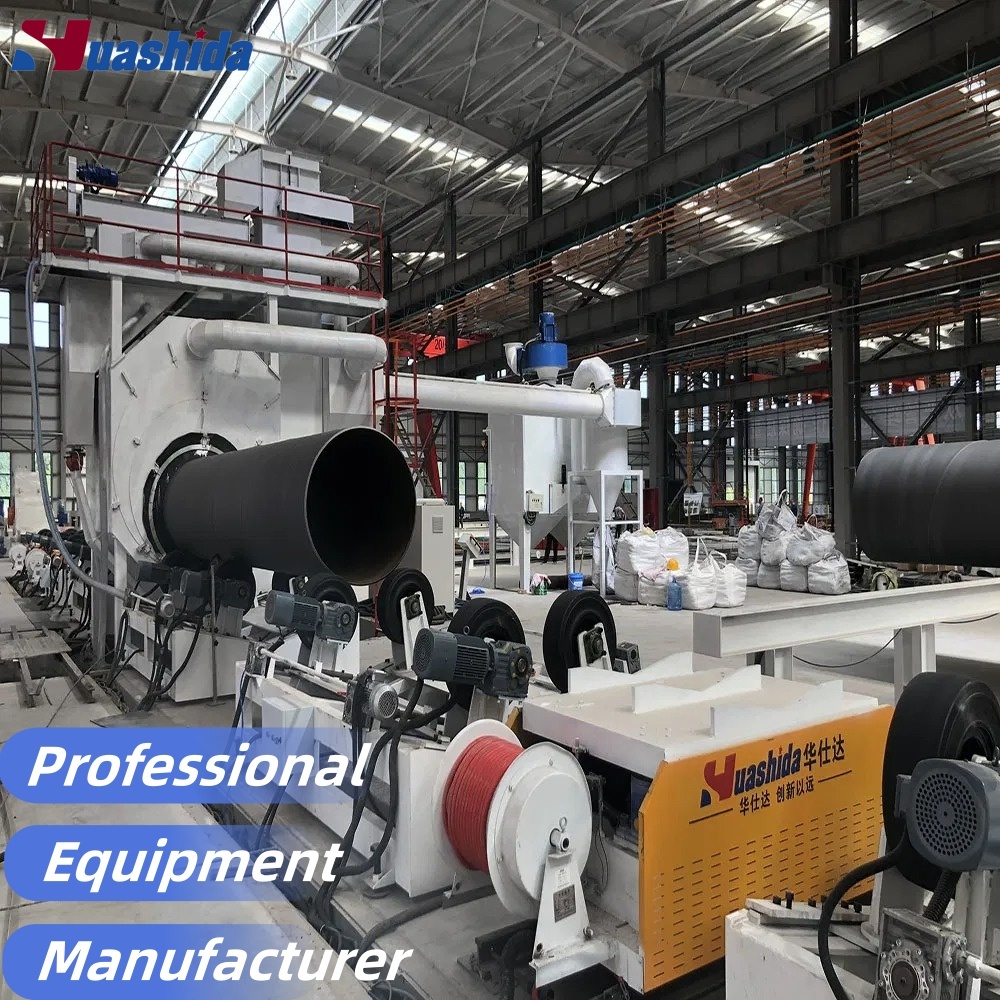

Rust Removal

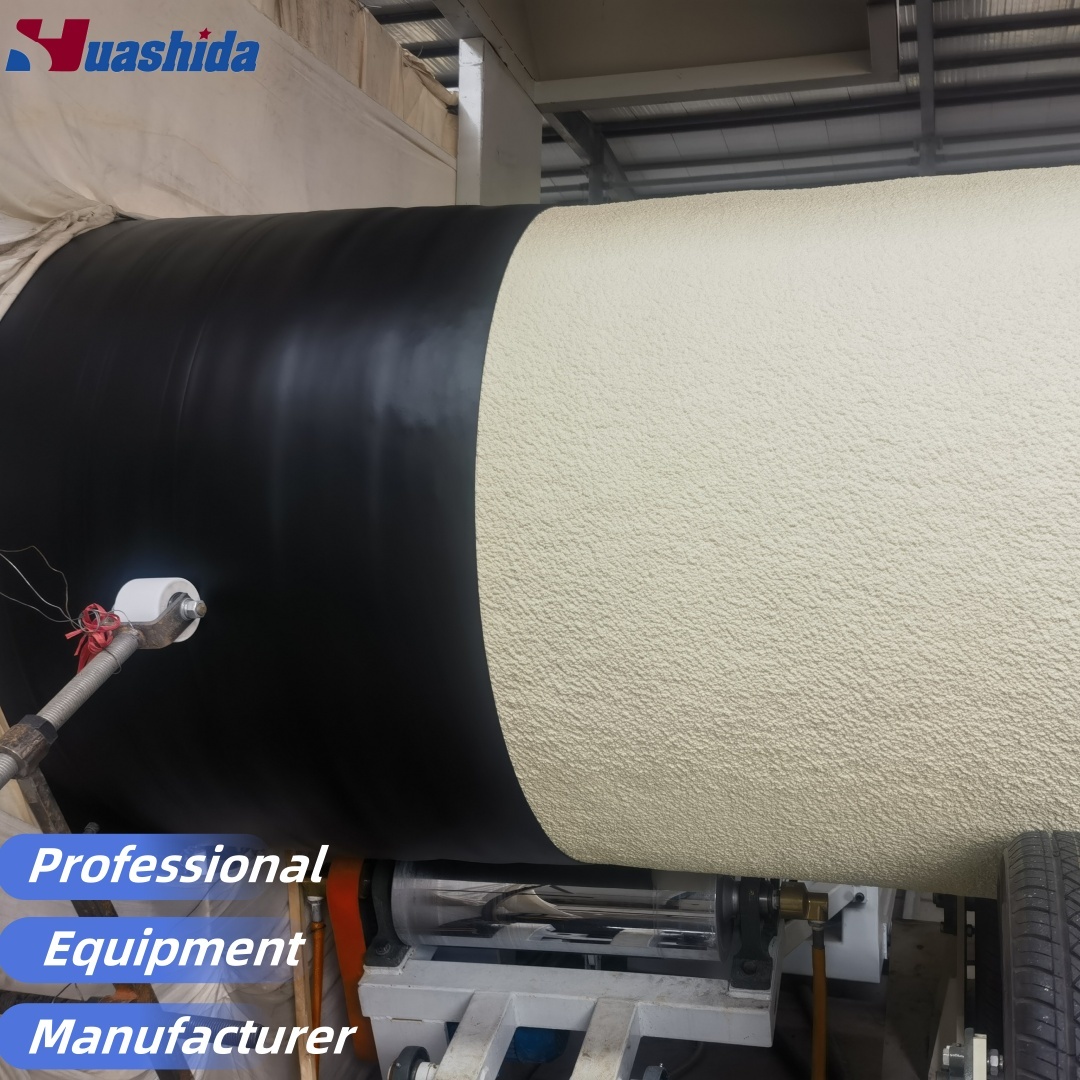

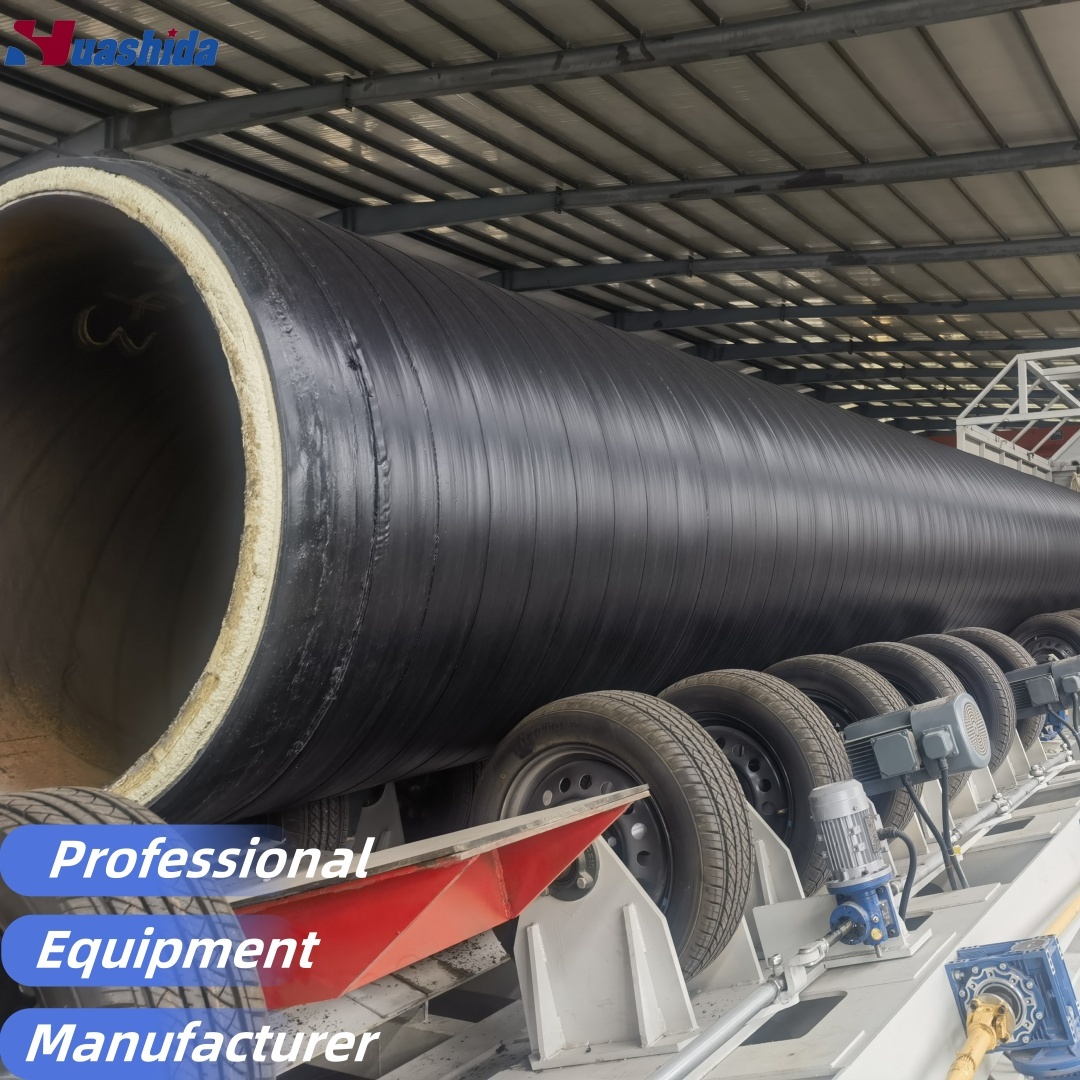

PE film jacket wrapping

PE Jacket Water quenching



Qingdao Huashida Machinery Co., Ltd was established in 2003. Since its inception, Huashida has focused on plastic polyurethane insulation pipe production line, 3LPE anticorrosion pipe production line, large diameter underground pipe production line and plastic pipe joints for 20 years. We always attach great importance to research and development,collaborating closely with Beijing University of chemical technology, Qingdao university of technology and scientific research institutions. by absorbing advanced technology home and abroad, after 22 years of endeavor we now rank one of the top 3 manufacturers in the industry in China.  Huashida machines have been well received in Saudi Arabia, Kazakhstan, Uzbekistan, United Arab Emirates, Turkey, Russia, etc.

Welcome to our factory to discuss cooperation!
