Name: 508-1620mm Polyurethane PU Spray Foam Pre-Insulated Pipe Production Line with Shot Blasting Equipment
Brand: Qingdao Huashida Machinery Co., Ltd.
SKU: 50-1600MM
Price: 1,507,500.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Pipe Diameter Range: 500-1600MM

Foaming Machine: High-Pressure Foaming Machine

Rust Removal Quality: ≥2.5 Grade

Type: Polyurethane Foam Machine

Highlight:

polyurethane spray foam pipe production line

pre-insulated steel pipe making machine

shot blasting equipment for pipe production

Basic Infomation

Place of Origin: QINGDAO,CHINA

Brand Name: HUASHIDA

Certification: CE, ISO9001:2008

Model Number: 50-1600MM

Payment & Shipping Terms

Packaging Details: Wodden Box

Delivery Time: 60DAYS

Payment Terms: L/C,D/P,T/T,Western Union

Supply Ability: 30 Sets/Year

Gallery

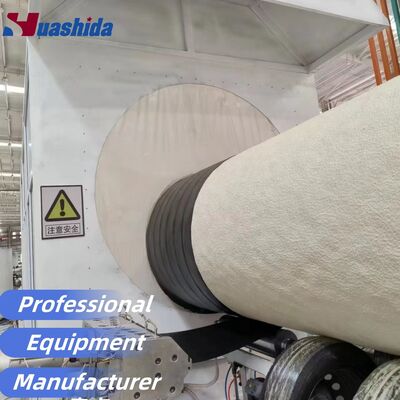

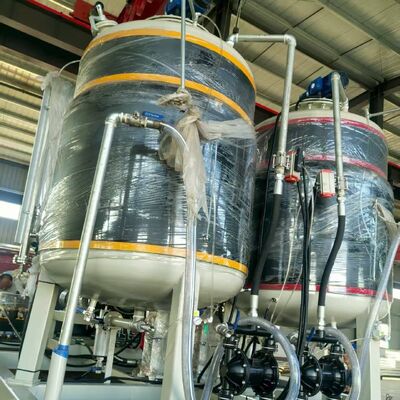

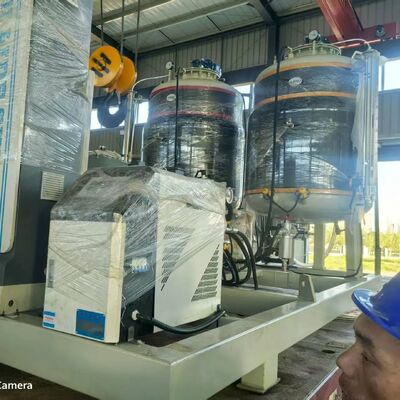

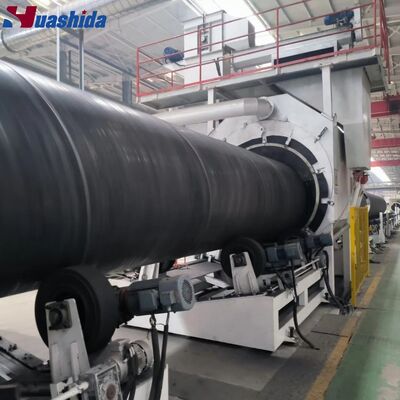

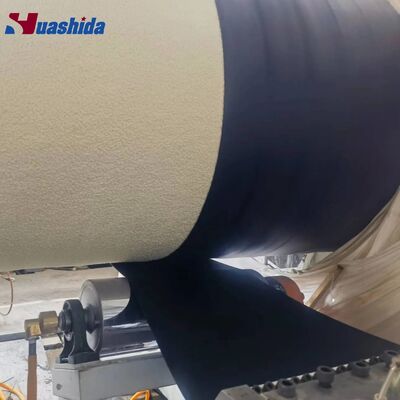

508-1620mm Polyurethane PU Spray Foam Pre-Insulated Pipe Production Line with Shot Blasting Equipment

Product Description

508-1620mm Polyurethane PU Spray Foam Pre-Insulated Pipe Production Line with Shot Blasting Equipment

The production line of polyurethane sprayed polyethylene heat-wrap insulation pipes independently developed by our company has obtained multiple national patents. According to the third-party standardized evaluation report, our technology is rated as Level 5, reaching the high level in China. It has also been awarded the title of the "First Set of Technical Equipment" in Shandong Province.

This production line adopts the continuous spraying or intermittent spraying production process. It is a high degree of automation, high production efficiency, savings in raw materials, an increased closed-cell rate of foaming, a reduced water absorption rate, and a three-in-one molding method, making its performance more reliable. The products have higher economic and social benefits in terms of being low-carbon, environmentally friendly.

Pipe diameter range: 500-1600MM,Foaming thickness(mm):30-100mm,HDPE Jacket thickness:3-10mm

Technological flow:

Steel pipe External shot blasting ----> PU foam spraying----> PE film wrapping----> water cooling---->cutting down pipeline---->trim end of pipe---->printing mark&loading down finished pipe---->sealing end of pipe

The spray coating and winding process for polyurethane insulation pipe products offers several key advantages:

• Enhances the mechanical properties of the outer protective tube.
• Thins the wall of the outer protective tube.
• Lowers the water absorption rate of the insulation layer.
• Increases the closed cell rate of the insulation layer.
• Decreases the eccentricity of the insulation pipe axis.
• Improves the uniformity of the overall insulation layer density throughout the pipeline.
• Boosts the compressive strength of the insulation layer.
• Reduces the thermal conductivity of the insulation layer, thereby minimizing energy loss.

Steel Pipe Coverage Range	520mm - 1620mm
Processing Capacity	≤ 250m²/h
Cleaning Level	Sa2.5
Materials Used	Black Material (Isocyanate), White Material (Combined Polyether), Polyethylene
Main Equipment	Comprising three parts: 1. Shot Blasting and Rust Removal Production Line 2. Polyurethane Spraying Production Line 3. PE (Polyethylene) Wrap Production Line

Qingdao Huashida Machinery Co., Ltd. was established in 2003 and is a manufacturer specializing in thermal insulation and anti-corrosion equipment.We offer one-stop pipeline solutions.Focus on the global international market.The insulation pipe production lines and 3lpe Anti-Corrosion Coating line developed and manufactured by Huashida are widely used in the construction of municipal heating, sewage, water supply, natural gas and communication pipe networks, crude oil pipeline transportation, communication and agricultural irrigation and other fields.
