Automated Pre-Insulated Pipe Production Line with High-Pressure Air Type Polyurethane Spray Foam

The polyurethane sprayed polyethylene thermal winding preinsulation pipe production line, independently developed by Huashida, is composed of three main sections: the external shot blasting and derusting collector production line, the polyurethane spraying production line, and the PE winding production line. This production line holds numerous national patents and has been rated as having a technology advanced level of 5 by a third-party standardized evaluation, indicating that it has reached the domestic leading level. It has also been awarded the first set of technical equipment in Shandong Province.

The production line utilizes a continuous spraying process, characterized by high automation, rapid production efficiency, and raw material savings. It also features an increased foaming and closed cell rate, a lower water absorption rate, trinity molding, and enhanced reliability. The products manufactured are low-carbon and environmentally friendly, offering significant economic and social benefits.

Producing technology flow of the polyurethane coating steel preinsulated pipe equipment:

1. Remove rust from steel pipe surface

2. preheat the steel pipe to get it ready for polyurethane spraying

3. Spray polyurethane evenly on steel pipe outer surface

4. Wrap melted HDPE strap around the PU foam

5. Trim the pipe ends

Technical Features:
1. Dust removal meets environmental standards(The three-level dust removal )
2. Suitable for the production of large-diameter insulation pipes
3. Automated operation of production lines
4. Spraying saves materials
5. Efficient extrusion of pipelines
6. Automated precision machining of pipeline interfaces

Advantage:
Awarded the first (set) technical equipment in Shandong Province
Evaluation Report on Standardization of Scientific and Technological Achievements in Qingdao City
Having multiple national patents



Product Parameters



Steel pipe diameter	Thickness of insulation pipe	Diameter of outer protective tube	Minimum wall thickness of outer protective layer
500	30-60	580-640	5.6
630	30-60	710-772	6.6
710	30-60	790-850	7.2
800	30-60	885-950	7.9
900	30-60	980-1054	8.7
1000	30-60	1090-1155	9.4
1100	30-60	1190-1250	10.2
1200	40-100	1316-1436	11
1400	50-100	1538-1638	12.5
1500	50-100	1638-1738	12.5



Detailed Photos

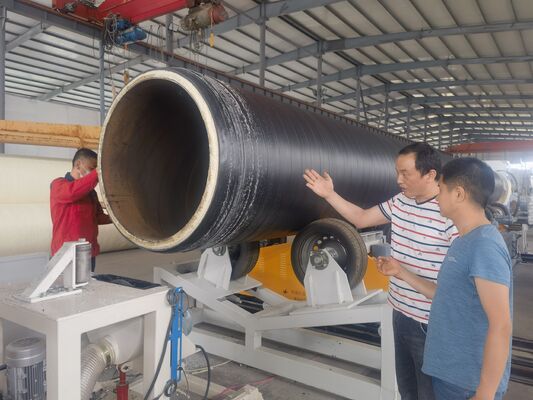

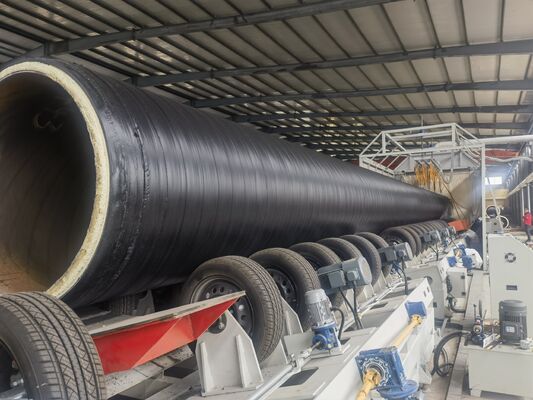

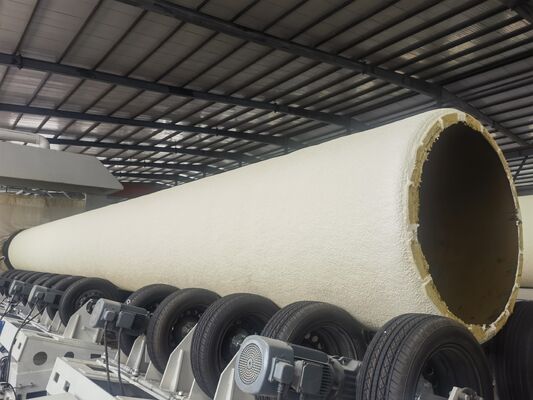

Production line equipment Photos show


Rust Removal

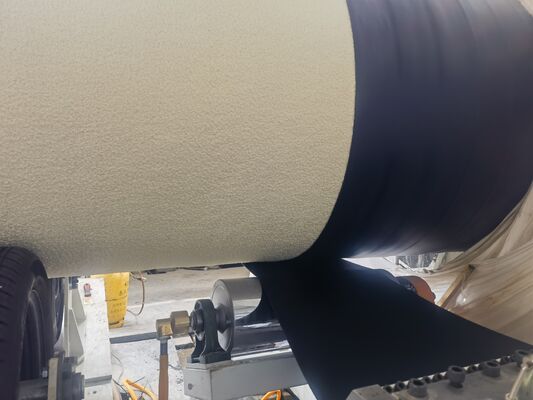

PE film jacket wrapping

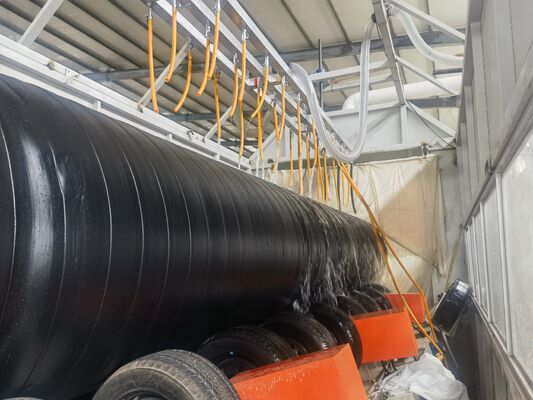

PE Jacket Water quenching
