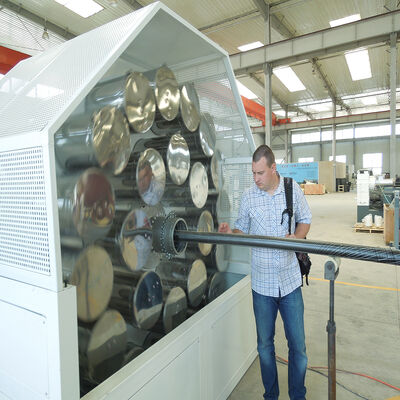

Smart Controlled PERT PU Foam Pipe Extrusion Line with One-Step Continuous Foaming Process

1 Set
MOQ
200000-250000
Price
Smart Controlled PERT PU Foam Pipe Extrusion Line with One-Step Continuous Foaming Process
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Customized: Customized
Pipe Material: HDPE,
Computerized: Computerized
Transport Package: Standard Package
Screw No: Single-screw
Use Material: PU Foam, PE And Plastic Inner Pipe
Automation: Automatic
Usage: District Heat/Chiller Supply
Highlight:

Smart controlled PERT PU foam pipe

,

One-step continuous foaming extrusion line

,

Pre-insulated pipe production line with warranty
Basic Infomation
Place of Origin: China
Brand Name: Huashida
Certification: CE, Rohs，TUV
Payment & Shipping Terms
Packaging Details: Standard Pakage
Delivery Time: 60 Days
Payment Terms: T/T
Supply Ability: 30 Sets/Year
Product Description
Smart Controlled PERT PU Foam Pipe Extrusion Line for Long Life Thermal Insulation Pipes
The polyurethane PERT pre-insulation pipe—internationally known as a flexible pre-insulated pipe—is defined in Chinese standards as Type II Heat-Resistant Polyethylene (PE-RT II) Low-Temperature Direct-Buried Heating Pipe.
This production line adopts a one-step continuous foaming process, ensuring stable performance, high production efficiency, and long-term reliability for district heating applications.
Flexible PPR PE-RT II Pre-Insulated Pipe Extrusion Machine with PU Foam
Key Features
Superior Thermal Performance
  • High Temperature Resistance: PERT II pipes can tolerate temperatures up to 110°C, ensuring reliable performance in high-temperature heating systems.
  • Efficient Heat Transfer: With a 60°C supply water and 45°C backwater temperature, these pipes meet heating demands efficiently, reducing energy consumption and costs.
Quality and Safety
  • Smooth and Pure Surface: The pipeline is smooth, free from impurities, and non-polluting, ensuring a clean and safe heating environment.
  • Automated Operation: Heating companies can achieve unattended, automated operation, reducing labor costs and increasing operational efficiency.
Construction Advantages
  • Simplified Construction: The construction process is simple and convenient, with a 40% reduction in excavation volume, greatly reducing construction costs and time.
  • Material Savings: Compared to traditional materials like PERT I and PP-R, PERT II pipes offer significant material savings. For example, compared to PERT I, PERT II can reduce material use by 15%, and compared to PP-R, it can reduce material use by 30%.
Flexible PPR PE-RT II Pre-Insulated Pipe Extrusion Machine with PU Foam
Product Parameters
It saves raw materials for using PE-RT II pipe.
Example: Level 2 design pressure: 10 Bar; for cold and hot water transfer in buildings
Selection of different material pipes: the highest PE-RTIIS value; the thinnest wall thickness
  • Compared to PERT I, PERT II can reduce material use by 15%
  • Relative to PP-R, PERT II can reduce material use by 30%
Note: According to relevant Chinese national standards and draft
Material Grade Dia. (mm) Wall Thickness (mm) Wall Thickness Area (m²) Density (kg/m³) Length (m) Weight (kg) Weight Save PERT/X
PERT II S3.2 16 2.2 9.5E-05 947 1000 90
PERT I S2.5 16 2.7 1.1E-04 933 1000 105 -17%
PP-R S2 16 3.3 1.3E-04 900 1000 118 -31%
PERT II S3.2 20 2.8 1.5E-04 947 1000 143
PERT I S2.5 20 3.4 1.8E-04 933 1000 165 -15%
PP-R S2 20 4.1 2.0E-04 900 1000 184 -29%
PERT II S3.2 25 3.5 2.4E-04 947 1000 224
PERT I S2.5 25 4.2 2.7E-04 933 1000 256 -14%
PP-R S2 25 5.1 3.2E-04 900 1000 287 -28%
PERT II S3.2 32 4.4 3.8E-04 947 1000 361
PERT I S2.5 32 5.4 4.5E-04 933 1000 421 -17%
PP-R S2 32 6.5 5.2E-04 900 1000 469 -30%
Flexible Polyurethane Foam Insulation Pipe Production Line
  • Products: Flexible pipe production line in polyurethane foam insulation
  • Pipe Diameter Range: 20-110 mm
  • Productivity: 1.5-5 m/min
  • Structure: Work tube - PE, PE-RT or steel; Isolation - PPU; Sheath pipe - LDPE
Model Specifications
Model Diameter Range (mm) Extruder (HP) Power (kW) Capacity (kg)
PERT-110 20-110 60/33 150 180
PERT-250 75-250 75/35 220 250
PERT-350 160-350 90/33 260 500
Flexible PPR PE-RT II Pre-Insulated Pipe Extrusion Machine with PU Foam
One-Step PERT Flexible Pre-Insulation Pipe Production Flow
Pipe Unwinding
→ Unwinding Traction
→ V-Shaped Wheel Conveying
→ Track Feeding
→ Film Encapsulation
→ Polyurethane Pouring & Foaming
→ Foam Curing
→ HDPE Outer Layer O-Shape Extrusion
→ Vacuum Coating
→ Spray Cooling
→ Winding
Company Profile
Qingdao Huashida Machinery Co., LTD, is a manufacturer of series of plastic pipe machines, municipal pipe machines, pipe insulation & anticorrosion machines, and pipe jointing & anticorrosion materials, with 21 years of production experience.
Our Main Products
  1. HDPE jacket pipe for pre-insulated pipe Production Line
  2. Rigid pre-insulated pipe Production Line
  3. Flexible pre-insulated pipe (PERT) production line
  4. Steel pipe FBE/2LPE/3LPE anti-corrosion coating line
  5. Steel pipe derusting line
  6. PE pressure pipe/Water Gas supply pipe production line
  7. PP/PE plastic board/sheet/geomembrane production line
  8. NBR PVC Thermal insulation tube/plate production line
  9. Pipeline anti-corrosion materials and instruments: heat shrink joint coating sleeve, electro-fusion weldable joint sleeve, portable welding gun (extruder), PE PP welding rod
We have been working with more than 400 overseas customers and exporting our products to Kazakhstan, Uzbekistan, Iran, Turkey, Russia, Nigeria and other countries.
Factory Overview
Factory overview of Qingdao Huashida Machinery
Our Team
Our professional team at Qingdao Huashida Machinery
Delivery
Product delivery process at Qingdao Huashida Machinery
Exhibition
Company exhibition participation
Certifications
Company certifications and quality standards Additional company certifications
