Home /Products/3LPE Coating Pipe Production Line/Turnkey Steel Pipe Internal External FBE Epoxy Coating Line for Oil Gas Pipelines

Turnkey Steel Pipe Internal External FBE Epoxy Coating Line for Oil Gas Pipelines

1
MOQ
US$232,500.00-348,800.00
Price
Turnkey Steel Pipe Internal External FBE Epoxy Coating Line for Oil Gas Pipelines
Features Gallery Product Description Request A Quote
Features
Specifications
Cleaning Grade: Sa2.5 (Internal & External)
Annual Capacity: 2 Million M²/year (Φ508mm Basis)
External FBE Thickness: 200-800μm (Customizable)
Internal FBE Thickness: 200-400μm (Customizable)
Pipe Diameter: 325-4200 Mm
Processing Output: 3-8 Km/day
Highlight:

FBE epoxy coating line for pipelines

,

steel pipe external coating line

,

3LPE coating pipe production equipment
Basic Infomation
Place of Origin: Qingdao, China
Brand Name: Huashida
Certification: CE, ISO 9001:2008, RoHS
Model Number: 325-4200mm
Payment & Shipping Terms
Packaging Details: 1200.00cm * 230.00cm * 260.00cm
Delivery Time: 70-90 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 30 Sets/Year
Product Description
Turnkey Steel Pipe Internal External FBE Epoxy Coating Line for Oil & Gas Pipelines
The internal external FBE epoxy powder coating process for steel pipe inner and outer walls is the globally recognized standard for high-performance oil and gas pipeline anti-corrosion protection in long-distance transmission pipelines, offshore pipeline construction, municipal water supply networks, and industrial fluid transportation systems.
This Turnkey Steel Pipe Internal External FBE Epoxy Coating Line delivers a complete, fully automatic turnkey FBE coating solution - integrating Sa2.5-grade internal and external shot blasting derusting with precision electrostatic Fusion Bonded Epoxy (FBE) epoxy powder coating into one matched, vendor-unified production system for large-diameter steel pipe anti-corrosion treatment.

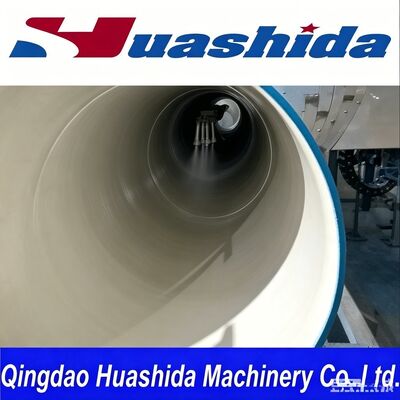

Internal & External FBE Powder Coating System
Integrated Production System
Unlike partial systems requiring separate shot blasting and coating equipment from multiple vendors, this turnkey internal external FBE epoxy coating line integrates every production stage - from steel pipe uploading through Sa2.5 internal and external shot blasting, medium-frequency induction heating, simultaneous internal and external FBE epoxy powder electrostatic spraying, zero-emission powder recovery, and finished pipe unloading - into one continuous automated workflow managed by a centralized PLC control system.
Certified to DNV, SY/T0413, GB/T23257, DIN 30670, DIN 30678, SY/T0315-2005, and CNPC38-2002 - the most comprehensive multi-standard FBE coating compliance available for oil and gas pipeline projects globally.
FBE Coating Performance Benefits
Steel pipes processed on this turnkey FBE epoxy coating system demonstrate outstanding anti-corrosion performance:
  • Exceptional corrosion resistance against long-term chemical media erosion including acids, alkalis, salts, and oxidizers
  • Smooth, dense surface structure that effectively reduces fluid transmission frictional resistance
  • Improved long-distance oil and gas pipeline conveying efficiency
  • Strong cathodic disbondment resistance meeting DNV international pipeline coating standards
  • Outstanding mechanical protection suitable for direct burial in harsh underground oilfield, coastal, and offshore pipeline environments
Process Flow
Item Process Flow
1 Upload pipes

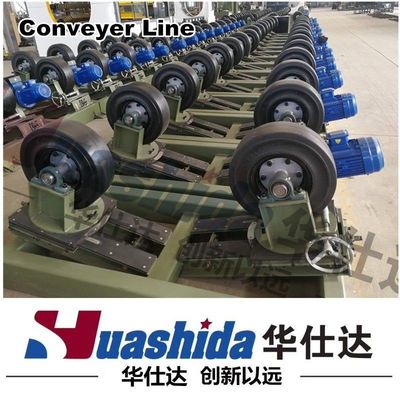

2 Pipes spiral conveyor

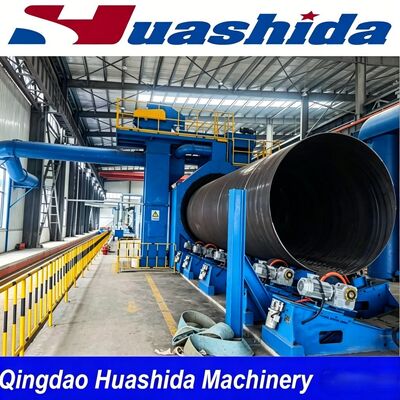

3 External blasting
4 Internal blasting
5 Rust removal

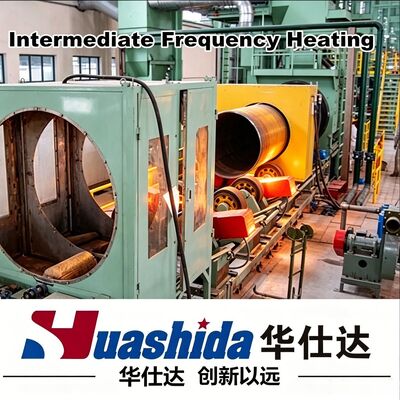

6 Intermediate frequency heating

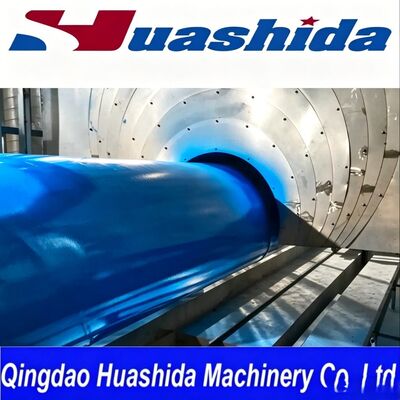

7 FBE powder coating
8 Powder recycling system
9 Load down pipe rack
Technical Advantages
  • Fully Turnkey FBE Epoxy Coating System: Shot blasting, medium-frequency heating, internal and external FBE epoxy powder spraying, powder recovery, and pipe end trimming integrated in one matched production line
  • National Patented Technology: Domestic high-end plastic machinery expert workstation with 10+ patented technologies
  • Professional FBE Engineering Team: 9 senior engineers specialized in FBE epoxy powder curing parameters and coating process optimization
  • 4,000m² Intelligent Factory: Strict ISO9001:2015 quality control system implementation
  • 99.8% Operation Stability: 100% factory trial run before delivery
  • Sa2.5 Dual-Wall Shot Blasting: Achieves Sa2.5 international surface cleanliness on both internal and external steel pipe walls simultaneously
  • Zero Dust Emission: Professional powder recovery system compliant with CE and ISO14001 environmental standards
  • Multi-Standard EPC Compliance: DNV, SY/T0413, GB/T23257, DIN 30670, DIN 30678, SY/T0315-2005, and CNPC38-2002 simultaneously
Detailed FBE Coating Line Components
Company Profile
Qingdao Huashida Machinery Co., Ltd. - Leading Manufacturer of Turnkey Steel Pipe FBE Epoxy Coating Lines. Founded in 2003, Qingdao Huashida Machinery Co., Ltd. has accumulated 21+ years of specialized manufacturing experience in turnkey steel pipe internal external FBE epoxy coating lines, steel pipe anti-corrosion coating production systems, pre-insulated pipe production lines, and large-diameter underground pipeline equipment.
Headquartered in Qingdao, China - one of China's premier industrial machinery manufacturing hubs - Huashida has grown into one of the top 3 pipeline coating machinery manufacturers in China, trusted by EPC contractors, municipal infrastructure developers, and industrial pipeline manufacturers across 60+ countries worldwide.
Core Product Range
  • Turnkey Steel Pipe Internal External FBE Epoxy Coating Lines (325-4200mm, Oil and Gas Pipelines)
  • High Speed FBE 3LPE Internal External Coating Lines for Oil Gas Pipelines
  • 36-4200mm External Shot Blasting 3LPE Steel Pipe Coating Lines
  • PUR Spray PE Pre-Insulated Pipe Production Lines (508-1620mm)
  • HDPE Jacket Pipe Casing Extrusion Lines (110-2200mm)
  • Cross-Linked PE Heat Shrink Sleeve Production Lines (Field Joint Coating)
  • Automatic HDPE PE100 Pipe Extrusion Lines (16-1600mm)

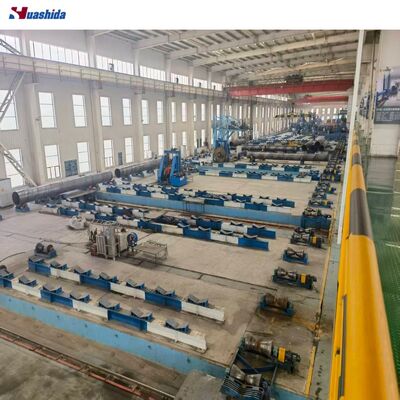

Huashida Manufacturing Facility International Trading Show Participation Client Case Studies Client Project Examples Company Certifications and Standards Compliance
