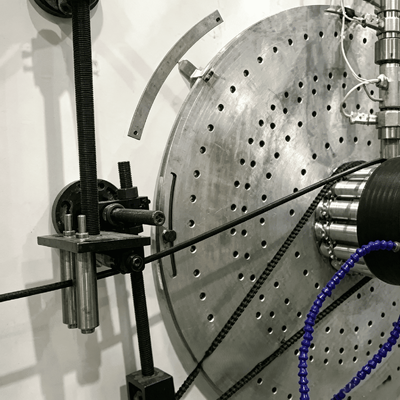

HDPE PP PVC double wall corrugated pipe production line for Municipal Drainage
Product Description
This HDPE PP PVC double wall corrugated pipe production line is a high-end engineering solution dedicated to manufacturing Weholite type hollow-wall structured corrugated pipes for municipal sewage drainage, stormwater management, and industrial wastewater pipeline systems. Adopting professional HDPE/PP/PVC processing technology, this structured wall spiral pipe extrusion line fabricates pipes with I-Beam structured wall design - delivering outstanding strength-to-weight ratio, superior ring stiffness (SN4/SN8/SN16), and consistent dimensional accuracy across a full Ø200-3000mm diameter range.

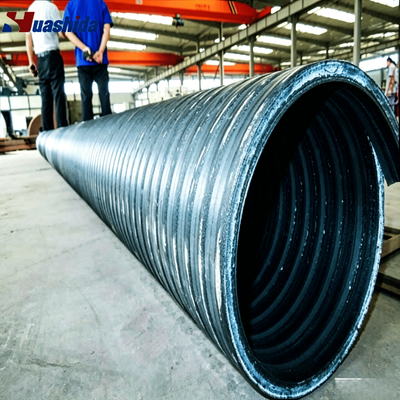

The finished HDPE structured wall double wall corrugated spiral pipes serve as the gold standard alternative to traditional cement and cast iron municipal drainage pipes - boasting a 50-year service life, excellent resistance to chemical corrosion from acids, alkalis, and salts, strong bearing capacity against external ground load pressure, and compatibility with both rubber ring socket joint and electro-fusion joint connection methods. This makes them the preferred municipal sewage drainage pipe solution for urban sewage discharge, large-scale stormwater drainage culverts, underground utility conduits, and industrial wastewater management pipeline projects worldwide.
Our Advantages
Key Features & Advantages
- Weholite I-Beam Structured Wall Technology: Mature Weholite hollow structured wall design delivers superior ring stiffness (SN4/SN8/SN16) and impact resistance while keeping pipe weight significantly lower than solid-wall alternatives - reducing installation cost and handling complexity for large-diameter municipal sewage drainage projects
- 50-Year Underground Service Life: Outstanding creep resistance and chemical stability - full resistance to acids, alkalis, salts, and all underground chemical media encountered in buried municipal sewage and stormwater drainage environments; direct replacement for aging concrete and cast-iron pipeline networks
- HDPE PP PVC Multi-Material Capability: Processes HDPE, PP, and PVC raw materials in one production line - giving municipal drainage pipe manufacturers flexibility to produce different material specifications for diverse project requirements without separate equipment investment
- Ø200-3000mm Ultra-Wide Diameter Coverage: Four models (SKRG-1200 through SKRG-3000) cover small municipal sewage collectors through the largest stormwater drainage culverts - the widest double wall corrugated pipe diameter range available in one product family
- Economical Municipal Infrastructure Solution: Low installation cost via rubber ring socket joint connection, lightweight I-Beam structured wall pipe for easy trench handling, and simple pipe jointing process - reducing overall municipal sewage drainage project construction cost versus concrete alternatives
- PLC Synchronized Intelligent Control: Full PLC centralized control system realizes precise synchronous linkage between profile extrusion and spiral winding - ensuring consistent structured wall corrugated pipe quality and stable safe operation across all diameter configurations
Technical Process
This HDPE PP PVC double wall corrugated pipe line utilizes a two-part synchronized manufacturing process ensuring full I-Beam structured wall integrity:
Process 1 - Profile Extrusion:
Raw Material (HDPE/PP/PVC) → Vacuum Feeding → High-Torque Single Screw Extrusion → Square Tube Die Head Forming → Vacuum Calibration → Spray Cooling → Traction
Process 2 - Spiral Winding & Welding:
Profile Pipe → Secondary Melt Adhesive Extrusion → Spiral Winding & Forming (Weholite I-Beam structure) → Water Cooling → Precision Automatic Cutting → Inspection & Packing
The synchronized two-process design ensures consistent ring stiffness, uniform I-Beam structured wall geometry, and stable bonding between winding layers - producing finished HDPE double wall corrugated spiral pipes that meet municipal sewage and stormwater drainage pipeline installation standards.
Product Parameters
| Model |
Pipe Diameter (mm) |
Main Extruder |
Forming Speed |
Max Output |
Installed Power |
| SKRG-1200 |
Ø400 - Ø1200 |
SJ-65(50) |
1-12 m/h |
320 kg/h |
230 KW |
| SKRG-1600 |
Ø800 - Ø1600 |
SJ-80(50) |
1-6 m/h |
500 kg/h |
310 KW |
| SKRG-2200 |
Ø1000 - Ø2200 |
SJ-90(65) |
0.5-5 m/h |
650 kg/h |
380 KW |
| SKRG-3000 |
Ø1600 - Ø3000 |
SJ-90(65) |
0.3-3 m/h |
800 kg/h |
390 KW |
Equipment List
Equipment Composition

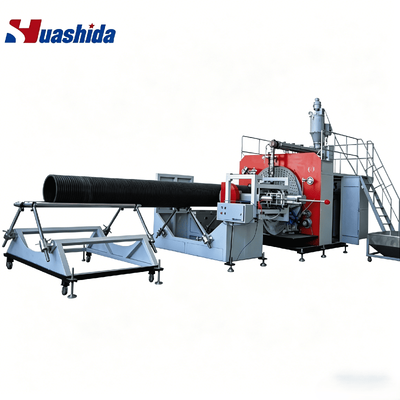

This complete HDPE PP PVC double wall corrugated pipe production line consists of two core synchronized units with integrated PLC control system:

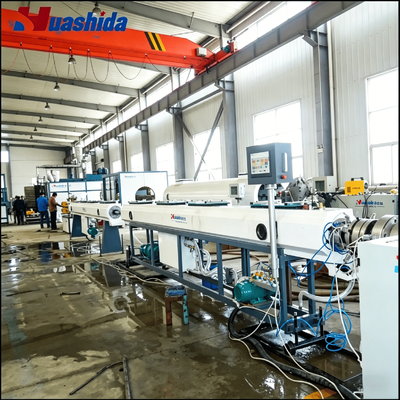

- Profile Extrusion Unit: High-torque single screw extruder (SJ-65/80/90 model dependent), square tube I-Beam die head, stainless steel vacuum calibration table, spray cooling tank, and heavy-duty haul-off machine - producing consistent I-Beam structured wall profile for HDPE/PP/PVC corrugated pipe

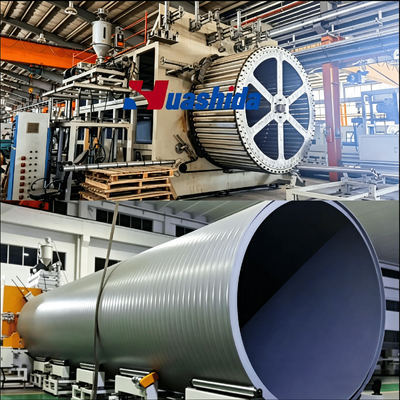

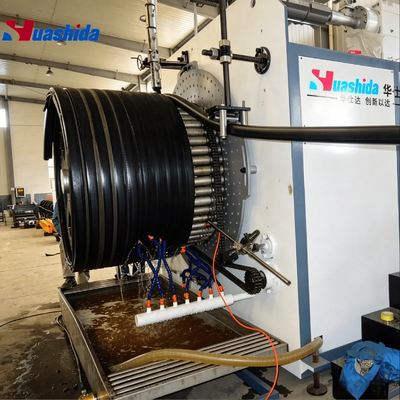

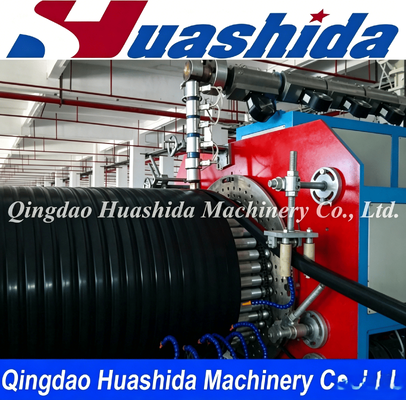

- Spiral Forming Unit: Secondary melt adhesive extruder, Weholite-type spiral winding forming machine (0.3-12 m/h winding speed), and automatic precision cutting system - forming the complete double wall corrugated hollow structured pipe at controlled winding tension
- Central PLC Control System: Full PLC centralized control realizing synchronous linkage of profile extrusion and spiral winding processes - ensuring consistent ring stiffness, wall thickness uniformity, and stable municipal sewage drainage pipe quality throughout continuous production runs
Product Applications
Product Applications
The Weholite I-Beam structured wall corrugated spiral pipe produced on this line is the industry standard for modern municipal and industrial drainage infrastructure:

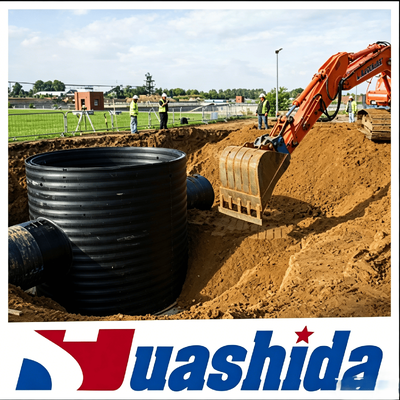

- Municipal Sewage Drainage: Urban sewage collection networks, main sewage trunk lines, and municipal wastewater drainage systems - where SN8/SN16 ring stiffness and 50-year service life make HDPE structured wall pipe the direct replacement for aging concrete sewer pipes
- Stormwater Management: Large-diameter stormwater drainage culverts, urban flood control channels, and rainwater retention pipeline systems - the Ø200-3000mm diameter range covers every stormwater drainage specification from small collectors to major trunk culverts
- Infrastructure & Culverts: Large-diameter underground utility conduits, road culverts, and highway drainage crossings requiring high ground load bearing capacity from I-Beam structured wall design
- Industrial Wastewater: Chemical fluid transportation and industrial wastewater management pipelines - full chemical resistance to acids, alkalis, and salts in harsh industrial underground environments
- Pipeline Retrofitting: Direct replacement of aging concrete, clay, and cast-iron municipal sewage drainage pipeline networks - rubber ring socket joint connection compatible with existing infrastructure layouts and trenchless installation methods
Company Profile
Founded in 2003, Qingdao Huashida Machinery Co., Ltd. is a leading manufacturer specializing in HDPE PP PVC double wall corrugated pipe production lines, plastic pipe extrusion machinery, anti-corrosion coating lines, and pre-insulated pipe systems - with 21 years of industrial R&D and manufacturing experience. With 70% of production exported to Europe, the Americas, and the Middle East, Huashida provides CE and ISO9001 certified solutions for global municipal drainage infrastructure and industrial pipeline projects.
Core Product Range:
- HDPE PP PVC Double Wall Corrugated Spiral Pipe Lines (Ø200-3000mm, Municipal Sewage Drainage)
- 3LPE/FBE Steel Pipe Anti-Corrosion Coating Lines (36-4200mm)
- Turnkey Pre-Insulated Pipe Production Lines (508-1620mm, District Heating & Oil Gas)
- HDPE Jacket Pipe Casing Extrusion Lines (110-2200mm)
- Cross-Linked PE Heat Shrink Sleeve Production Lines (Field Joint Coating)
- Geomembrane & Plastic Sheet Extrusion Systems
- Pipeline Joint Materials: Cross-linked PE Heat Shrink Sleeves and Electro-Fusion Joints
