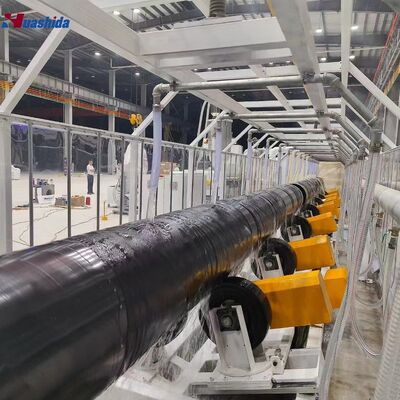

Automatic 3LPE Steel Pipe Anti-Corrosion Coating Production Line
Product Description
Huashida 3LPE Steel Pipe Anti-Corrosion Coating Line is designed for the internal and external anti-corrosion treatment of steel pipes with various diameters. The production line is suitable for manufacturing high-quality anti-corrosion steel pipes used in oil & gas transmission, district heating, water supply, petrochemical, and offshore pipeline projects.
The equipment supports multiple coating processes, including ‘Single-Layer FBE, Double-Layer FBE, 2PE, 2PP, and 3LPE (Three-Layer Polyethylene)’ coating systems. It can be customized according to different pipe sizes, coating standards, and production capacity requirements.
The complete production line can integrate 'shot blasting, induction heating, FBE powder spraying, adhesive extrusion, polyethylene coating, cooling, inspection, and pipe conveying', ensuring stable operation, uniform coating thickness, excellent adhesion, and high production efficiency.

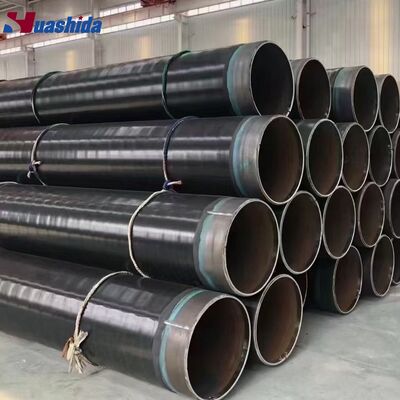

The 3LPE coating structure consists of three protective layers:
1. Fusion Bonded Epoxy (FBE) primer
2.Copolymer adhesive layer
3. High-Density Polyethylene (HDPE) outer layer
This proven coating system provides outstanding corrosion resistance, impact resistance, abrasion resistance, moisture protection, electrical insulation, and long-term durability, significantly extending the service life of buried and offshore steel pipelines.
Applications
The production line is widely used for manufacturing anti-corrosion steel pipes for:
1.Oil & Gas Transmission Pipelines
2. Natural Gas Distribution Pipelines
3. Water Supply Pipelines
4. District Heating Pipelines
5.Petrochemical Pipelines
6. Offshore and Submarine Pipelines
7. Municipal Infrastructure Projects
With years of experience in pipeline equipment manufacturing, Huashida provides customized turnkey solutions, professional technical support, installation, commissioning, and after-sales service for customers worldwide.
Detailed Photos

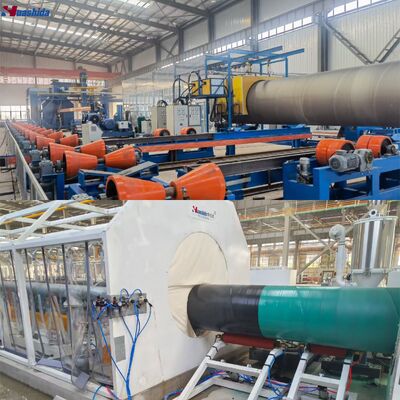

The Anti-corrosion coating processing line includes:

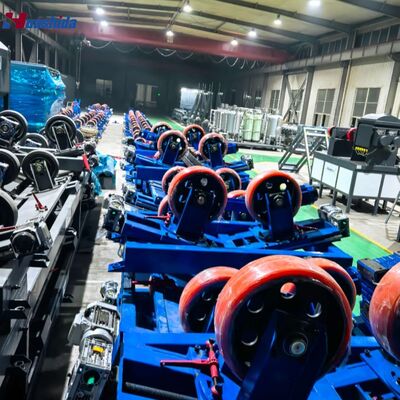

-steel pipe transmission system

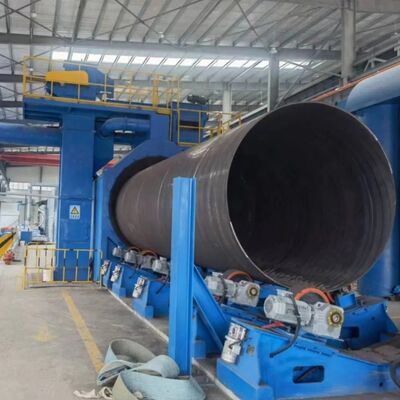

-surface treatment system
-pipe dust removal system
-pipe heating system
-electrostatic spraying system
-coating system
-water cooling system
-end cutting system
-hydraulic and pneumatic system

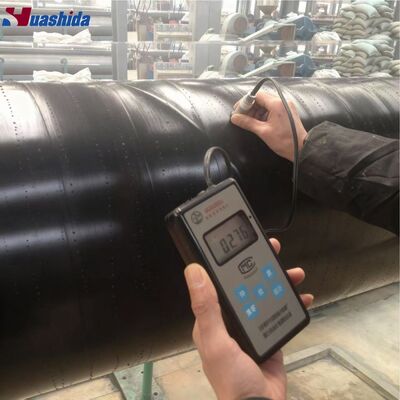

-testing system
-electronic control system
-bevelling system
Technological processes
Upload pipes→pipes screw conveyor→rust removal → intermediate frequency heating→Epoxy powder coating→outer layer adhesive polyethylene coating→cooling spray→pipes screw conveyor→grinding pipe ends→dowload pipes
Company Profile
Qingdao Huashida Machinery Co., Ltd. was established in 2003 and is a manufacturer specializing in thermal insulation and anti-corrosion equipment.We offer one-stop pipeline solutions.
The insulation pipe production lines and 3lpe Anti-Corrosion Coating line developed and manufactured by Huashida are widely used in the construction of municipal heating, sewage, water supply, natural gas and communication pipe networks, crude oil pipeline transportation, communication and agricultural irrigation and other fields.
Our main products are:
- HDPE jacket pipe for pre-insulated pipe Production Line (110-2000mm)
- Rigid pre-insulated pipe Production Line
- Flexible pre-insulated pipe(PERT) production line
- Steel pipe FBE/2LPE/3LPE anti-corrosion coating line
- Steel pipe derusting line
- PE pressure pipe/Water Gas supply pipe production line
- PP/PE plastic board/sheet/geomembrane production line
- NBR PVC Thermal insulation tube/plate production line
- Pipeline anti-corrosion materials and instruments: heat shrink joint coating sleeve, electro-fusion weldable joint sleeve, portable welding gun(extruder), PE PP welding rod.
We have been working with more than 400 overseas customers and exporting our products to Kazakhstan, Uzbekistan, Iran, Turkey, Russia, Nigeria and other countries.
